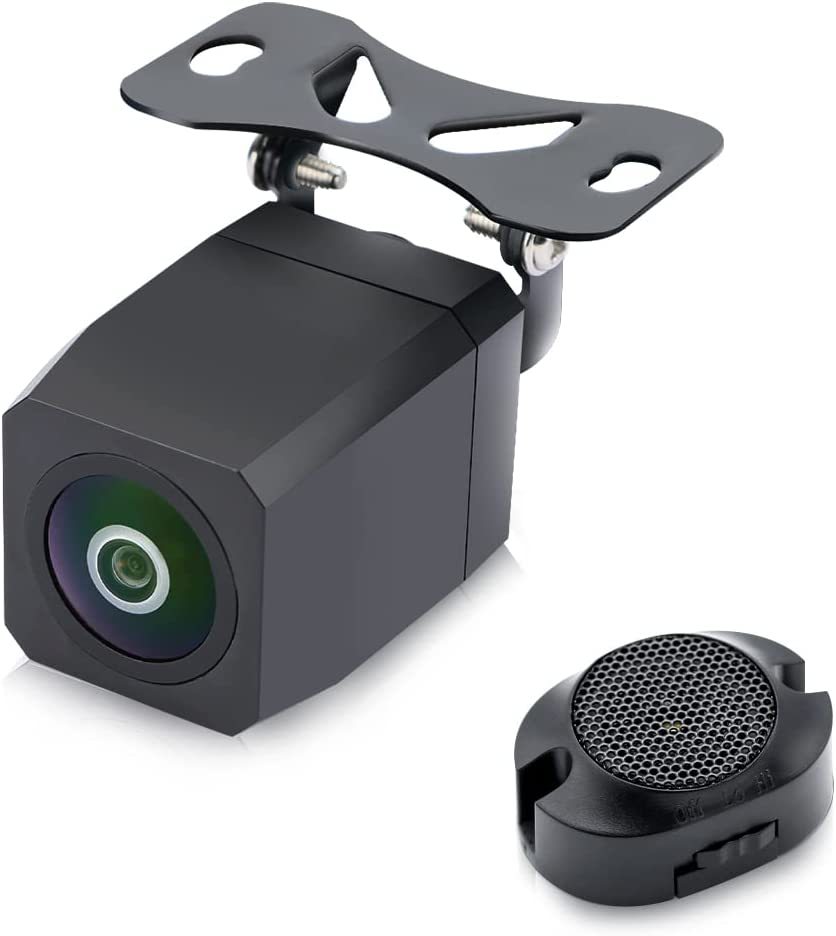

AI Sensor Alarm Backup Camera, GreenYi AHD 720P Waterproof Car Rear View Camera 170 Degrees View Angle with Fish Eye Lens Starlight Night Vision

Features:

• First AI Back up Camera---We are the first to release AI back up camera of this kind, it applies high-tech Al chip and high-definition AHD wide-dynamic photosensitive chip, it can monitor and identify the risk of reversing in the screen, greatly improving driving safety.

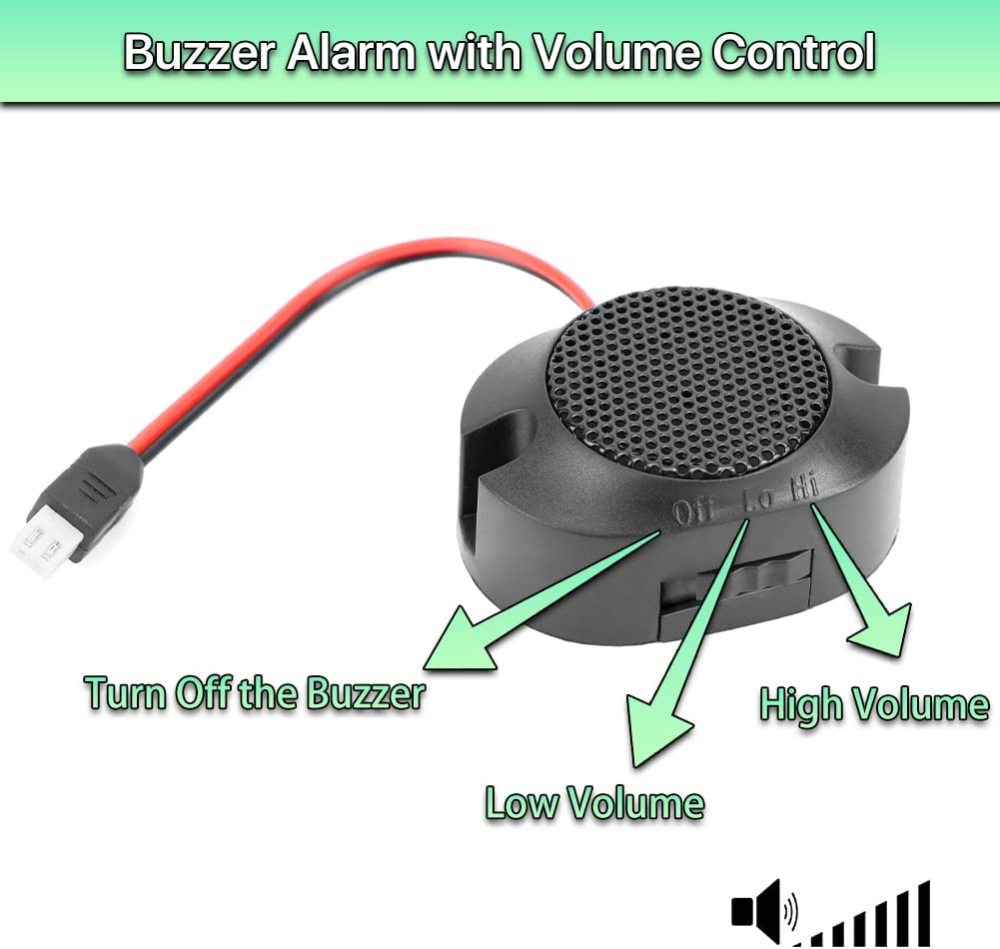

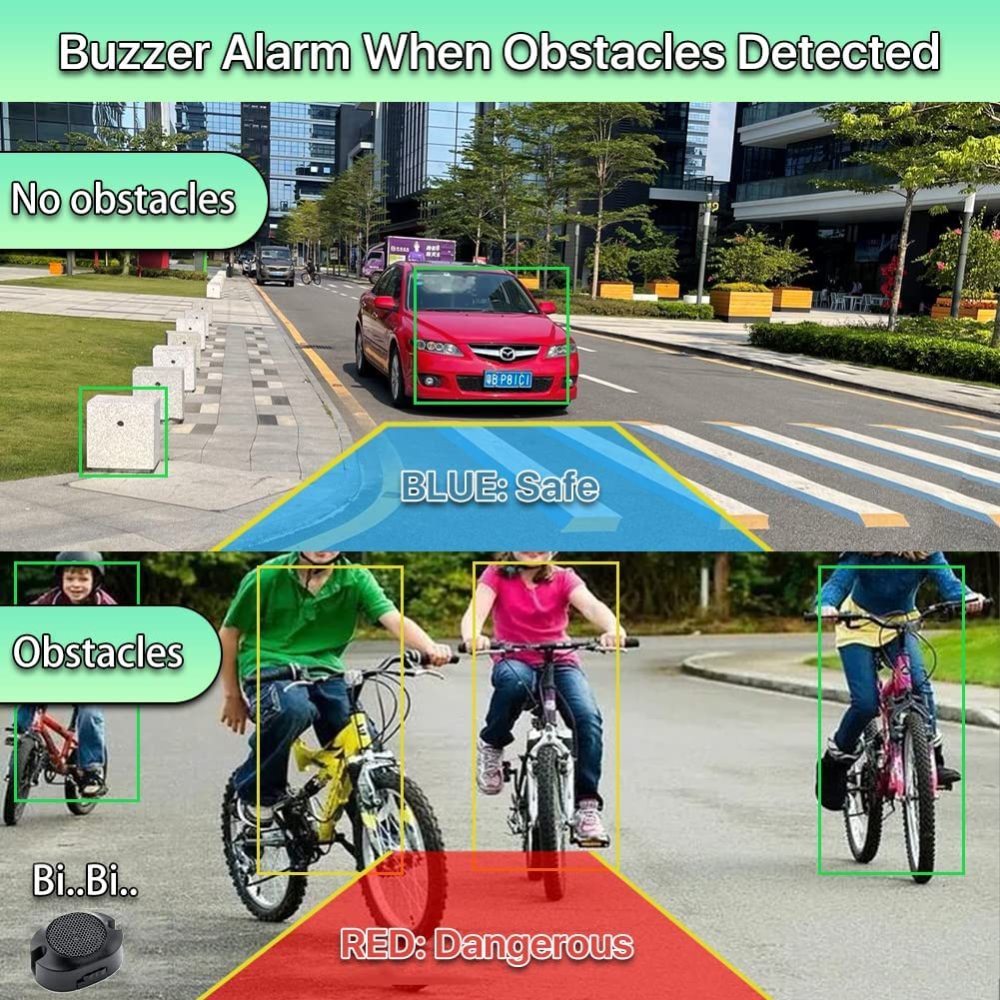

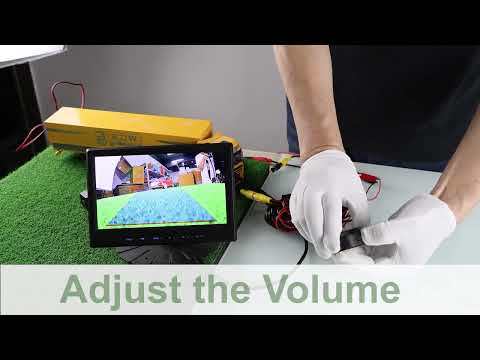

• Rear View Camera with Sound Image Alarm---Anything which may interfere with the reversing route will be identified in the output video screen, and the guideline zone in the screen changes from blue to red as a warning. At the same time, the buzzer emits a warning sound to draw driver’s attention, you can also adjust the volume to be higher, lower or turn it off.

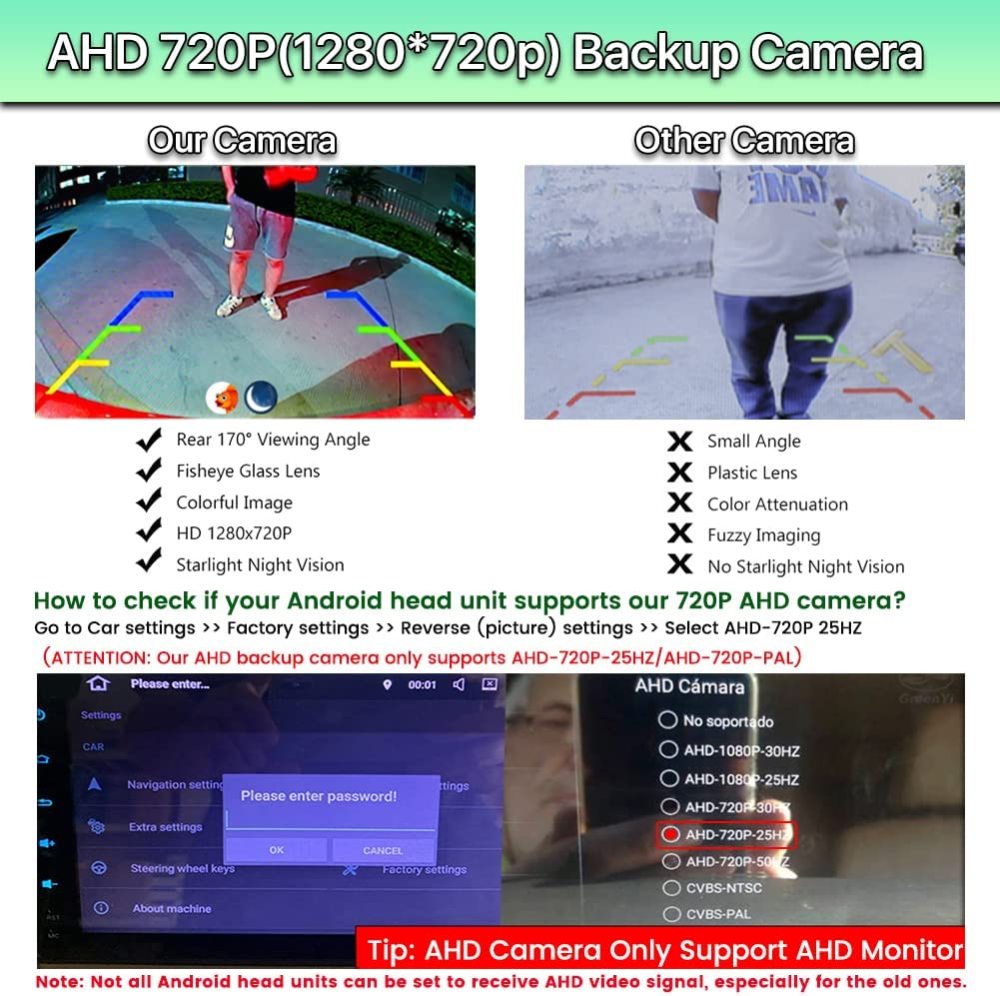

• Attention BEFORE Placing order---OUR HD 720P backup camera can only work with monitors or radio head units which support AHD 720P 25HZ/PAL video signal. Before placing an order, please check our fourth AD picture to see how to confirm if your head unit can support AHD 720P video signal. AHD video signal image is clearer than that of CVBS. NOTE: If you don't have a suitable monitor, our GreeYi-08 product is compatible with this camera---ASIN: B072FNQQXV.

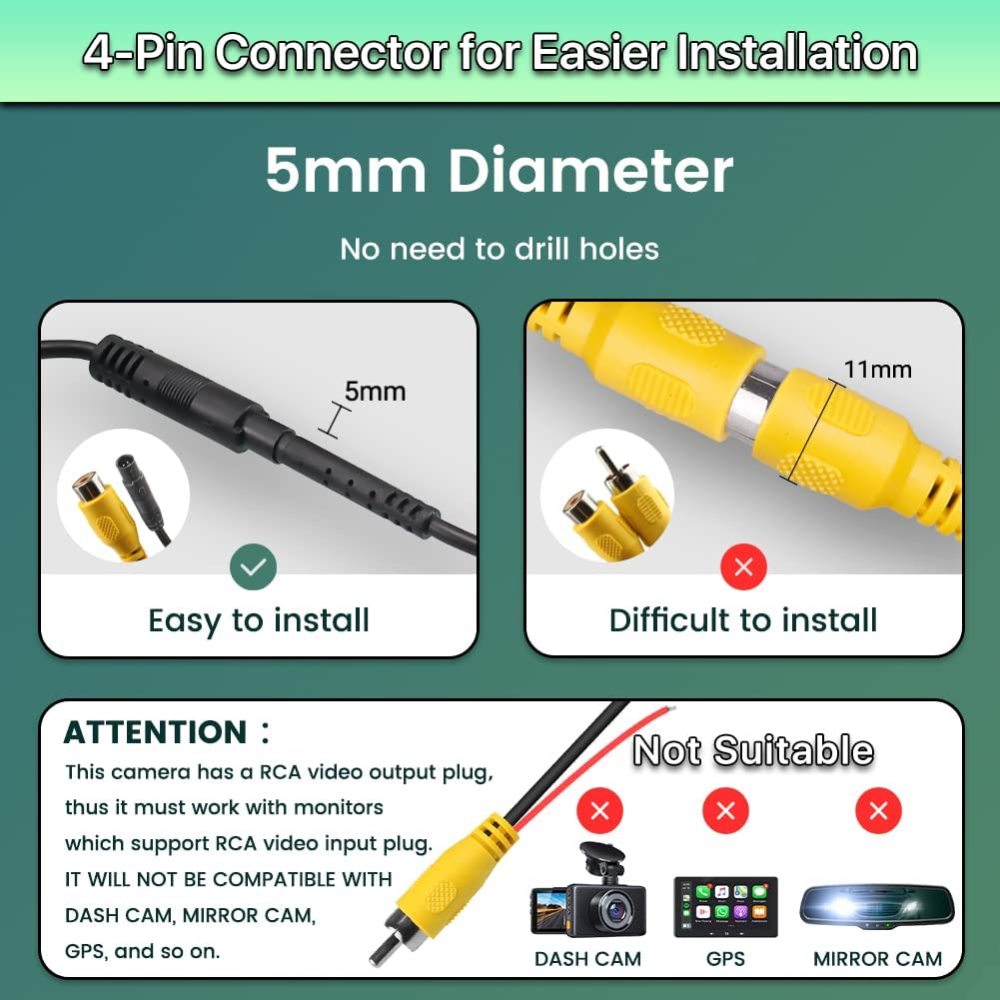

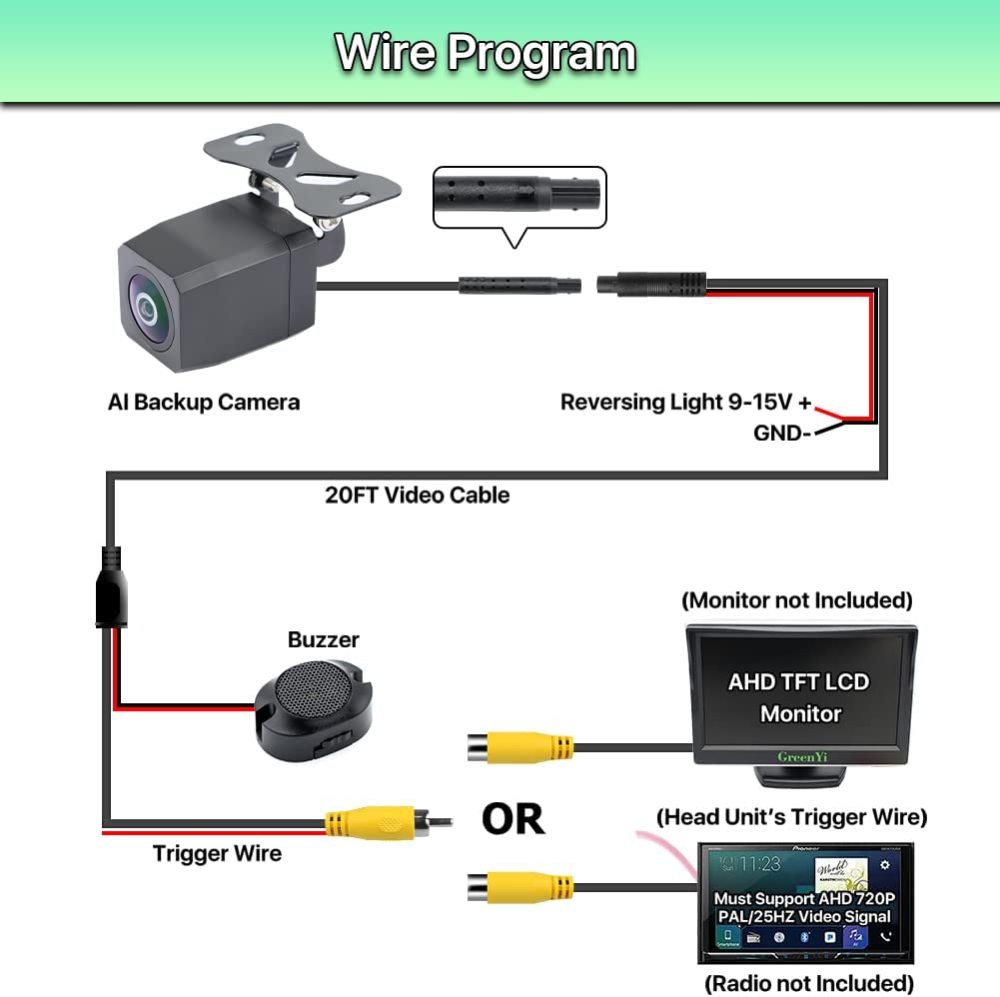

• Easy Installation with 4-pin Rearview Camera---The cable on the camera is 4pin design which is much thinner than RCA, much more convenient when running the wire, no need of drilling. NOTE: our cameras will not work with dash cam, mirror cam or GPS monitors even if they also support 4Pin connection. It must work with a monitor which supports RCA video output and AHD 720P 25HZ video signal.

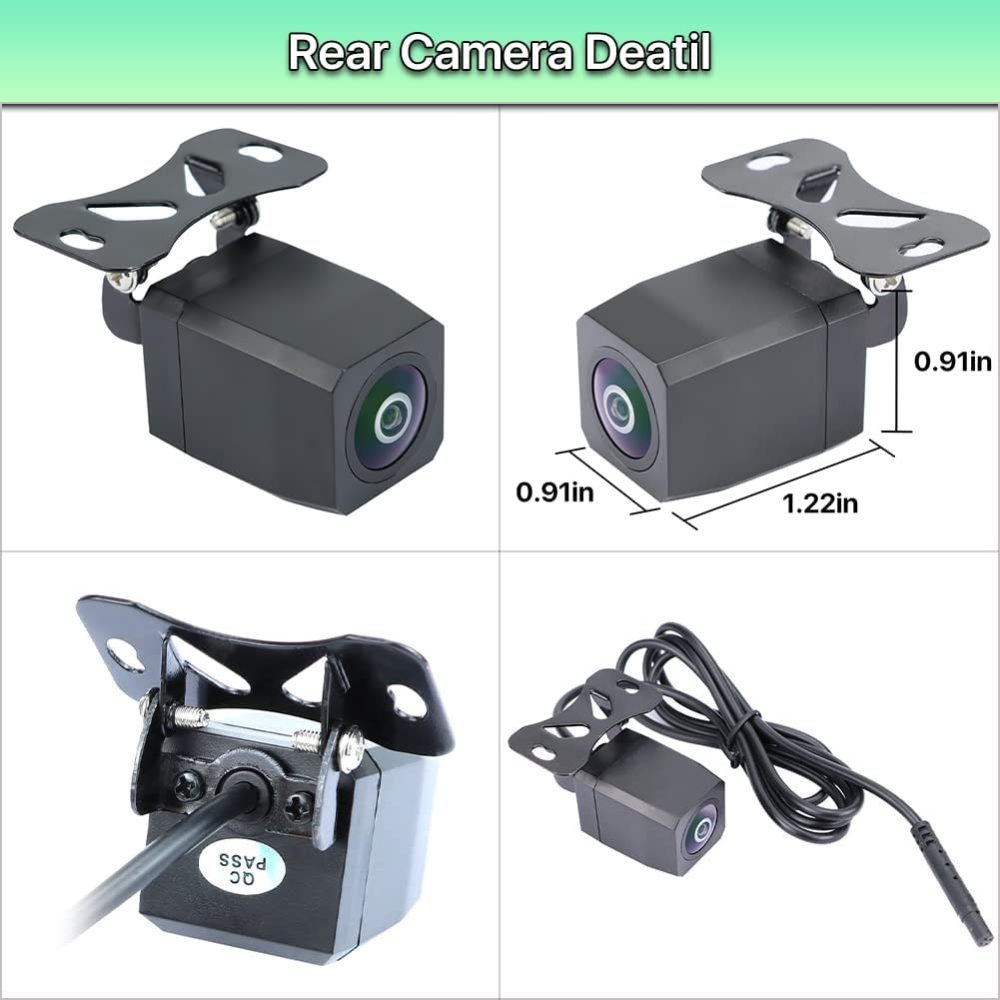

• High Quality Reverse Camera---Our reversing camera produces AHD 1280x720p resolution video signal, it has fish eye lens which enables 170 degrees wide view angle, IP68 waterproof makes it work properly under most conditions, starlight night vision have a great image effect and long distance view even in dark surroundings.

FAQ:

Q: Why there is no image shown on the screen?

A: 1. please make sure all the wire connections have been connected tightly.

2. For Android radio head units, please make sure that the trigger wires have been connected correctly.

3. Please make sure that the monitor supports AHD 720P 25HZ/PAL video signal.

4. You may also change the parts(video cable, power cable, camera part) to find out where goes wrong.

Q: Why the screen is blurry, flickering/flash or has horizontal or vertical strip?

A: 1. please make sure all the wire connections have been connected tightly.

2. Please make sure the power supply is stable.

3. Please use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference.


Attention:

All of our 4-pin cameras can't be connected directly with any other monitors(no matter DVR monitor or dash monitor or whatever) without using the power cable in the package, or it will not work properly.

Even if some dash cams or mirror dash cams also have 4-pin connection, our 4-pin cameras will not be compatible with them usually because of different PIN definition and they are using different voltage power supply.

All of our wired cameras shall be installed with monitor which has RCA connectors.

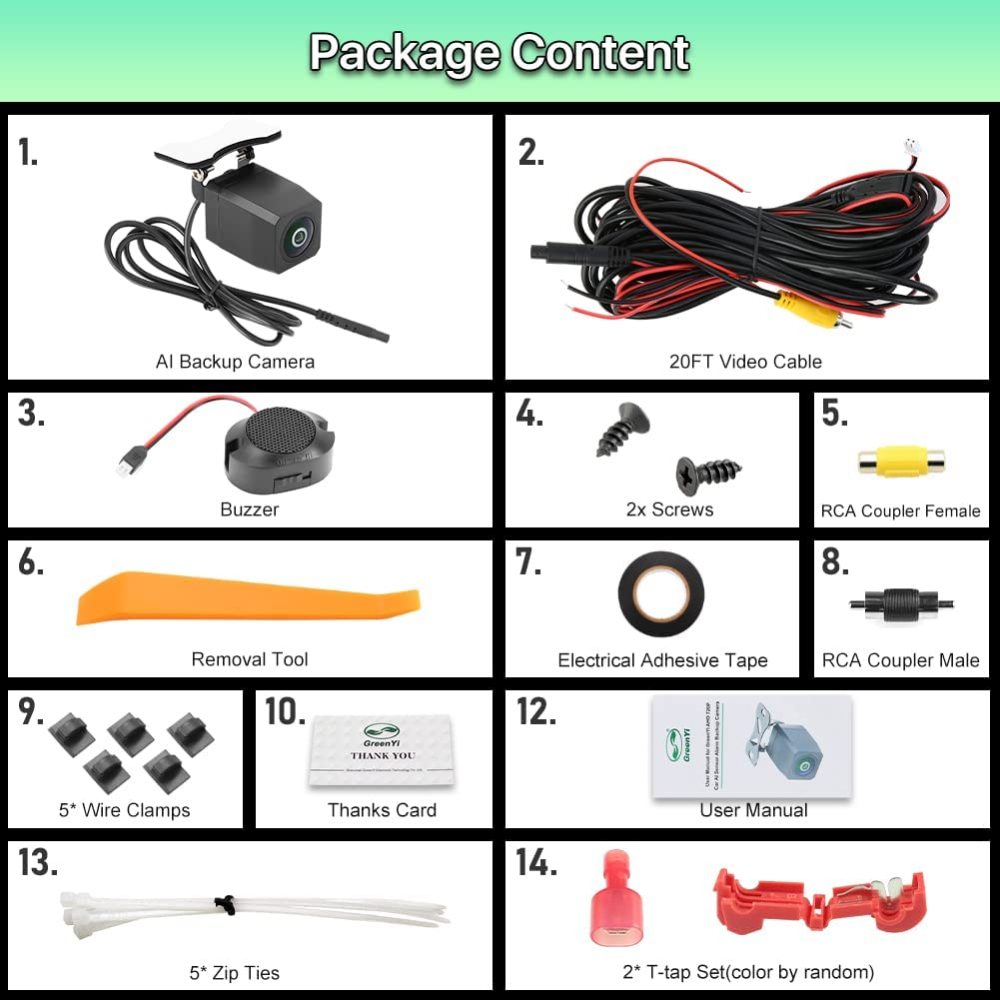

Package:

1x AI Backup Camera

1x 20FT Video Cable

1x Buzzer

2x Screws for Camera

1x User Manual
