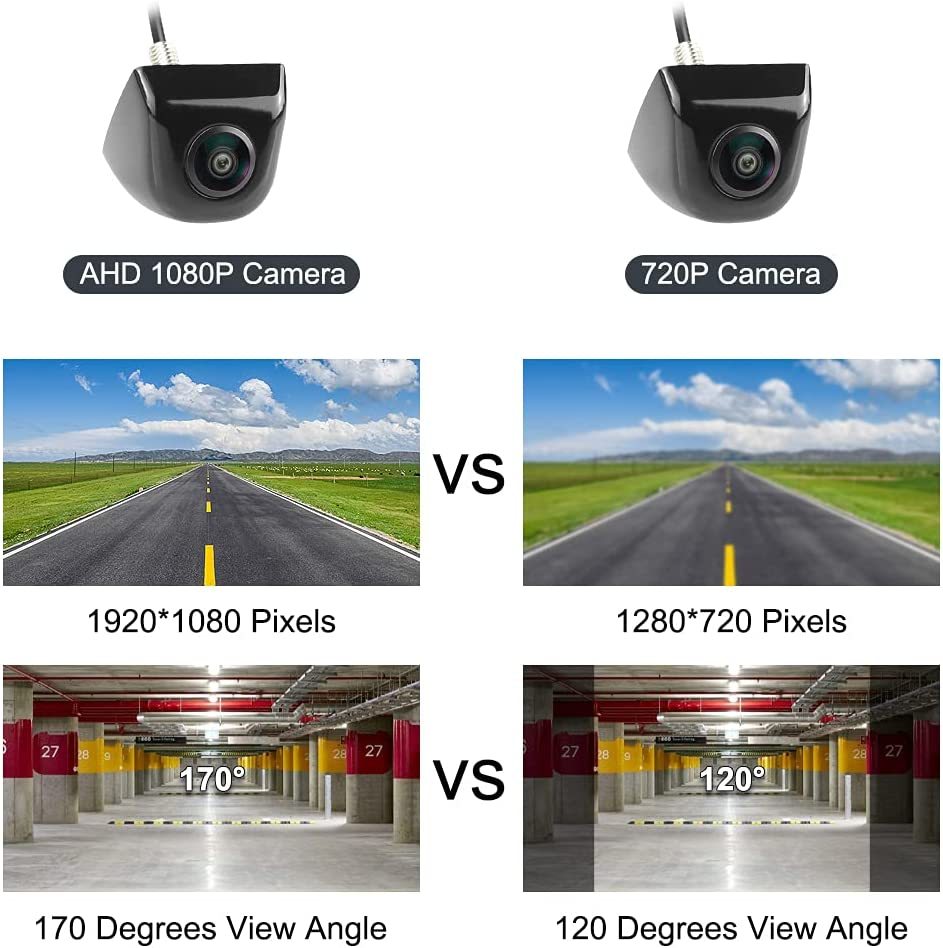

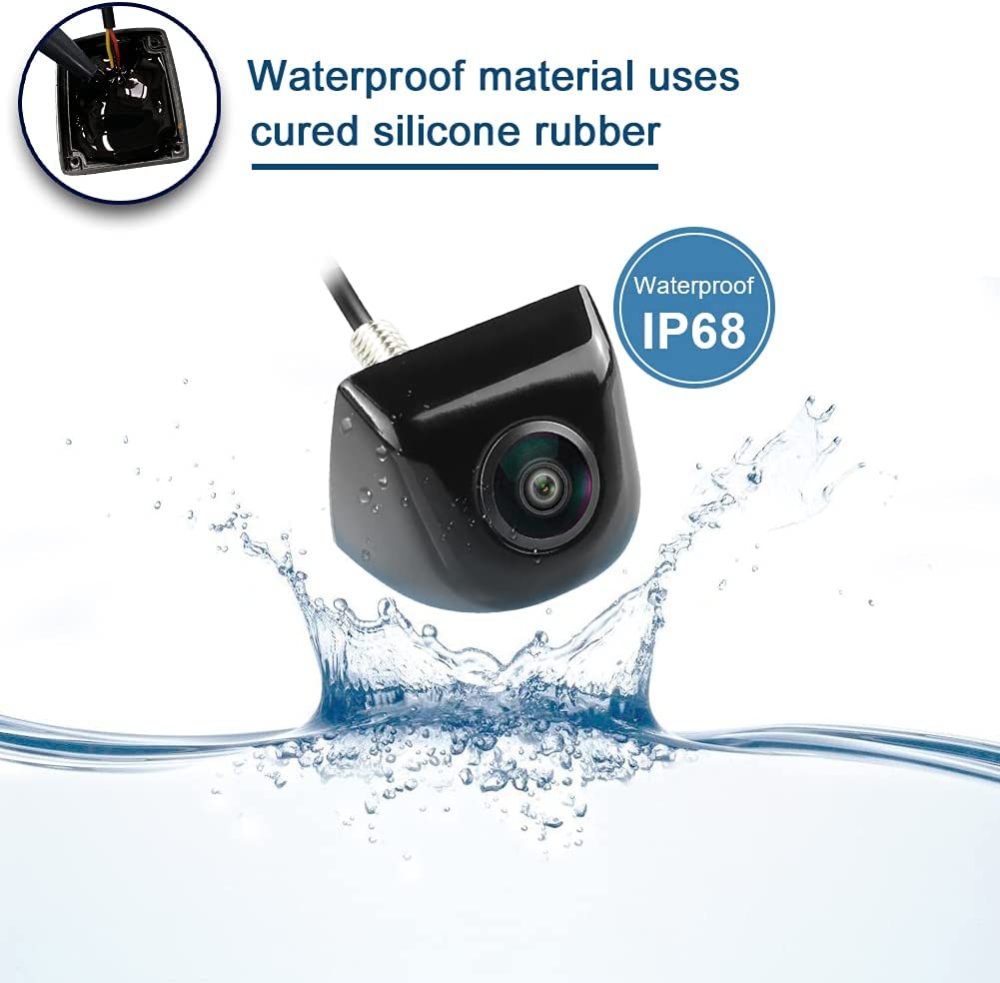

AHD 1080P Vehicle Backup Camera Only Work with Monitors Radio Head Units Supporting AHD 1080P Video Signal, GreenYi 170 Degrees View Angle with Fish Eye Lens Night Vision Waterproof Car Reverse Camera

All of our 4-pin cameras can't be connected directly with any other monitors(no matter DVR monitor or dash monitor or whatever)without using our power cable.

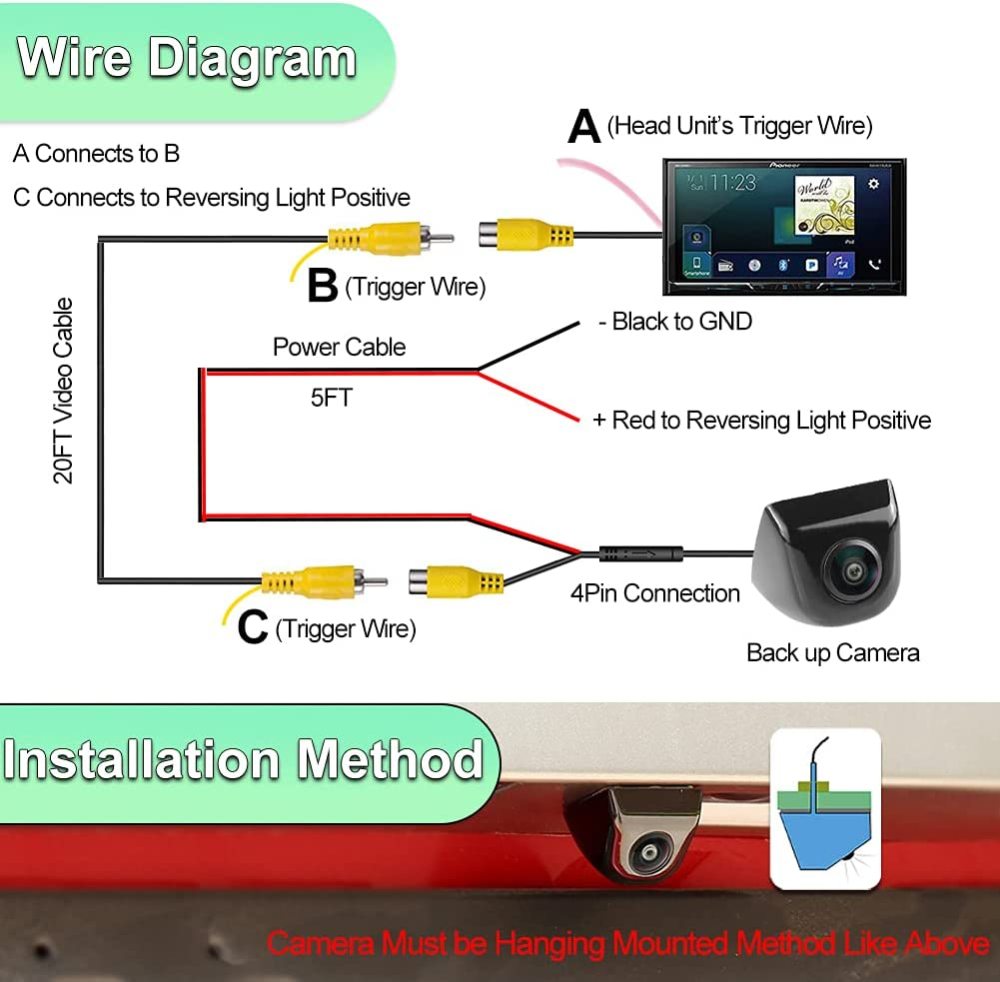

Installation Steps:

1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.

2. Connect the power cable to reversing light power supply.

3. Connect the 20ft extension wire of backup camera to the head unit/other monitors of your car.

4. Start the vehicle and gear on reverse to test the camera.

5. Re-install the head unit/other monitors.

NOTE:

Please test the backup camera before routing video cable from back to front.

If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.

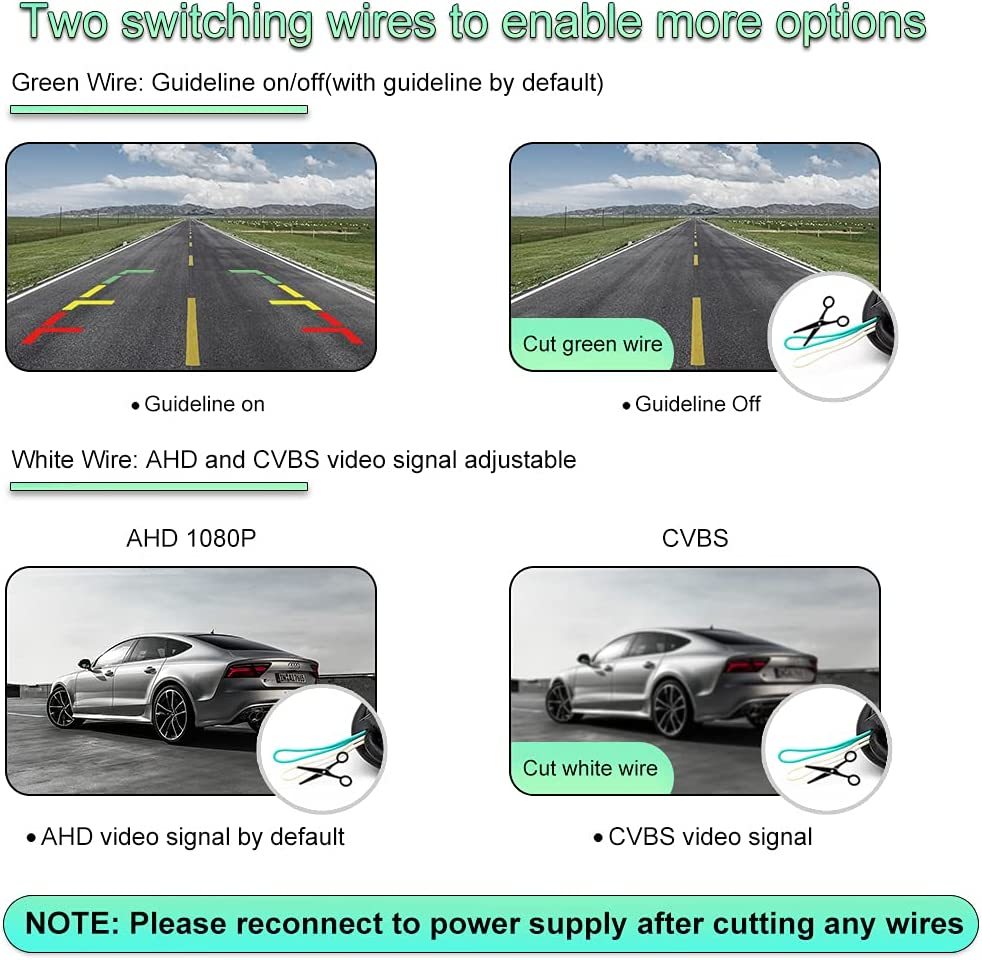

Some cheap/old Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.

Attention:

* Please have a test before final installation.

* If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.

* There is a pink color wire on your head unit usually, please connect it with the 20FT video cable's triggering wire

* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Dodge VW AUDI BMW Mercedes Benz vehicles.

* Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.

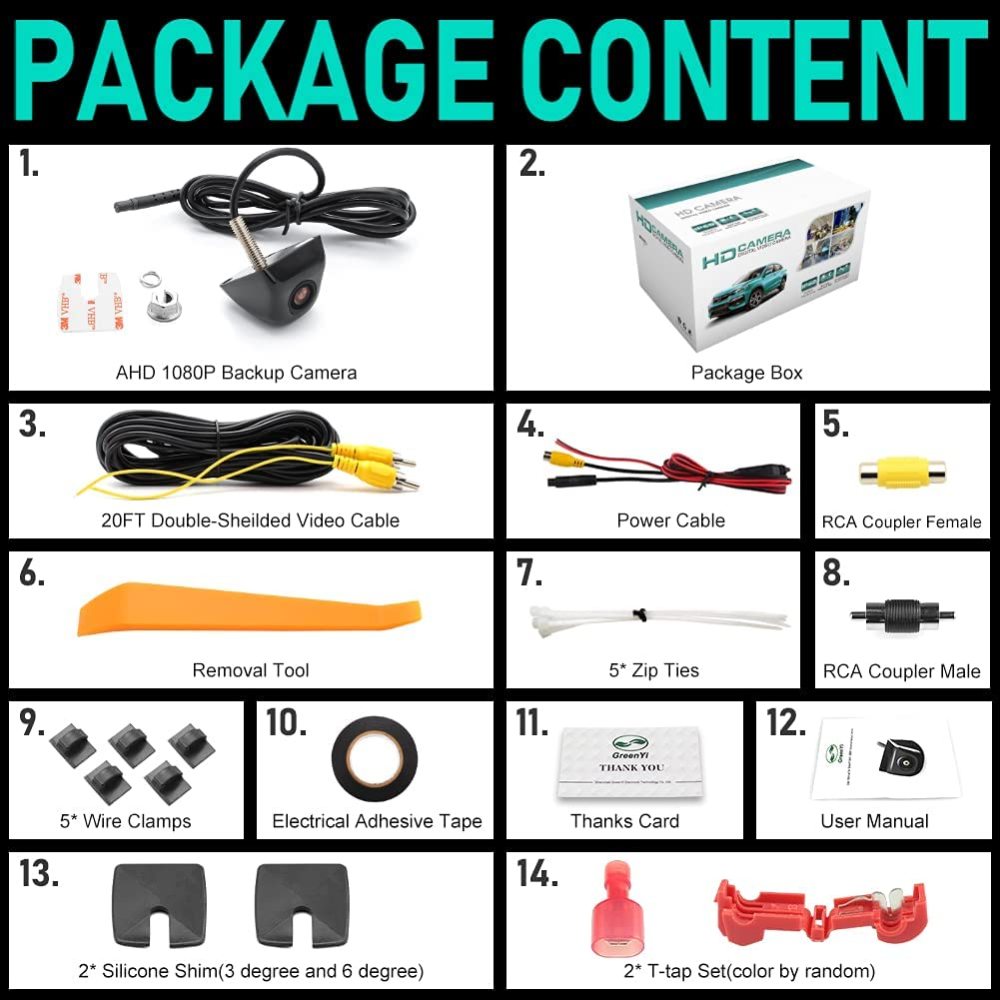

Package:

1 * AHD 1080P Backup Camera

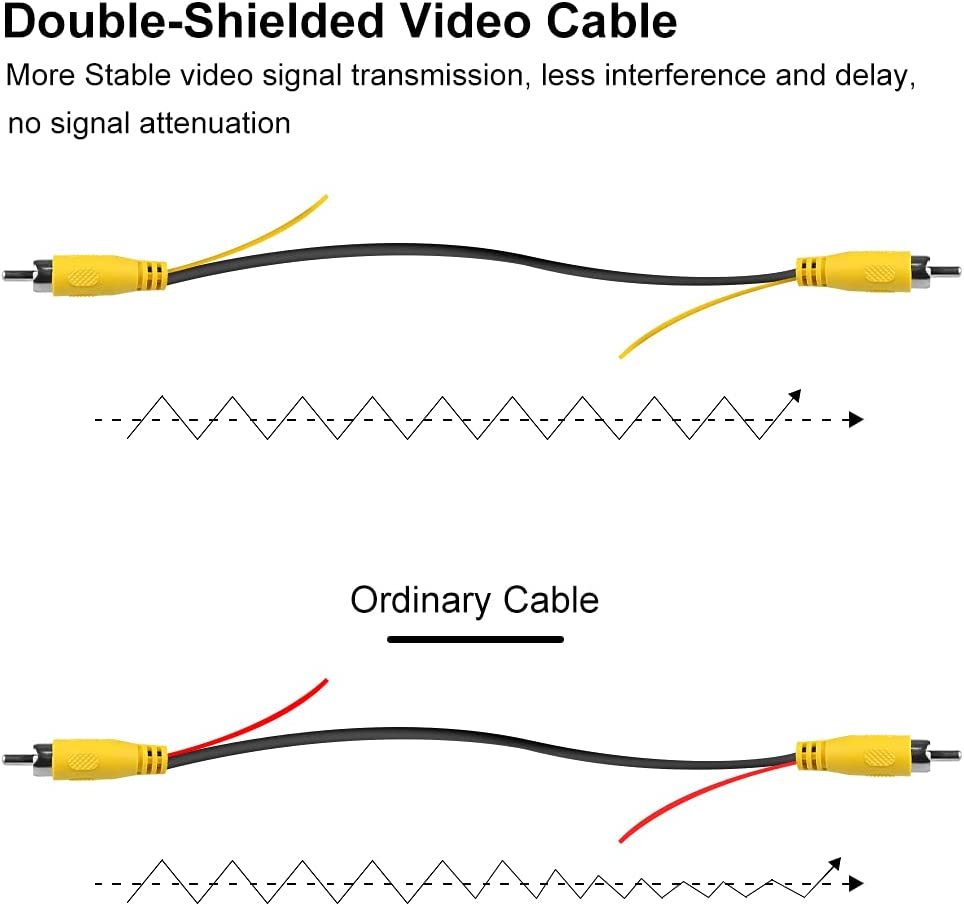

1 * Double-shielded 20FT Video Cable
1 * 5FT Power Cable
1 * Stainless Nut
1 * Fixing Metal Circle
1 * Double-sided Tape
1 * User Manual
5 * Zip Ties
5 * Wire Clamps
1 * RCA Coupler Female
1 * RCA Coupler Male
1 * Thanks Card
2 * T-tap Set(Color by Random)
1 * Removal Tool
1 * Electrical Adhesive Tape
