HD 720P Vehicle Backup Camera, GreenYi 170 Degrees View Angle with Fish Eye Lens Starlight Night Vision Waterproof AHD Car Rear View Camera

Features:

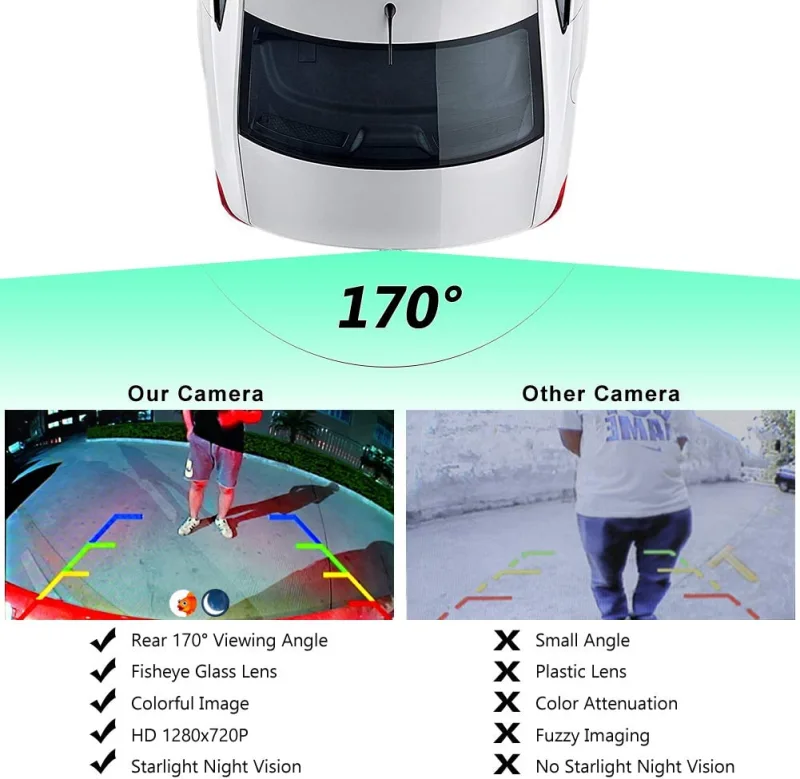

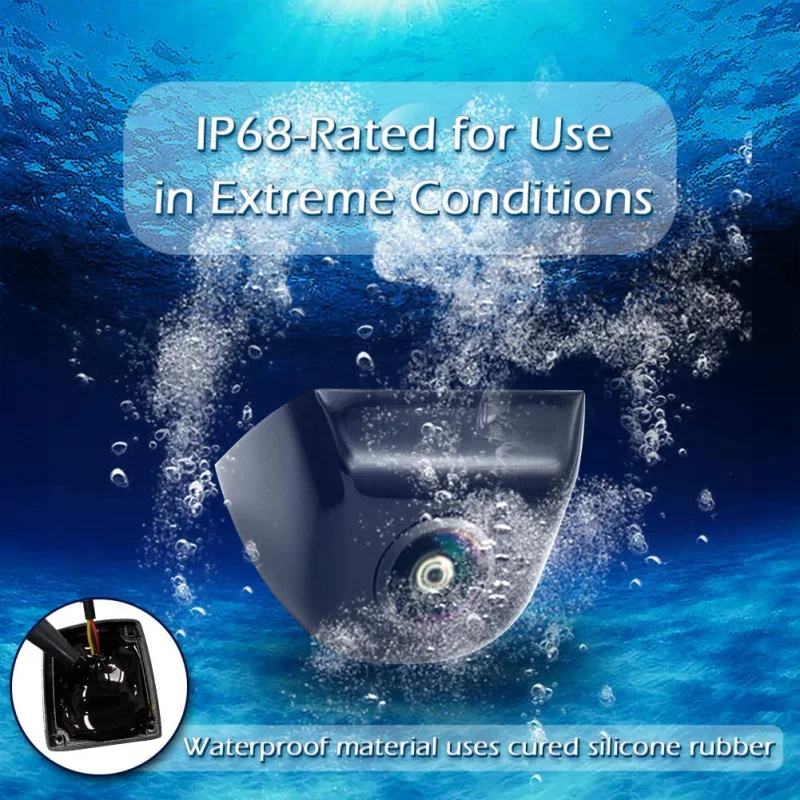

• 720P Universal Car Backup Camera---1280*720 resolution, high clarity, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect.

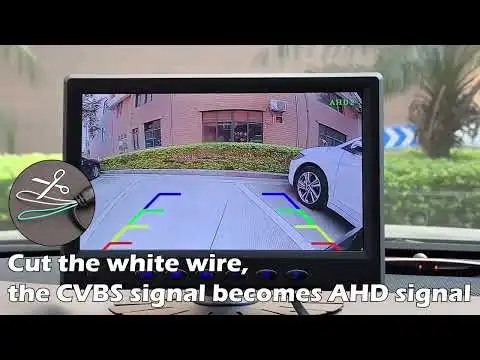

• Support Both AHD and CVBS Video Signal---This vehicle rear view camera can work with both AHD monitors(AHD 720P 30HZ ONLY) and CVBS monitors. Its output video signal is CVBS by default, if you need it to connect with a AHD monitor, please cut the white cable on the camera and reconnect to power supply. AHD video signal image is much clearer than CVBS.
• Guideline on OR off Adjustable---There is a small green switching loop on this reverse camera. When you get it, it is with guide line by default. If you don’t need the guide line, please cut the green loop and reconnect to power supply.

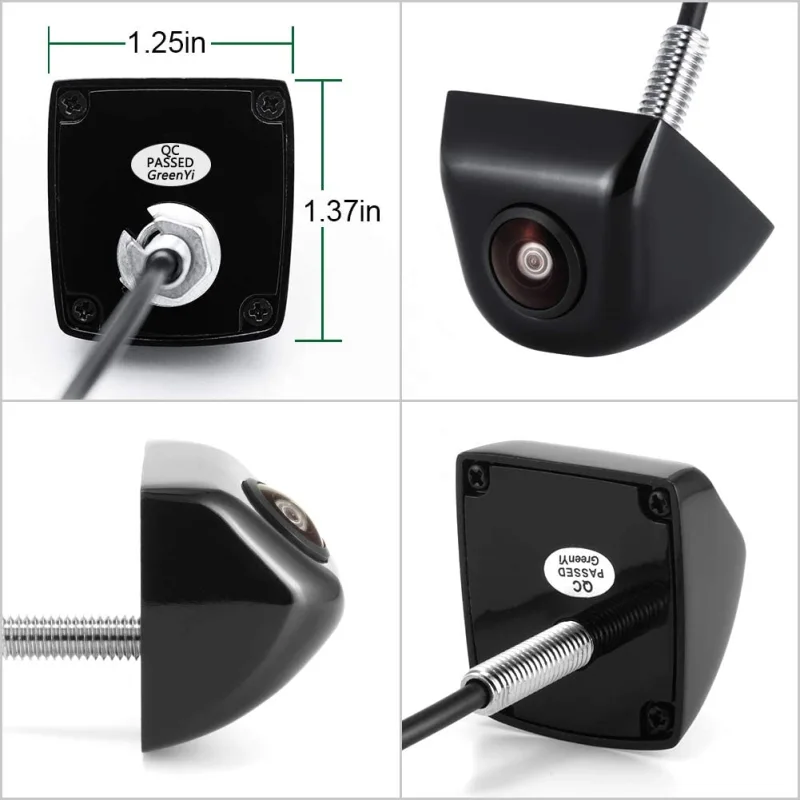

• Mini Solid Zinc Alloy Shell---The back up camera is very small, its shell is made of high quality zinc alloy, shining, shockproof and stainless. Its installation method must be hanging mounted as the sixth picture shows, or the image will be unusual.
• Attention---OUR AHD backup camera supports AHD 720P 30HZ only. According to our experience, some cheap Android head units has the setting for AHD video signal, but the truth is that they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.

ATTENTION:

All of our 4-pin cameras can't be connected directly with any other monitors(no matter DVR monitor or dash monitor or whatever)without using our power cable.

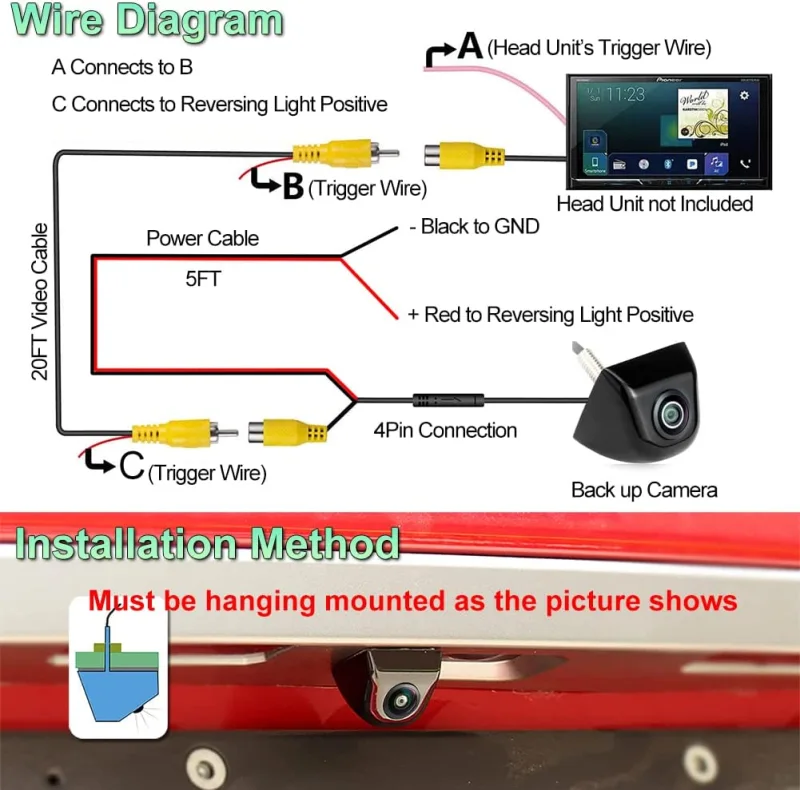

Installation Steps:

1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.

2. Connect the power cable to reversing light power supply.

3. Connect the 20ft extension wire of backup camera to the head unit/other monitors of your car.

4. Start the vehicle and gear on reverse to test the camera.

5. Re-install the head unit/other monitors.

NOTE:

Please test the backup camera before routing video cable from back to front.

If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.

Some cheap Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.

Attention:

* Please have a test before final installation.

* If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.

* There is a pink color wire on your head unit usually, please connect it with the 20FT video cable's triggering wire

* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Dodge VW AUDI BMW Mercedes Benz vehicles.

* Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.

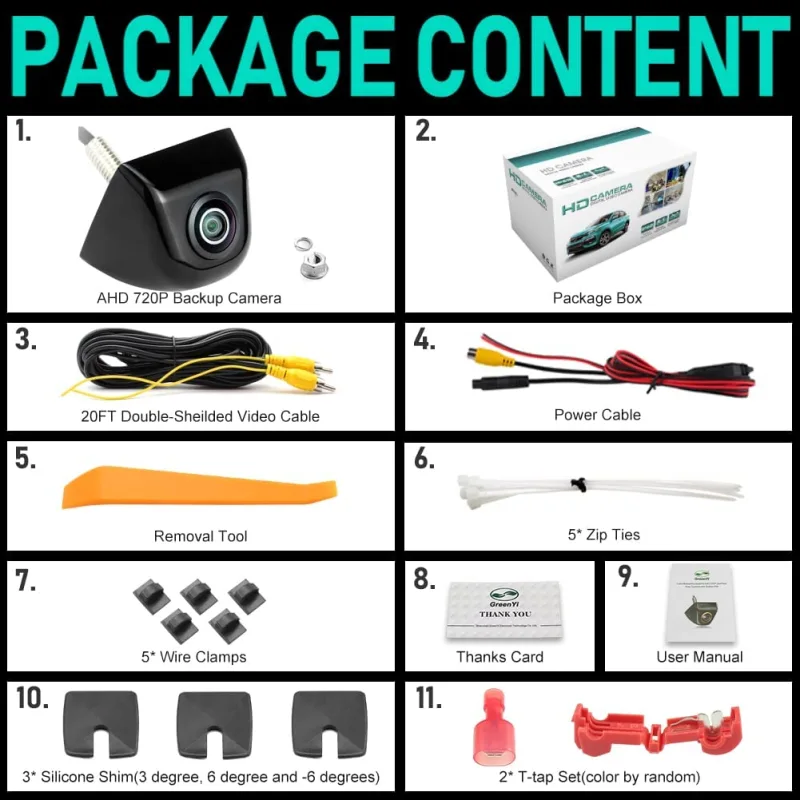

Package:

1 x 720P Universal Backup Camera

1 x 20FT Double Shielded Video Cable

1 x 5FT Power Cable

1 x User Manual

1 x Thanks Card

1 x Panel Removal Tool

2 x T-tap Set

3 x Silicone Angle Shim(3 degrees + 6 degrees + 6 degrees in opposite direction)

5 x Wire Clamps

5 x Zip Ties
NOTE: If not sent from US warehouse or Chinese Warehouse, the above parts in red color will not be found in the package.
