Board Never HotApplying best material, the board will never get hot even after long time constant working unlike other back up cameras. |

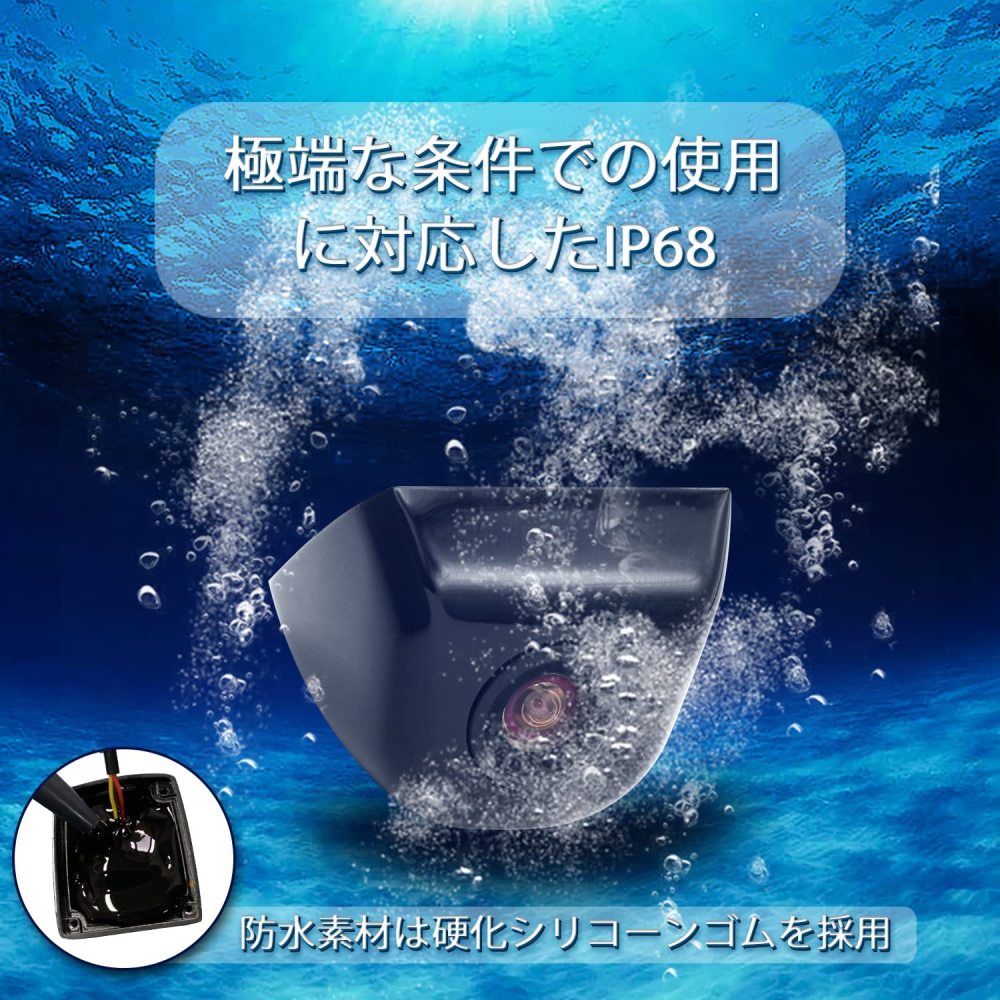

Work Properly Under Extreme ConditionOur reverse backup camera is IP68 waterproof, no problem with car washing, rain or other bad weather. Also works well in extreme high or low temperature condition. |
Camera Parallel to GroundOur backup camera must be hanging mounted(horizontal) as the upper part of above picture shows If you must install like lower part of above picture, our camera will not meet your need Note: Test the camera before final Installation |

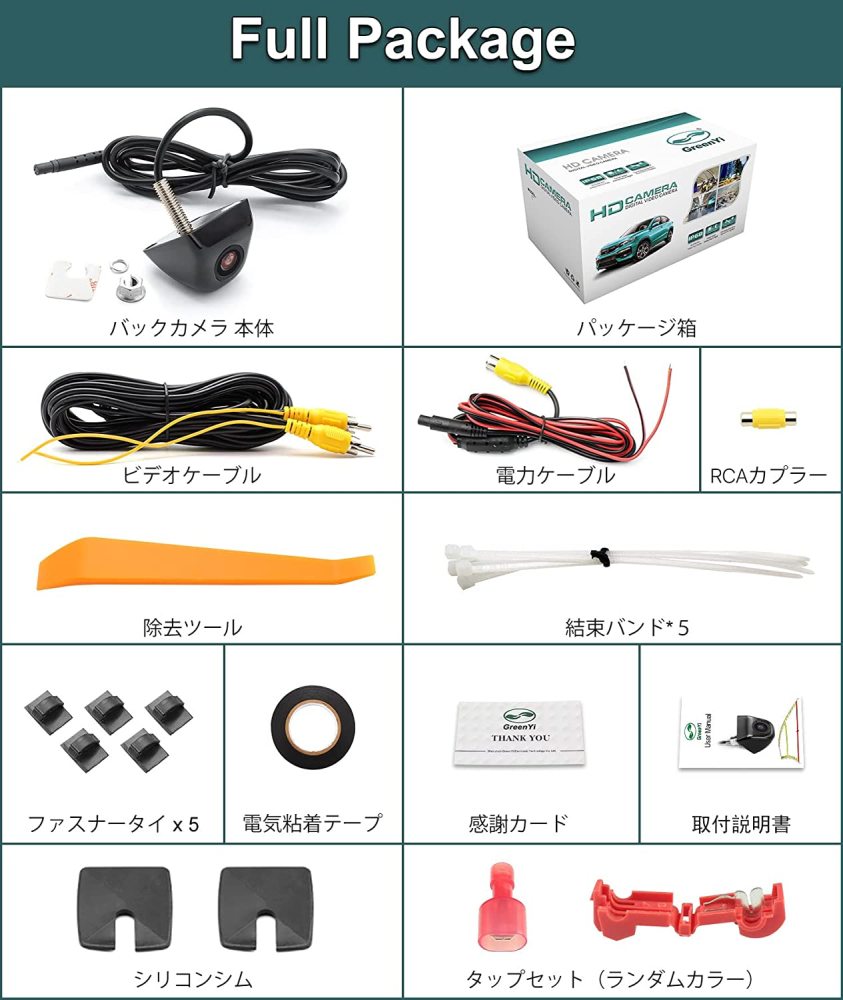

Include Everything You NeedExcept usual rear view camera with video cable and power cable, we also add some extra gadets like silicone angle shims, T-tap, zip ties and electrical tape which could help you install more conveniently. |
Festures:
ATTENTION:
All of our 4-pin cameras can't be connected directly with any other monitors(no matter DVR monitor or dash monitor or whatever)without using our power cable.
About GreenYi:
We have concentrated on car accessories industry for over 10 years. We have always been doing all we can to provide high quality products with best service for our dearest customers. We persist that Customers’ Satisfaction Comes First.
Installation Steps:
1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.
2. Connect the power cable to reversing light power supply.

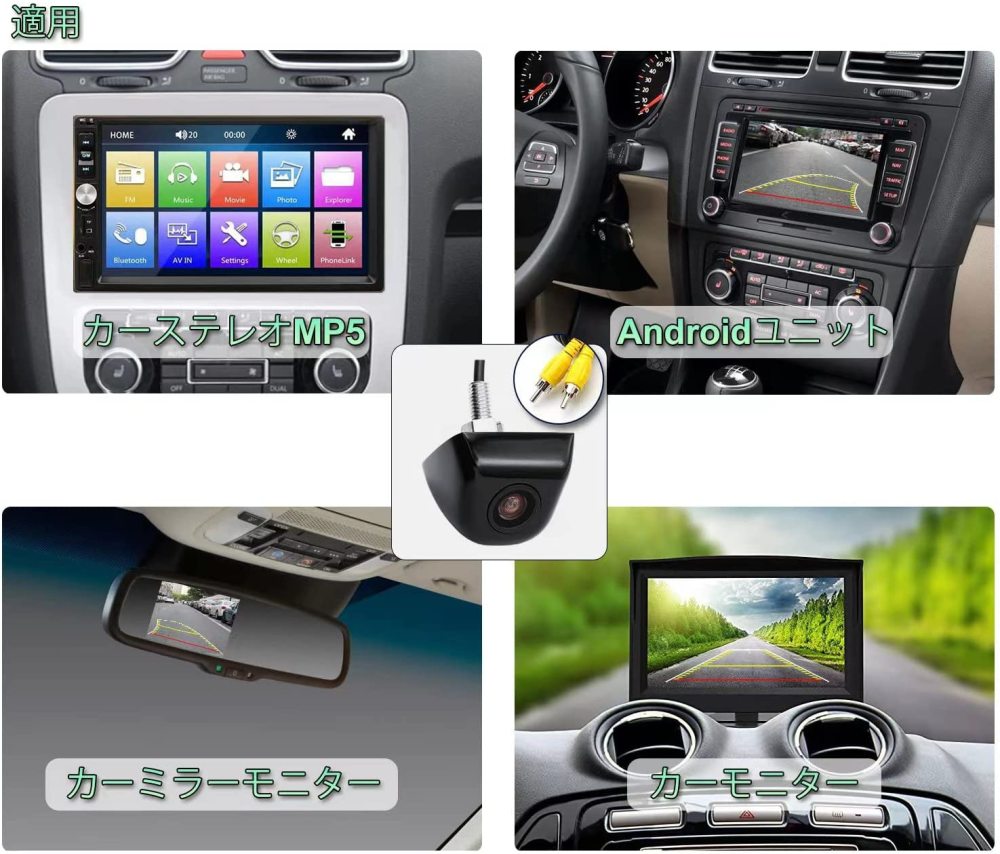

3. Connect the 20ft extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.
NOTE:
Please test the backup camera before routing video cable from back to front.
If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
There maybe two guidelines shown on your head unit, please change the setting of your device to turn off the original one.
Attention:
* Please have a test before final installation.
* If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* There is a reverse trigger wire on your head unit (pink color usually), please connect it with the 20FT video cable's triggering wire
* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Dodge VW AUDI BMW Mercedes Benz vehicles.
* Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Trajectory Rear View Camera | AHD 720P Backup Camera | AHD 1080P Backup Camera | WIFI Backup Camera | AI Sensor Alarm Backup Camera | Trajectory 720p Backup Camera with Golden Rim | |

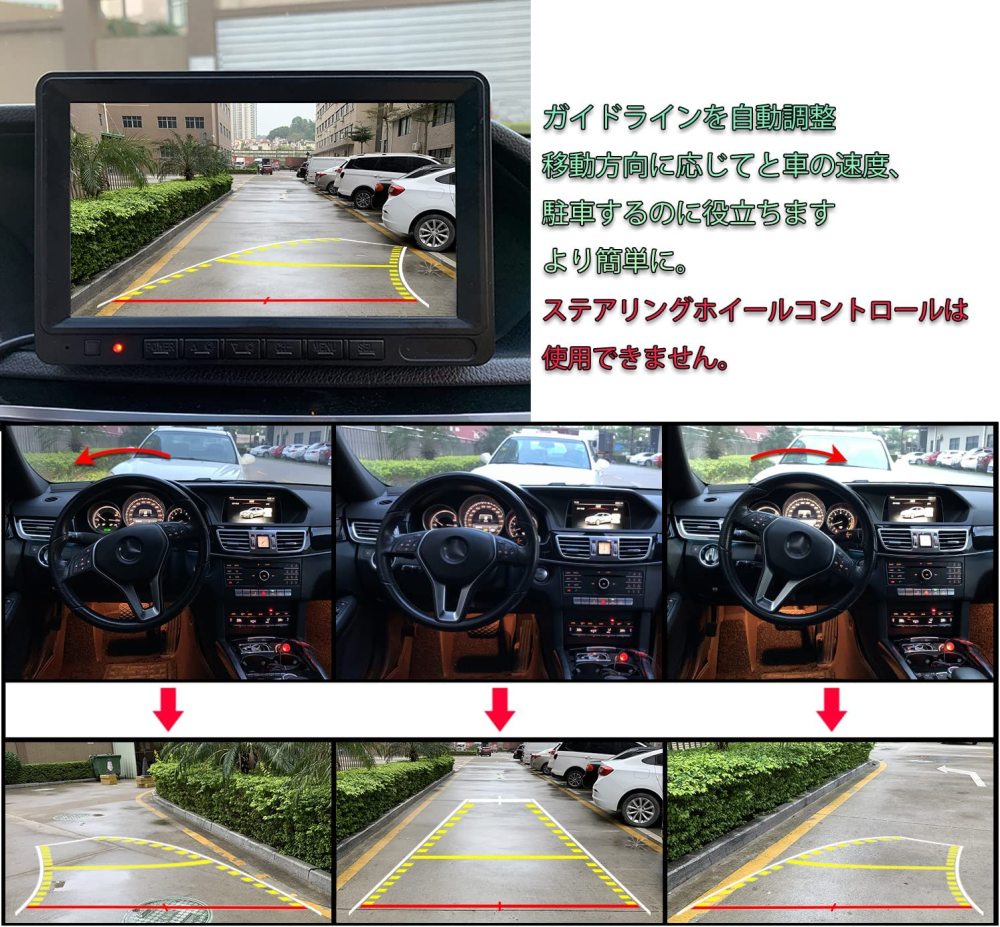

| Trajectory Guide Line | ✓ | ✓ | ||||
| Control Guide Line on/off | ✓ | ✓ | ✓ | |||
| Support AHD Video Signal | ✓ | ✓ | ✓ | ✓ | ||
| Waterproof | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Resolution | 960*720 | 1280*720 | 1920*1080 / 1280*720 | 1280*720 | 1280*720 | 1280*720 |

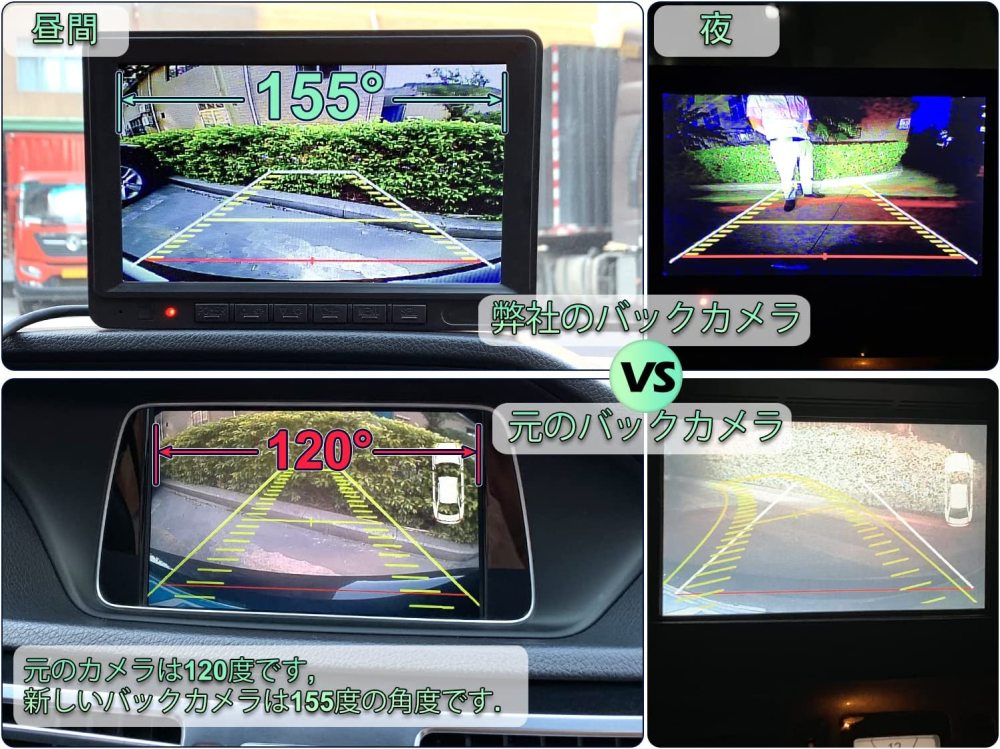

| View Angle | 155 Degrees | 170 Degrees | 170 Degrees / 120 Degrees | 130 Degrees | 170 Degrees | 170 Degrees |
| With Golden Rim | ✓ |
