About this item

• Attention BEFORE Placing order---OUR AHD backup camera supports AHD 1080P 25HZ only. According to our experience, some Android head units has the setting for AHD video signal , but the truth is that they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand. When applying CVBS video signal, the resolution is 720P(1280*720), view angle is 120 degrees.
• AHD 1080P Car Backup Camera---1920x1080 pixels resolution rear view camera with AHD video signal which provides more stable video signal transmission, less interference and delay than CVBS video signal cameras. High definition which is better than 99% reverse cameras, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect, 0.01 Lux starlight night vision ensures high clarity image at any time.
• Built-in Rotating Metal Camera Body---Unlike old-fashioned car cameras which can only adjust the viewing angle by adding gaskets, you can rotate GreenYi pickup rear camera’s lens part to find a best viewing angle with the help of the mini wrench, never need to worry about too high or too low image shown on the monitor. Mini design, solid shinning metal housing, shockproof, longer service life.

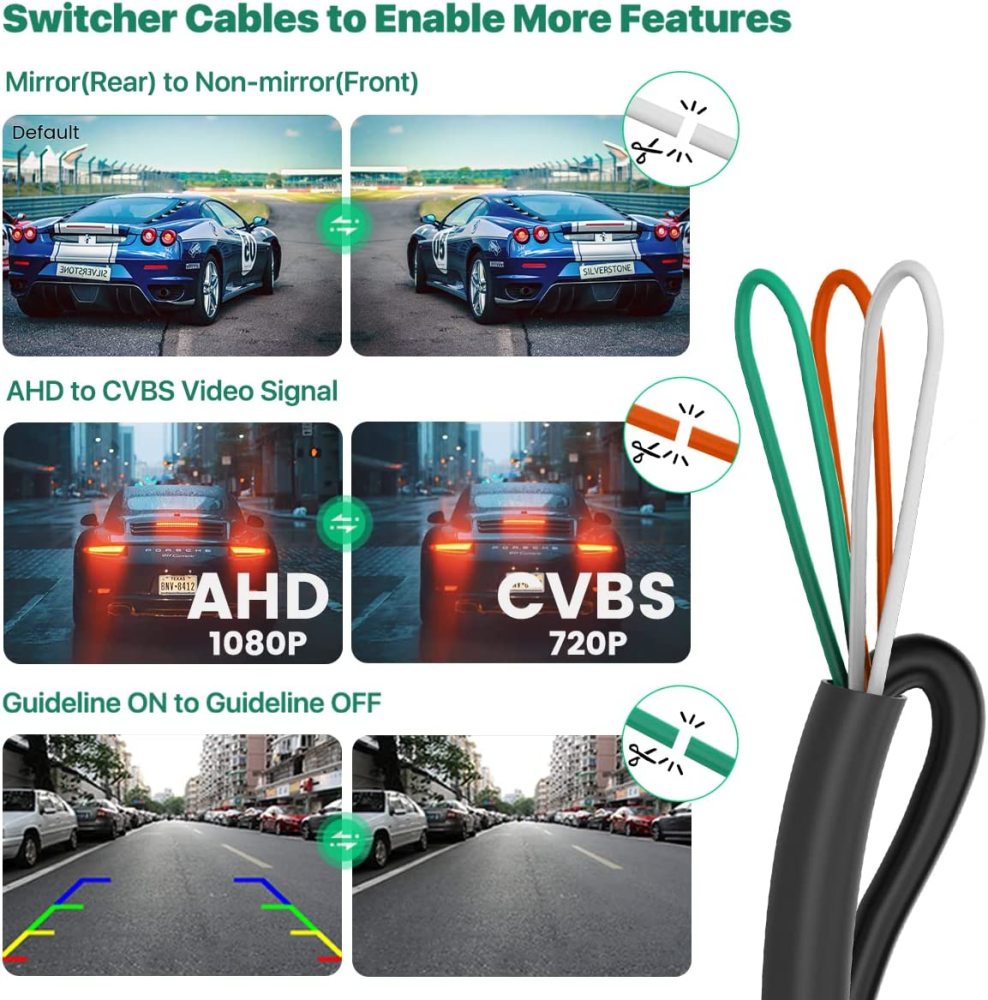

• Three Switcher Cables Camera ---Cut white cable to switch mirror image(rear view) to non-mirror image(front view). Cut orange cable to switch AHD video signal to CVBS video signal, its output video signal is AHD by default, if you need it to connect with a CVBS monitor, please cut the orange cable on the camera. Cut green cable to turn off the guide line. Please reconnect power supply after cutting any cable, you can also connect it back after cutting the cable if needed.

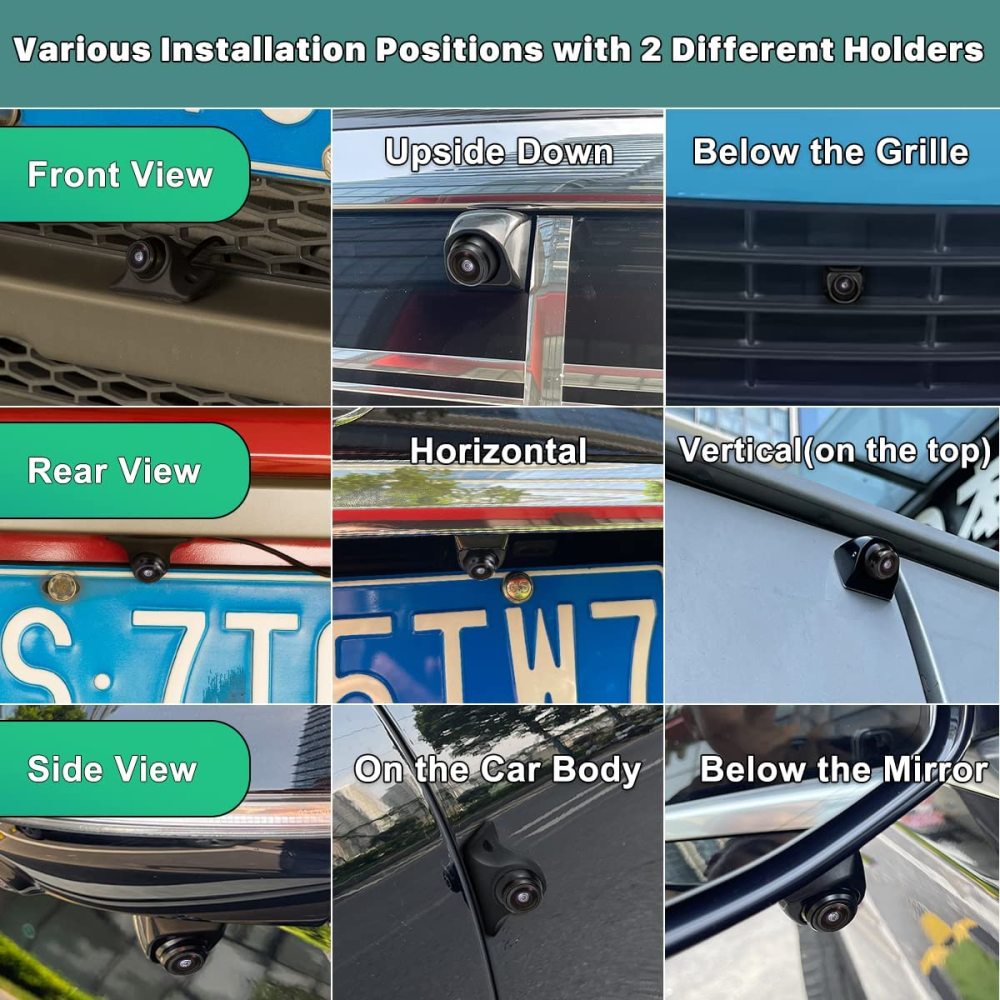

• Versatile Vehicle Front / Rear / Side View Camera---You can install the rv blind spot camera at any position you want with vertical(upside down) or horizontal mounting as the camera body is 360-degree-rotatable and there is an extra silicone shell for you if you don’t want to drill a big hole: front bumper/grille, rear deck lid/rear top/trunk handle/fender/5th wheel/tailgate, below the side mirror or on the car body, etc.

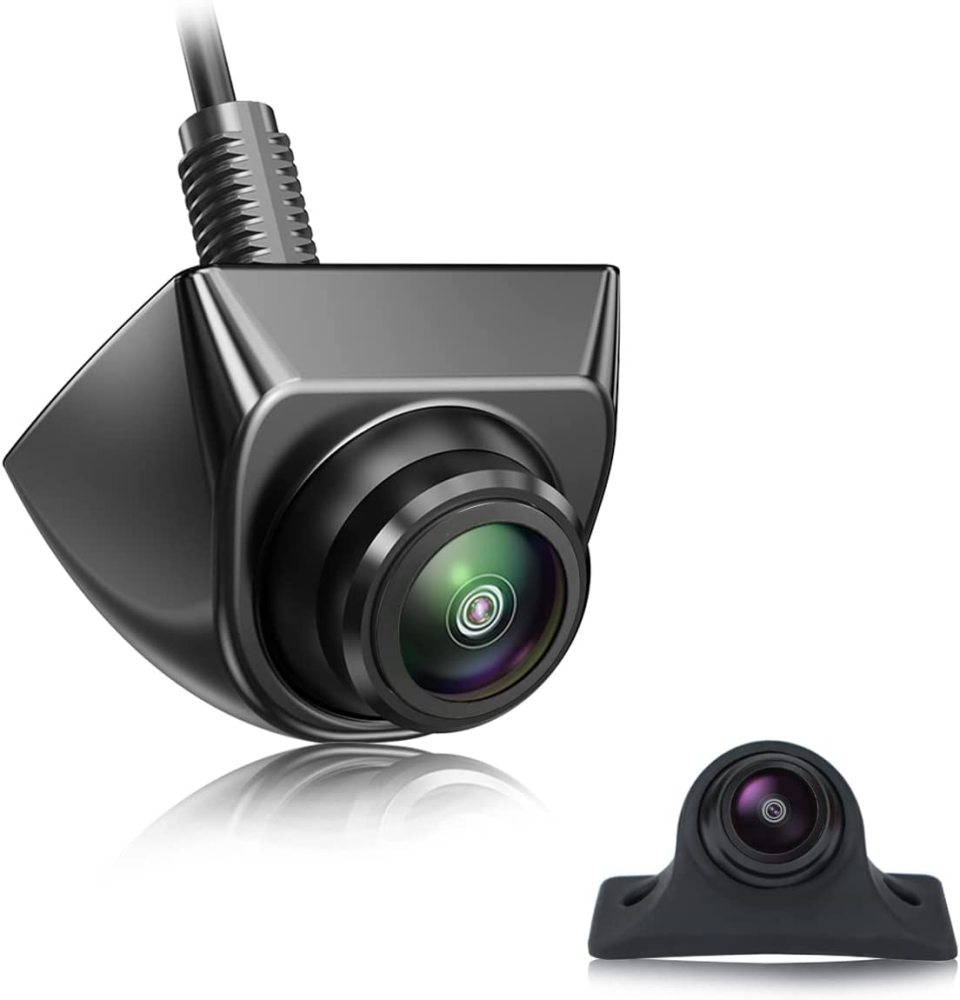

GreenYi AHD 1080P Backup Camera

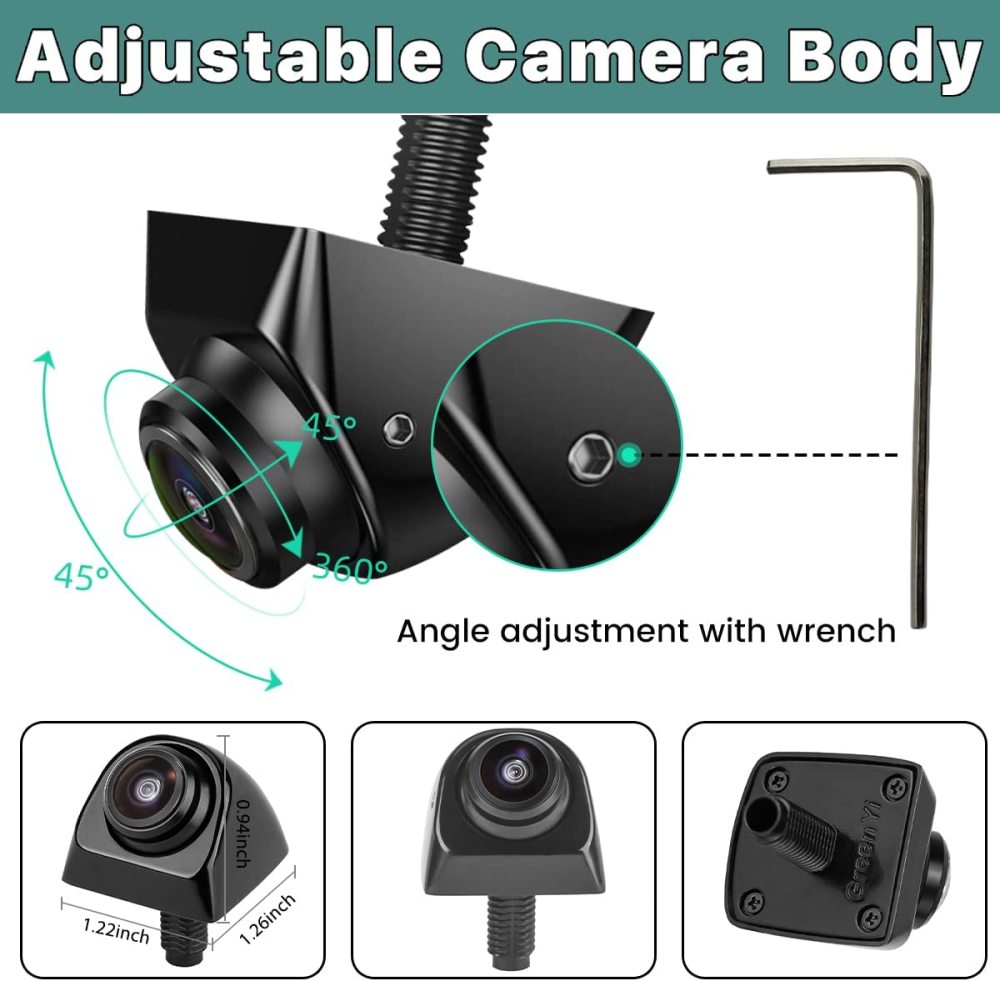

This AHD 1080P backup camera's body can be rotated for 360 degrees, its lens can be rotated for 45 degrees(right to left) + 45 degrees(up to down), you can get a perfect view with all kinds of position installation. There is an extra silicone holder included in case you don't want to drill a hole.

Features of Car Rear Camera

AHD 1080P Good Clearity Image

Our AHD 1080P camera provides more stable video signal transmission, less interference and delay. High definition is better than 99% reverse cameras.

IP68 Waterproof

GreenYi waterproof backup camera can work properly under most bad conditions, no need to worry about fost, water or mist getting into it.

Starlight Night Vision

Backup camera for car has a good performance even when reversing at dark night, high clarity sharp colorful image will still show on your monitor.

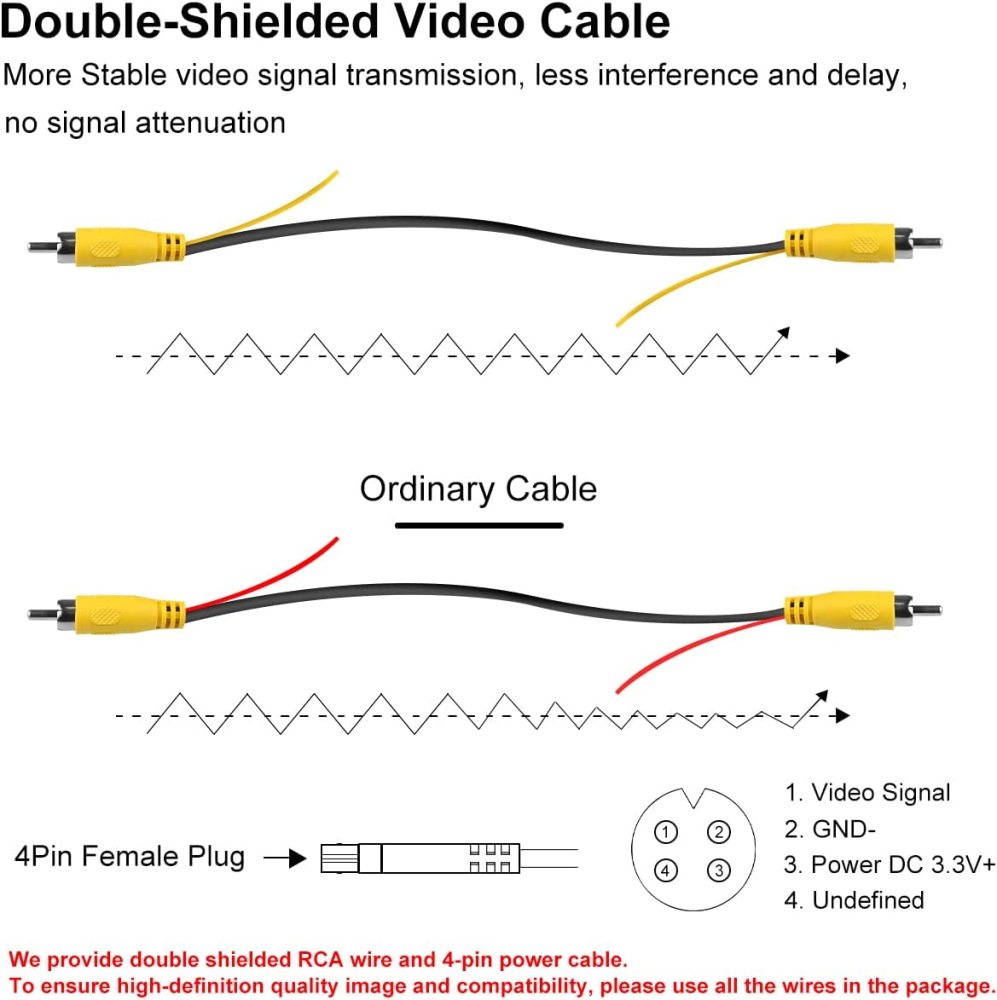

4Pin Backup Camera for Car

4pin design, easier installation than that of RCA. Can't be connected to any dashcam, mirror cam or GPS monitors that does not support RCA video input

Three Holders for Selection(Holder 3 needs to buy separately):

Holder 1: The backup camera comes with this metal holder installed well by default. You can install it with horizontal or vertical(upside down) mounting.

Holder 2: If you don't want to drill a hole on your vehicle, you can apply this silicone holder. Insert the round camera body into the silicone holder, then you can install it with ease.

Holder 3: This metal holder is for flush hidden mounting, need to drill a hole. Need to buy separately with ASIN: B0BLG78TTM.

Settings for AHD 1080P

About GreenYi Vehicle Backup Camera:

NOTE: All of our 4pin backup cameras can't be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input.

* Please test the back up cameras before final installation.

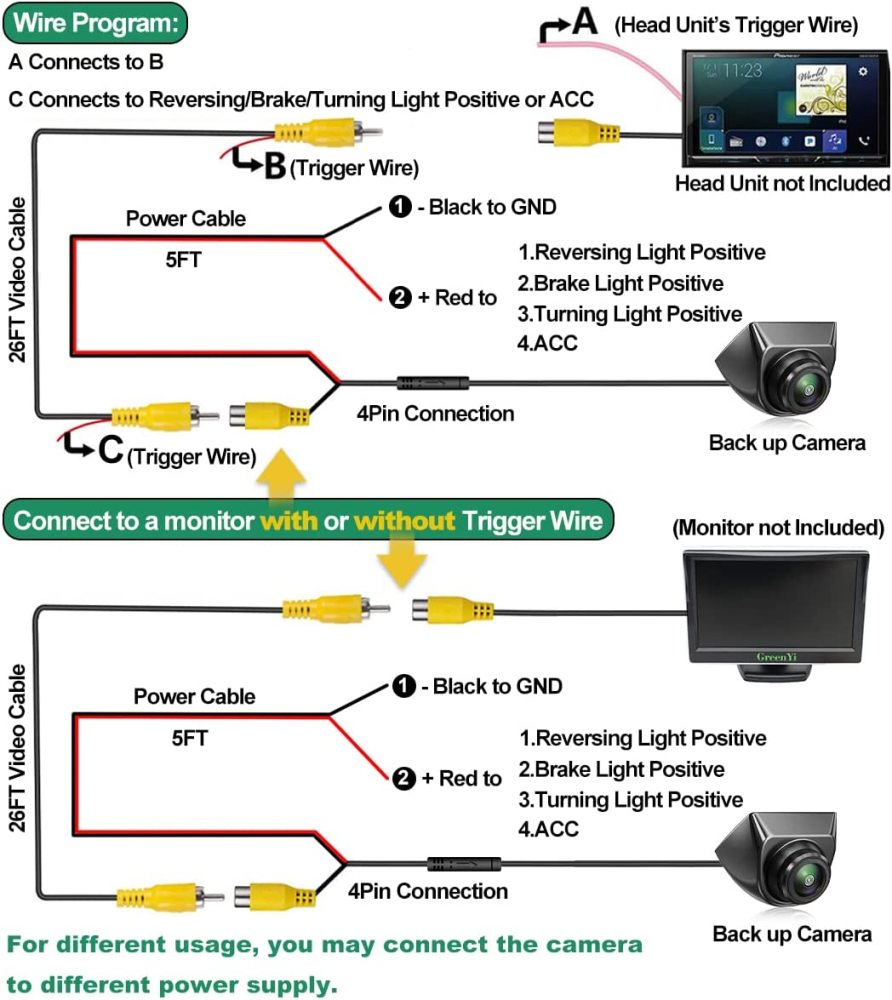

* There is a pink color wire on your head unit usually, please connect it with the 26FT video cable's trigger wire. If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.

* Some cheap/old Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.

* Before you routing, if there is no image on the screen, other than check the camera, please check display settings as well. You can use other device with RCA connector, such as TV to check if the camera works.

* If you connect the backup camera for pickup to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.

Package:

1. 1 * AHD1080P Backup Camera 2. 1 * 26FT Double Shielded Video Cable 3. 1 * 5FT Power Cable 4. 1 * Metal Holder set 5. 1 * Accessory Bag for Metal Holder 6. 1 * Silicone Holder

7. 1 * Accessory Bag for Silicone Holder 8. 1 * User Manual 9. 1 * Adhesive Tape 10. 1 * Removal Tool 11. 5 * Zip Ties 12. 5 * Wire Clamps 13. 1 * Mini Screwdriver

14. 1 * Electric Adhesive Tape 15. 2 * T-tap Sets

Specifications

Image Sensor	CCD 2053 chip
Power	DC 12-24V
Resolution	1920*1080 Pixels AHD/ 1280*720 CVBS
Viewing Angle	170 Degrees AHD / 120 Degrees CVBS
Waterproof Grade	IP68
Minimum Illumination	0.01Lux / F1.5
TV System	PAL AHD / NTSC CVBS
Signal to Noise Ratio	>48dB
Working Humidity	80%RH
Operating Temperature	-22℉— +140℉
Storage Temperature	-40℉—+176℉

Compromises Other Backup Cameras' Advantages:

	1080P Backup Camera	1080P Backup Camera	Backup Camera	Trajectory Backup Camera	720P Backup Camera	Trajectory Backup Camera
With Golden Rim	NO	NO	Yes	NO	NO	NO
Adjustable Camera Body	Yes	NO	Yes	Yes	NO	NO
Viewing Angle	170 Degrees / 120 Degrees	170 Degrees / 120 Degrees	170 Degrees	170 Degrees	170 Degrees	170 Degrees
Video Signal	AHD to CVBS	AHD to CVBS	CVBS to AHD	CVBS	CVBS to AHD	CVBS
Support Guideline on / off	Yes	Yes	Yes	Yes	Yes	Yes
Vertical or Horizontal Mount	Both Available	Horizontal	Both Available	Both Available	Horizontal	Horizontal
Resolution	1920x1080p / 1280x720p	1920x1080p / 1280x720p	1280x720p	960x720p	1280x720p	960x720p
Can be Used as	Front / Rear / Side View Cam	Rear Camera	Front / Rear / Side View Cam	Reverse Camera	Backup Camera	Back up Camera
