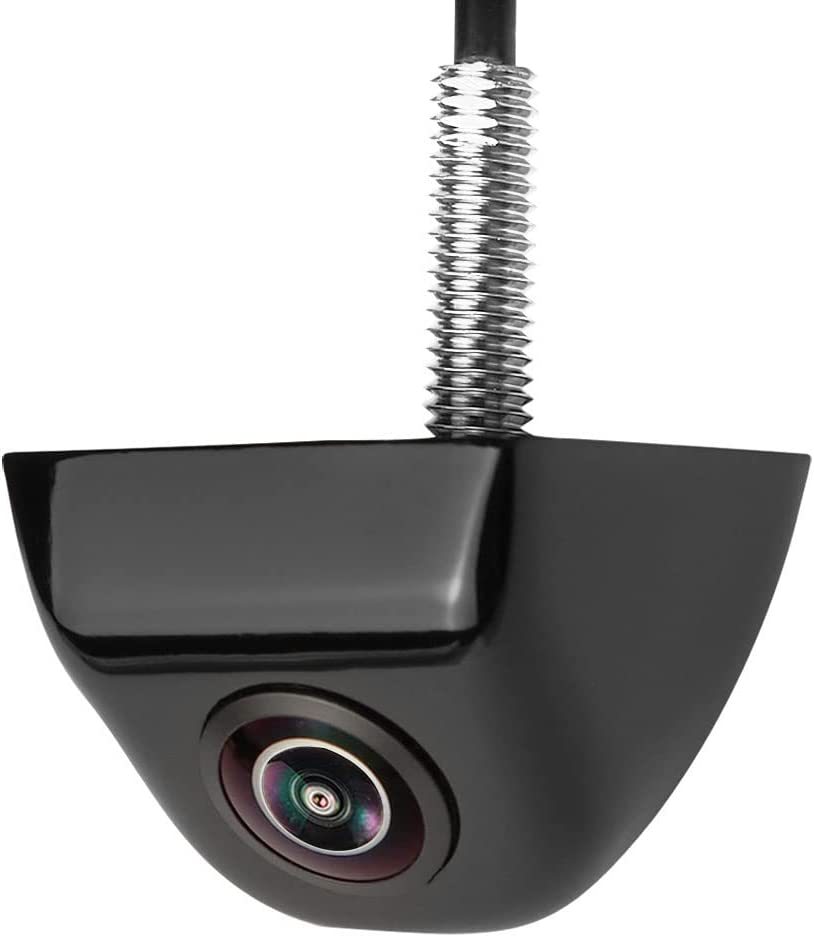

HD 720P Car Backup Camera, GreenYi 170° Reverse Rear View Camera with Fisheye Lens for Sedans Pickups Trucks SUVs RVs Vans, Shockproof Metal Shell, Support Hanging Mounting and Sitting Mounting
This reverse back up camera can be installed by both hanging mounting (horizontal) and sitting mounting (vertical) method.

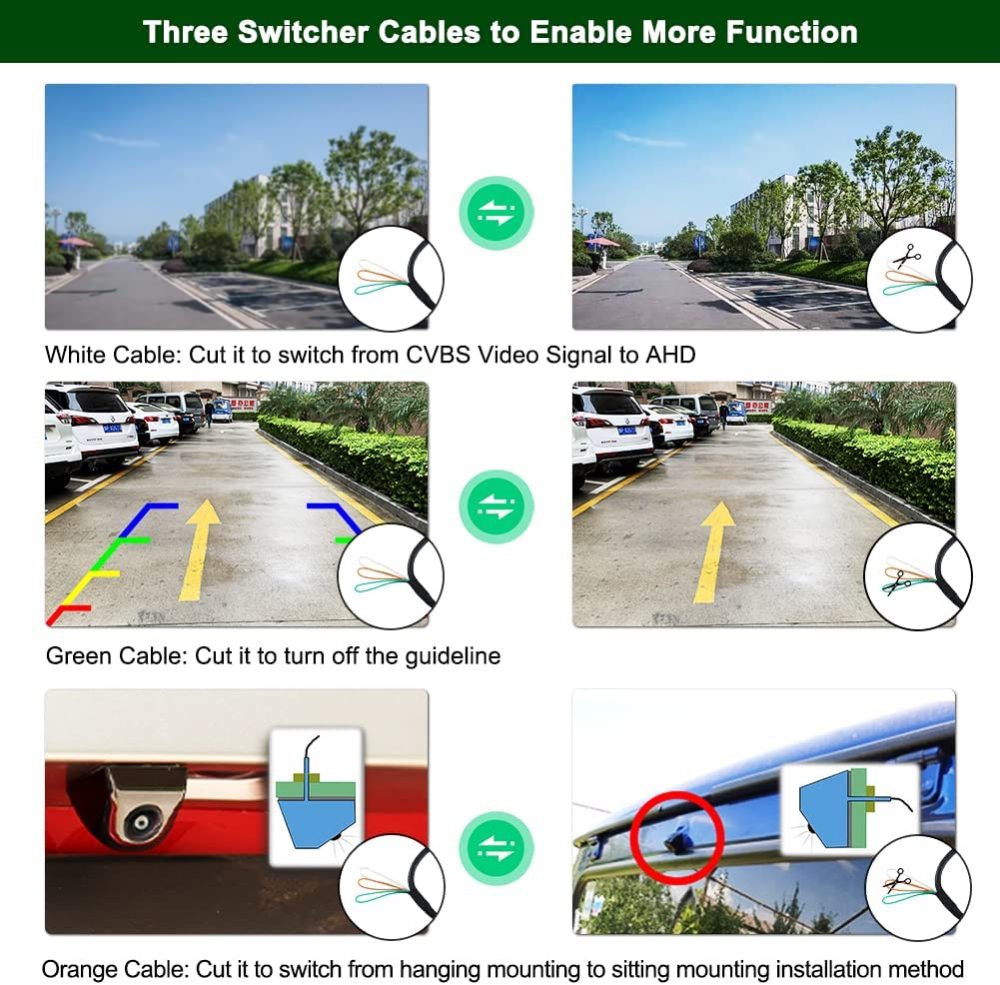

Three Switcher Cables
Cut white cable to switch from CVBS video signal to AHD video signal.
Cut green cable to turn off the guide line.
Cut orange cable to switch the image from hanging mounting to sitting mounting, this is a great updated based on our GreenYi-54 model.

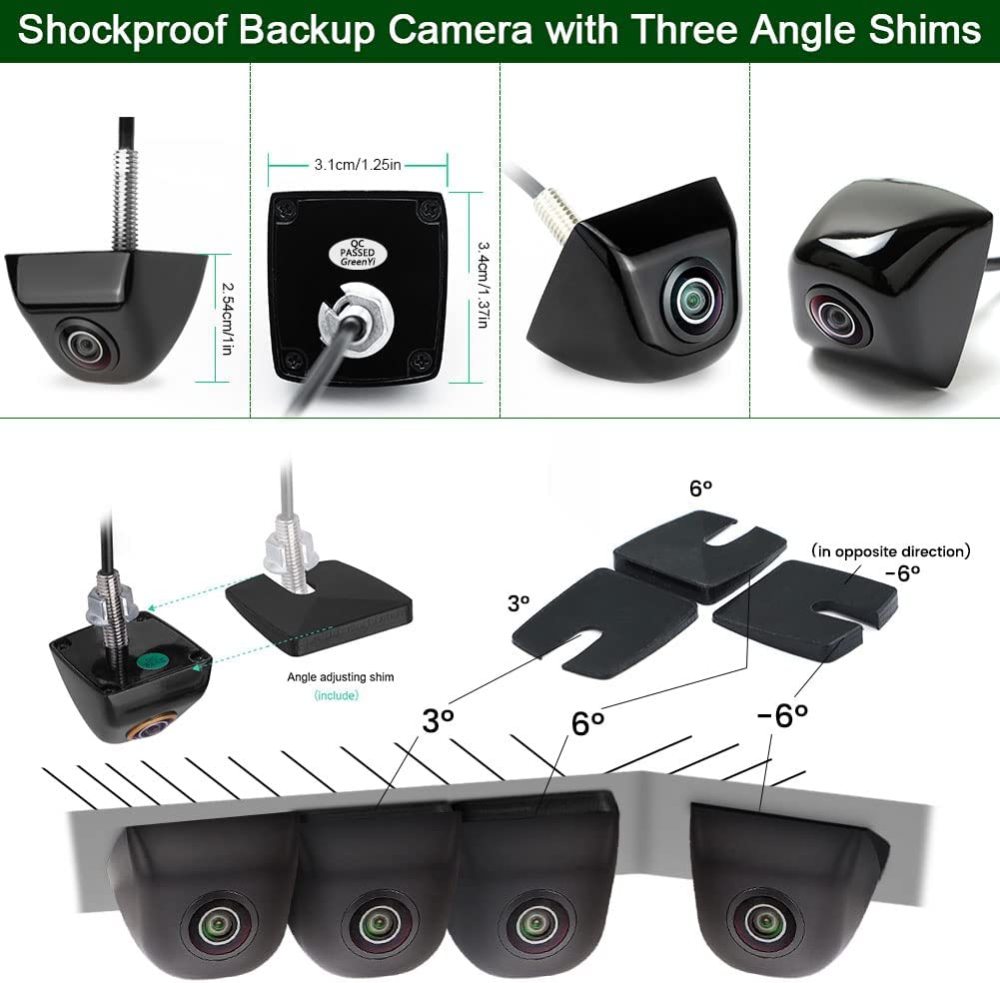

Three Angle Adjustment Gaskets Included
Three different angle gaskets(3°, 6°---adjust the image to be lower, -6°---adjust the image to be higher) help adjusting the viewing angle if needed.
Features:
Vehicle Reversing Back Up Camera---1280x720p high definition, 170 degrees viewing angle with fisheye glass lens, 0.01Lux night vision, IP68 waterproof, shockproof with metal shell, can be applied to Sedans Pickups Trucks SUVs RVs Vans, supporting both hanging (horizontal) or sitting (vertical) mounting.
Rearview Camera with Three Switcher Cables--- Cut white cable to switch from CVBS video signal(by default) to AHD video signal, if your monitor support AHD 720P 30HZ(NTSC) video settings, you can try it. Cut green cable to turn off the guide line. Cut orange cable to switch the image from hanging mounting method(by default) to sitting mounting, this is a great updated based on our GreenYi-54 model.
Solid Metal Shell Backup Cameras with Three Angle Shims---The camera shell is made of zinc alloy, shockproof and looks shinning, better heat dissipation. Three different angle gaskets(3°, 6°---adjust the image to be lower, -6°---adjust the image to be higher) help adjusting the viewing angle if needed.
Compatible with Monitors Which Supports RCA Connection---This car rear view camera is compatible with all factory OEM or after-market devices which has RCA video input like double din stereo / Head unit / Factory OEM Navigation / Stereo display / DVD player / mirror monitor or TFT LCD Monitor and so on. Warranty--
Product Parameters:
Image Sensor: CCD AHD Chip
TV System: NTSC
Resolution: 1280*720 Pixels
Viewing Angle: 170 degrees
Waterproof Grade: IP68
Power: DC 12V
Minimum Illumination: 0.01Lux / F1.5
Working Humidity: 80%RH
Operating Temperature: -22℉— +140℉
Storage Temperature: -40℉—+176℉

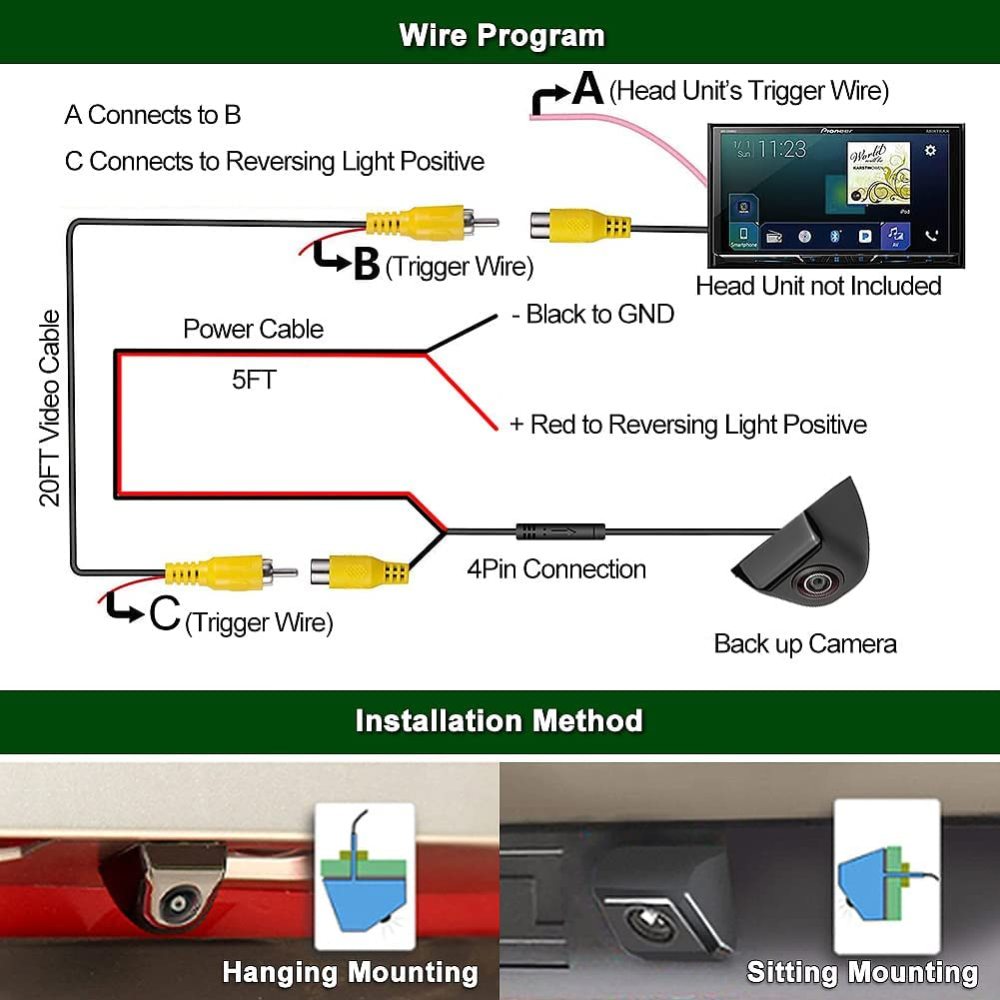

Installation Steps:
1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.
2. Connect the power cable to reversing light power supply.
3. Connect the 20ft extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.
NOTE:
* Please test the backup camera before routing video cable from back to front.
* Some cheap Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.
* If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* There is a pink color wire on your head unit usually, please connect it with the 20FT video cable's triggering wire
* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Dodge VW AUDI BMW Mercedes Benz vehicles.
* Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.
Package:
1 x 720P Universal Backup Camera
1 x 20FT Double Shielded Video Cable
1 x 5FT Power Cable
1 x User Manual
3 x Silicone Angle Gasket(3 degrees + 6 degrees + 6 degrees in opposite direction)
