AHD (Analog High Definition Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.

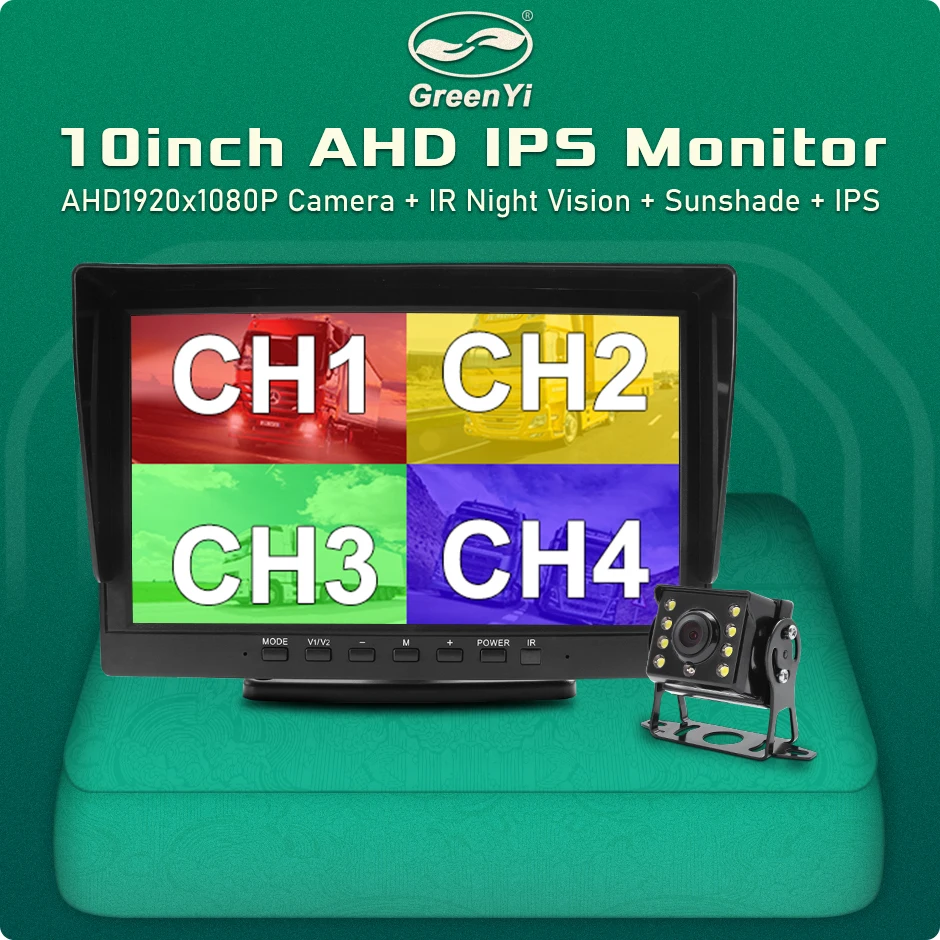

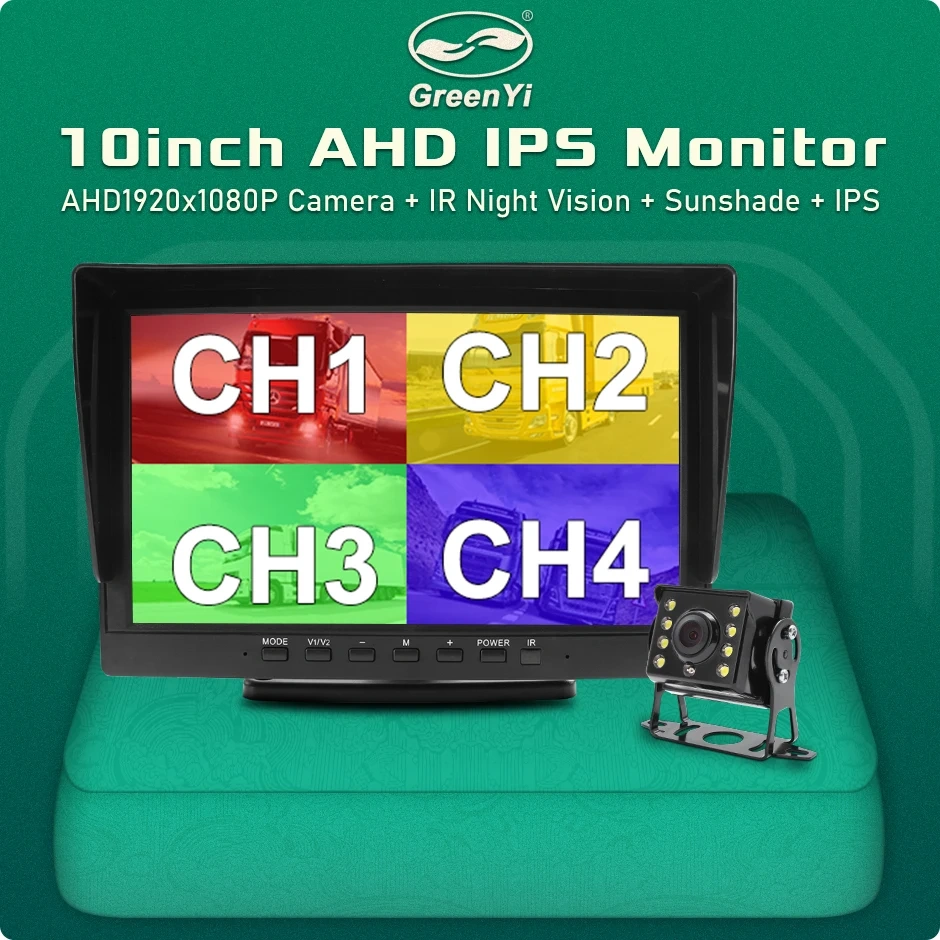

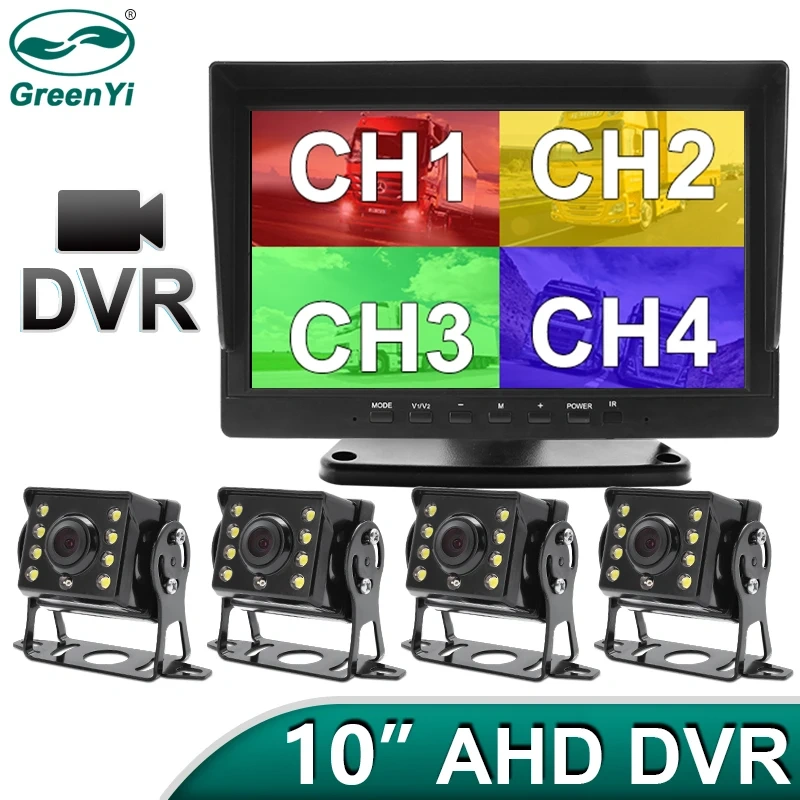

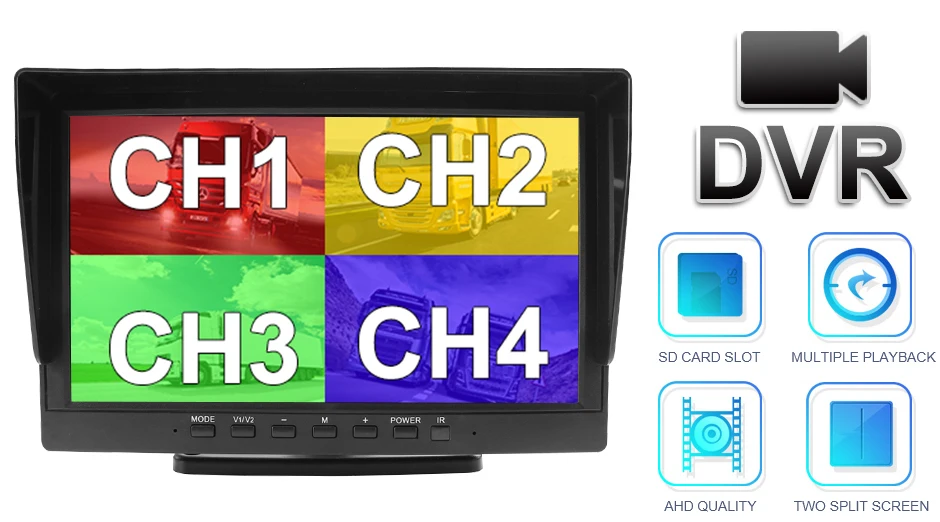

AHD DVR Monitor:
Video signal: Only supports AHD signals.
Supports playing music, movies, pictures.

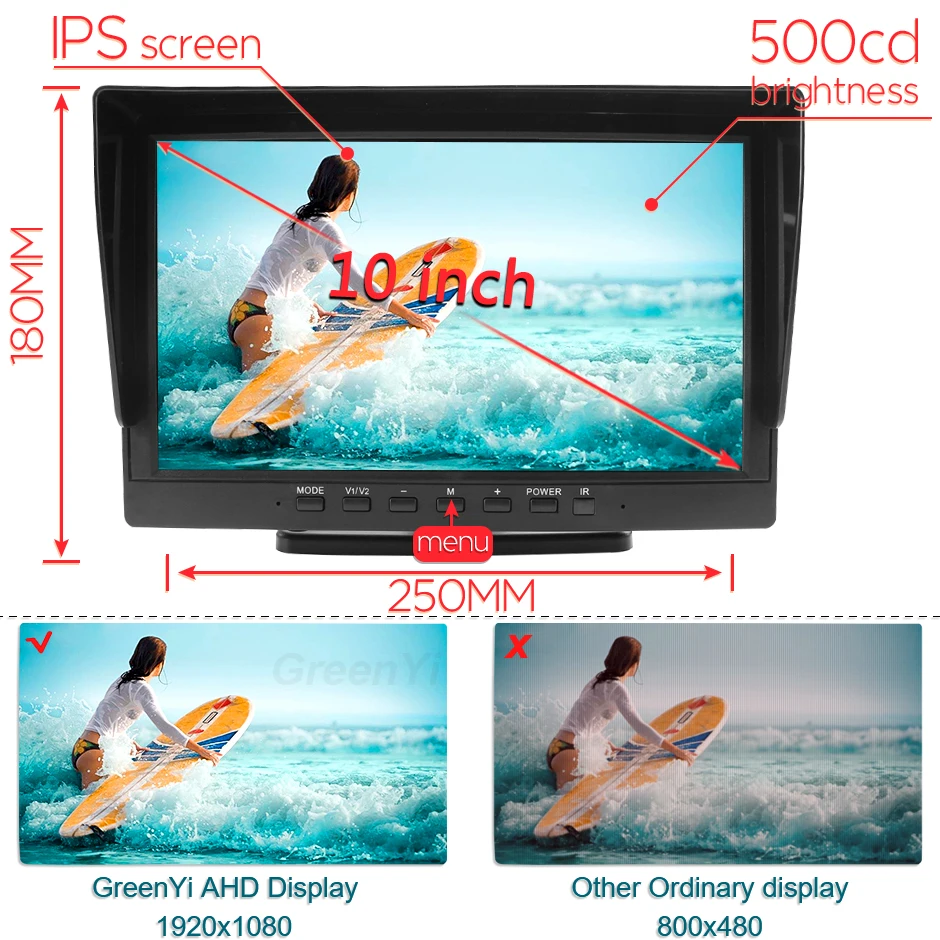

Screen size: 10-inch screen
Screen pixels: 1280*720
IPS Screen: Support
Screen brightness: 500CD / M2
Signal format: PAL / NTSC
Format: 16:9
Power supply voltage: 12V-30V
Automatic recording: Support
Real Time Surveillance: Support
Cycle Recording: Support
Speaker: Adjustable volume
Screen saver: Support
Display Rotate: Support
Image adjustment: Brightness / Contrast / Saturation / Sharpness
Menu language: English, Chinese, Japanese
Night vision image: automatic gain control, automatic white balance, automatic backlight compensation.

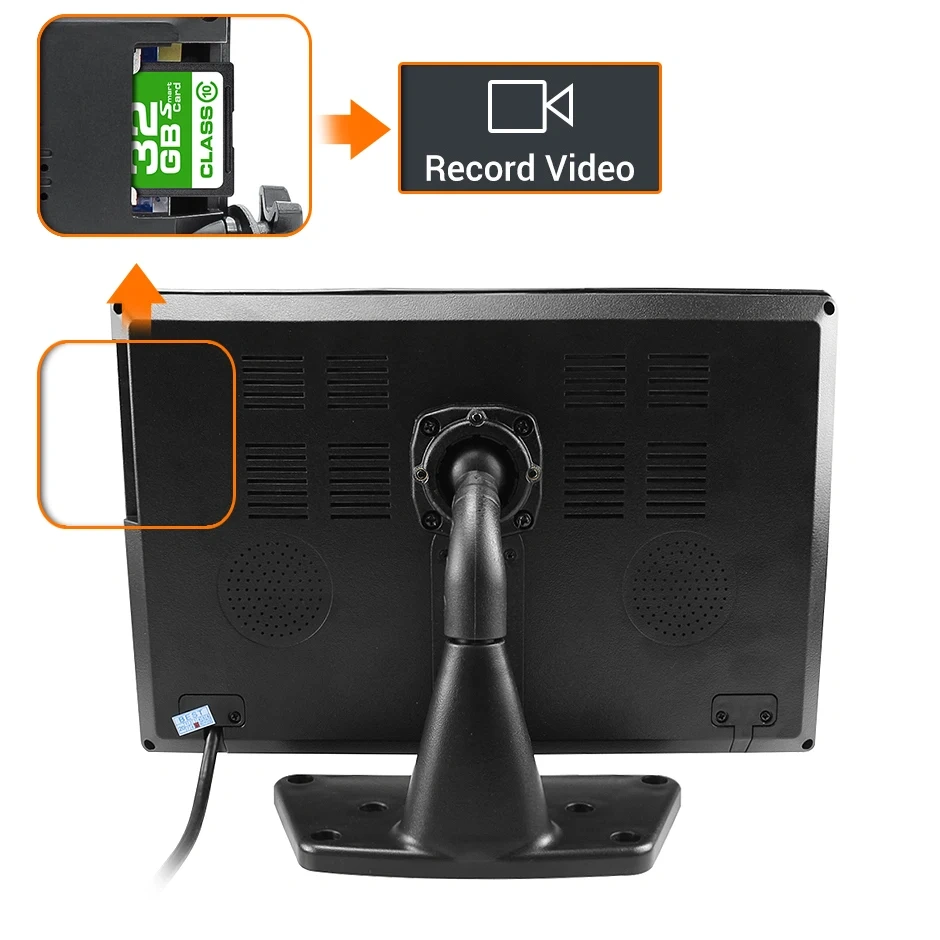

Support for loop recording:
Cyclic recording ensures that your camera doesn’t stop recording when the storage is full. The camera automatically overwrites the oldest files on the memory card.
Max External Memory: 128GB
IPS Monitor → Excellent 178° Full-view display technology
• 178° Wider viewing angles
• Faster response times
• Better color/contrast than many VA and TN panels
• Outstanding color accuracy and screen consistency
This monitor supports mirrored image display.
You can change the rear view image displayed by the rear view camera to the front view image.

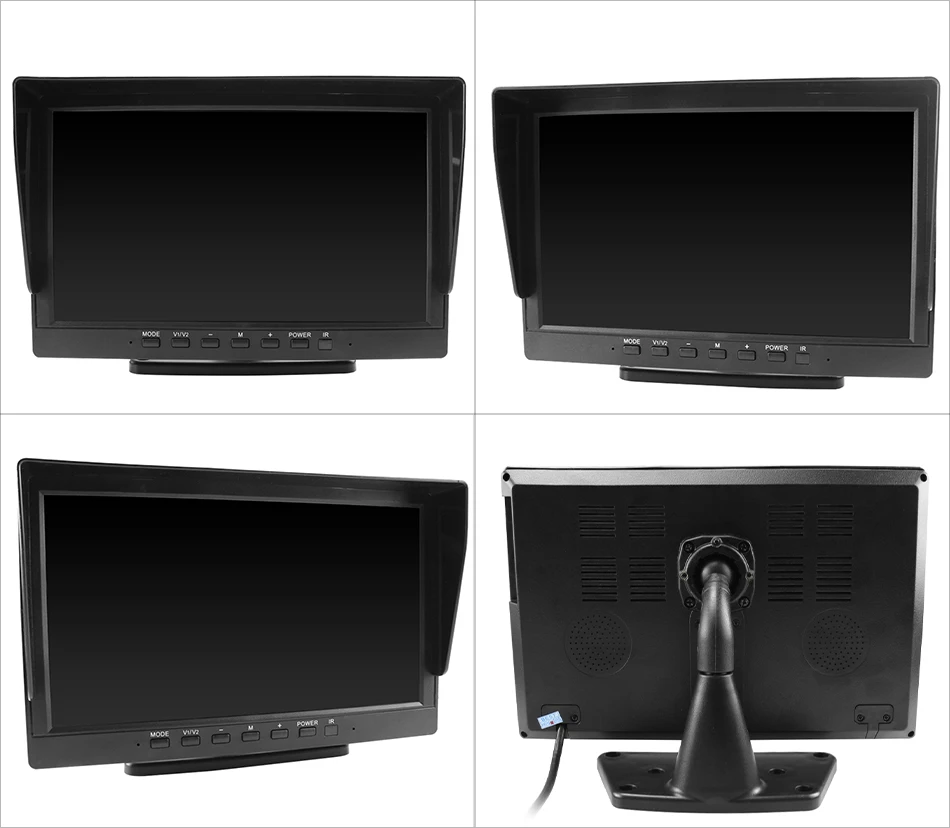

Convenient display installation.

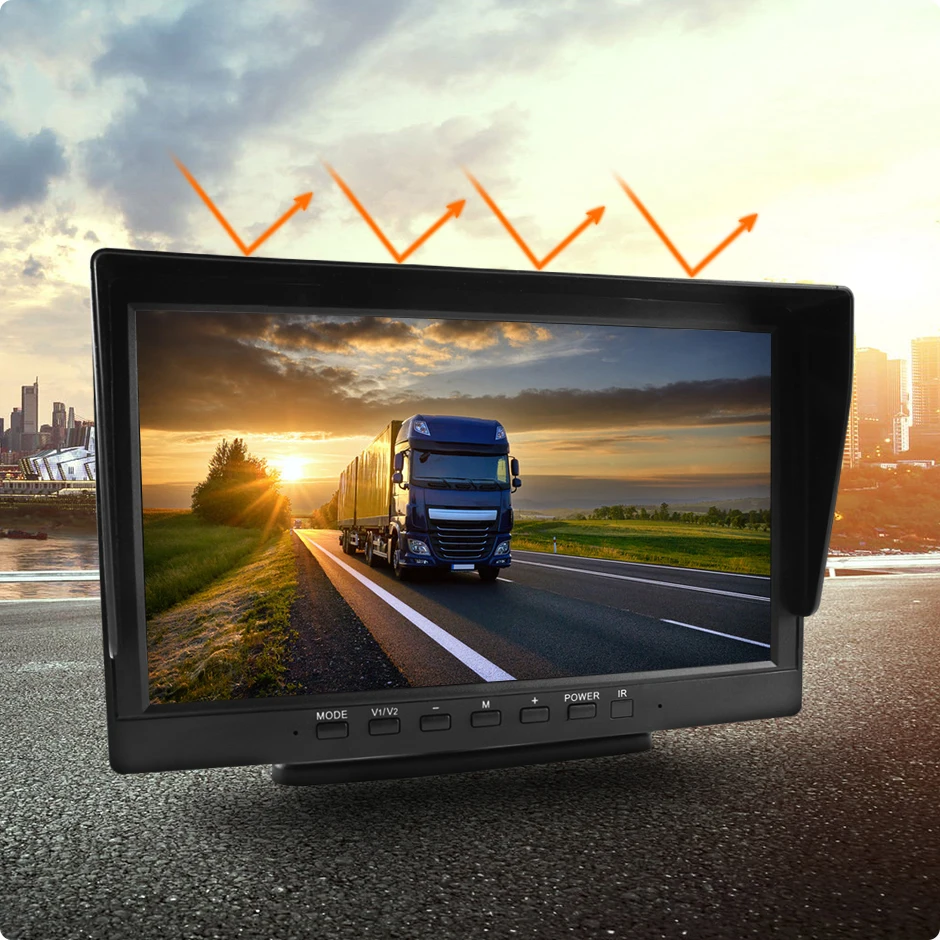

Sunshade integrated design
AHD (Analog High Definition Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.

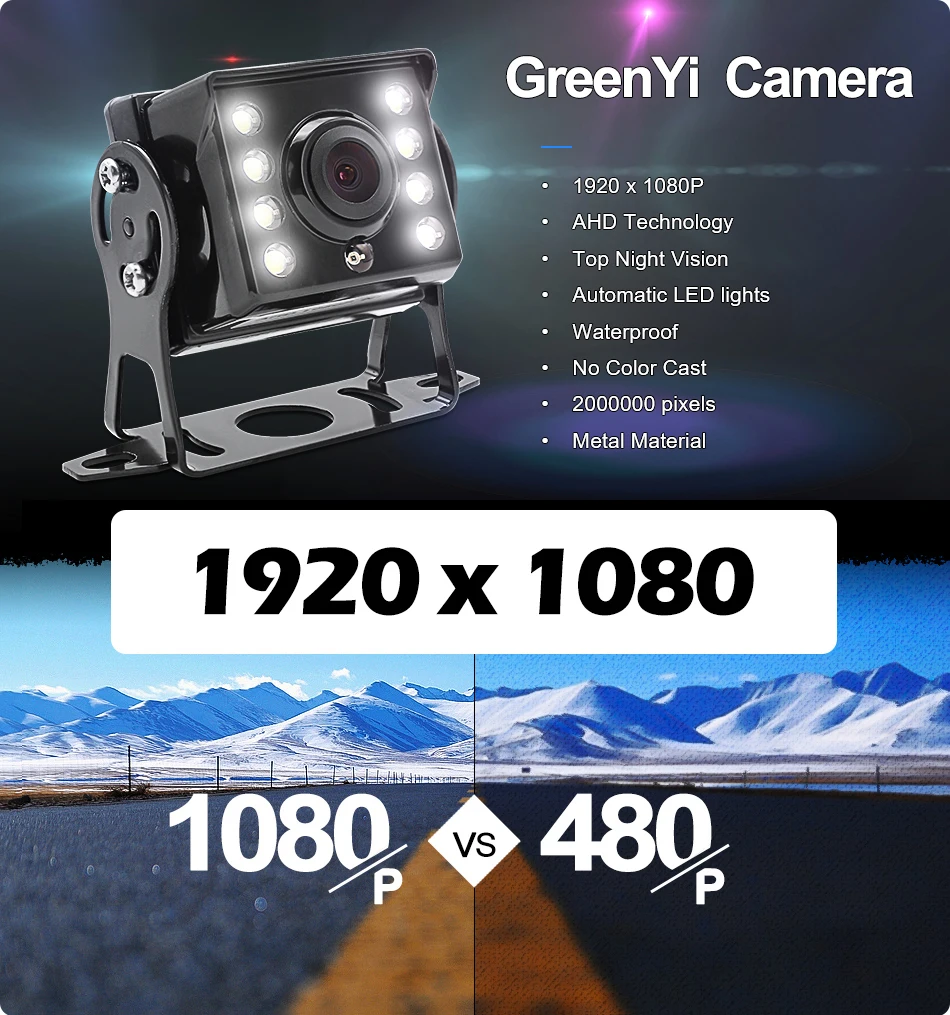

AHD Car Camera:
• 1920*1080P effective pixels
• AHD Technology ( Only support AHD monitor )
• Top GC2053 AHD Chip
• Waterproof
• No Color Cast
• Size: 46mm * 53mm
• New body material: High quality stainless steel, aluminium alloy. Anti Scratch.
• Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation.
Tips: If you not need LED camera, please contact us.
We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in.

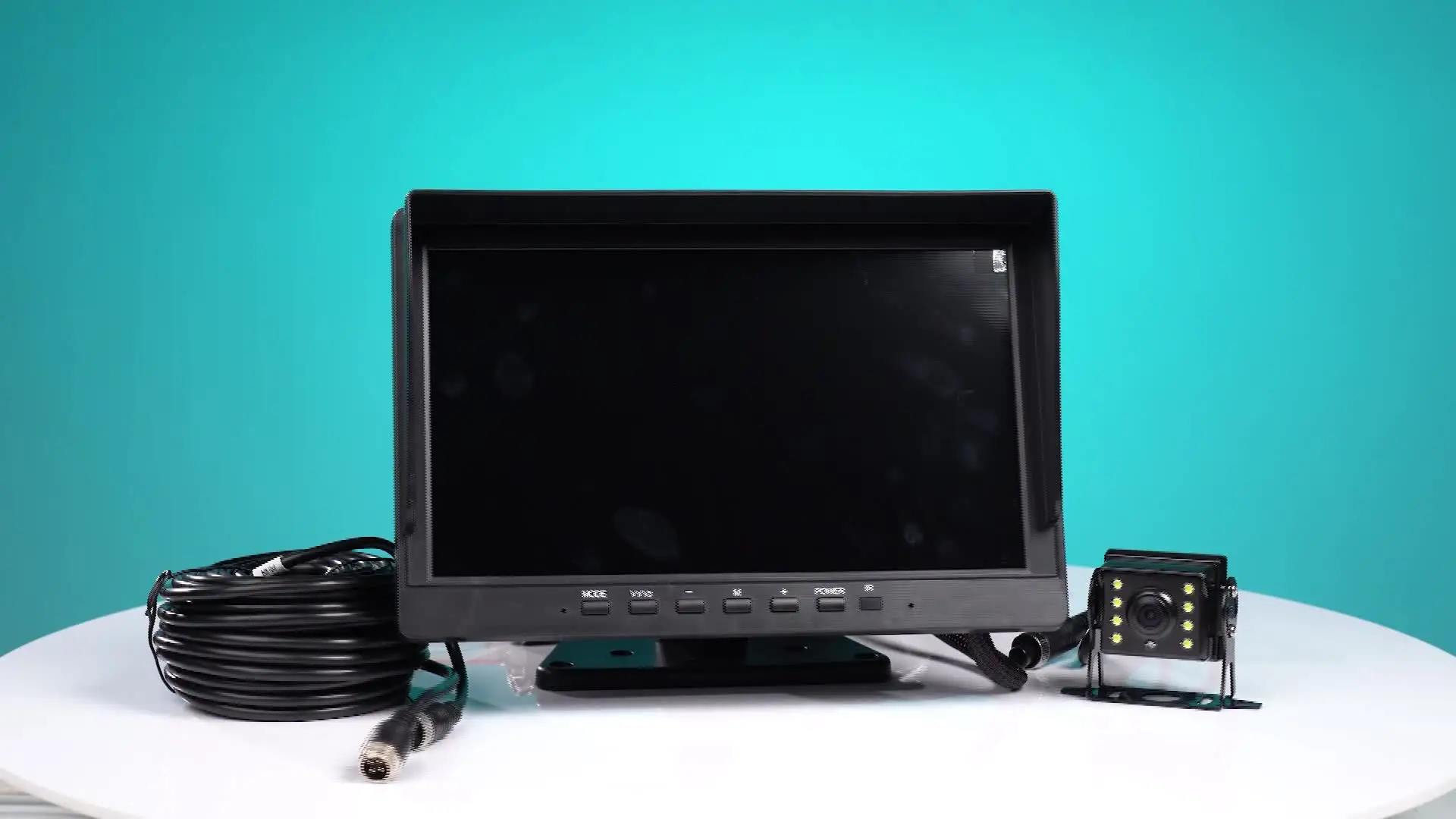

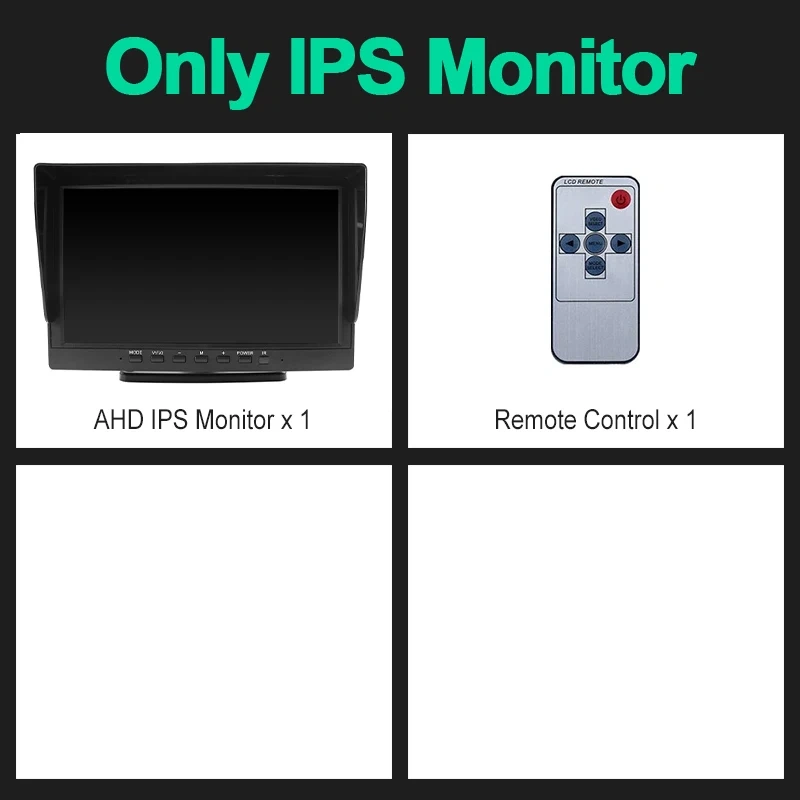

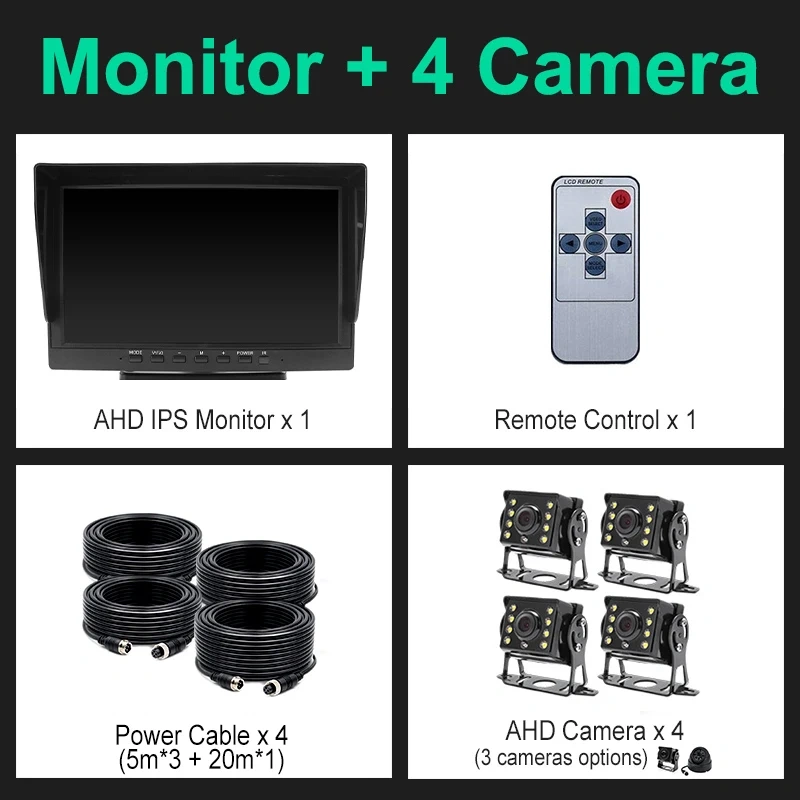

Package Content:
9 inch AHD DVR Monitor
AHD 1080P Cameras ( 1~4pcs, Optional )
Remote control
4 pin video cable ( Length and quantity are optional )
Power cable
Fixed bracket
User manual

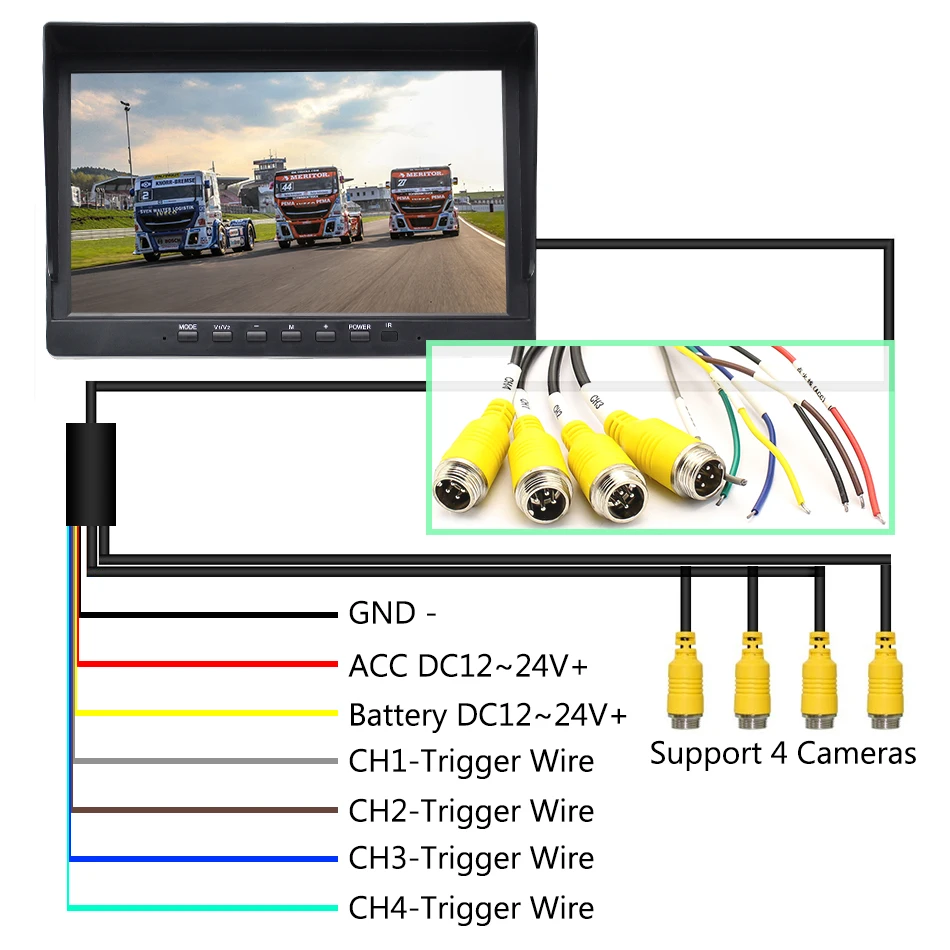

Installation Guide:
Tips:
We send the LED rear view camera by default (P638).
If you don't need an LED (P637), please contact us.
