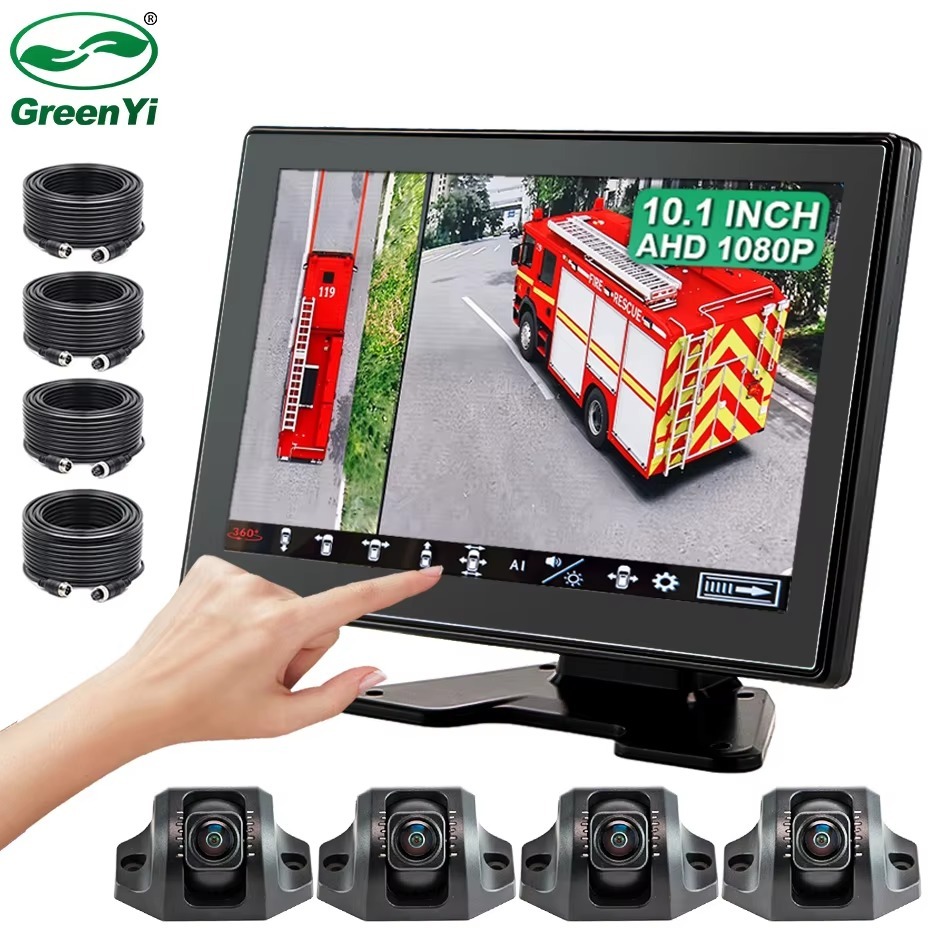

10.1 Inch AHD 1080P AI 360 Bird View Monitor with Camera For Truck Bus Van Sweeper Harvester Excavator DVR Panorama BSD System

AHD 1080P AI 360 Bird View Monitor with Camera For Truck Bus Van Sweeper Harvester Excavater Sweeper DVR Panorama BSD System

1. The main unit supports multi-channel camera configurations, accepting 1080P / 720P cameras; it supports 4-channel camera Video modes

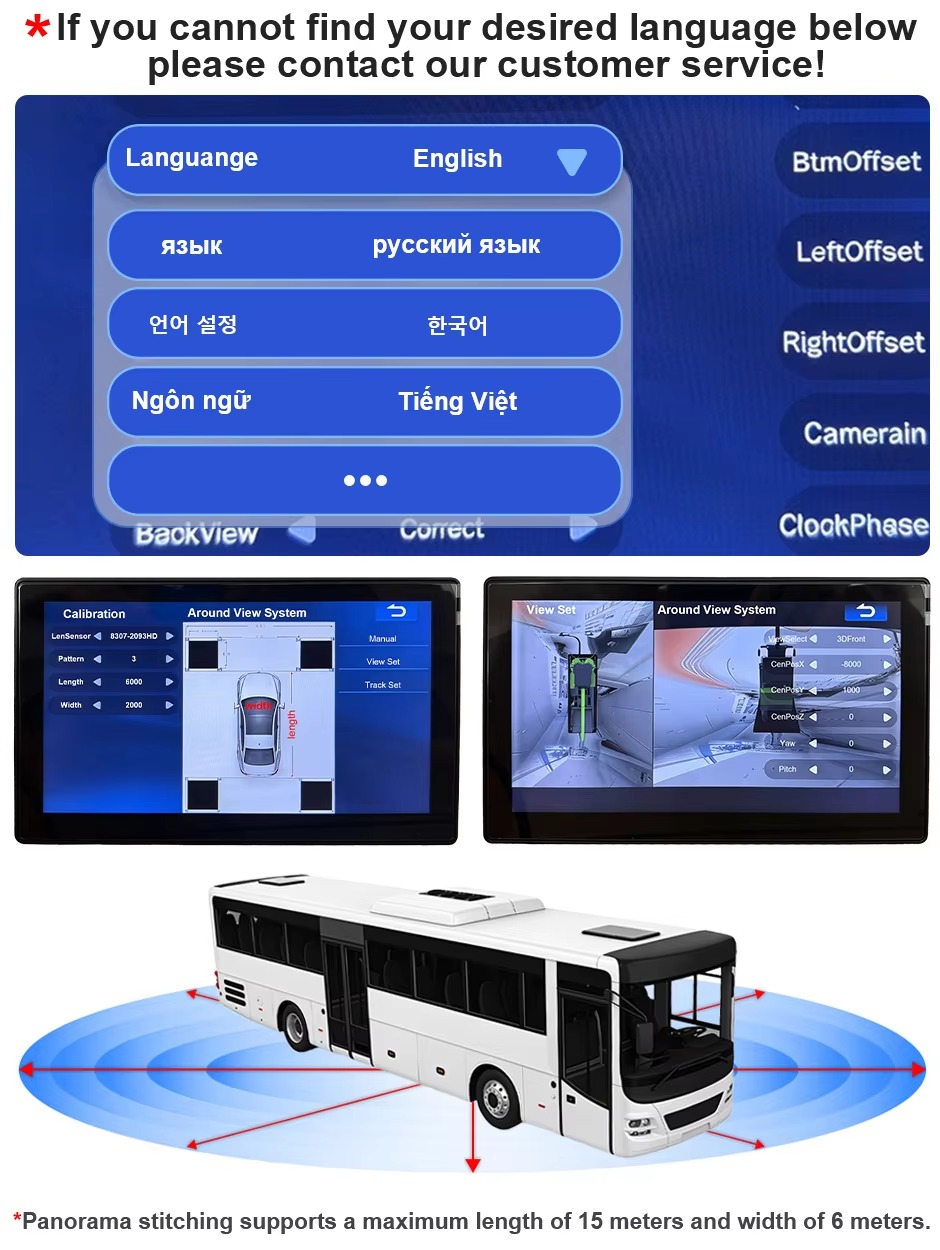

2. Built-in 360 ° surround view imaging purpose-developed for commercial vehicles, powered by our in-house heavy-vehicle 3D stitching algorithm.Support 30 Kinds Car Models Display.
3. Built to automotive power standards: wide-voltage DC 10–35 V input, reverse-polarity protection, reinforced TVS + ESD design, and a supercapacitor on the main power line to ensure reliable recording even on unexpected power loss.
4. Multiple video outputs: AHD / LVDS / CVBS.
5. SD-card storage, compact form factor, low power consumption, vibration-resistant.
6. When paired with our dedicated automotive display, it supports touch control and HD display output.
7. Optional dual-CAN daughterboard for dual-CAN functionality. 8. Optional mSATA daughterboard for mSATA SSD storage.
9. Optional computing daughterboard enables BSD (Blind Spot Detection) on the front / rear / left / right channels; built-in 3 W voice-announcement speaker with adjustable AI alert volume.
10. Optional RS485 daughterboard for RS485 communication.

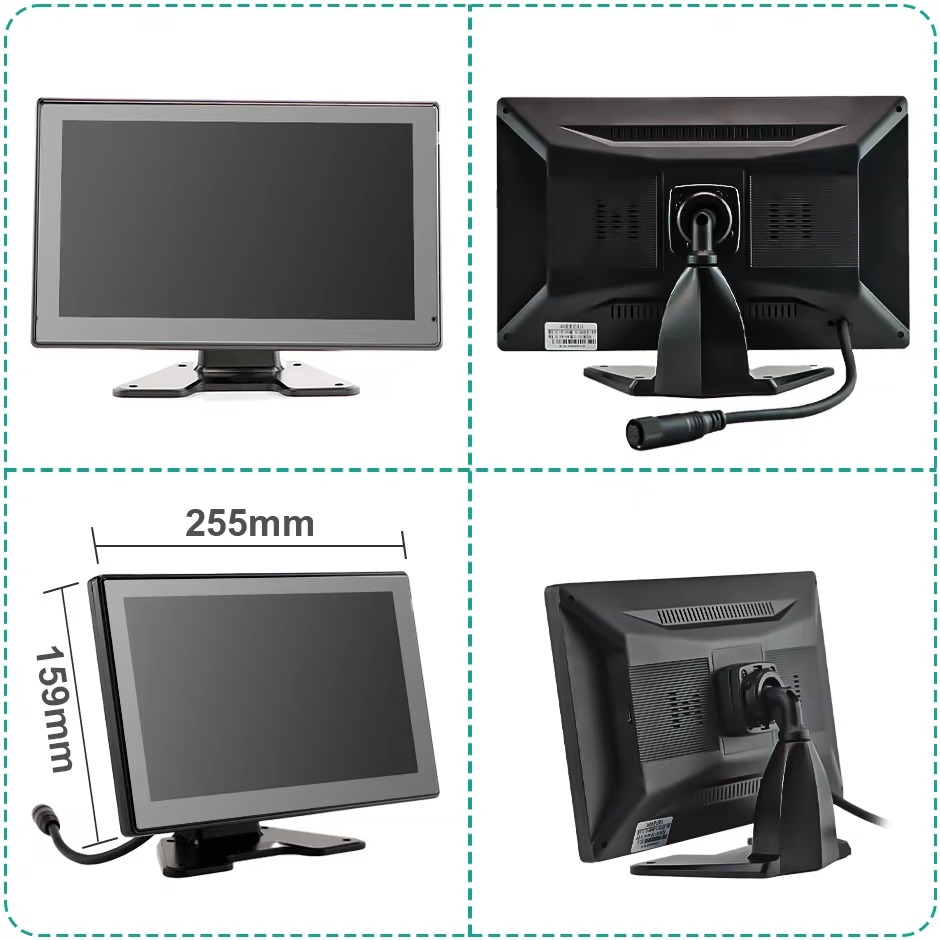

360 Monitor :

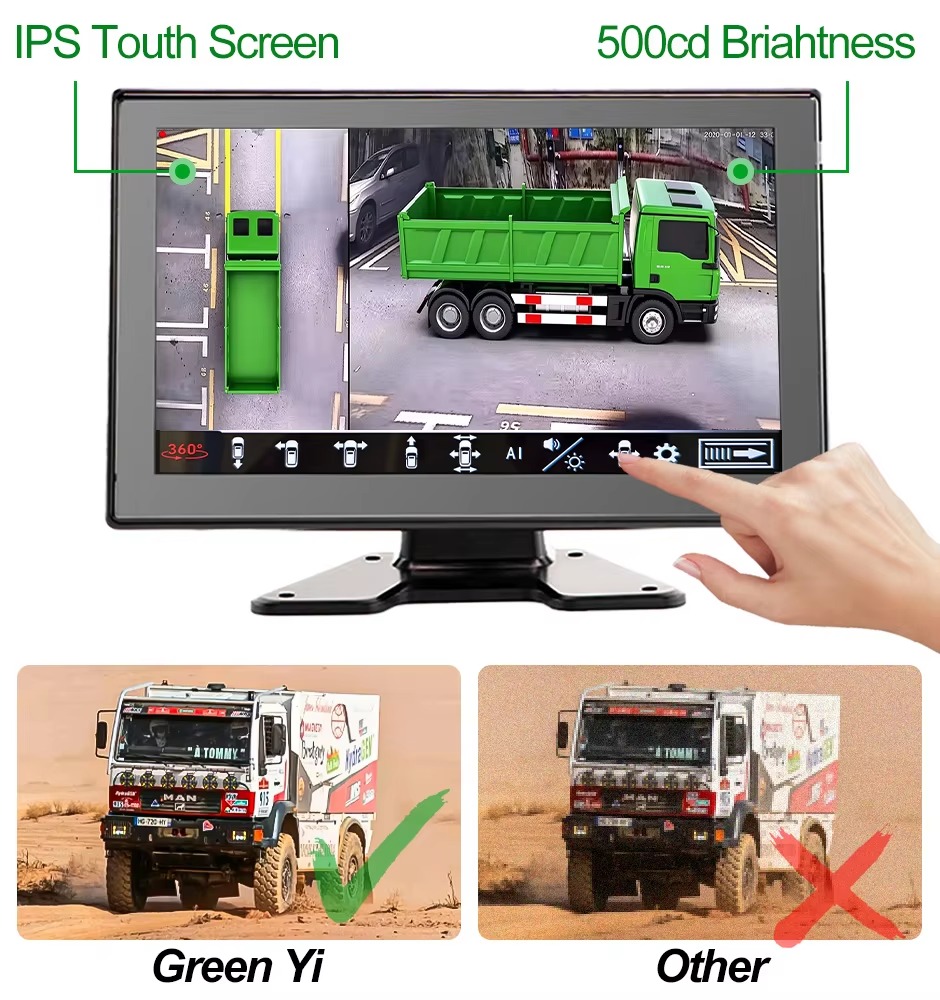

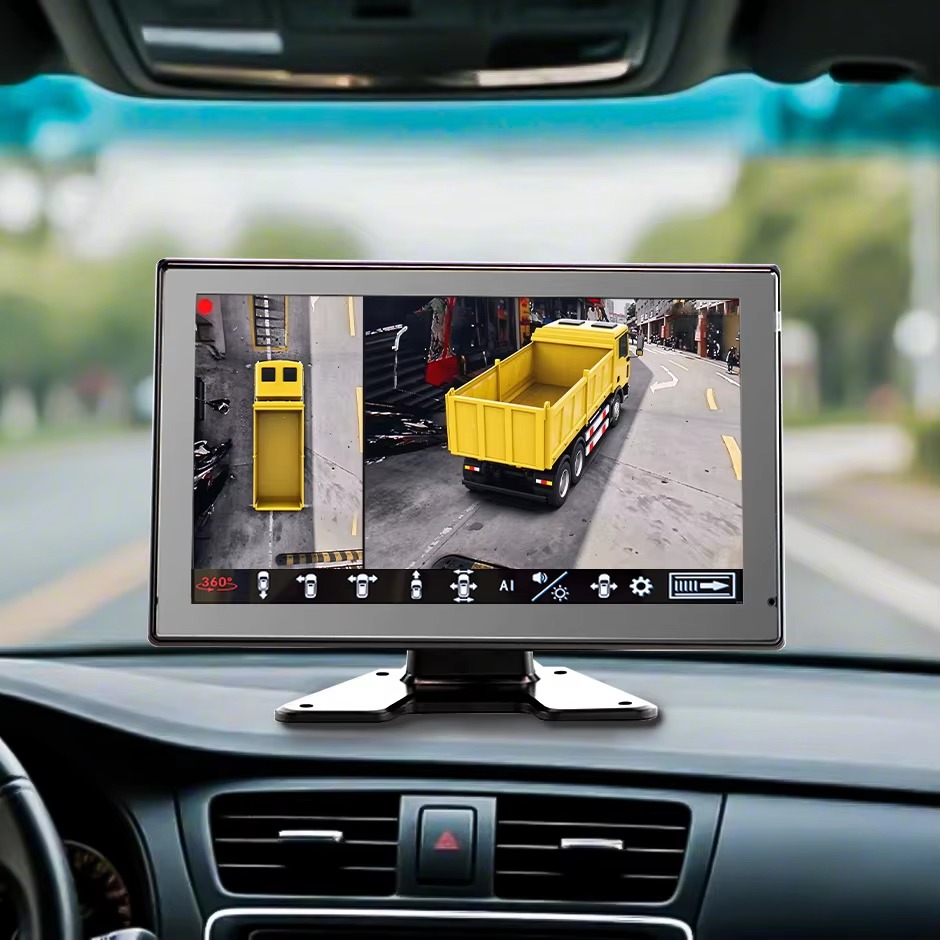

10.1 inch Full HD Touch screen, Special design for 360 camera system/MDVR, Touch control for 360 camera system with UART protocol
1.Screen size: 10.1 inch IPS panel
2.Pixel of screen: 1024*600P
3.Display ratio:16：9
4.Screen touch type: capacitive touch screen
5.Video input: 4 CH AHD1080P Camera

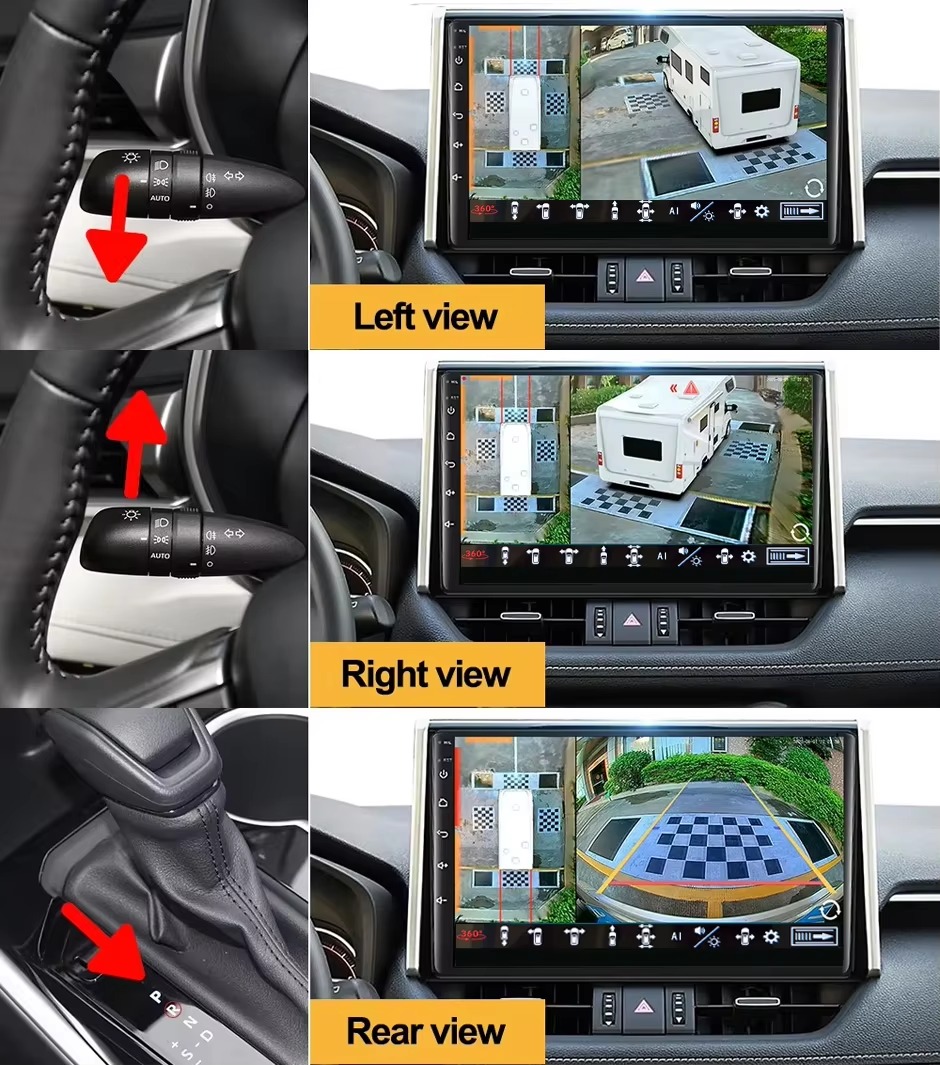

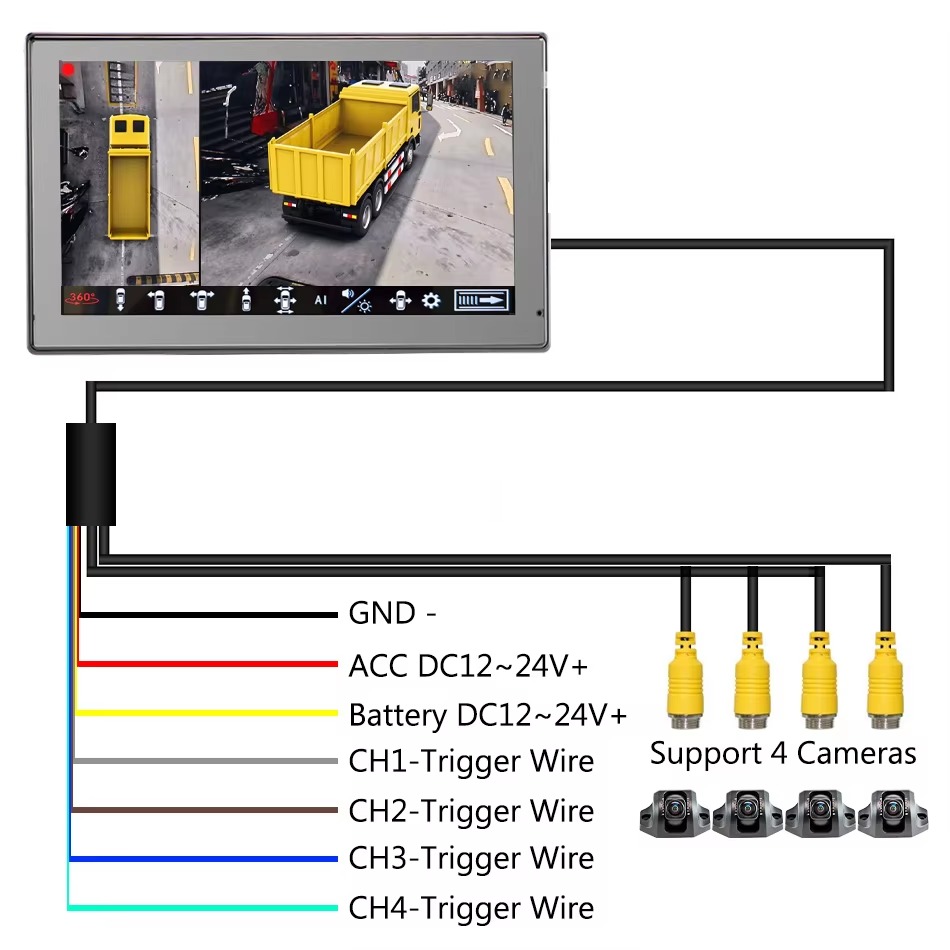

6.Trigger control:3CH Trigger Wire input
7.Voltage support:DC9-32V , Working current:443mA at DC12V
8.Working temperature: -20~80 ° C
9. SD Card Max support 256GB

30 Kinds Car Model Optional:

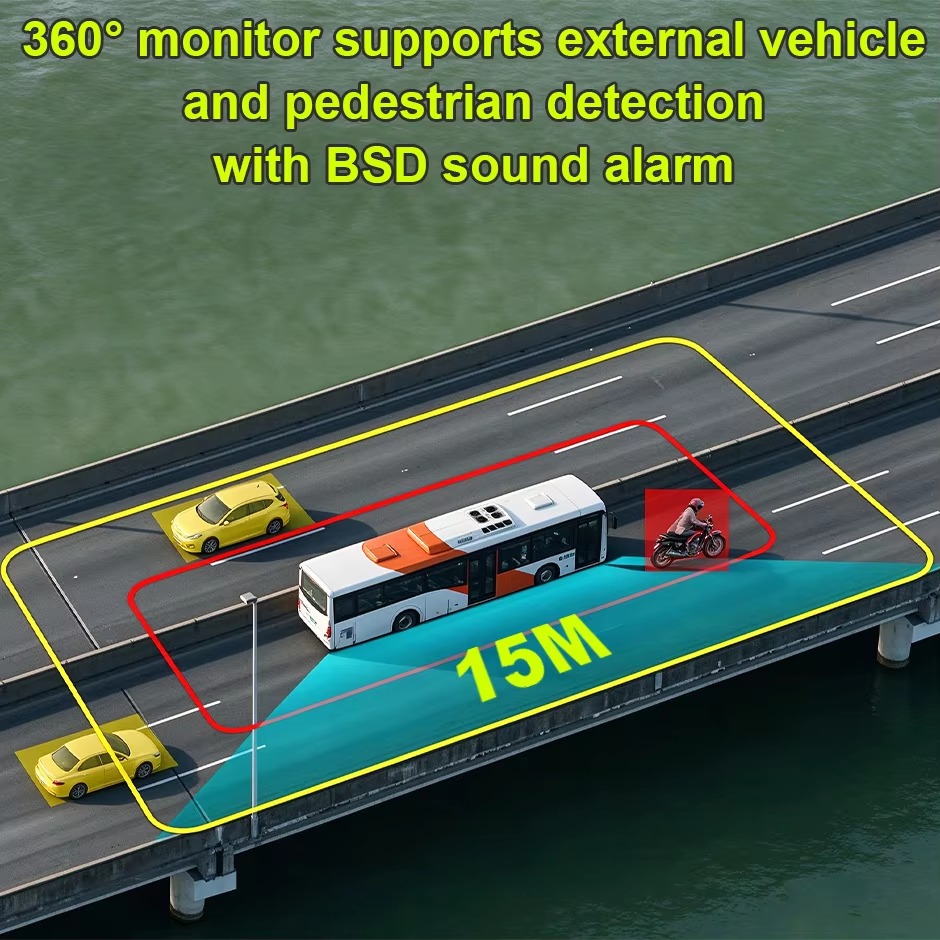

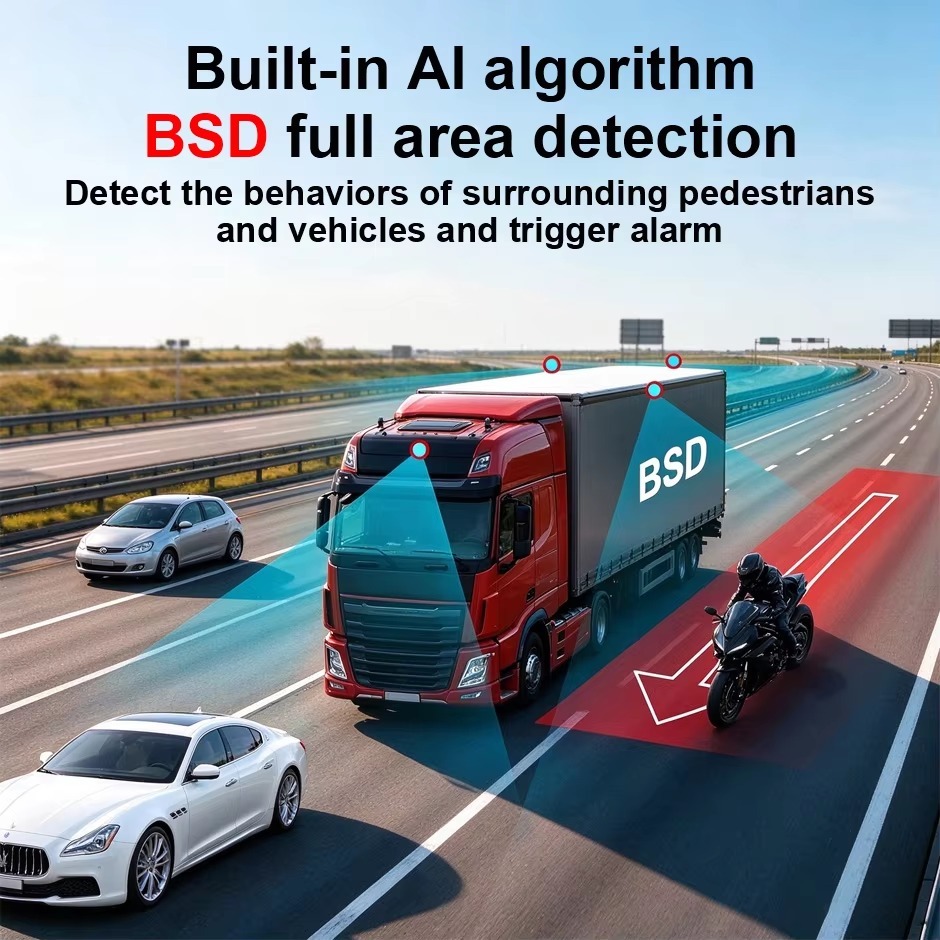

AI BSD Function:

*The Monitor has a built-in high computing power Al smart main control chip and high-definition AHD wide-dynamic photosensitive motherboard, which can monitor and identify the risk of reversing in the output image moving object information , greatly improving driving safety.
* Screen warning: When reversing, the human body and the vehicle can be dynamically identified in the output video screen. When the human body or vehicle enters the scale of the screen, the scale of the screen display red to provide a warning.
* Sound warning: When reversing, when a human body or a vehicle enters the scale range of the screen, the scale range of the screen display red, and the speaker emits a warning sound .

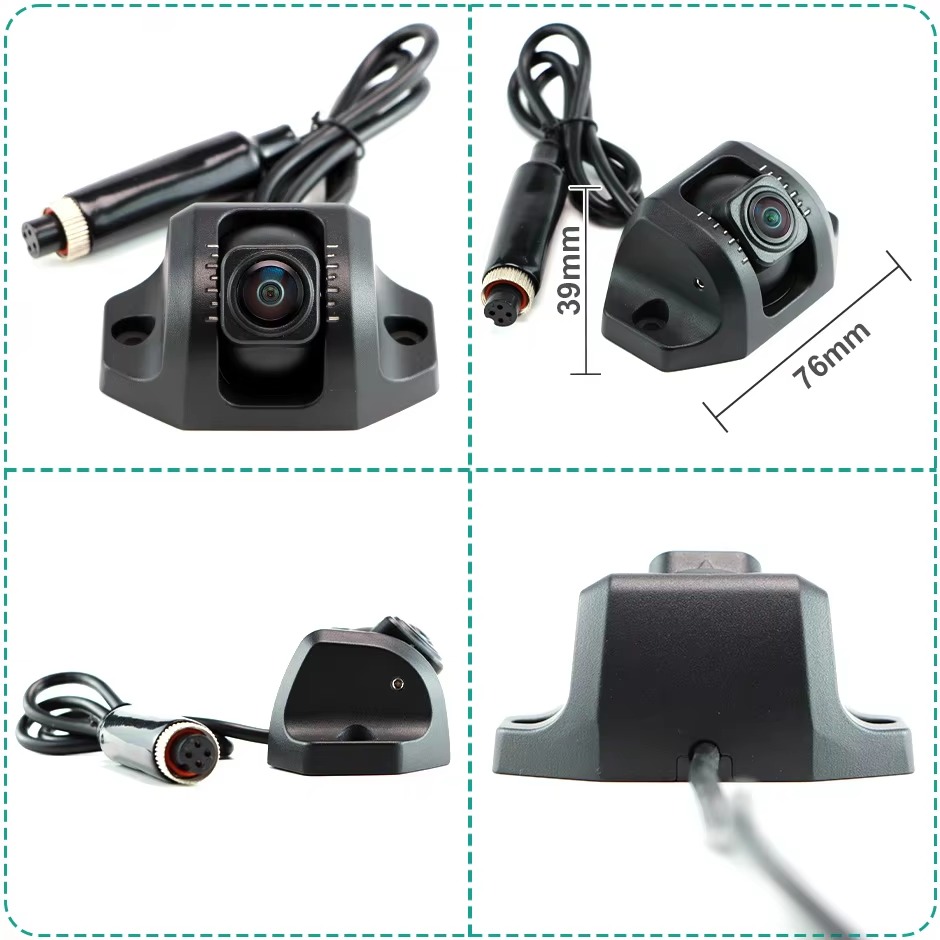

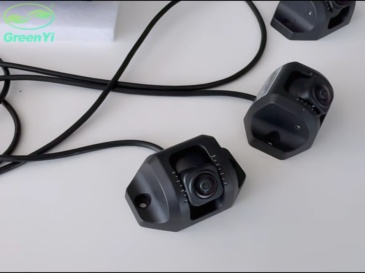

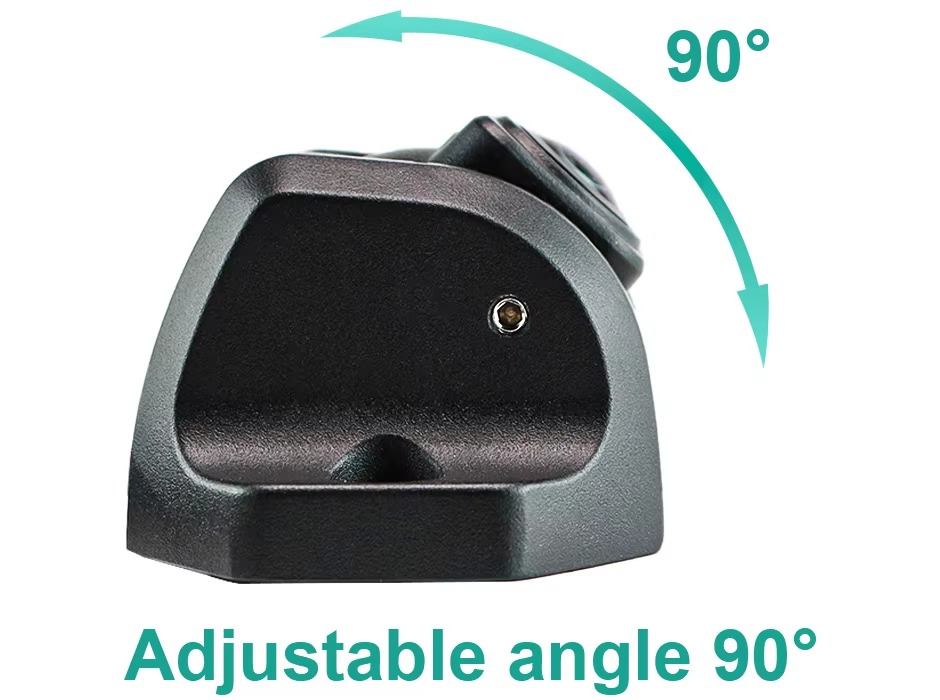

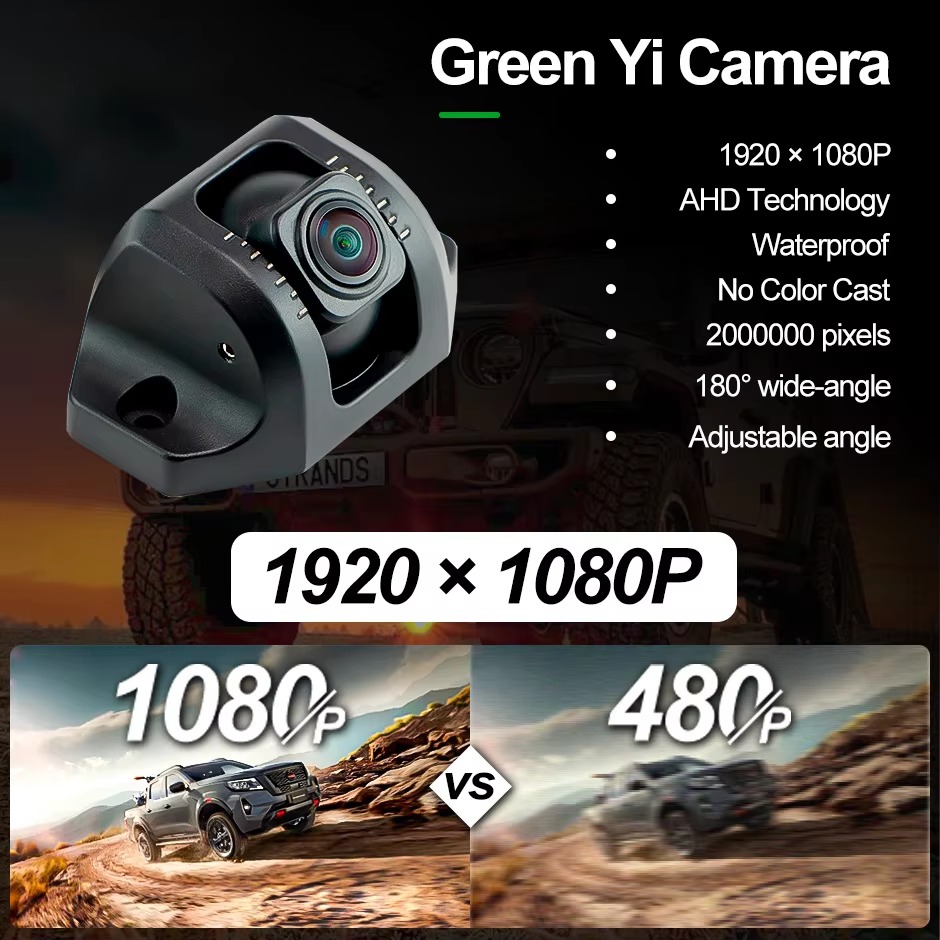

AHD 1080P Camera:

* With AHD 1080P Camera lens, the quality of shooting video is delicate and clear even in low light conditions at night。

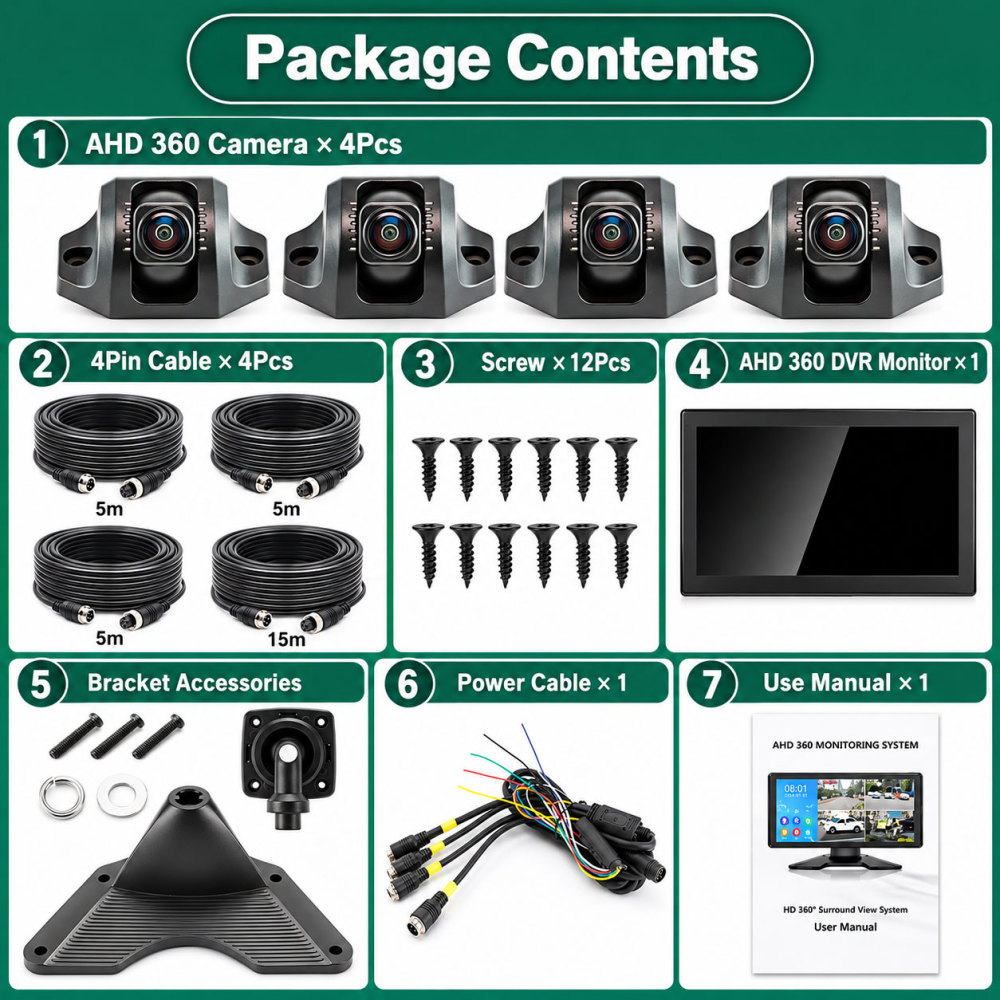

* Truck-Specific Aviation Cable, Default 1pcs 15 meters extending cable for rear view, 3pcs 5 meters extending cable for front, left and right view. Support to customize the cable as you need.
* Support waterproof IP68.
* 1920*1080P effective pixels
* Top GC2053 AHD Chips
* No Color Cast , 2000000 pixels
