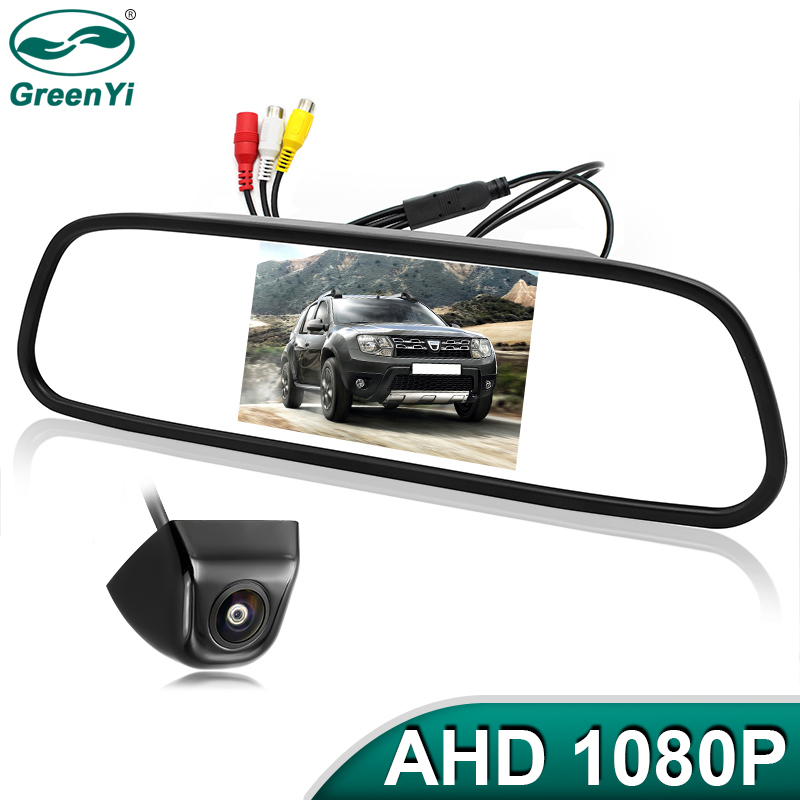

5 Inch AHD 1080P Car Mirror Monitor | High Definition Vehicle Backup Reverse Camera | 170 Degree Starlight Night Vision GreenYi
SKU: AM500
Enhance your driving safety with GreenYi's 5 Inch AHD 1080P Car Mirror Monitor. The high-definition backup reverse camera offers a wide 170-degree starlight night vision for improved visibility in low-light conditions. Safely navigate and reverse your vehicle with confidence.

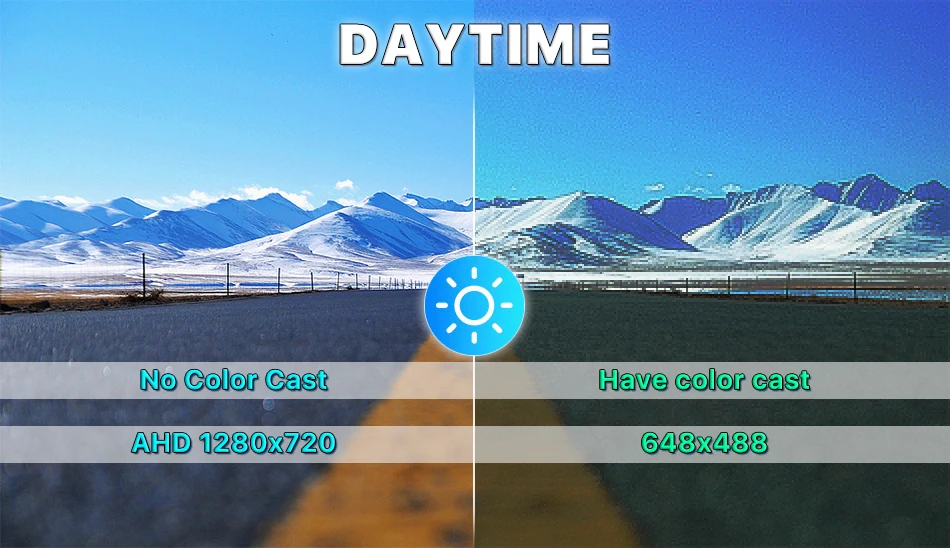

AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level. AHD-M(TVL) Features: • Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction. • transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters • zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity • compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.) • Highly integrated AHD front-end chip, high-definition quality products.

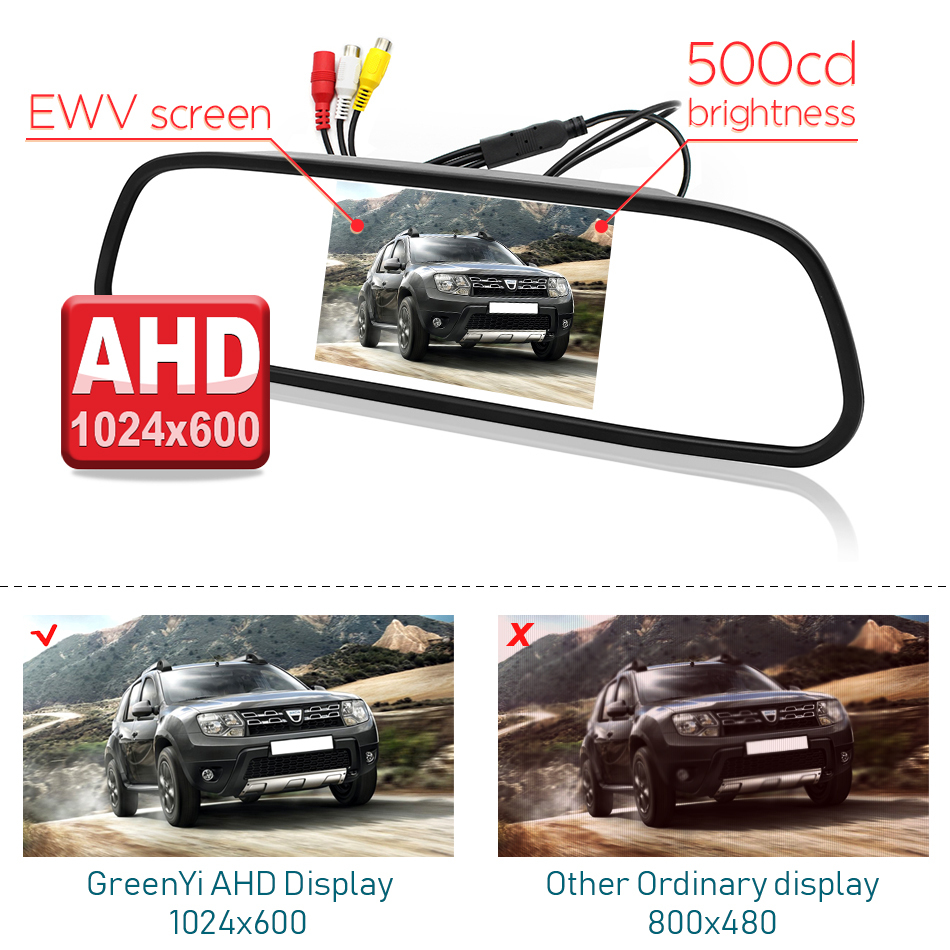

AHD 5 inch Monitor:

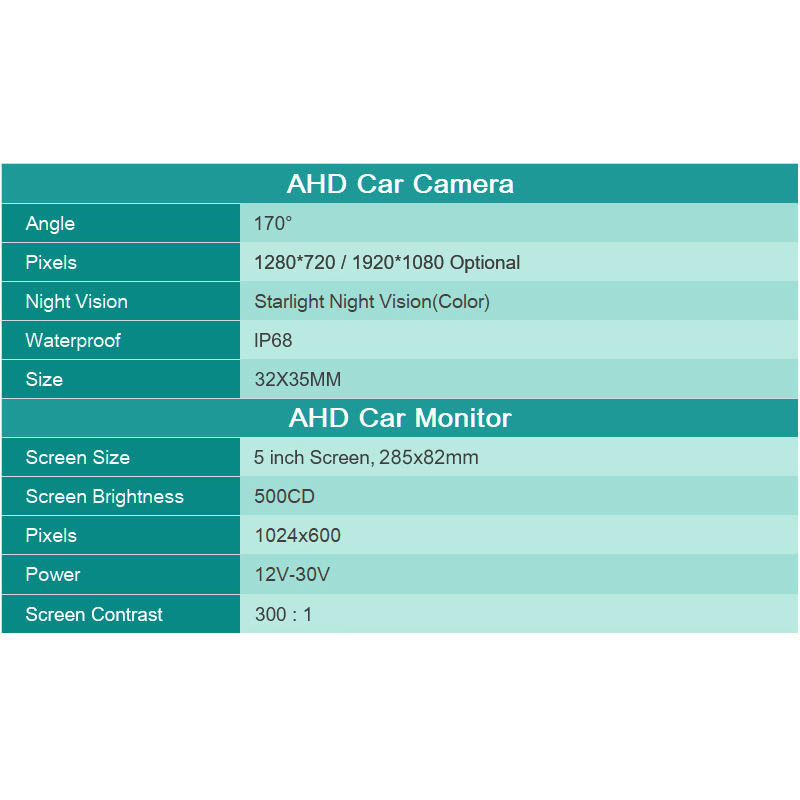

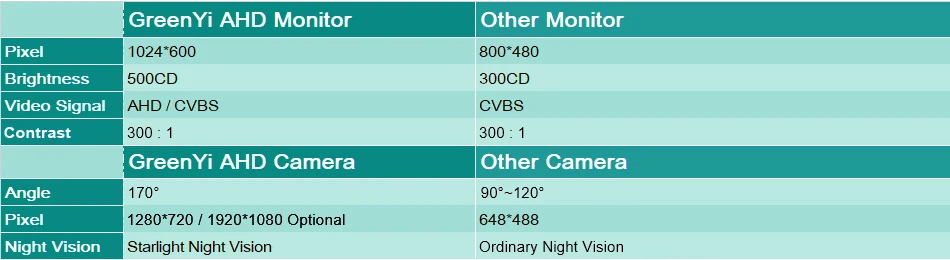

• Video signal: Supports AHD and CVBS signals. • Screen size: 5-inch screen • Format: 16:9 • Screen brightness: 500CD / M2 • Screen contrast: 300:1 • EWV screen: Support • Effective pixels of the screen: 1024*600 • Signal format: PAL / NTSC • Night vision image: automatic gain control, automatic white balance, automatic backlight compensation. • Power supply voltage: 12V-30V (Not recommended for trucks) • Power consumption: <= 6W • Screen saver time setting: Off / 1 minute / 3 minutes / 5 minutes • Support screen flip and mirror function • Support adjustment of brightness, contrast and saturation • Support English, Russian, Korean, Chinese, Japanese • Recommend using our AHD camera, the display effect is very good, just like the effect of video demonstration.
Key Description

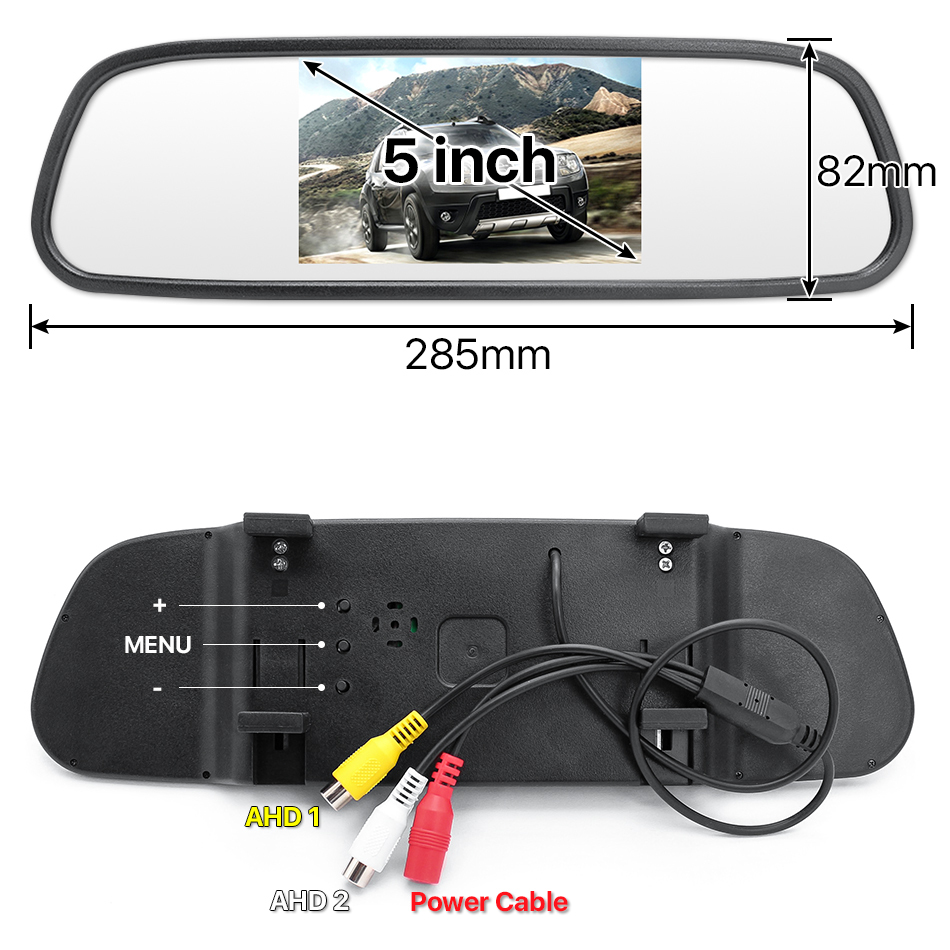

Long press +: Turn screen off or on Long press-: Switch video signal (AHD1 / AHD2) Click MENU: Open menu / back key Long press MENU: OK / Next option
Support screen flip and mirror function
Automatically display images when reversing:

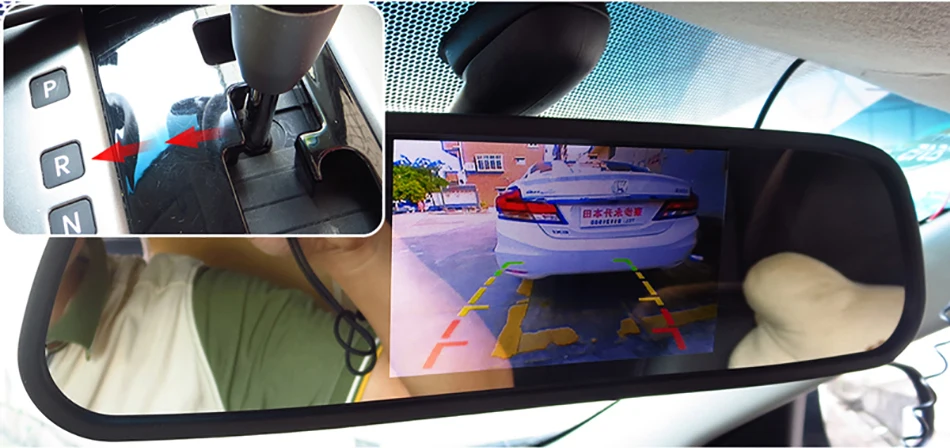

Enter "R". Car mirror monitor display automatically rear view image.

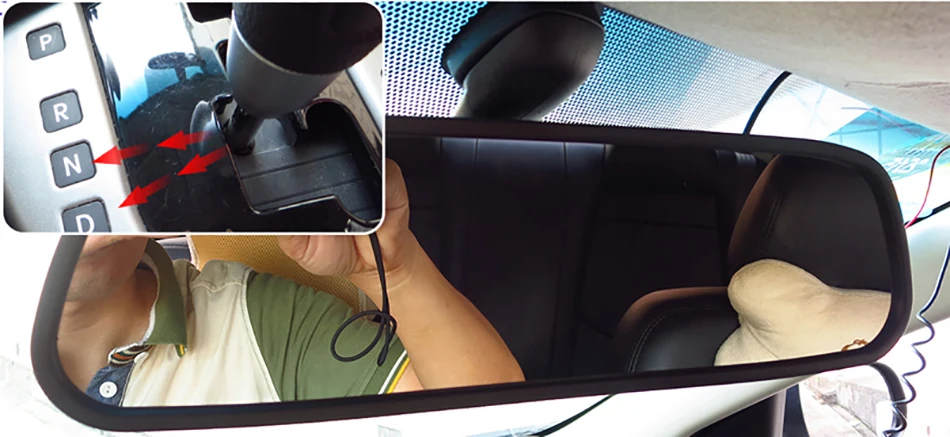

Enter "N" or "D". Car Monitor don't display image or display AUX Video image.

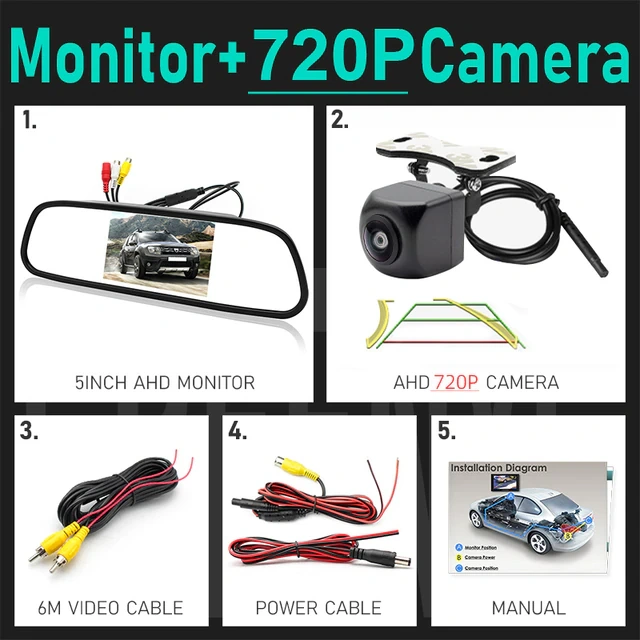

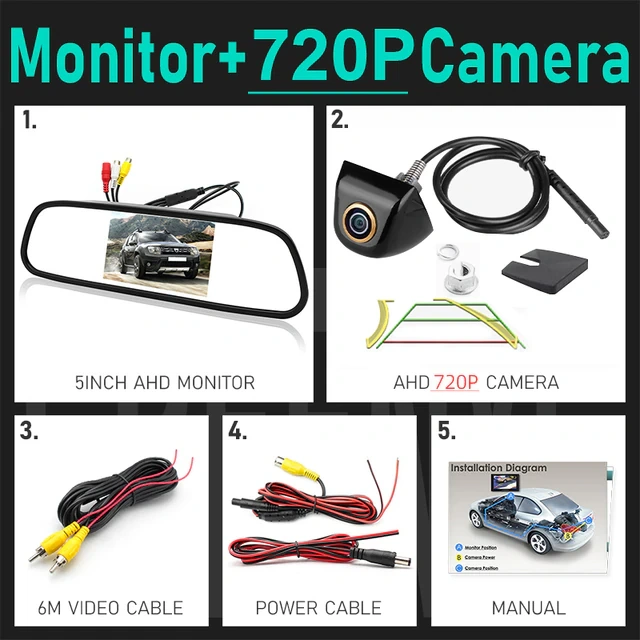

AHD rear cameras:
Tips:
The AHD camera only support AHD Monitor.

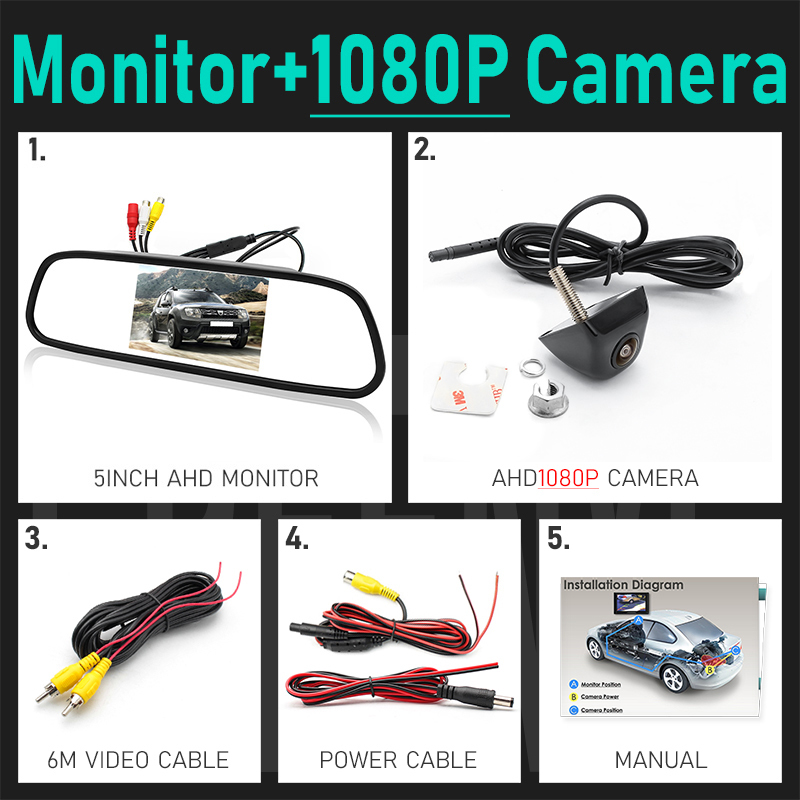

AHD Car Camera:
• AHD 2053 imaging sensor. • Video output: AHD Video Signal (1280*720P or 1920*1080P Optional) • High-definition and 170 degree wide viewing angle. like as fisheye. • Support NTSC/PAL Video system. • High grade of waterproofing: IP68. • Low-light Level Night Vision, 15m visible distance for night. • 6M RCA Video connector. • New body material: High quality stainless steel, aluminium alloy. Anti Scratch. Waterproof.
Waterproof The camera is filled with waterproof silicone, Effective chip protection, IP68-Rated for Use in Extreme Conditions
Tips
1. The 4 pin to RCA cable is a dedicated cable and cannot be replaced; 6m video cable can be replaced. 2. About (+12V No.3): This red wire cannot be connected to ACC, requires connection of reversing lights.
