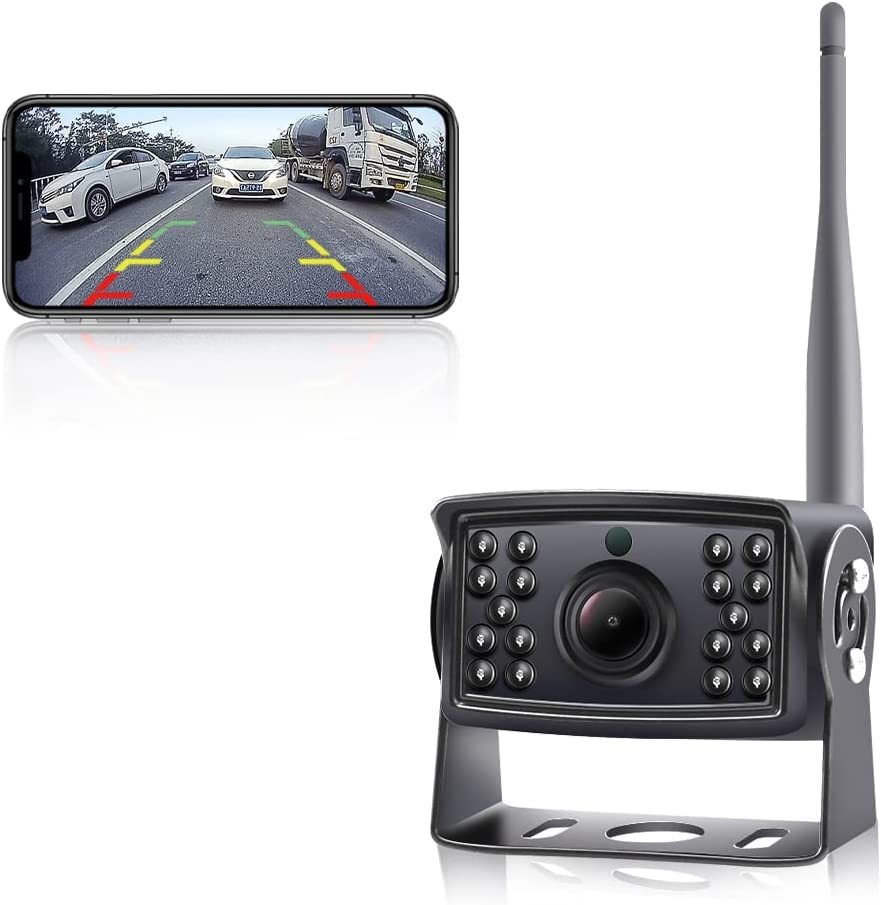

GreenYi 5G WiFi Wireless HD 720P Backup Rear View Reverse Camera for Large Vehicles

Features:

• First 5G WIFI Truck Backup Camera---Compared to other 2.4G WIFI vehicle cameras or camera monitor set, our 5G camera is wireless to your mobile phone or similar device which supports dual band WIFI function, using your mobile device as the mirror monitor. It has improved much in performance: faster connection speed, more stable signal transmission, no image freeze. 1280*720p resolution, 130 degrees viewing angle, IP68 waterproof, and night vision.
• Compatible Smart Devices---Firstly, for any device, to use our 5G WIFI wireless reverse camera, it must support Dual Band WIFI(IEEE 802.11 a/b/g/n/ac 2.4Ghz and 5Ghz) in WLAN function, you can check it in your device’s official website to confirm this(iPhone 4 or above compatible). Secondly, the device’s operation system must be Android 5 or above and IOS 7 or above. NOTE: For old or cheap Android devices, they usually don’t support Dual Band WIFI, please check twice.

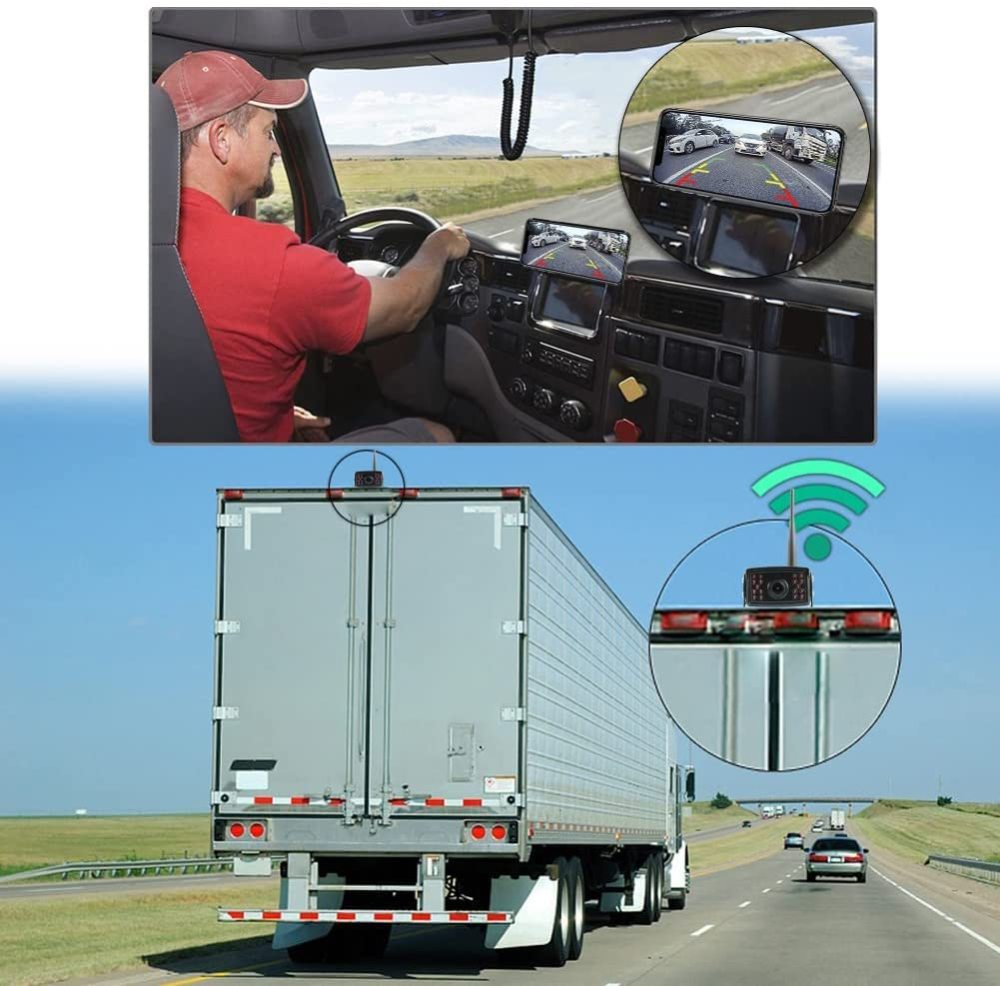

• Can be Used as Both Front and Rear View Camera---You can install this wireless camera at any position on the top of the vehicle. The wireless camera produces mirror image(for rear view) by default, if you want it to show non-mirror image(for front view), you can revise in the settings to achieve this. Mainly apply to large vehicles like Vans, Campers, RVs, Buses, trailers, 5TH wheel, and so on.
• Adjustable Guideline and Picture Video Function---Except normal guide line on / off which can be achieved in the Settings page, you can also adjust the guideline to be wider, narrower, higher, lower by long pressing the guide line in the horizontal screen state of the device. You can also take pictures or videos with the camera, pictures and videos will be saved for convenient view and even sharing.

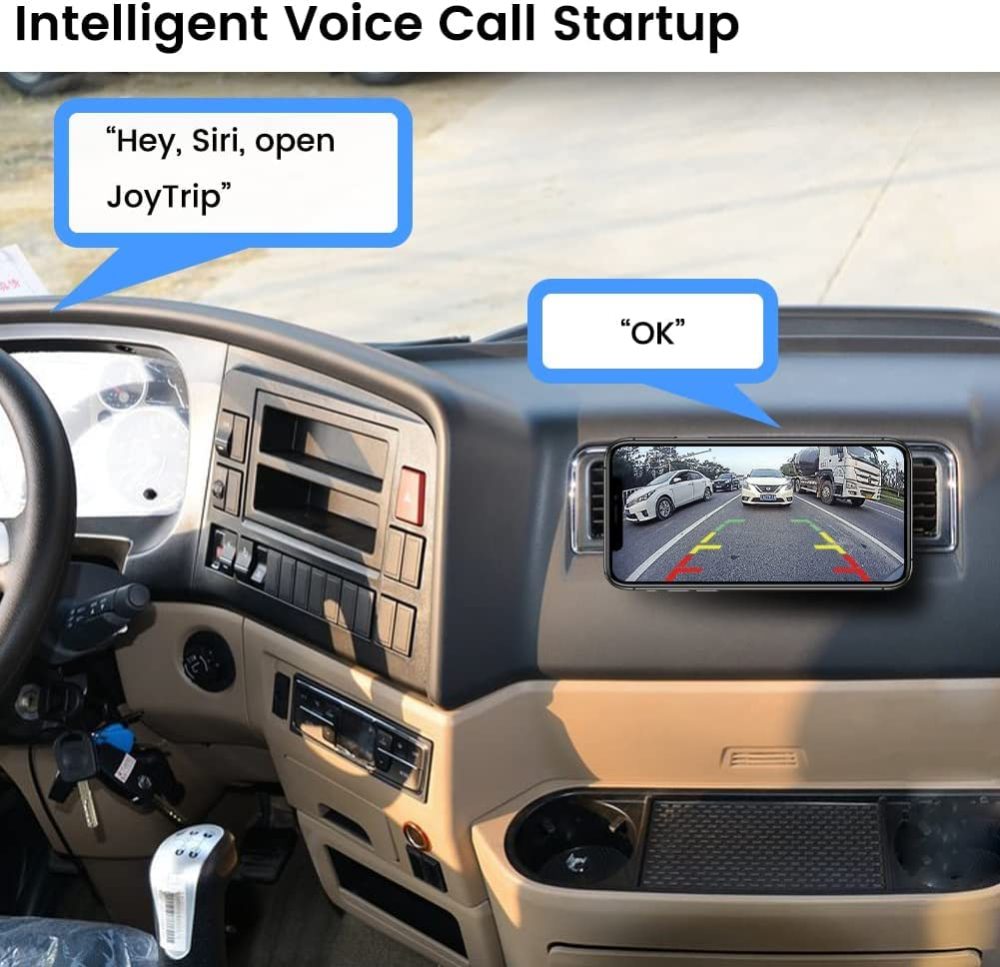

• Intelligent Voice Call Startup and Screen Image Auto Rotation---You can start the APP by voice call on both Android and IOS devices even in black screen(you will need to unlock the screen if you have set it). By putting the device in horizontal state, the screen will auto-rotate to full screen.
• Easy to Install and Use---Fix the camera to your desired position and Run the wires to 12-24V power supply. Steps to Use our 5G WIFI Car Baby Camera: 1. Download the APP by searching JoyTrip in Google Play or App Store. 2. Connect the Camera to Power Supply. 3. Enter WIFI settings and connect to WIFI hotspot starting with “Car....”. 4. Open the JoyTrip APP to view the image from camera, adjust the camera body for best view.

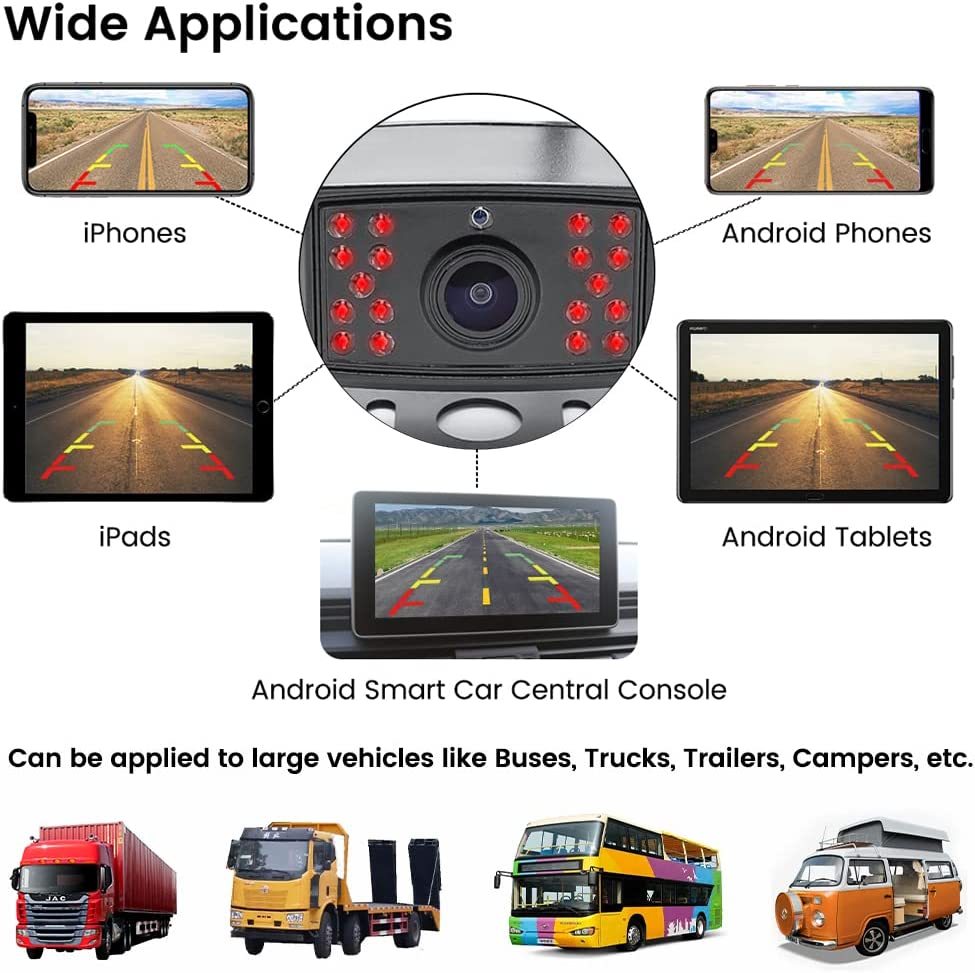

You can use Android or Apple mobile phone, tablet, iPad, or Android smart car central console as the screen to avoid troublesome installation.
5G high-speed transmission, the latest video coding technology, no video signal interference, no image freeze.
The whole camera body are made of aluminum alloy, super heat dissipation, shockproof, dust proof and waterproof.
Professional automotive grade platform, humanized APP, excellent user experience.

Specifications:
Transmission: WIFI digital wireless signal
Video Compression: H.264 High Profile
Transmission Distance: 15-20M
Operating Temperature: -4℉ ~ 122℉
Storage Temperature: -22℉ ~ 140℉
Humidity: 85%RH
Compatible Devices: IOS or Android Devices
Senor Chip: CMOS
Image Pixels: HD 1280x720 Pixels
Viewing Angle: 130°
Minimum Illumination: 0.1Lux/F2.0
Power Supply: ACC 10-36V
Night Vision Distance: 5-10M

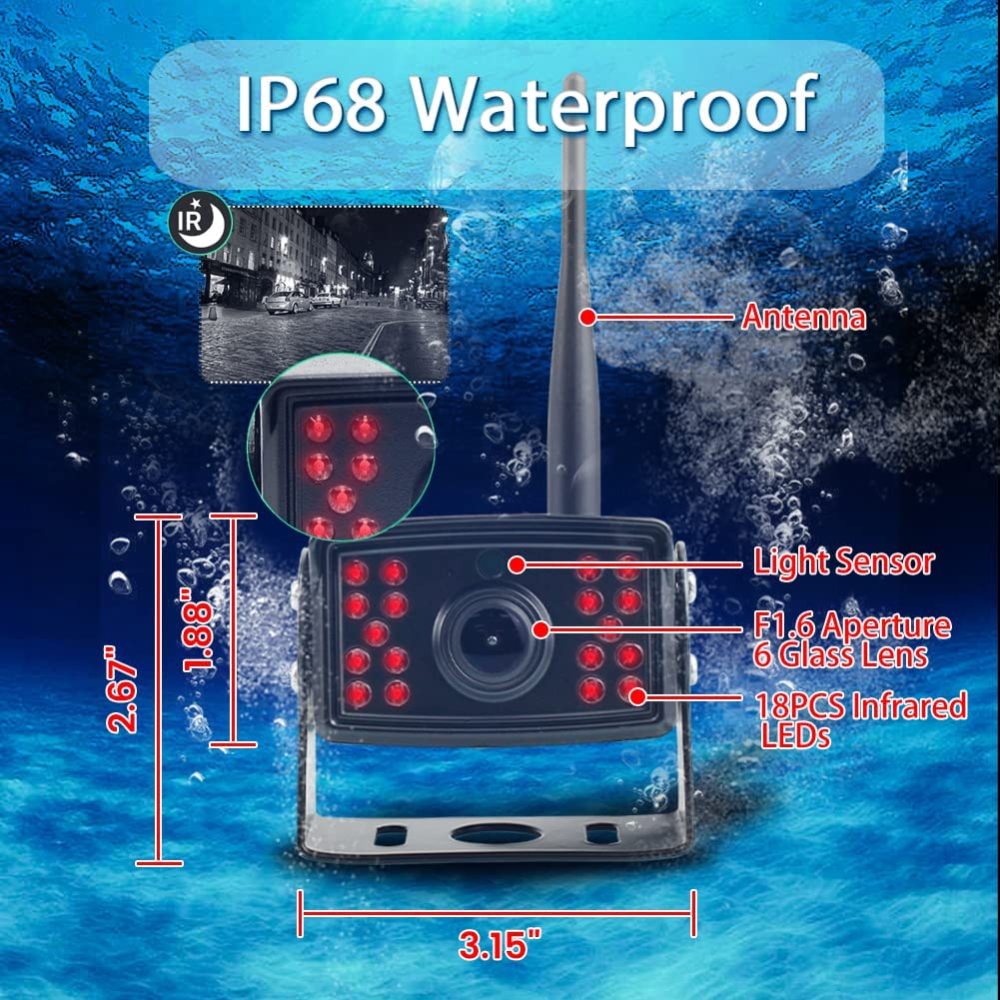

Waterproof Grade: IP68
Fixed Way: Any Position of the Vehicle Roof
Antenna Type: Omnidirectional

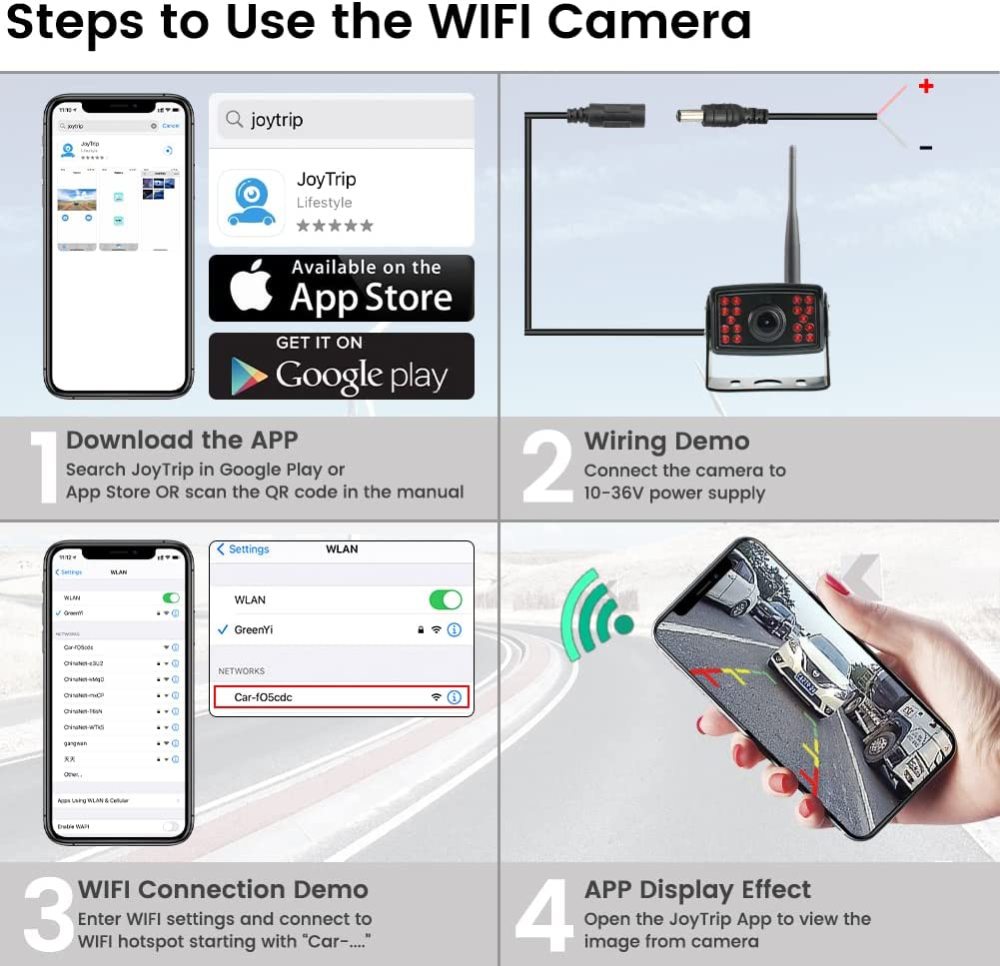

Before final Installation, please have a test at first:
1. Download the APP: Search JoyTrip in Google Play or App Store or san QR code in manual to download it.
2. Connect the Camera to Power Supply---reversing lights/running lights/tail lights/other suitable power supply, we suggest that you connect it to a constant power supply.
3. Enter WIFI settings and connect to WIFI hotspot starting with “Car....”.
4. Open the JoyTrip App to view the image from camera

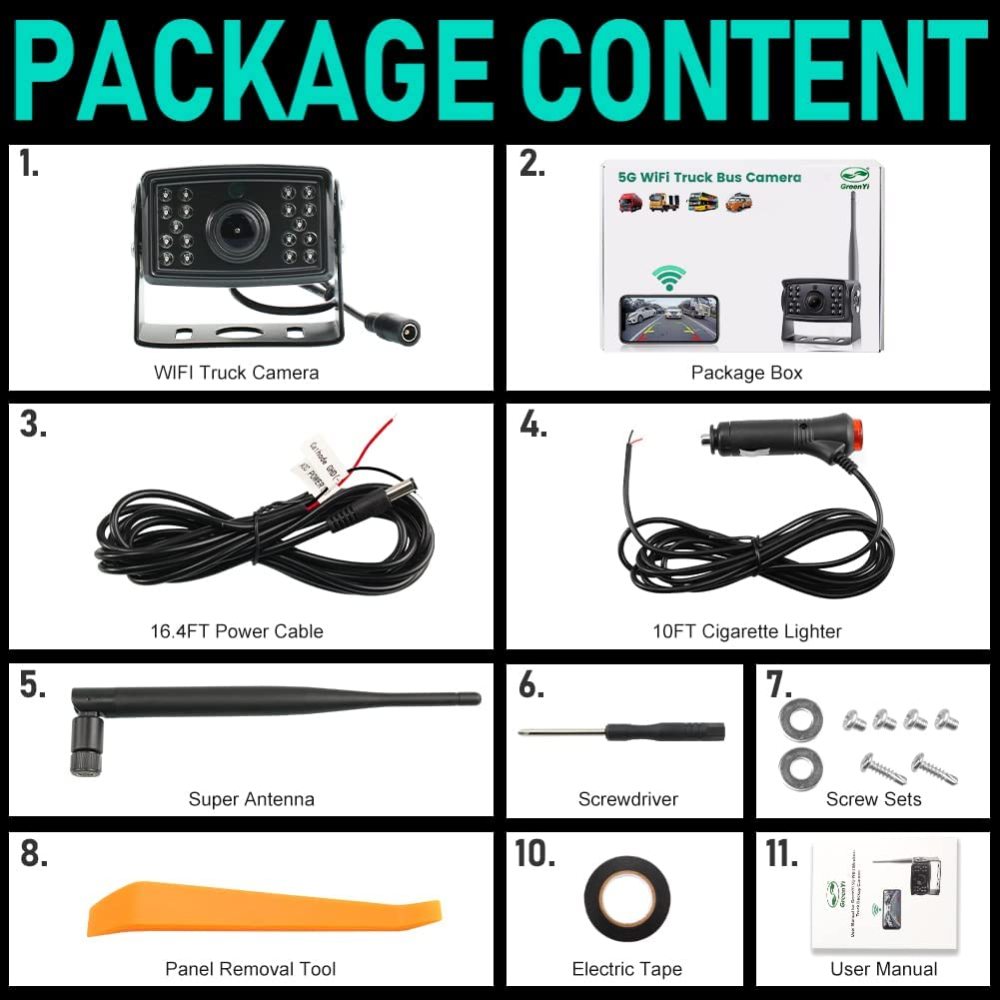

Package:
1 x 5G WIFI Truck Camera
1x 16.4FT Power Cable
1x 10FT Cigarette Lighter
1x Super Antenna
1x User Manual
Screw Sets
