GreenYi Vehicle Rear Front Side View Camera CCD Fish Eyes Night Vision Waterproof IP68 Car Reversing Back Up Camera Universal

GreenYi Vehicle Rear Front Side View Camera CCD Fish Eyes Night Vision Waterproof IP68 Car Reversing Back Up Camera Universal

Features:

• CCD 1409 imaging sensor. Camera Pixel 1280*720P HD.
• High-definition and 170 degree wide viewing angle. like as fisheye.
• Can be used as front or rear-view camera.
• Optional distance scale line.

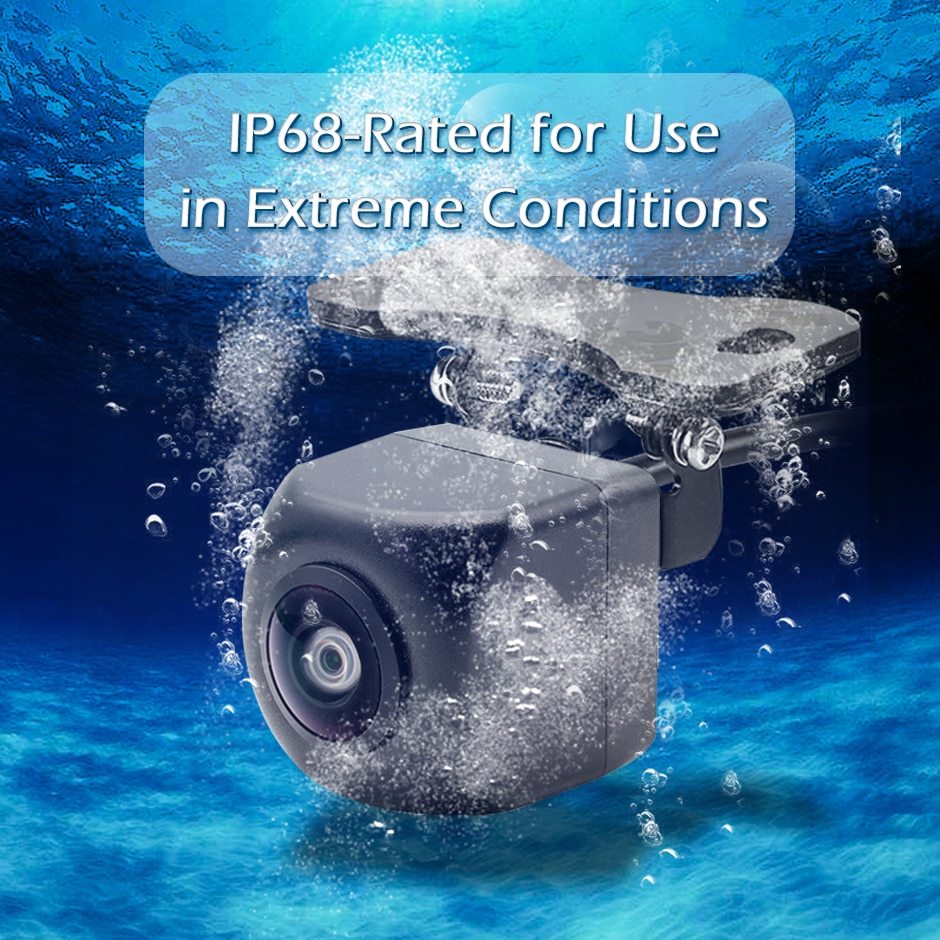

• Support NTSC/PAL Video system. High grade of waterproofing: IP68.
• 6M RCA Video connector. Fit for Android DVD player and Any TFT Car Monitor.
• Fit for any Car model.

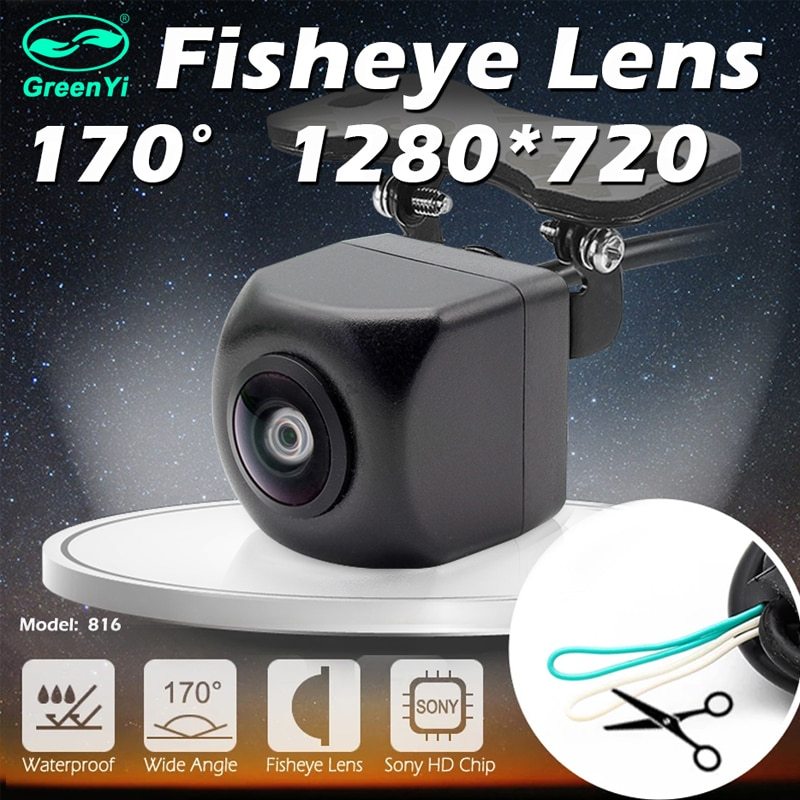

A. Green switch wire (distance scale line switcher)

B.  White switch wire (mirror-mirror switcher)

Instructions:

• If you need a backup camera without distance scale line, do no cut any wires.
• If you need a backup camera with distance scale line, please cut the green wire.
• If you need a front camera with distance scale line, please cut the white wire.
• If you need a front camera without distance scale line, please cut both the green and white wires.

Night Vision

Installation Diagram

Specification:

1. Image Sensor: CCD 1409
2. TV system: NTSC / PAL Option
3. TV Line : 1000 TV Line
4. Effective Pixels: 1280 x 720 Pixels.
5. Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
6. Video Output: 1.0Vpp, 75Ohm
7. White Balance: Auto
8. Power: DC 12V
9. Video Cable Length: 6M
10. Power Supply Cable Length: 1.5m
