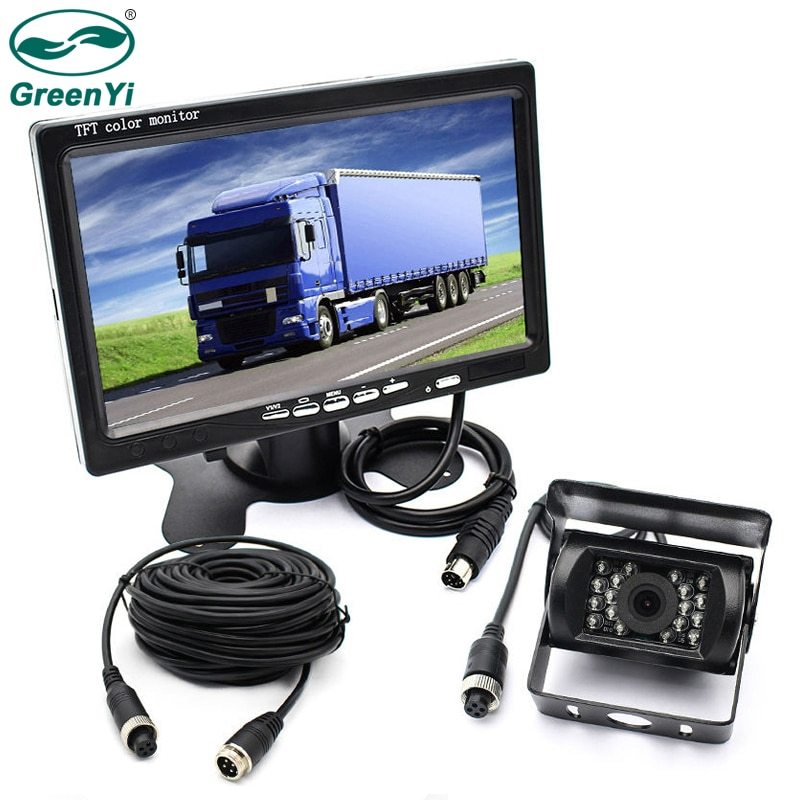

GreenYi Vehicle IR LED Back up Reverse Camera + 7" LCD Color TFT Rear View Monitor 800*480

Features:

Backup Camera In need When Parking Reversing Backing Your Trailer RV to Get Decent Image Quality to Make Your Reversing More Confident and Safety
Car Rearview Rear View Monitor Camera Itself :Waterproof Camera With 18 Infrared Lights and CMOS Sensor & Night Version
Truck Back up Car Dash Security Sensor Camera for Reverse With 10m/15m/20m Camera Extension Cords:This Wire Is Aircraft Grade With Longer Service Life.
2 Video Inputs: Black AV2 Connector For Reversing, Yellow AV1 Connector for other Video Equipment or Second Side/Front Video. You Can Own Videos.The Monitor Will Automatically Turn to AV2 Showing Reversing Video, Second Camera Can be Added.

Camera:

Power Voltage: DC 12V-30V
Image Sensor: 1/4" CMOS 7070
Scanning System: NTSC
Effective Pixels: 648x488 pixels
Resolution: 480 TV lines
Lens: 4-layer glass, 2.5MM
Viewing Angle: 130 degrees
Video Output: CVBS 1.0VP.P.75ohm
AGC: Auto
S/N Ratio: Better than 48db
Electronic Shutter: 1/60~1/100.000 Seconds
Operation Temperature: -40°C~80°C RH95% MAX/-10°C~50°C RH95% MAX
Storage Temperature: -40°C~105°C RH95% MAX/-20°C~60°C RH95% MAX
Waterproof Grade: IP69K

Monitor:

Screen Size: 7 Inch Display
Format: 16:9
Contrast: 300:1
Resolution: 800*480
Power Voltage: 12V-30V DC
Power Consumption: <=6W
Item Type: Parking Assistance
Operation System: PAL/NTSC

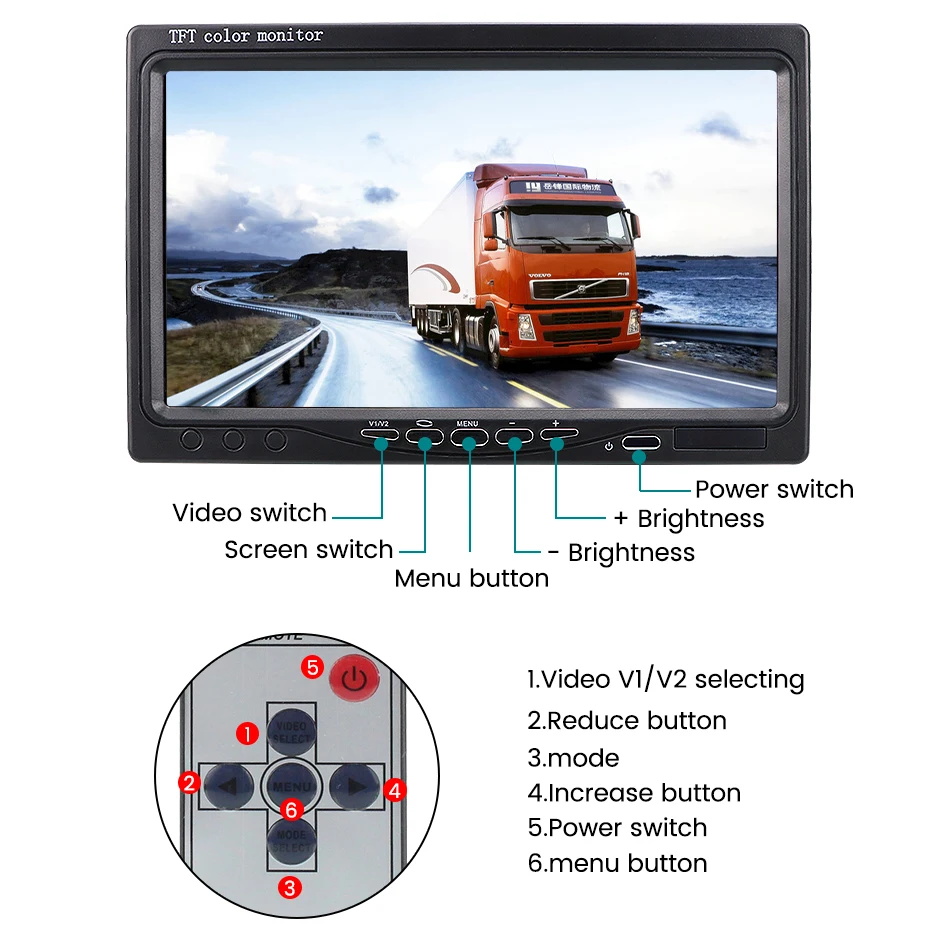

Video Input: V1/V2, auto switch
Operating Voltage: DC 9V-26V
No Audio Input or Output

We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in.

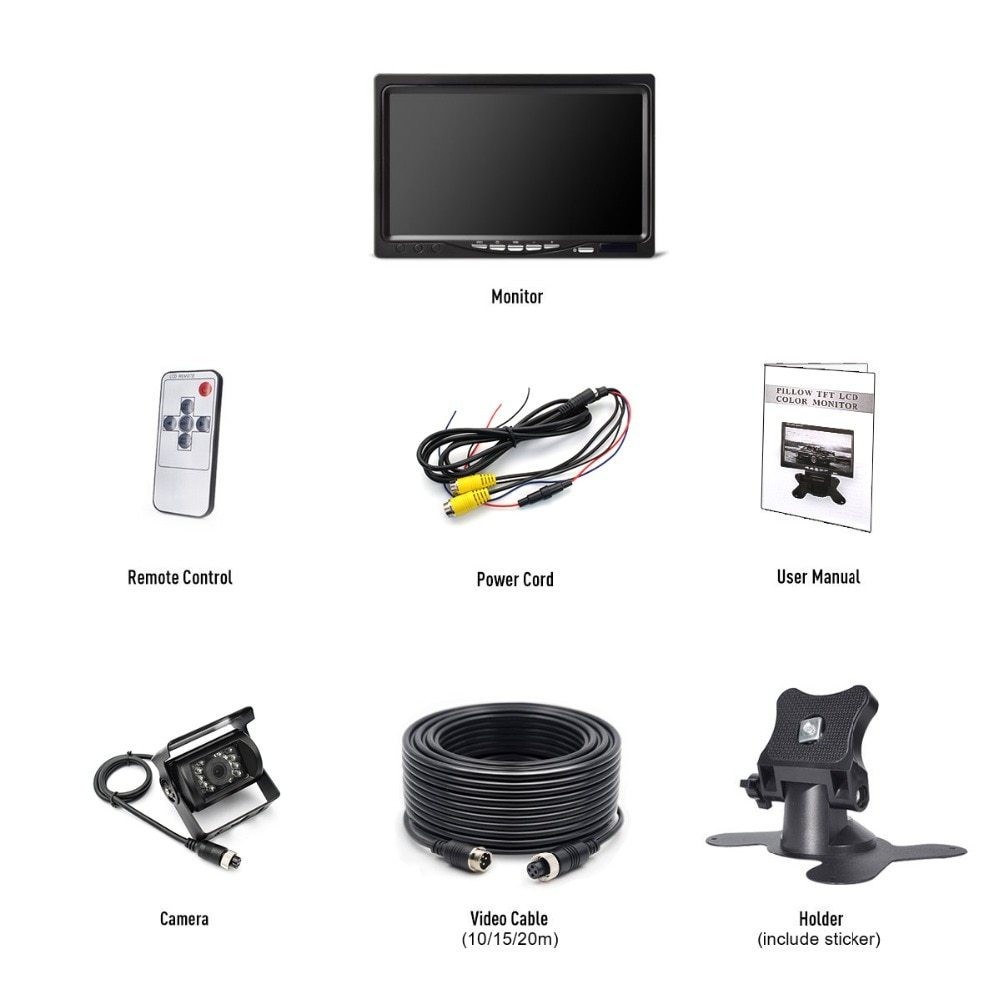

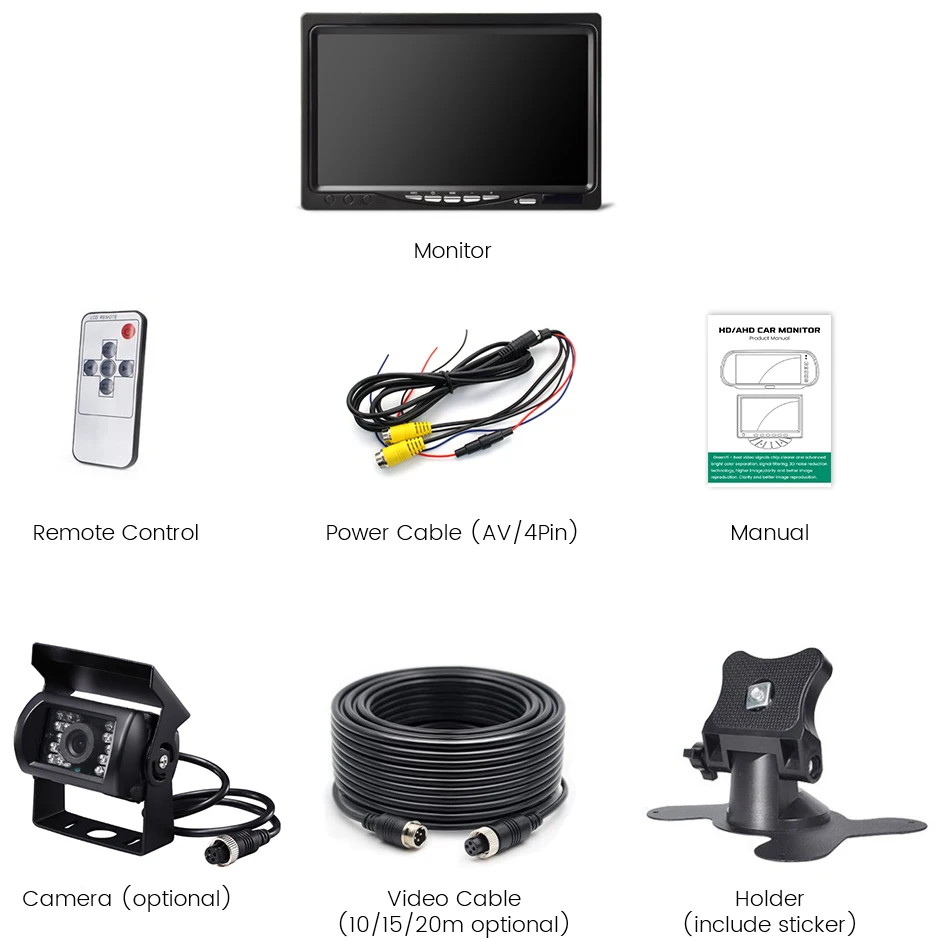

Package
