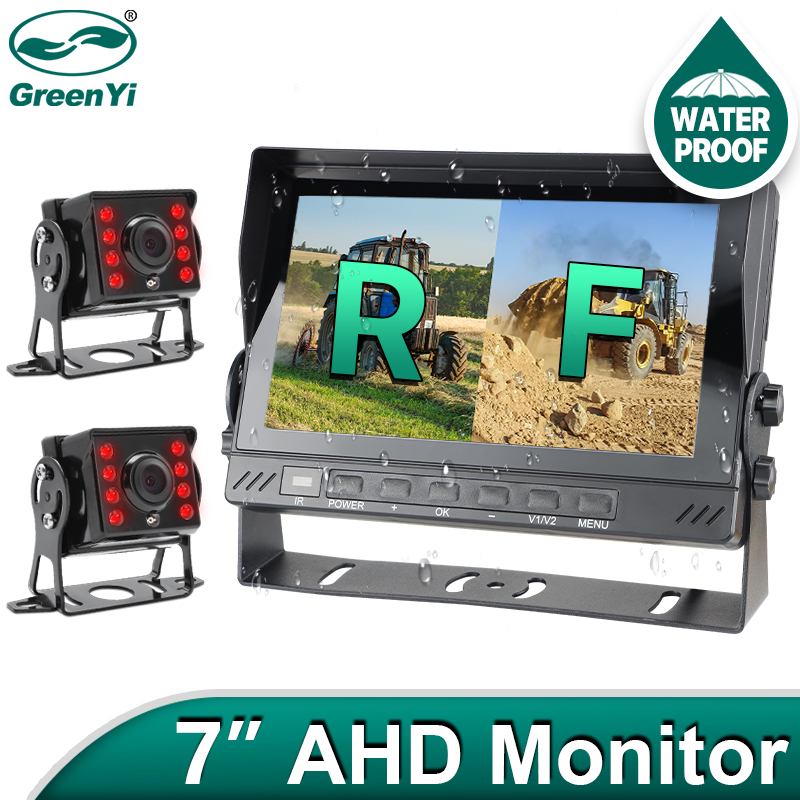

GreenYi 7inch 2 Channel AHD IP66 Waterproof Recording DVR IPS Monitor With 1080P Truck Bus Front Rear Reversing Camera
AHD (Analog High Definition Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

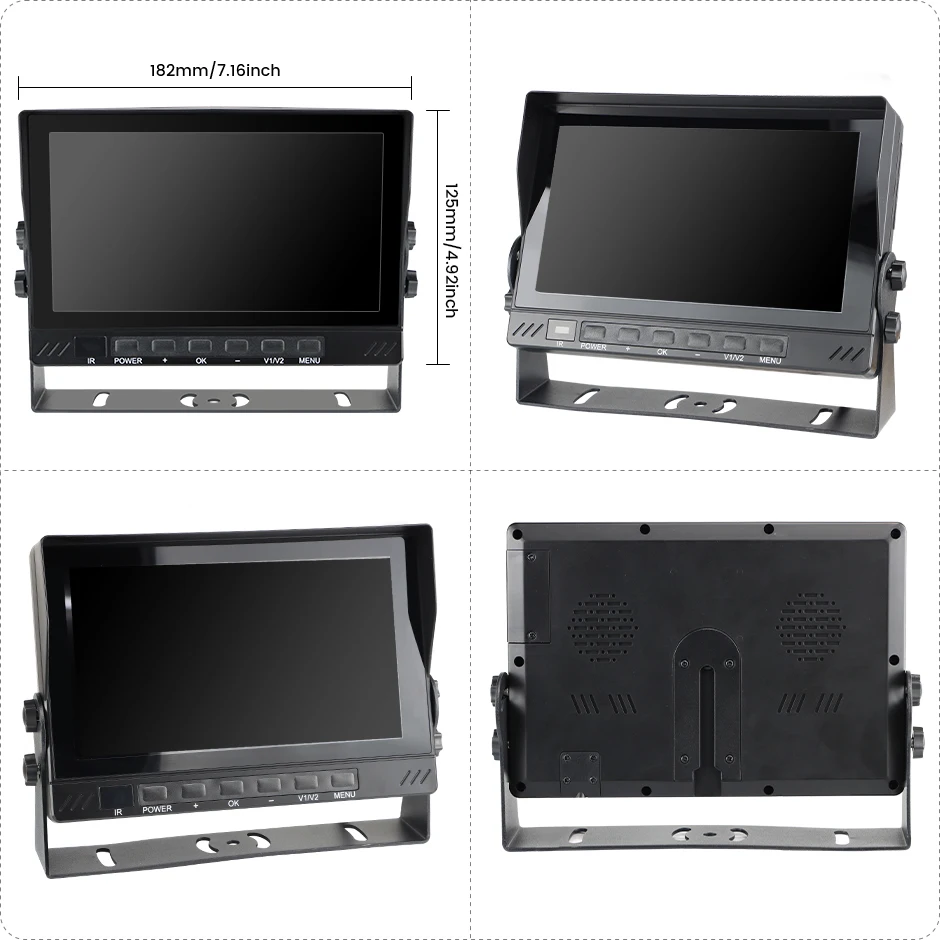

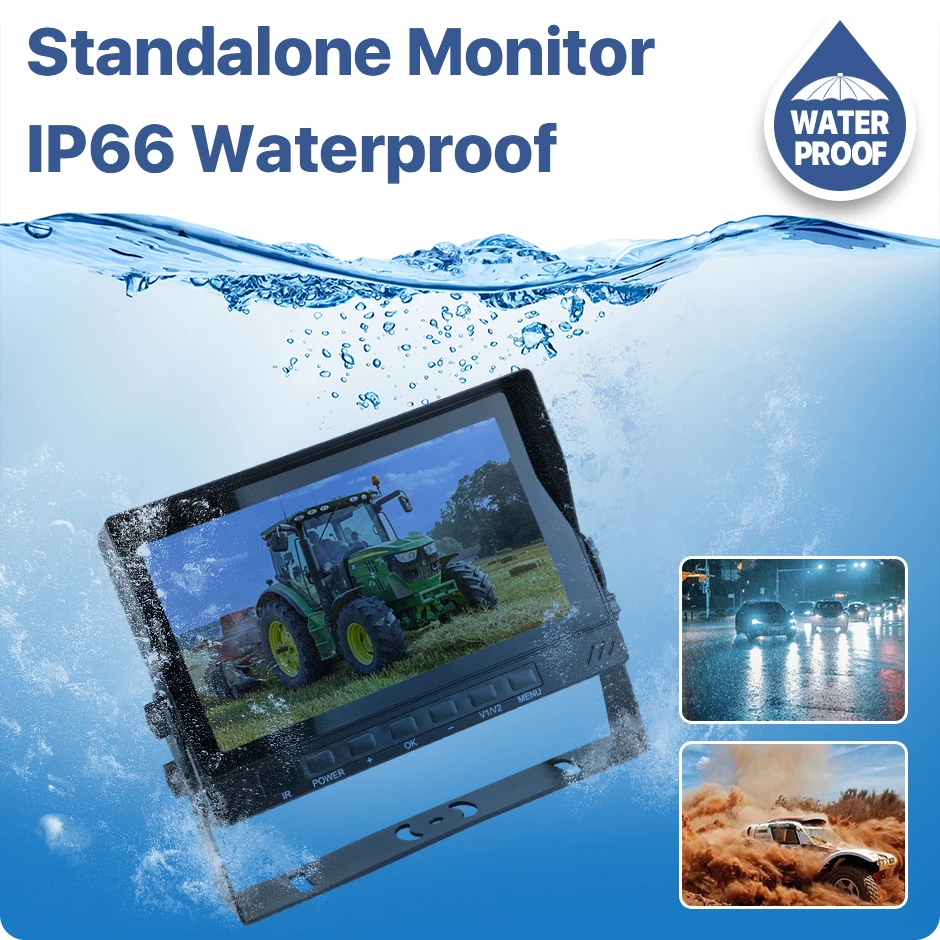

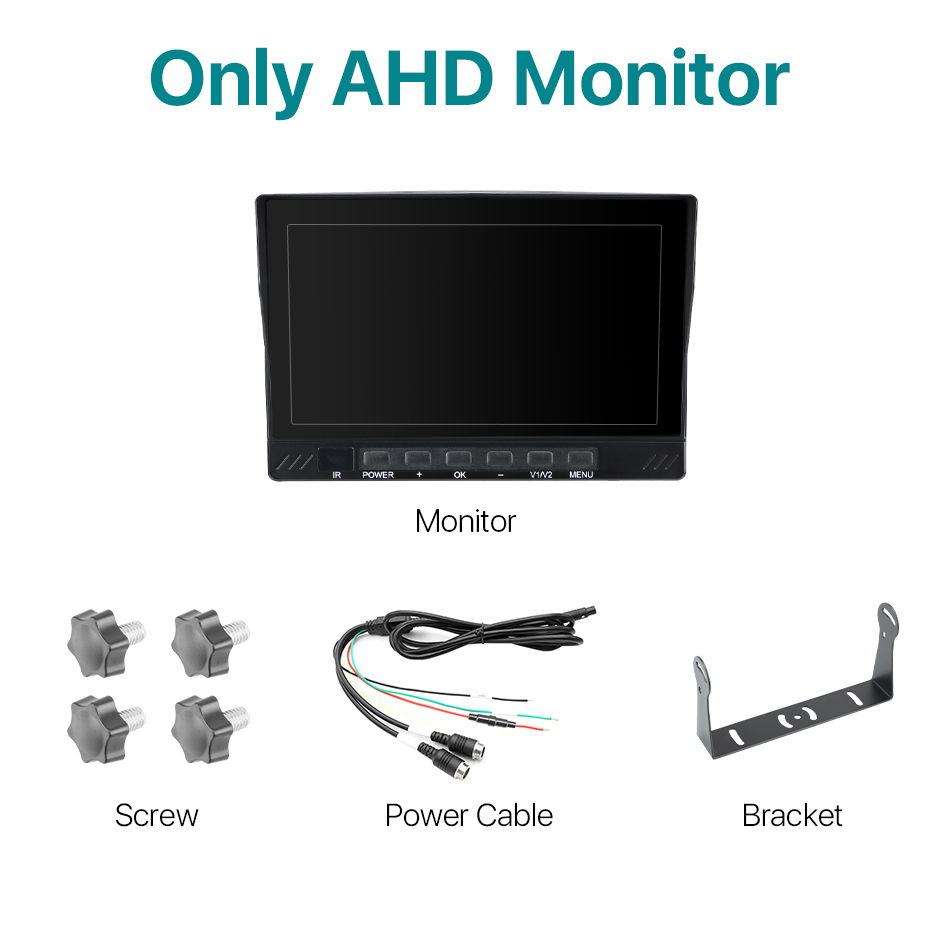

7inch AHD Monitor
Resolution: 1024*600
Monitor Recording Pixel: (1 camera = 1920x1080) (2 cameras = 1080P+720P) ( our camera )
IPS Screen: Support
Screen Brightness: 500CD / M2
Contrast: 300:1
Power Voltage: 12V-30V
Support for loop recording
Screen Size: 7 Inch Display
Power Consumption: <=6W

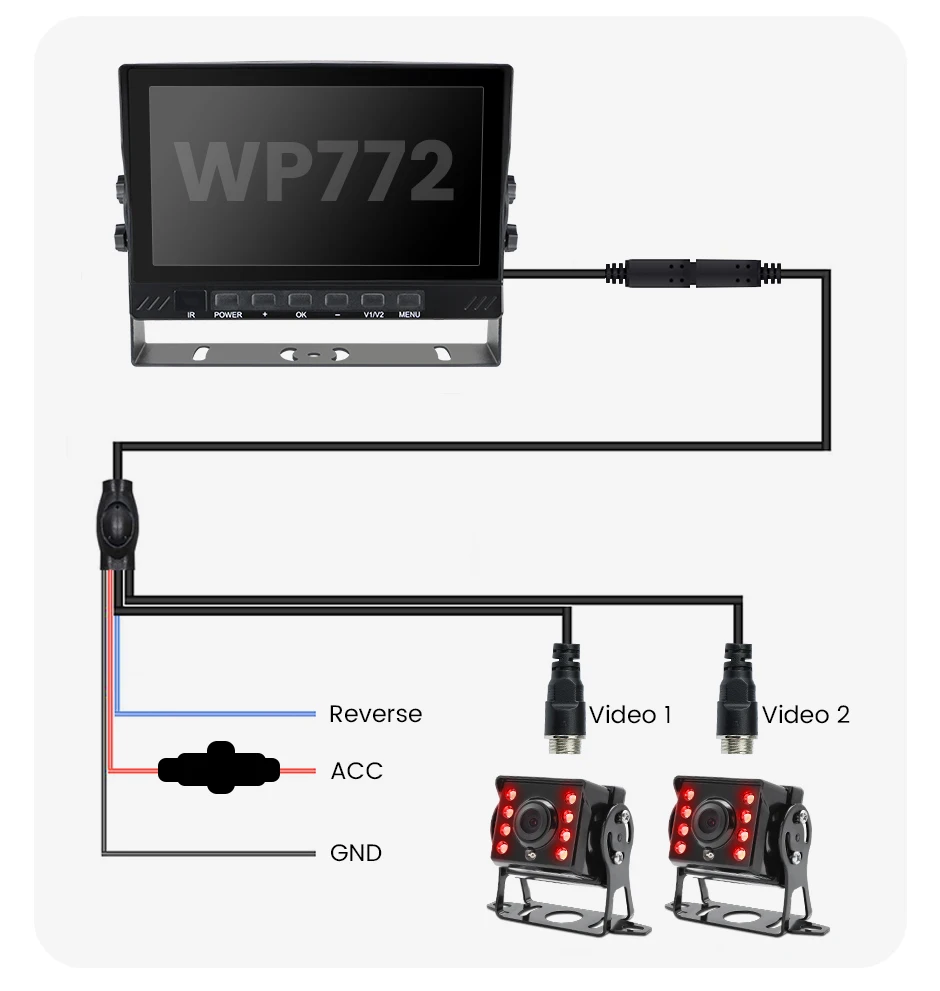

Video Input: V1/V2, auto switch
Support AHD camera and ordinary camera.
Night vision image: automatic gain control, automatic white balance, automatic back light compensation.
This monitor supports mirrored image display.

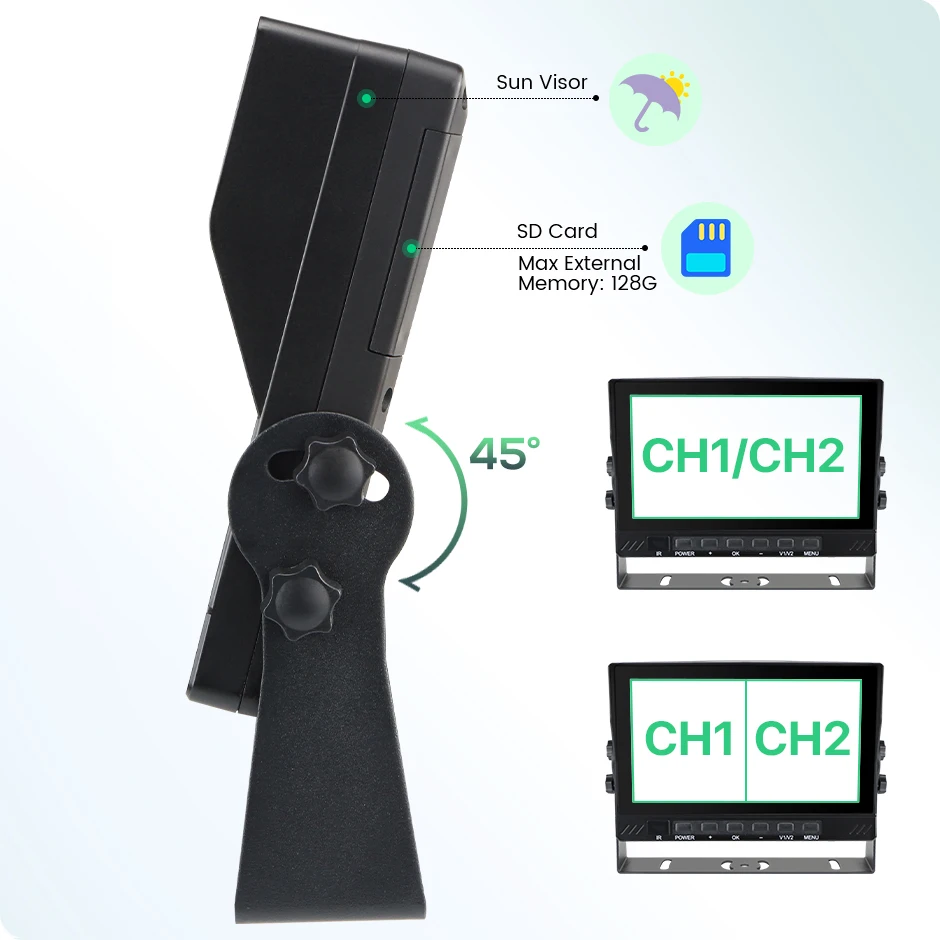

Supports displaying two camera screens at the same time.
Monitor supported languages: English, Italian, French, Spanish, Russian, German, Chinese
IPS Monitor → Excellent 178° Full-view display technology
• 178° Wider viewing angles
• Faster response times
• Better color/contrast than many VA and TN panels
• Outstanding color accuracy and screen consistency

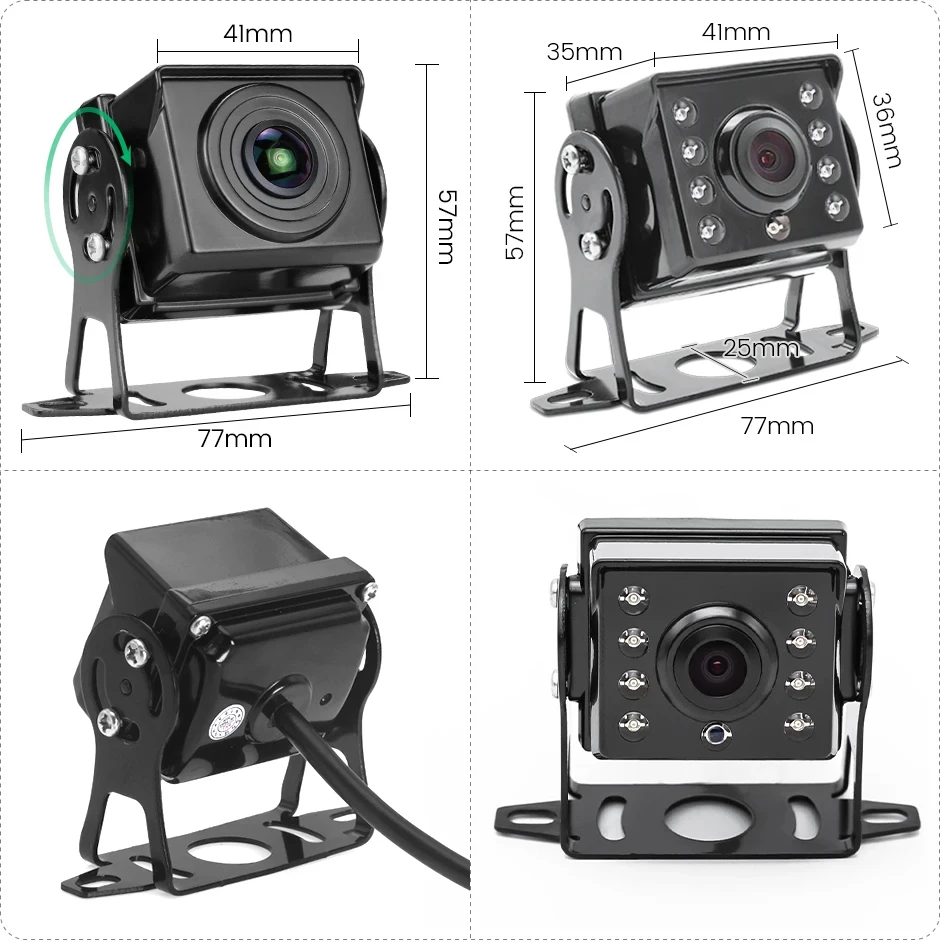

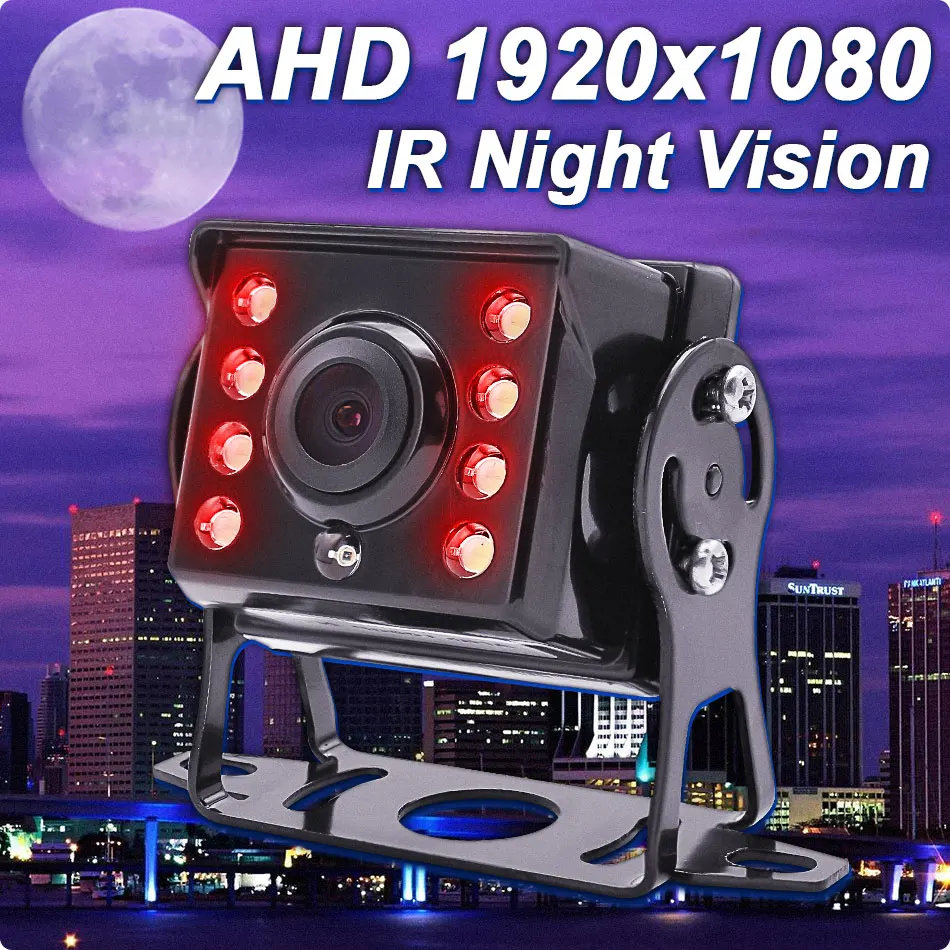

AHD Camera
Sensitive components: 1/4 inch OV9712
Viewing angle: 150 degrees
Effective pixels: 1920×1080P
Image horizontal resolution: 130W pixels
Video output: AHD VIDEO (1080P)
Waterproof: IP69K

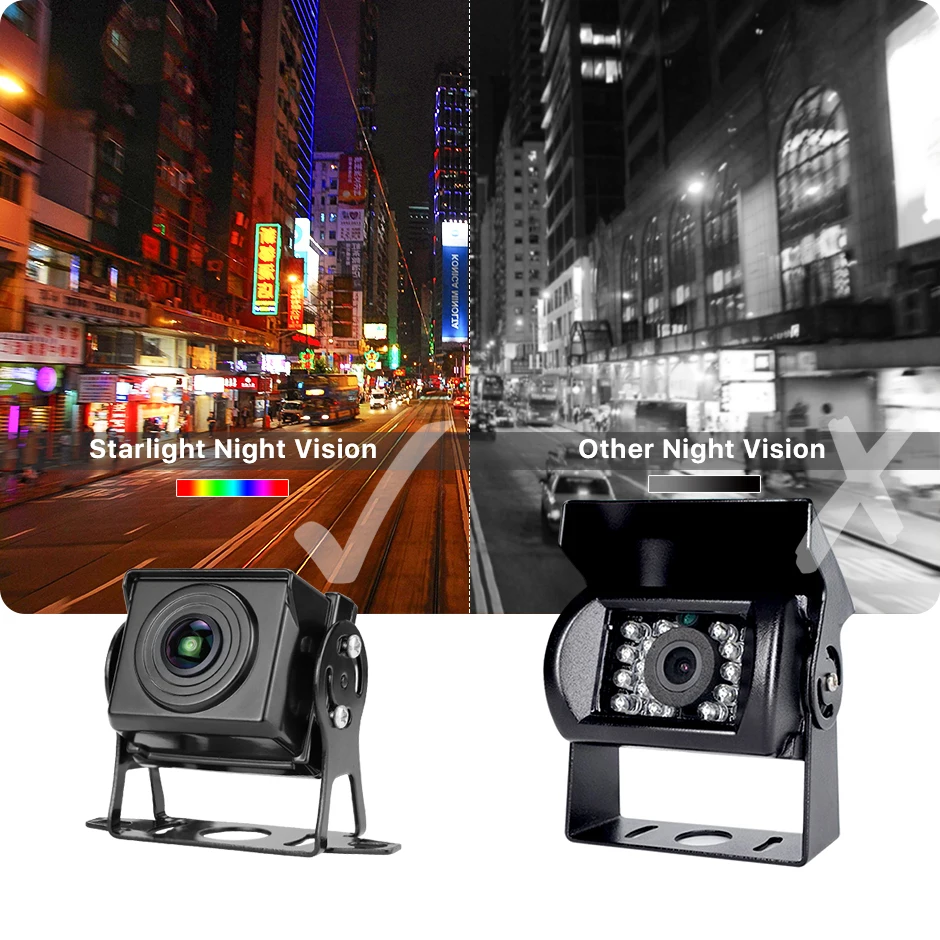

Night Vision: Starlight Night Vision. The visible distance is greater than 20 meters.
Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation .
Working power supply: DC12V-24V
Working temperature: -20 ° C ~ +50 ° C

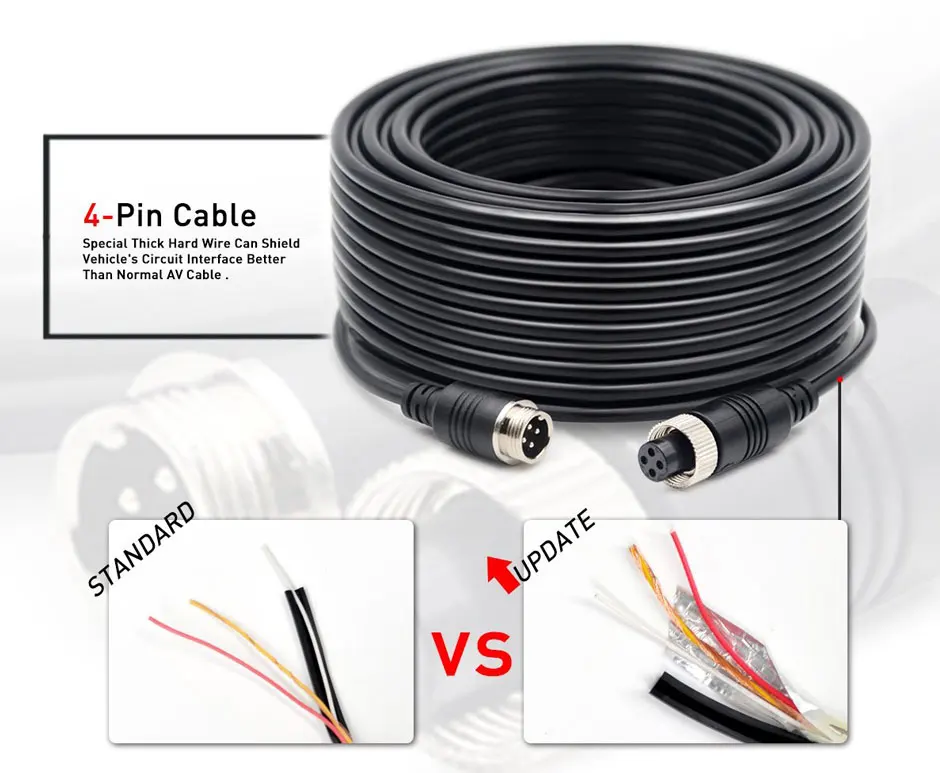

We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in.
For 4pin Cable
