Upgrade Your Driving Safety with GreenYi Mini Waterproof Night Vision Car Camera

SKU: 3AF814
The GreenYi car camera provides enhanced safety for any driver. Its waterproof design and night vision capability capture clear images in any weather or low-light condition. The camera's compact size and versatile design make it easy to install on the front or rear of the vehicle. With 3 control wires, it integrates seamlessly with the car's electrical system and automatically turns on when in reverse gear. Drive with confidence and stay safe on the road with the GreenYi car camera
0.0 (0 Reviews)
0 Sold
$0.00 $14.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China Warehouse
    Please select the information you wantX
Quantity
-
+
0 in stock
  • GreenYi CCD Mini Night Vision Waterproof Vehicle Front/Rear View Reverse Backup Camera 3 Control Wire Car Universal Camera
  • Upgrade Your Driving Safety with GreenYi Mini Waterproof Night Vision Car Camera
  • GreenYi CCD Mini Night Vision Waterproof Vehicle Front/Rear View Reverse Backup Camera 3 Control Wire Car Universal Camera
  • GreenYi CCD Mini Night Vision Waterproof Vehicle Front/Rear View Reverse Backup Camera 3 Control Wire Car Universal Camera
  • GreenYi CCD Mini Night Vision Waterproof Vehicle Front/Rear View Reverse Backup Camera 3 Control Wire Car Universal Camera
  • GreenYi CCD Mini Night Vision Waterproof Vehicle Front/Rear View Reverse Backup Camera 3 Control Wire Car Universal Camera
  • GreenYi CCD Mini Night Vision Waterproof Vehicle Front/Rear View Reverse Backup Camera 3 Control Wire Car Universal Camera
  • Description
  • Warranty & Shipping
  • About TAX

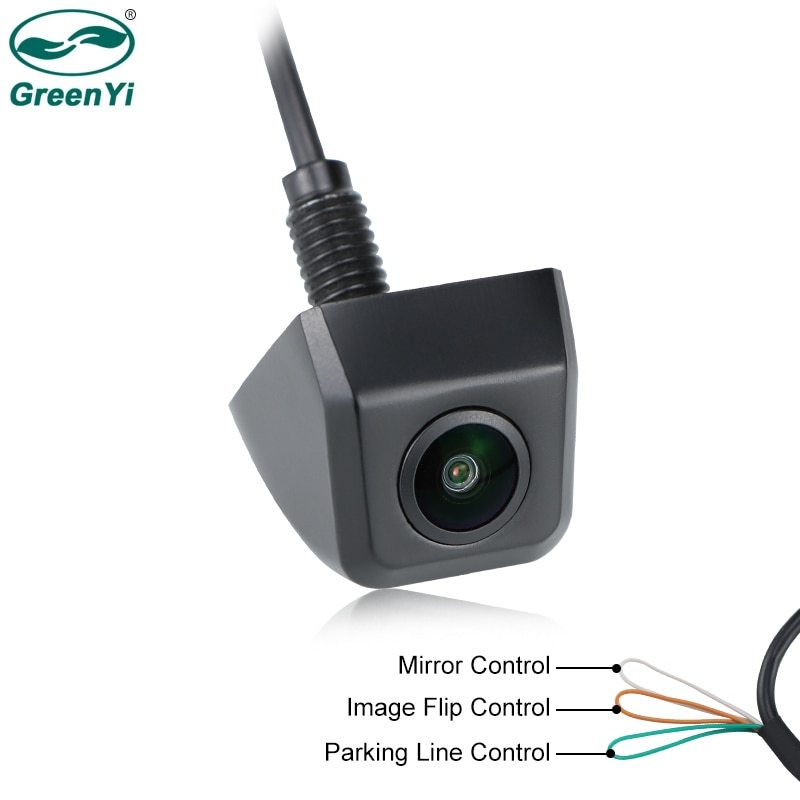

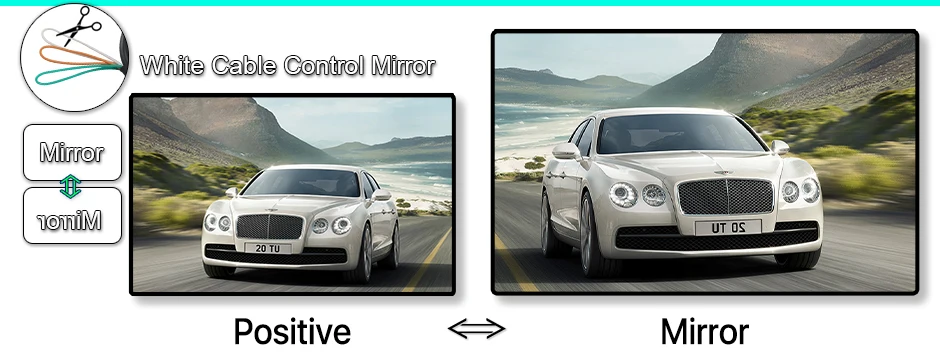

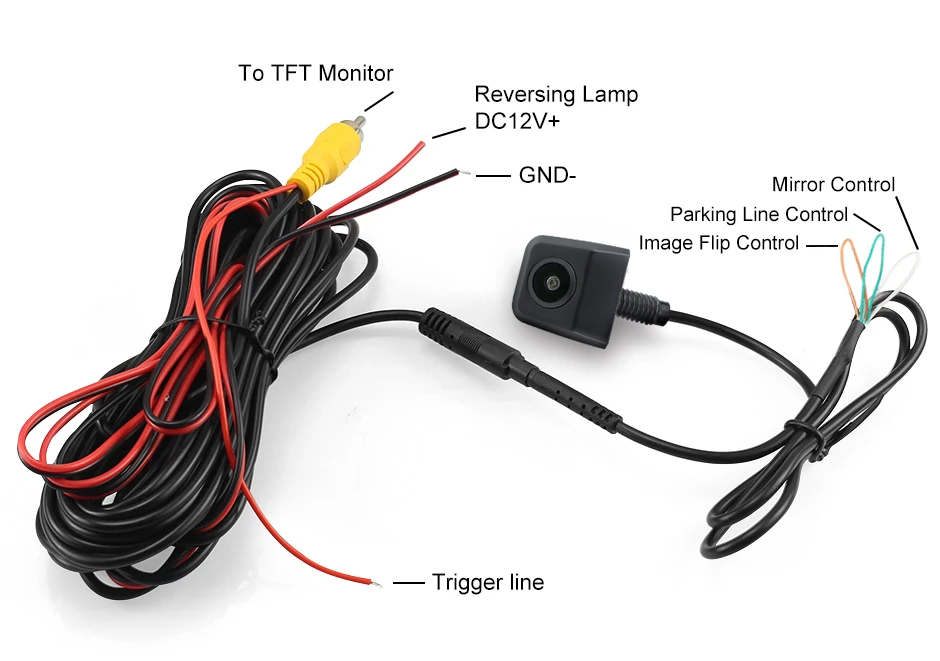

↓↓ ↓↓ Cut the White line to Support Mirror Control :

the rear view camera change to Front view camera .

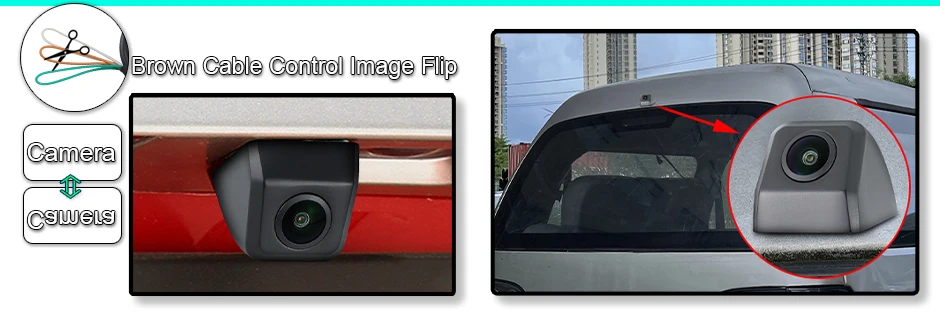

↓↓ ↓↓ Cut the Brown Wire to Support Image Flip ( the camera support upside down install )

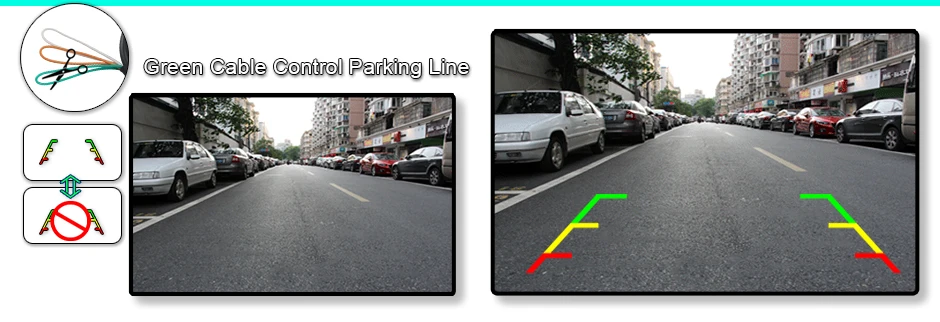

↓↓ ↓↓ Cut the Green Wire to Support parking reference line switch on/off

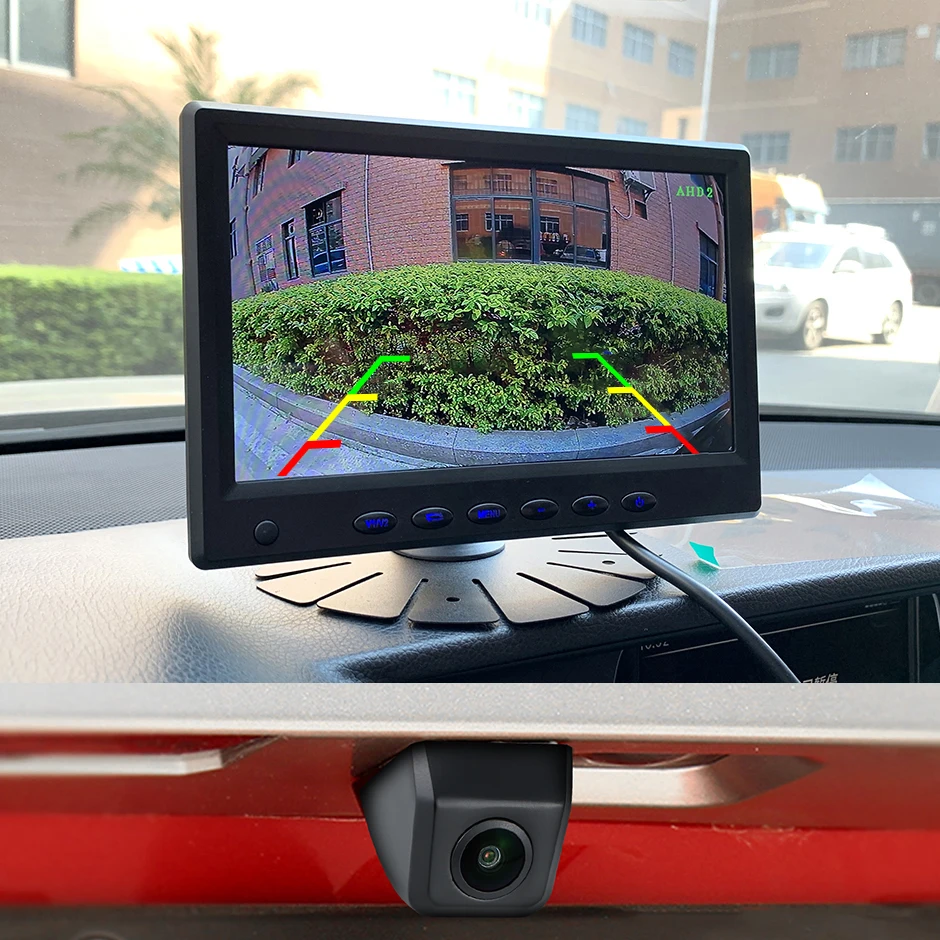

Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.

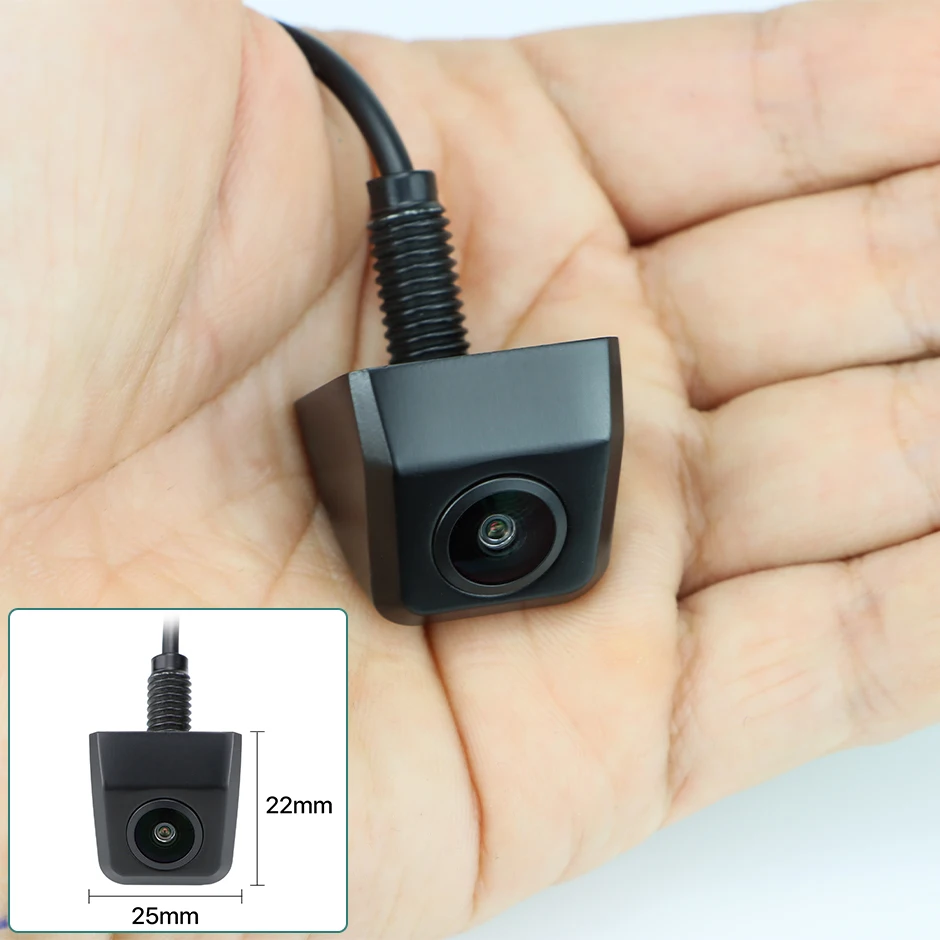

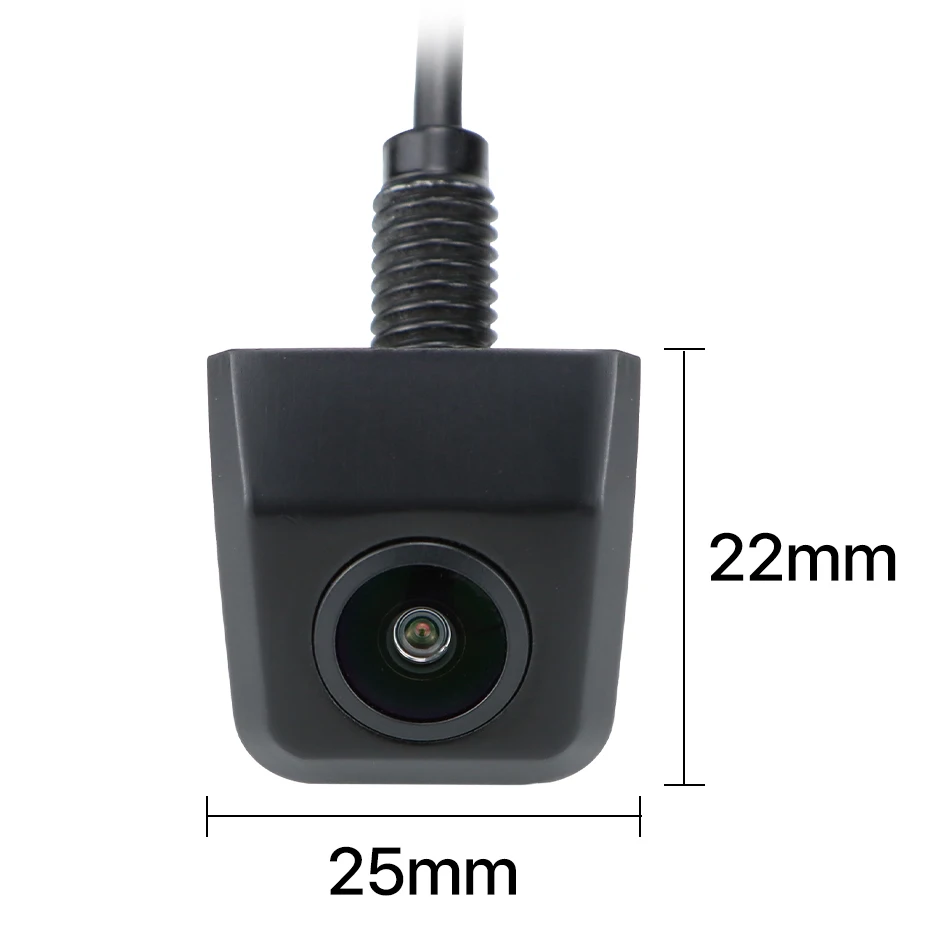

Camer Size :

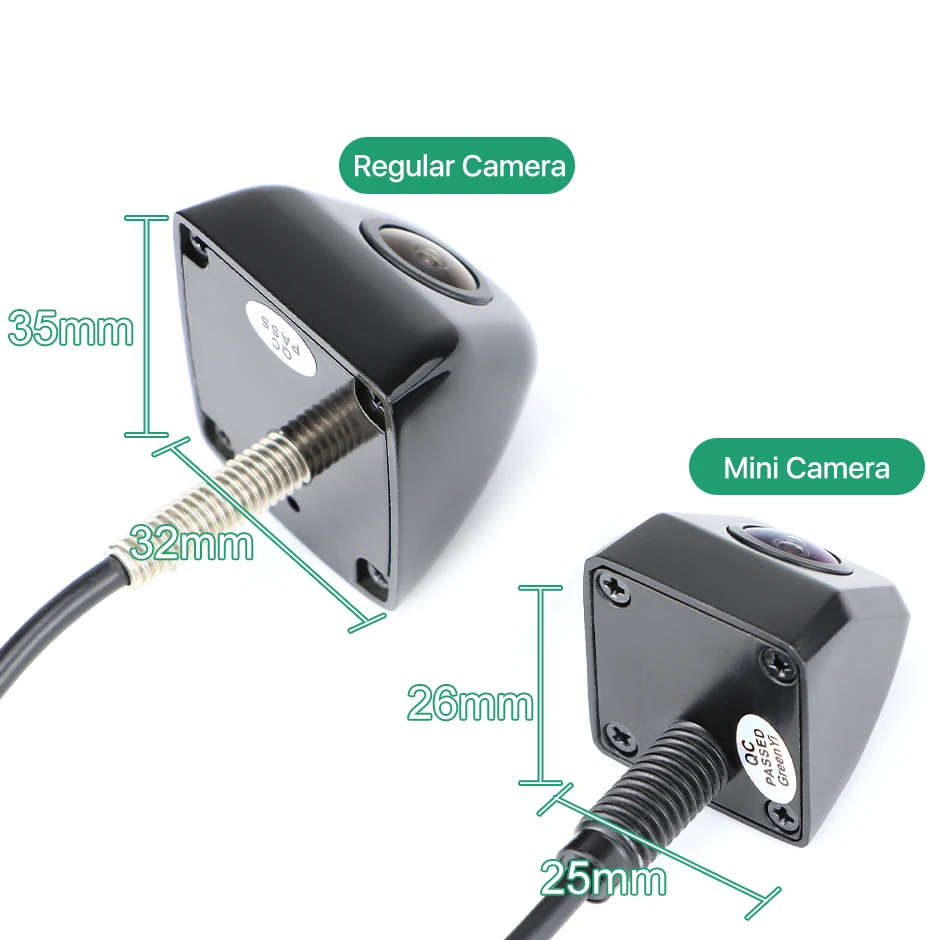

Mini Camera size Compared ordinary cameras F818:

Installation Steps:

1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.
2. Connect the power cable to reversing light power supply.
3. Connect the 6m extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.

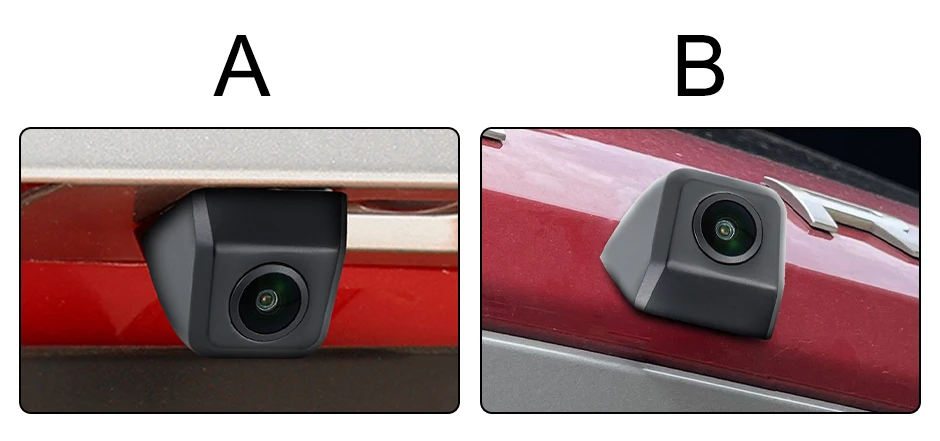

Two installation methods:

Cut the brown wire to change from "A" to "B" style installation, (support upside down install )

Camera Feature :

* Viewing angle: Real Level 120 Degrees Visible Range .
* Effective pixels : CCD 720*480P
* Signal format: NTSC
* Image resolution: 720TVL
* Video output: CCD Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 5 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V~24V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

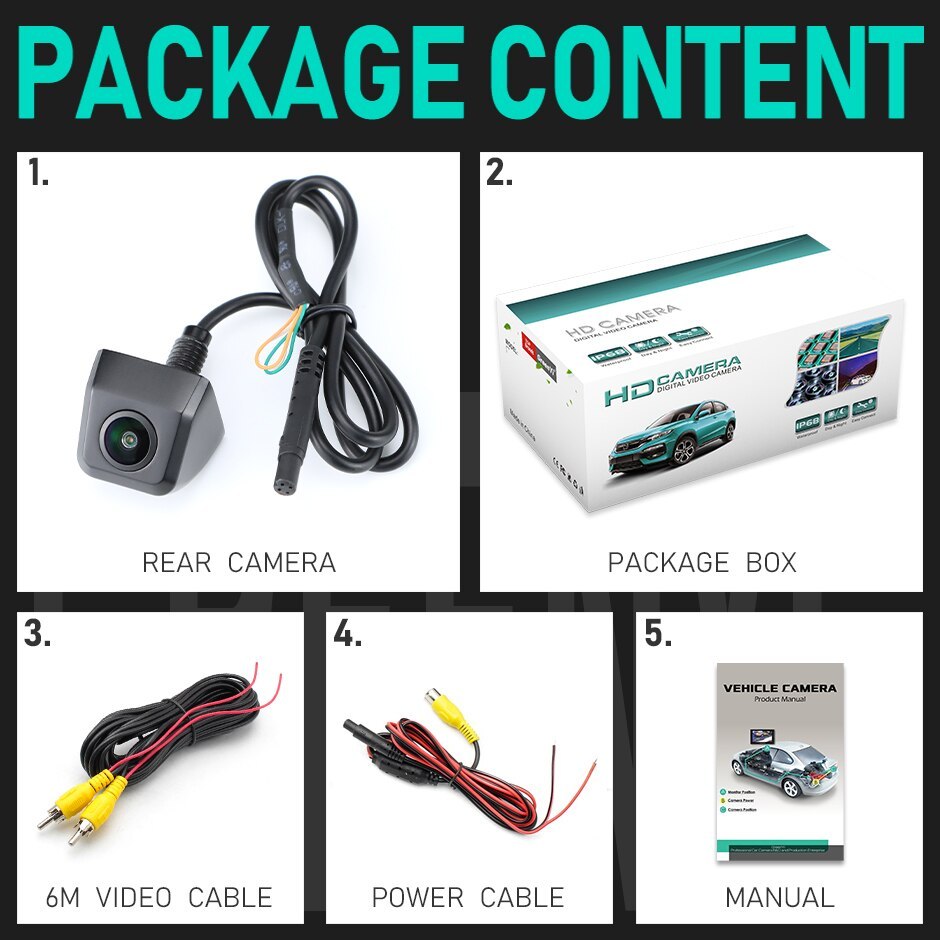

Package includes:

1 x Front Rear Camera with 3 control wire
1 x 6m Video Cable
1 x 1.5m Power Cable
1 x Self-tapping screw
1 x Angle adjustment
