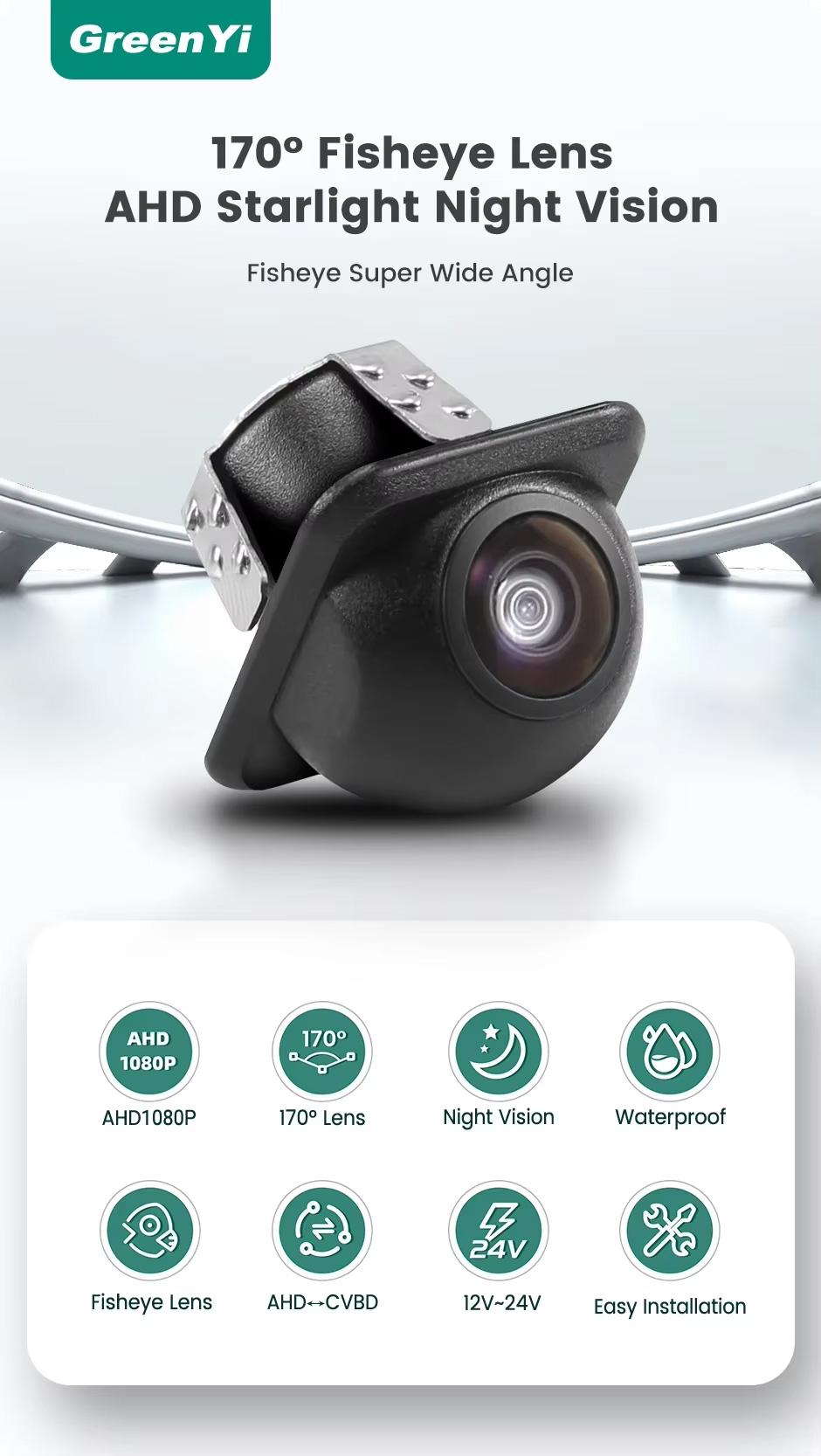

GreenYi AHD Vehicle Car Rear Front Side View Camera 170° Fisheye HD Night Vision Waterproof Straw Hat Camera Drill Bit Included

GreenYi AHD1080 Vehicle Rear Front Side View Camera 170° Fisheye Night Vision Waterproof Straw Hat Car Camera Drill Bit Included

Features：

*Suitable for car front/rear/left/right installation positions.

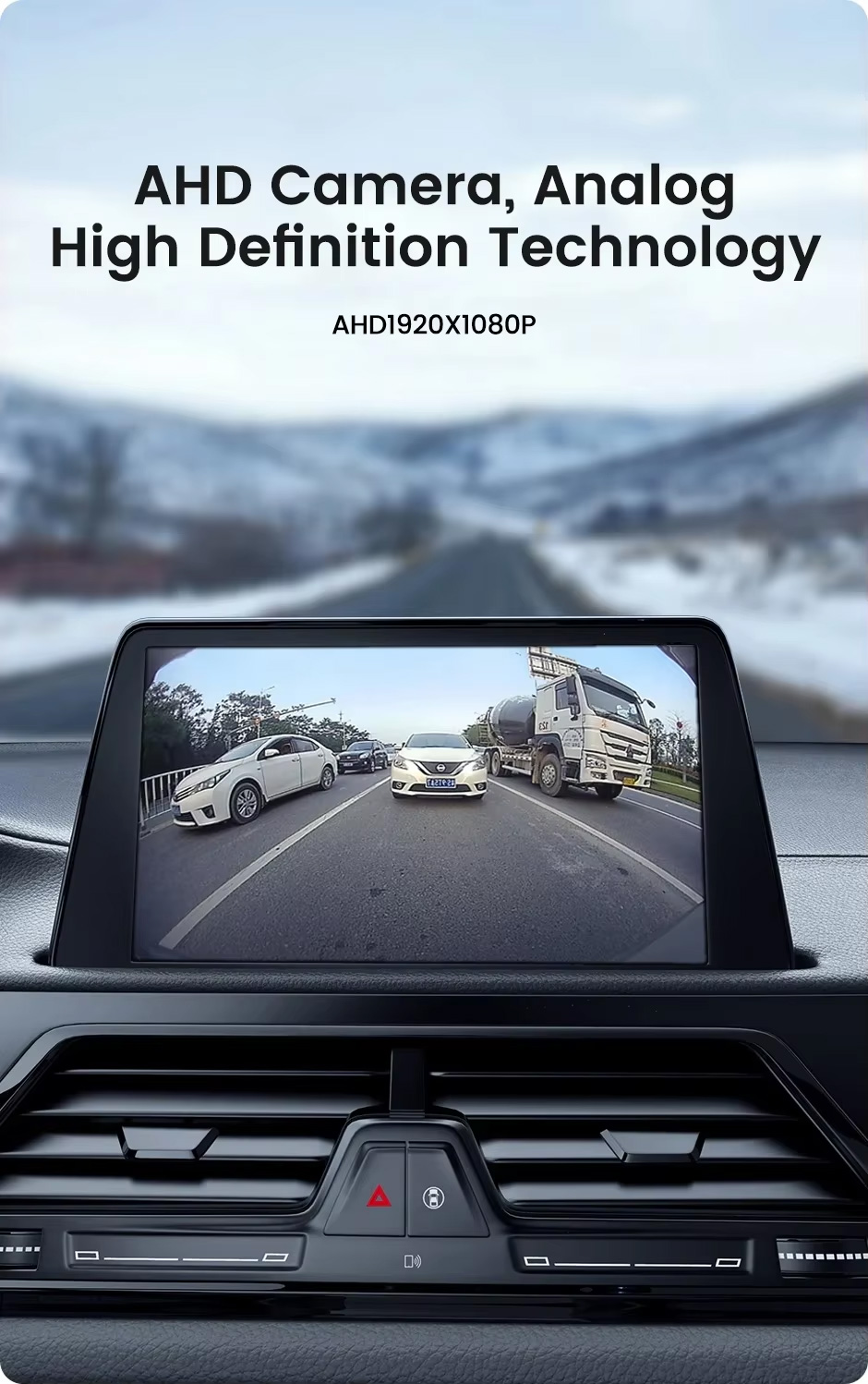

*AHD1080P parking camera: 1920*1080P resolution, high definition, IP68 waterproof, works normally in car wash or bad weather, fantastic starry sky night vision effect.
*AHD/CVBS 720P camera: 1280*720P resolution, IP68 waterproof.

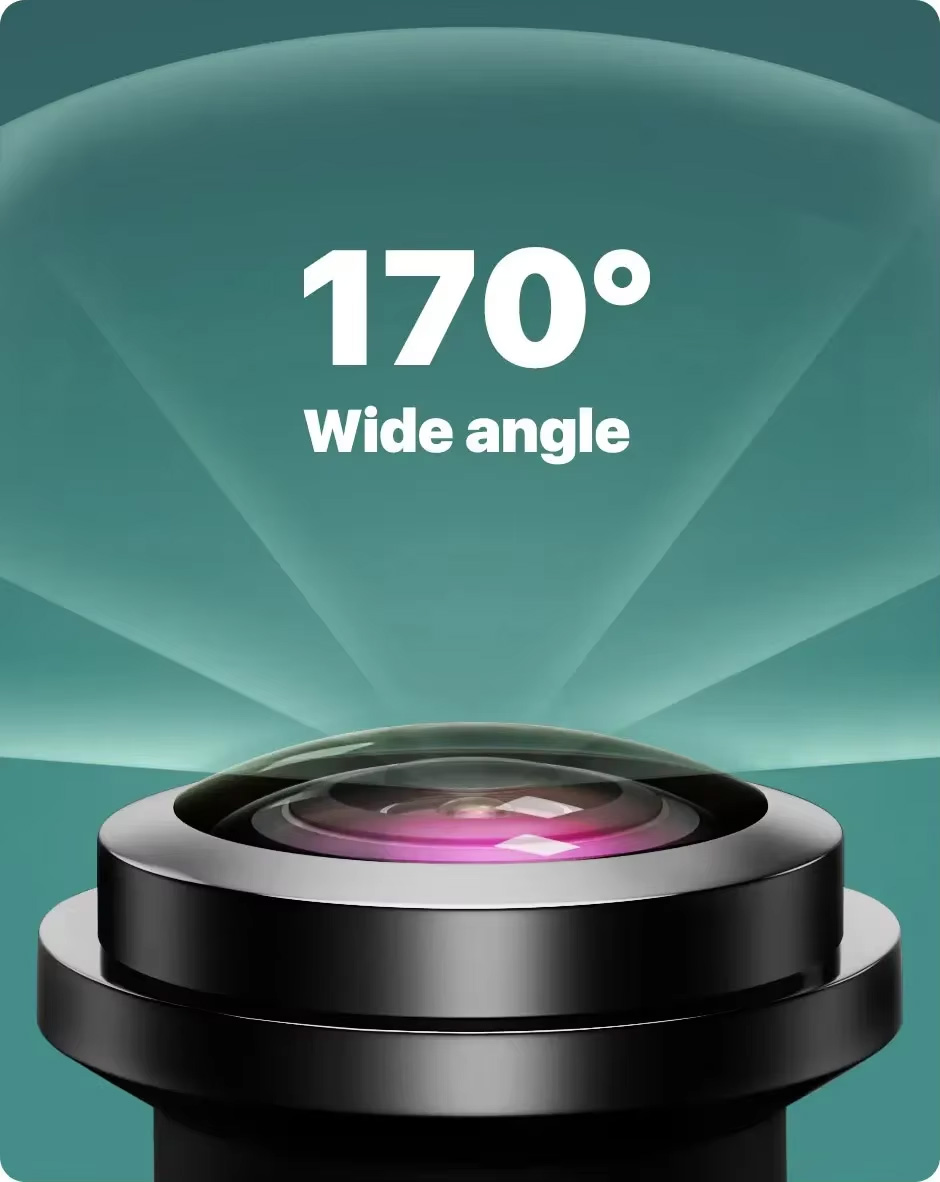

* Real fisheye 6 glass lens, 170-degree wide viewing angle, no blind spots, automatic image calibration function to prevent spherical images, making reversing safer.
*Supports AHD and CVBS video signals --- This car rearview camera can be used with AHD monitors.
*Suitable for all cars.

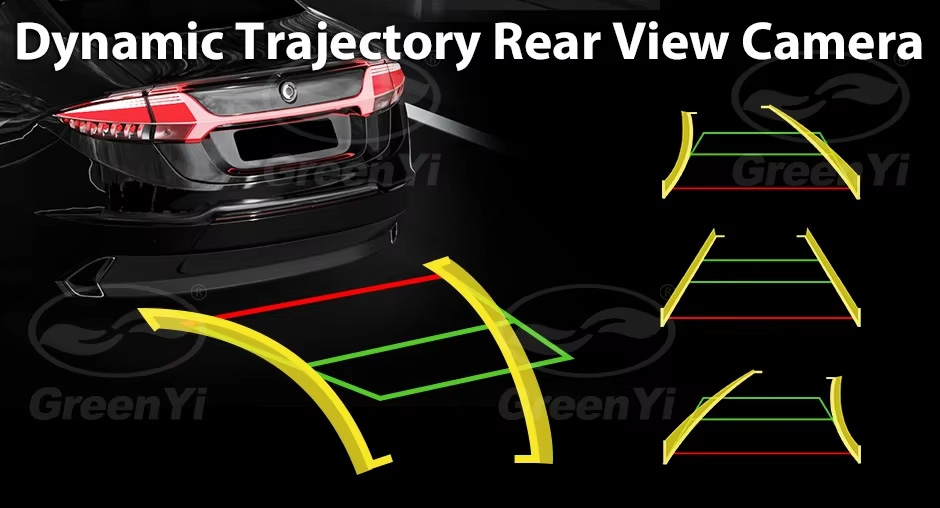

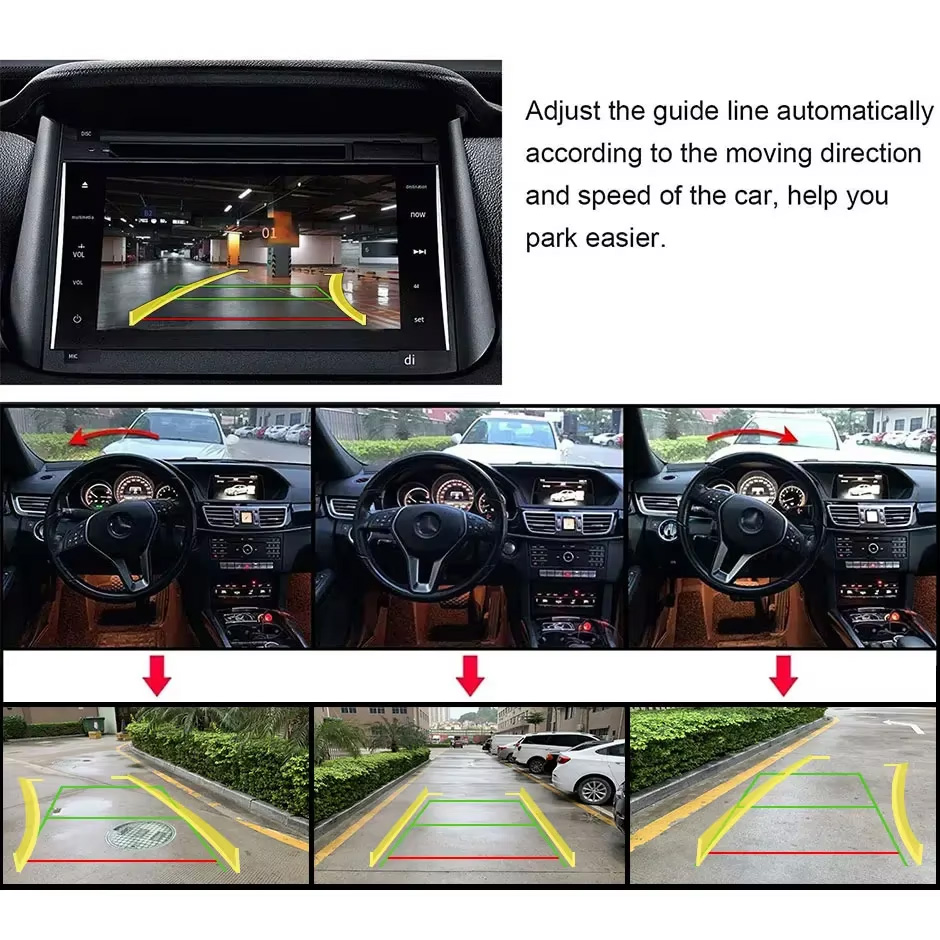

Dynamic Trajectory Effect

*The intelligent dynamic trajectory guide line changes according to the body's movement angle and speed when reversing. The trajectory line does not move according to the steering wheel. The camera is suitable for aftermarket DVD, Android display.

Note: The trajectory camera has only one white control cable, which can only control the signal; there are no green or brown control cables.

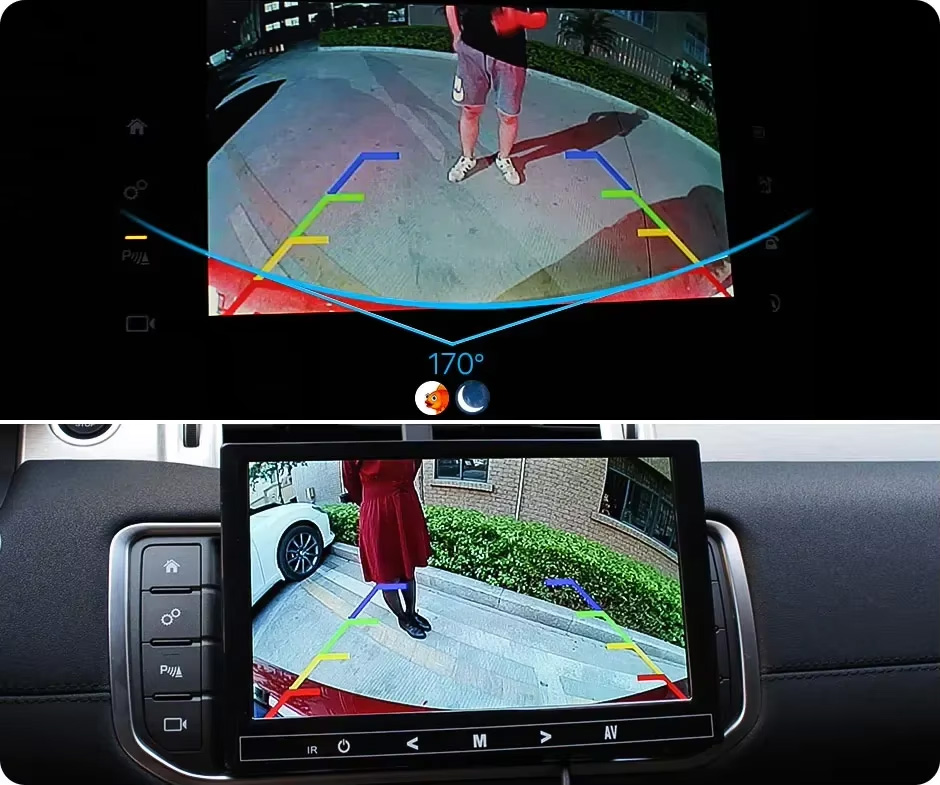

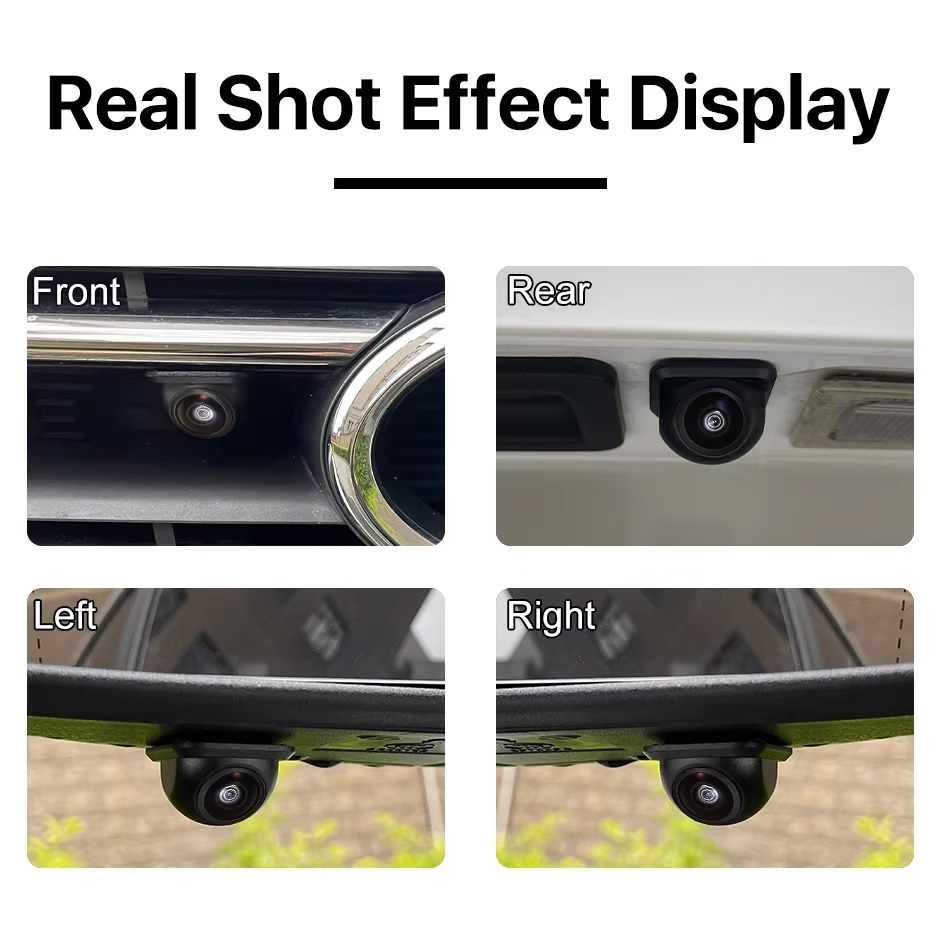

Camera Real Shots:

Installation location:

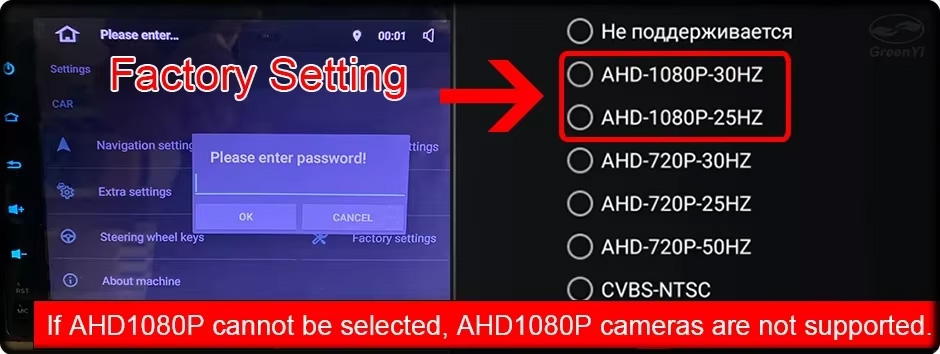

• How to check whether the Android unit supports AHD-1080p camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Support Waterproof

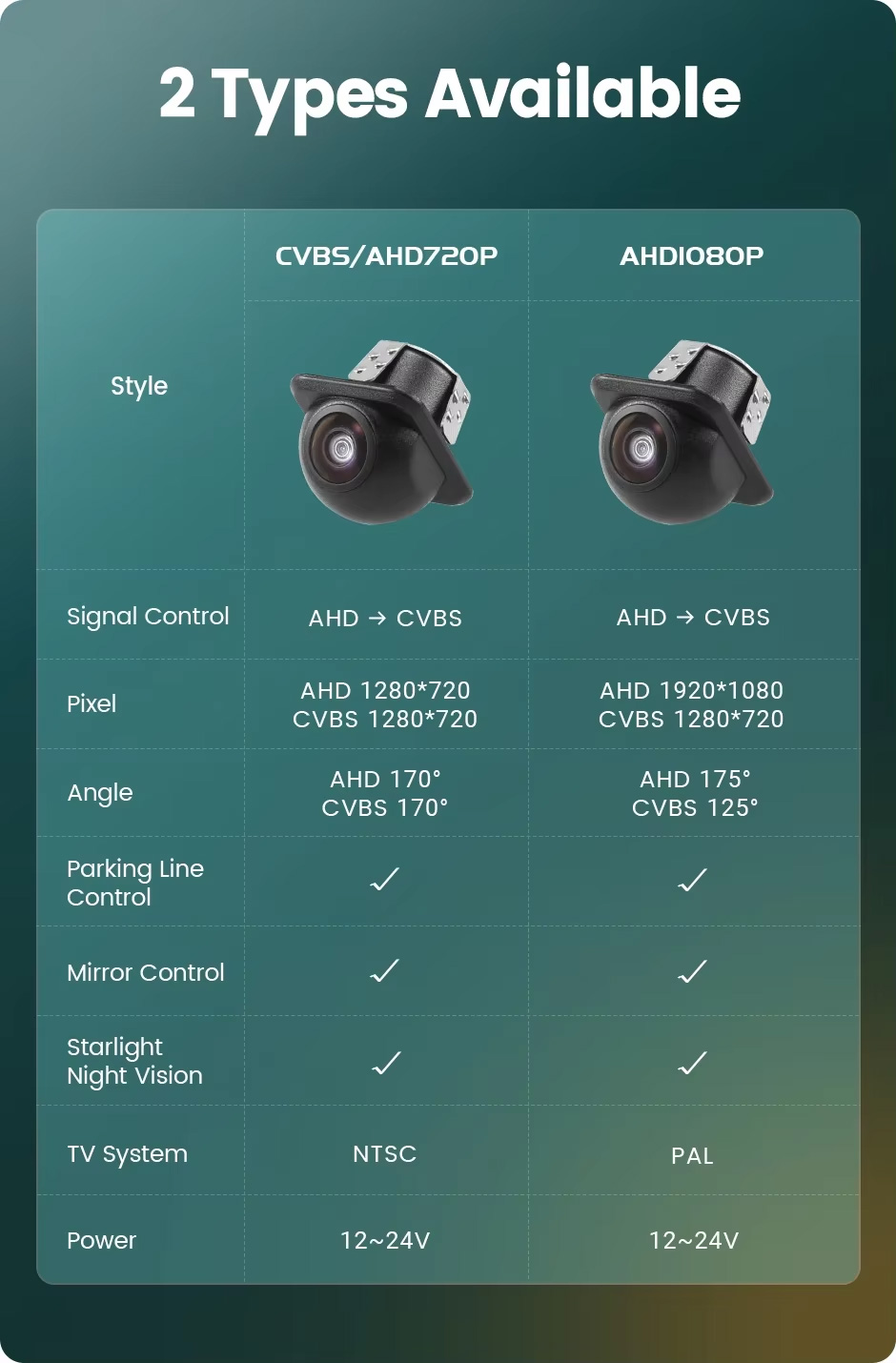

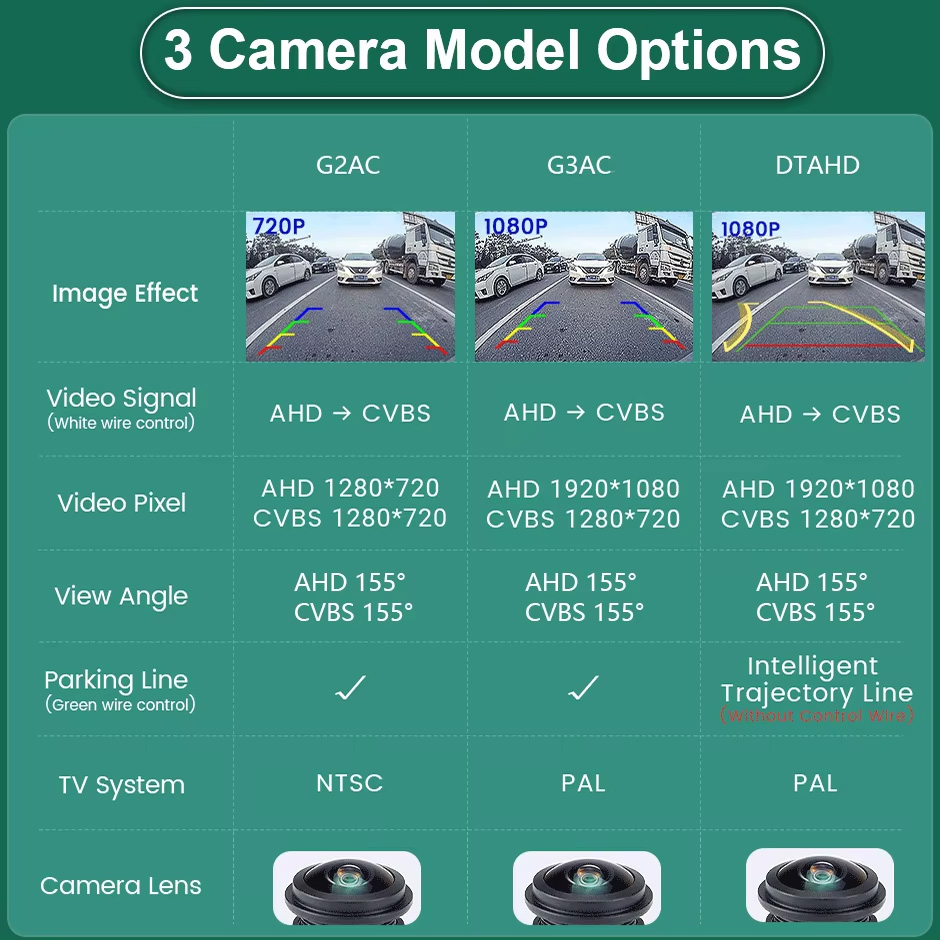

2 Types of Signals Available:

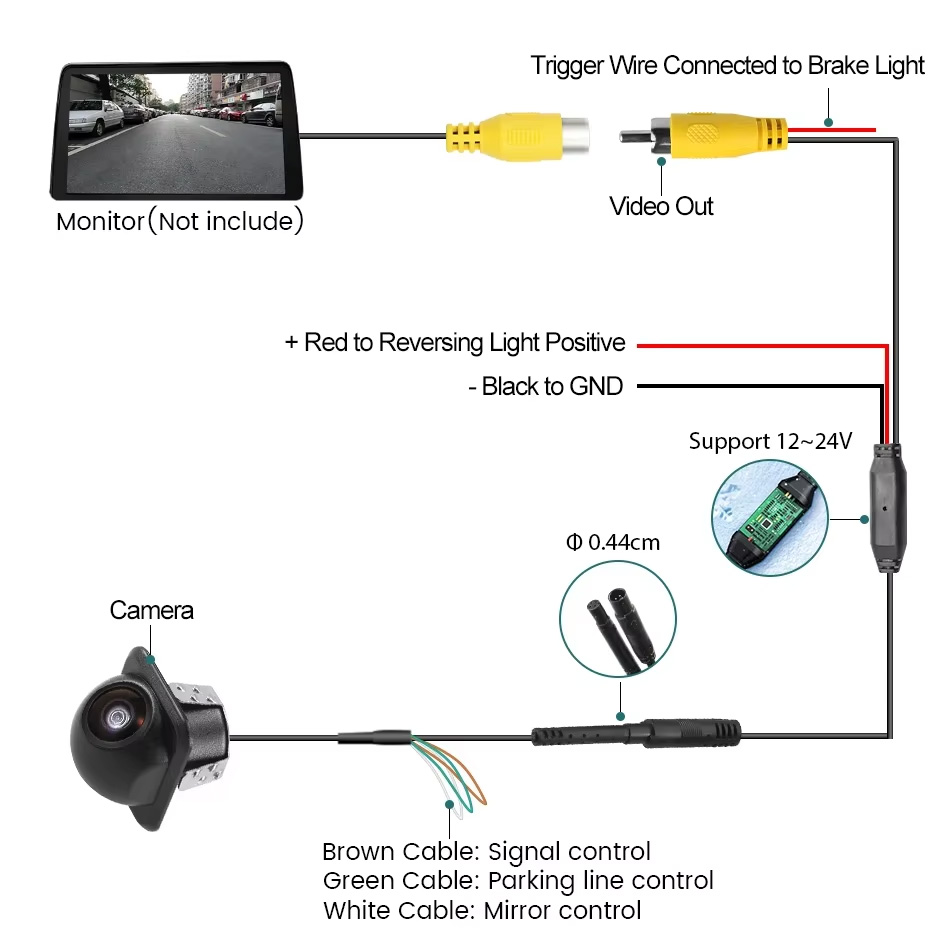

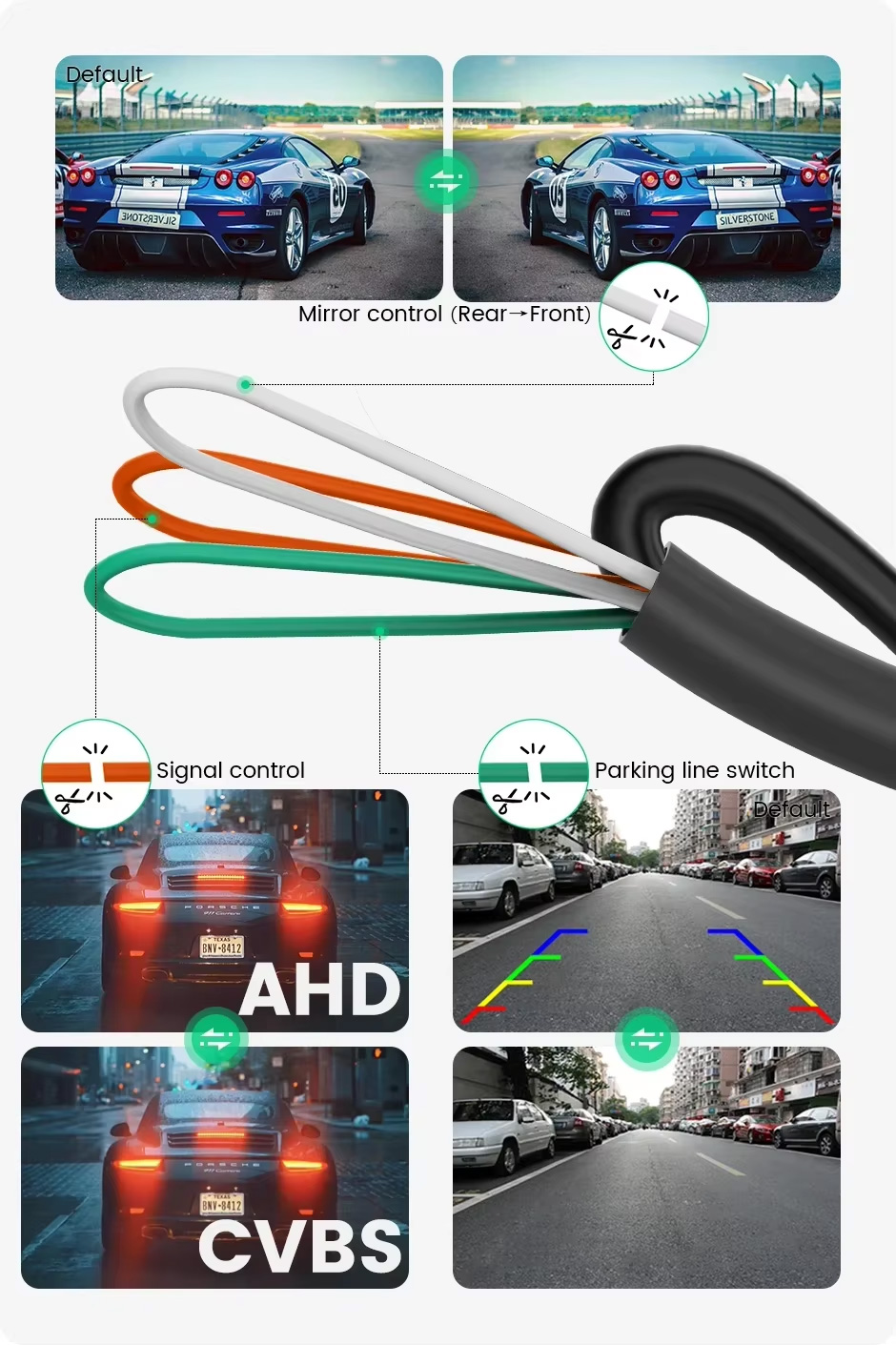

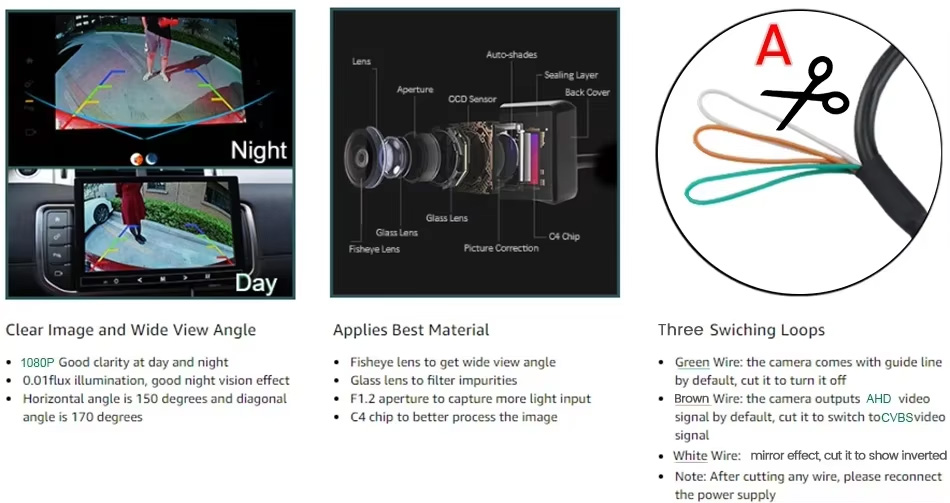

Three-Control Camera:

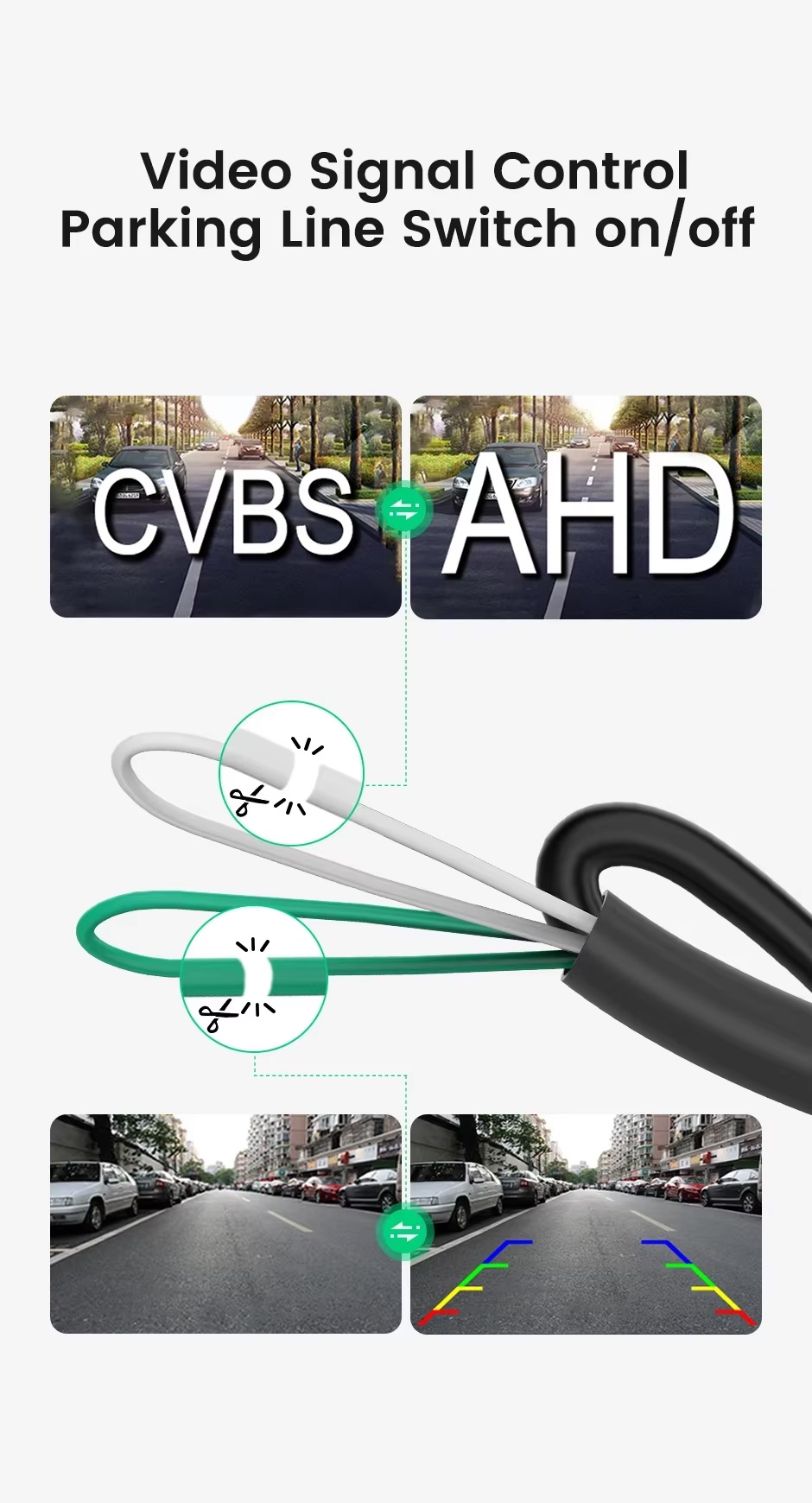

●Green line:
The camera comes with a guide wire by default, cut the green cable can remove the parking line.
●Brown line:
The camera outputs AHD1080P video signal by default, and it can be switched to CVBS video signal by cutting the brown wire.
●White line:
The white cable controls the mirror function. Cut the white cable to switch images left and right.

●Note: After cutting any wires, please reconnect the power supply.

Easy installation method：

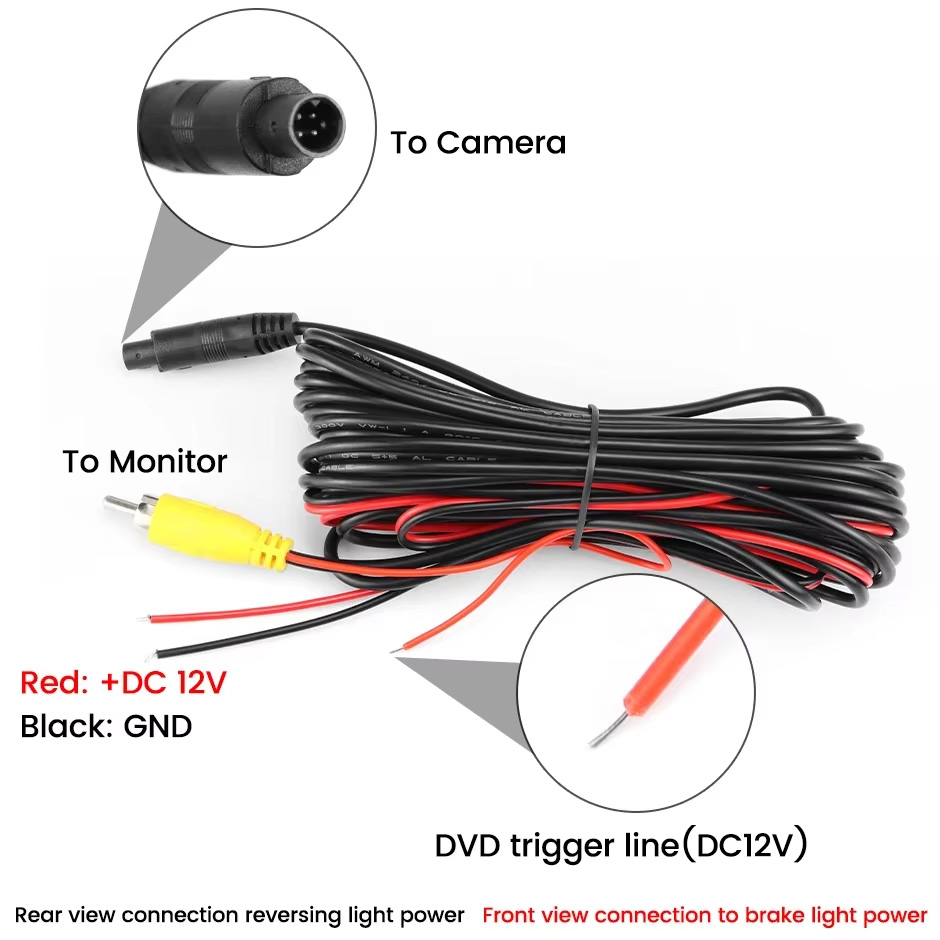

The camera is installed using a 4PIN integrated cable, which is plug-and-play and easy to install.

Installation Steps:

1. Find a suitable angle to mount the parking camera (Fit for Front/Rear/Left/Right), then secure the nuts and bolts in place.
2. Connect the power cord to the backup light or brake Light or Left/Right signal light power supply.

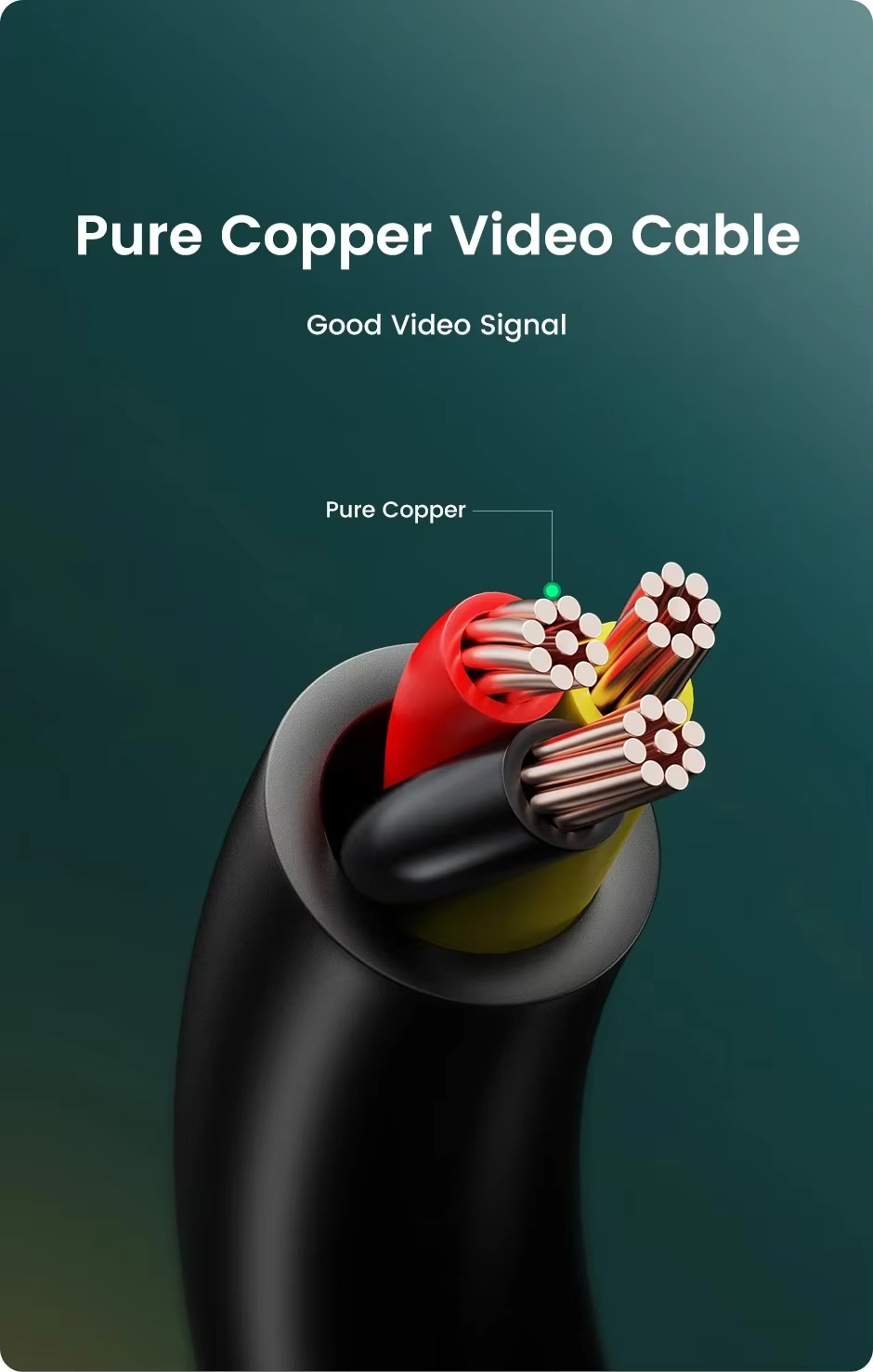

3. Connect the 6m extension cable of the parking camera to the head unit/other monitor of the car.
4. Start the vehicle and reverse gear to test the camera.
5. Reinstall the console/other monitor.

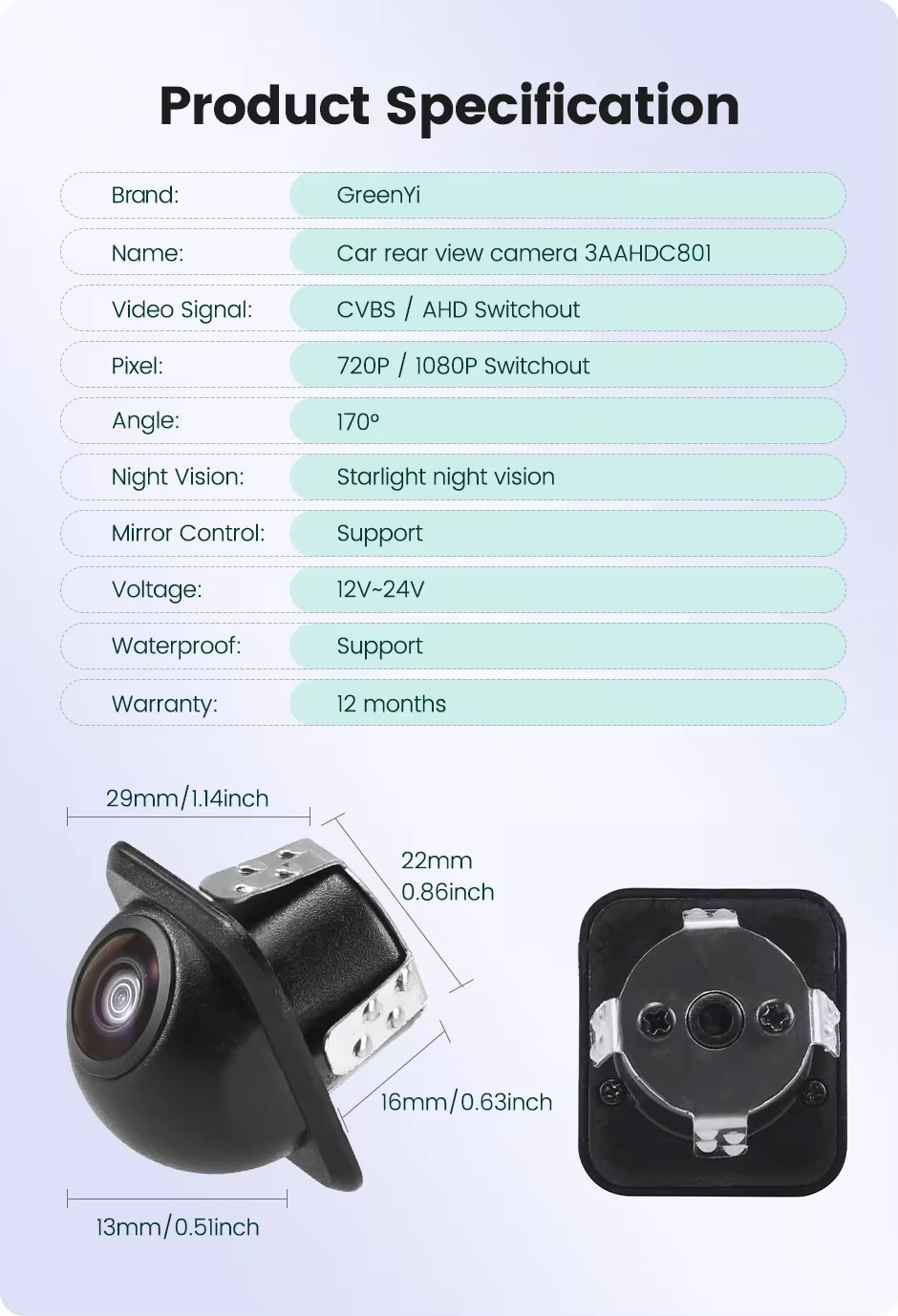

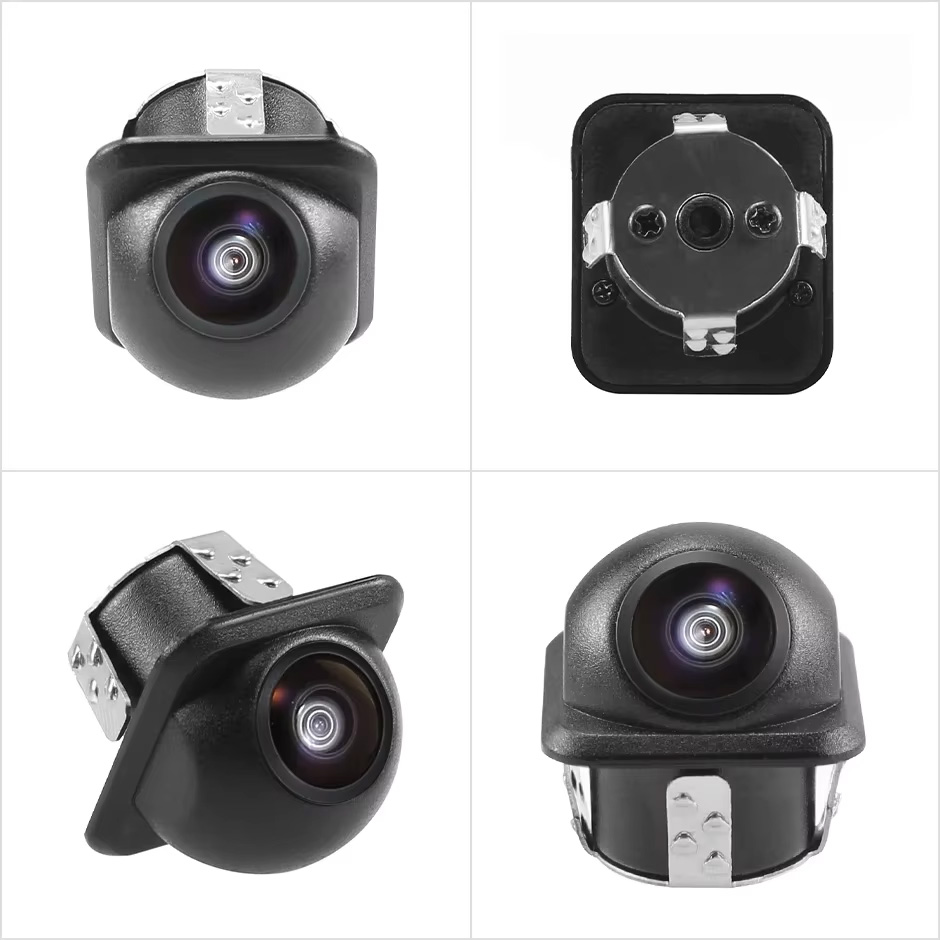

AHD Camera Feature:

* The Camera fit for Front /Rear/Left/Right installation location for Car.
* Chips components : SC 1346.
Support Front Rear Mirror Image Control.
* Viewing angle: Fisheye 6 glass lens. Real 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof.
* Signal format: NTSC / PAL
* Image resolution: 200W Pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation.
* Lens : 14/16MM Fisheye 6 glass Lens.
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB

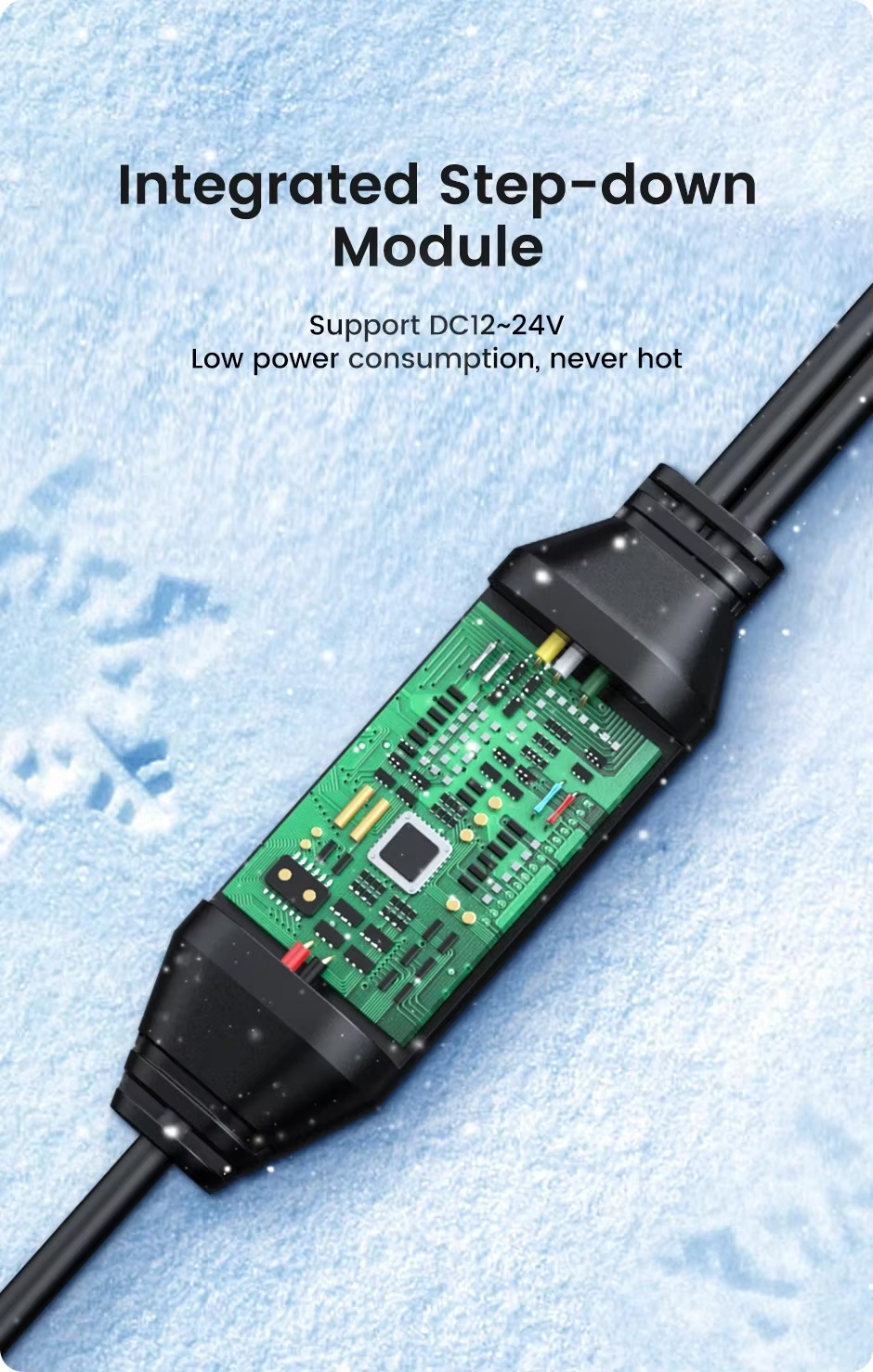

* Working power supply: DC12V~24V/2A
* Working temperature: -20 °C ~ +70°C
* Maximum power: 3W

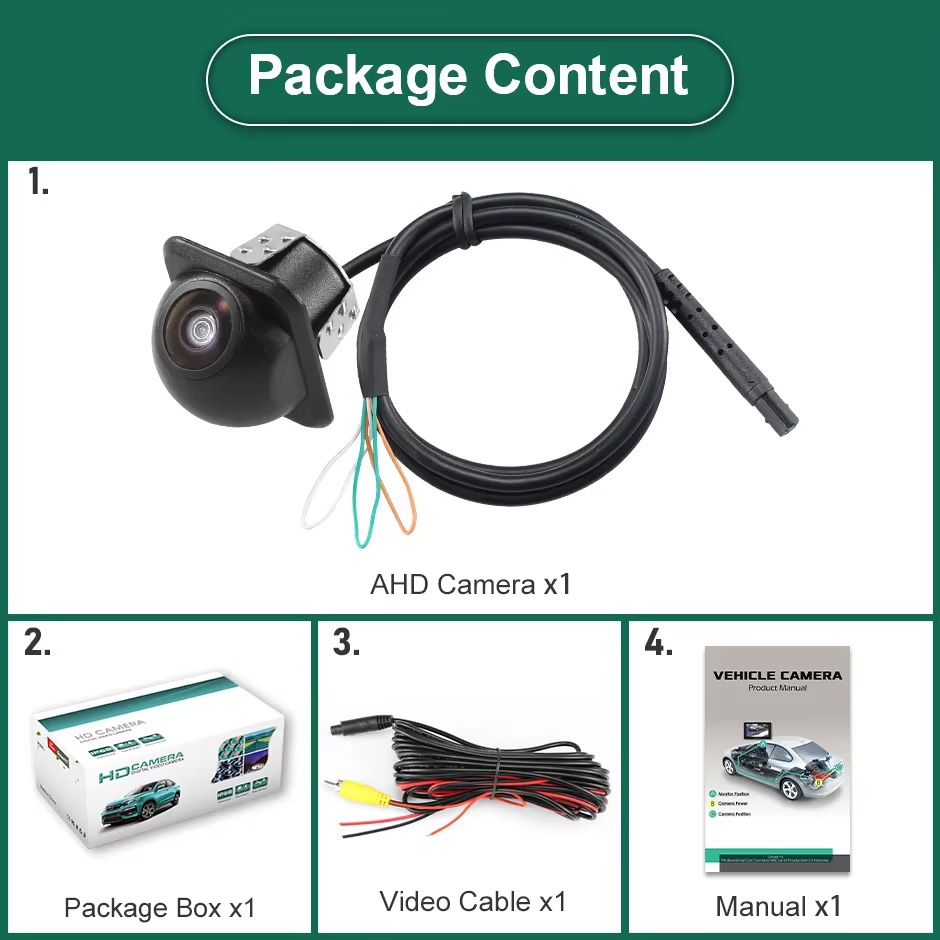

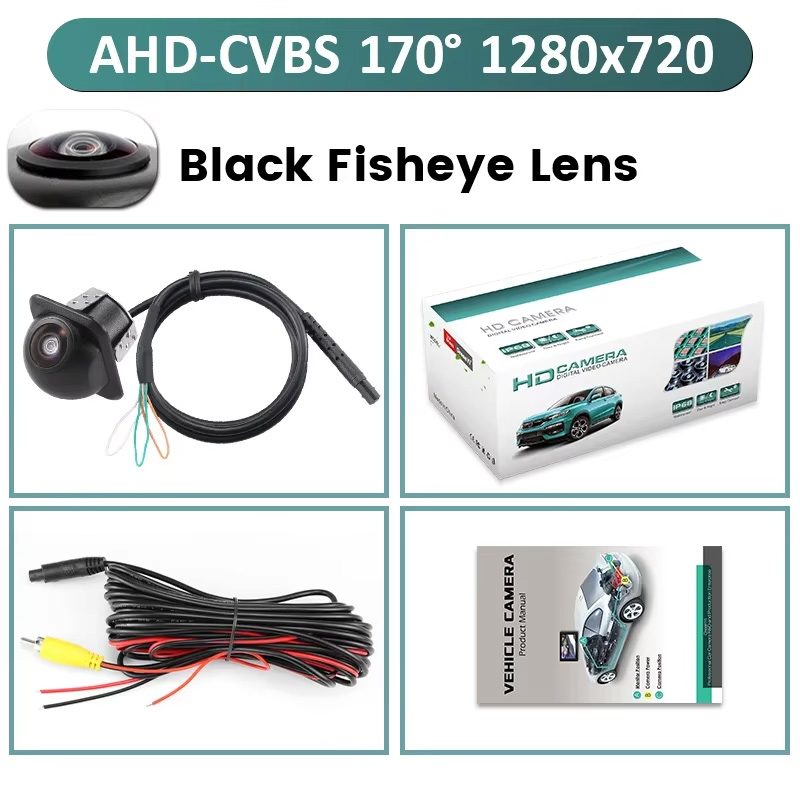

Package includes:

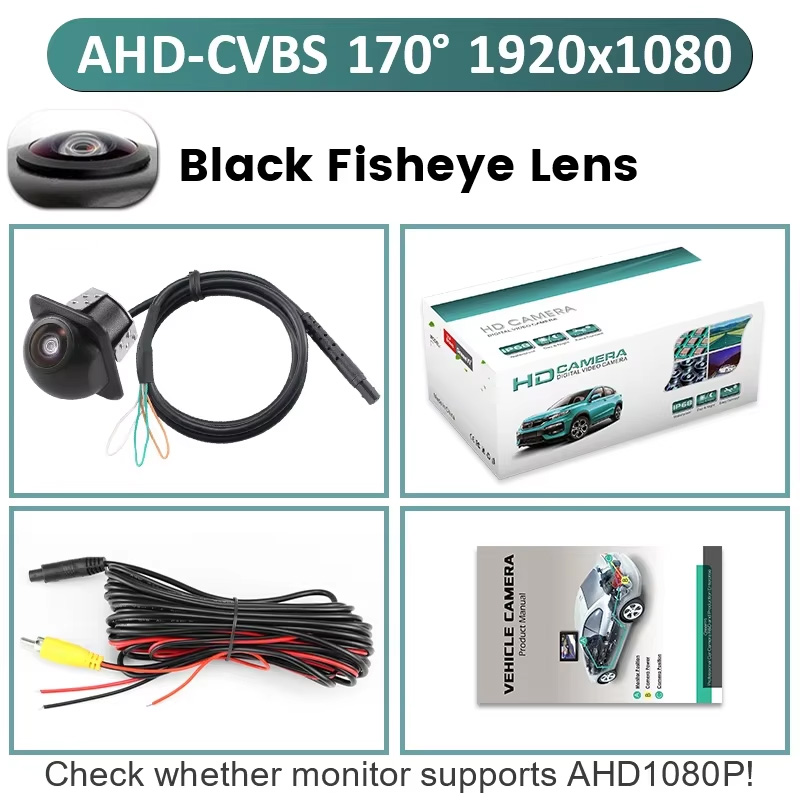

1 x Front Rear AHD Camera
1 x Extension Video Cable
1 x Manual
1 x Packing Box

NOTE:

* Please test the backup camera before routing video cable from back to front.
* If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
* Some cheap Android head units may also have the setting for AHD 1080P video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.
* If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* There is a pink color wire on your head unit usually, please connect it with the 6M video cable's triggering wire
* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Ford VW AUDI BMW Mercedes Benz vehicles.
* Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.
