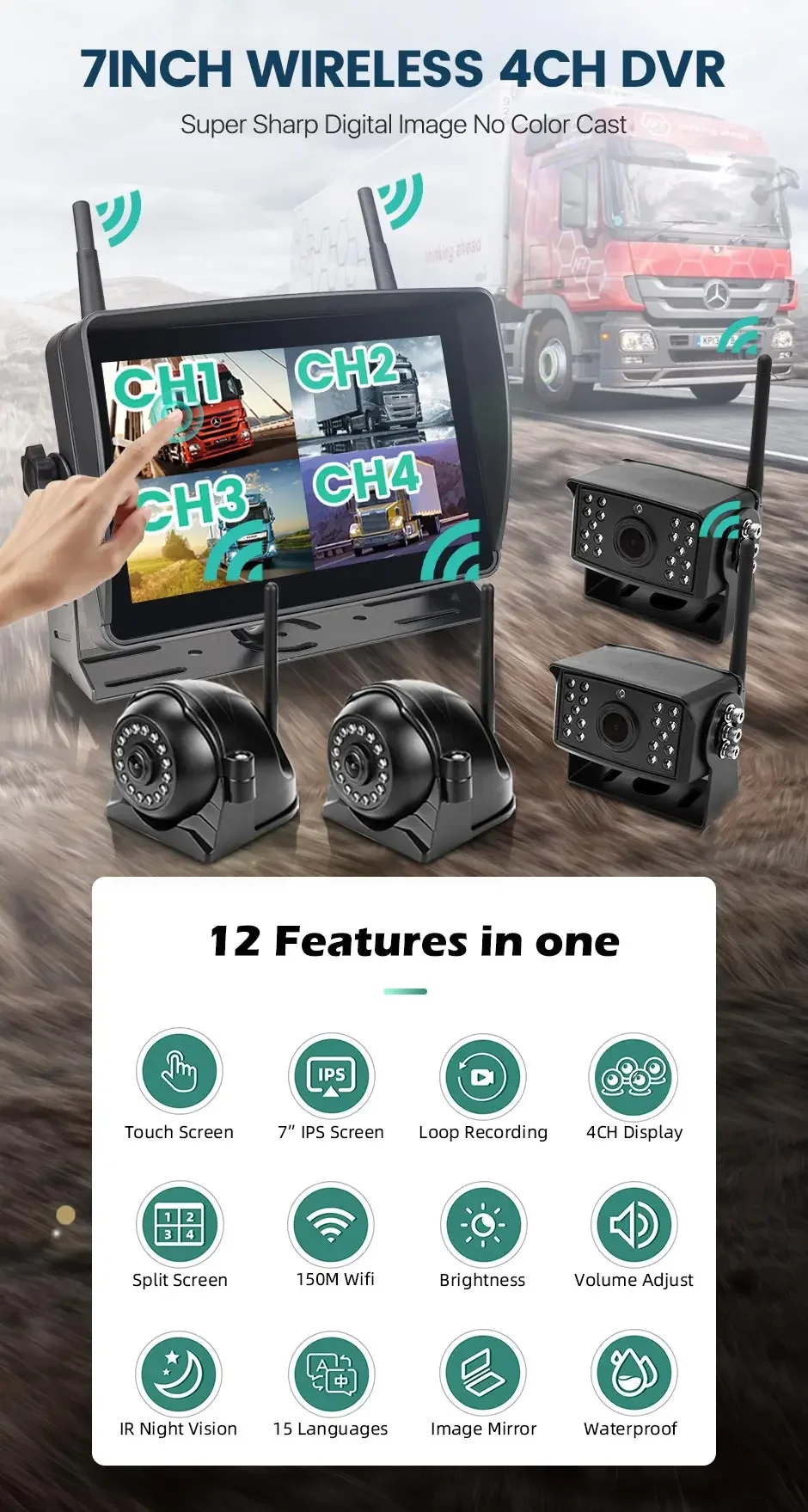

Features:
• Touch Screen 7 Inch wireless monitor, IPS screen.

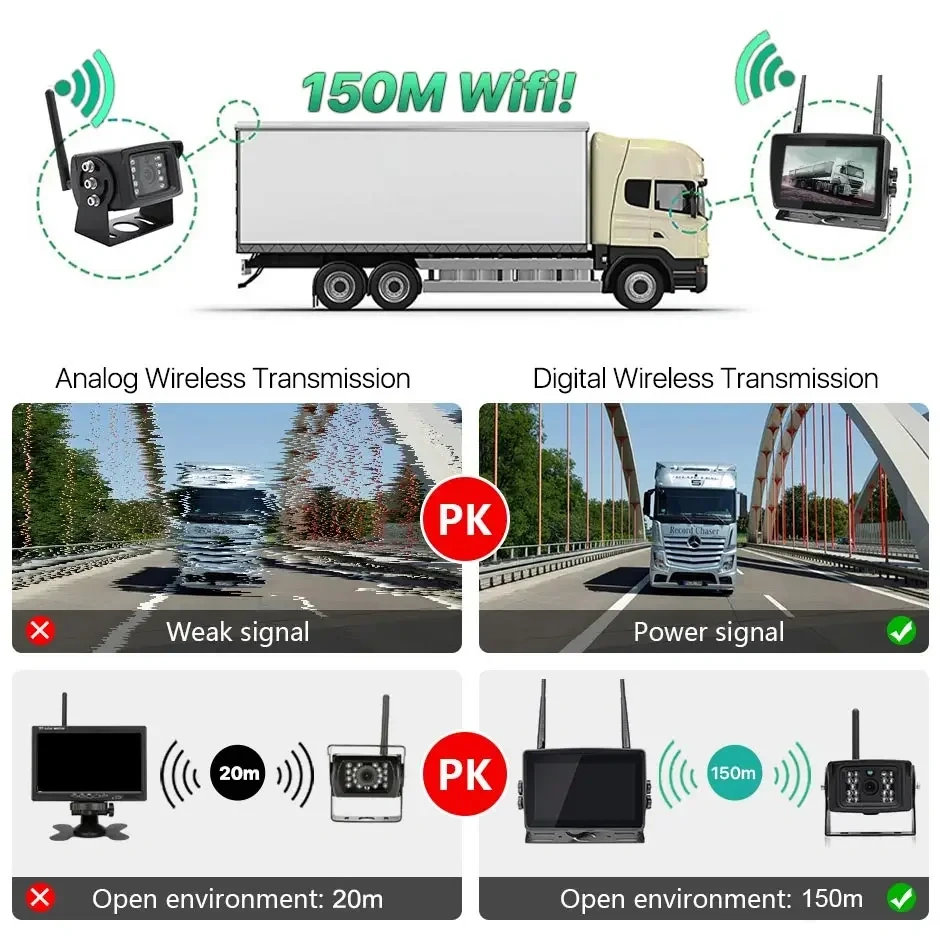

• Top Signal transmission distance: 150 meters
• Support blind zone range setting, you can turn on/off the blind zone warning function.
• 4 Channels Signal Input , Support for loop recording
• Super easy 1 step installation
• Very low wireless signal delay
• Can support 2 ~ 4 Camera at the same time
• Supports up to 128G card
•Support video playback, time delay, power saving mode.
•Support split screen function
•Support image mirror and rotate function
•Monitor sound can be adjusted
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• Transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters.
• Highly integrated AHD front-end chip, high-definition quality products.
• Rearview Night Vision IR Waterproof Backup Reverse Camera with Built-in Wireless Transmitter--Auto Water-Proof Camera Lens, with 18 individual Infrared (IR) LED. Effective range: 15m. It help your view still clearly at night or in bad weather.

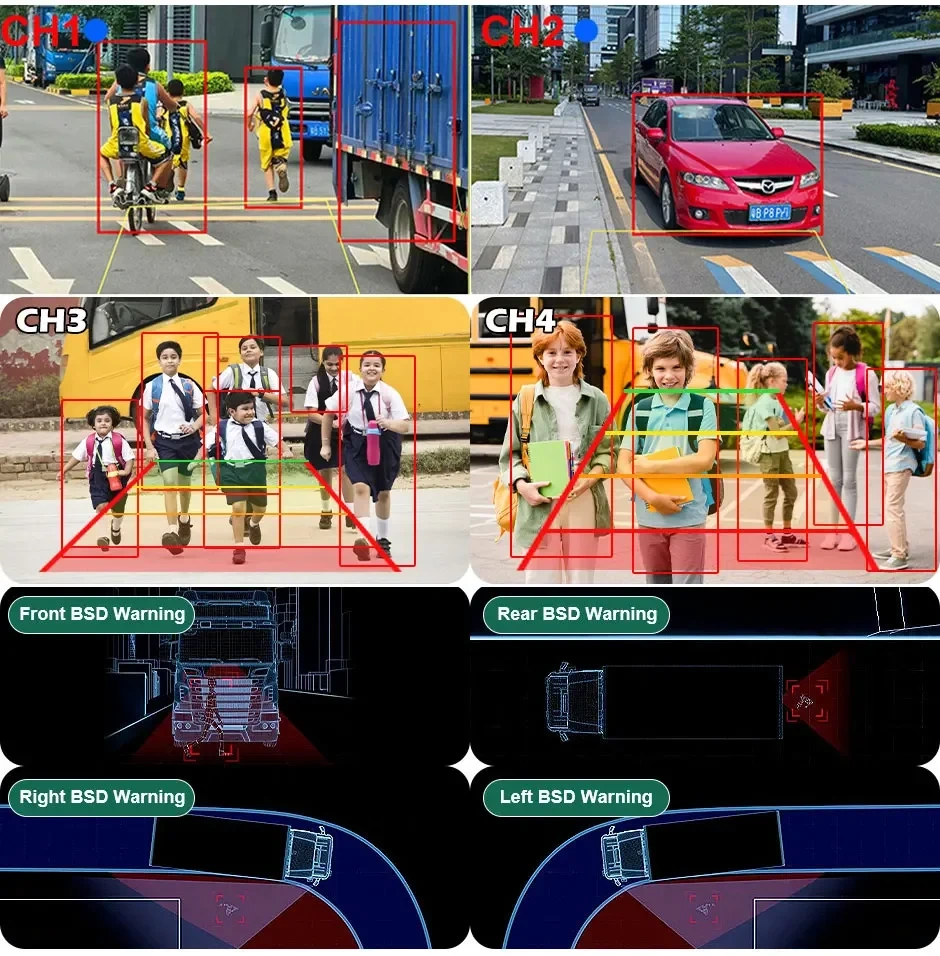

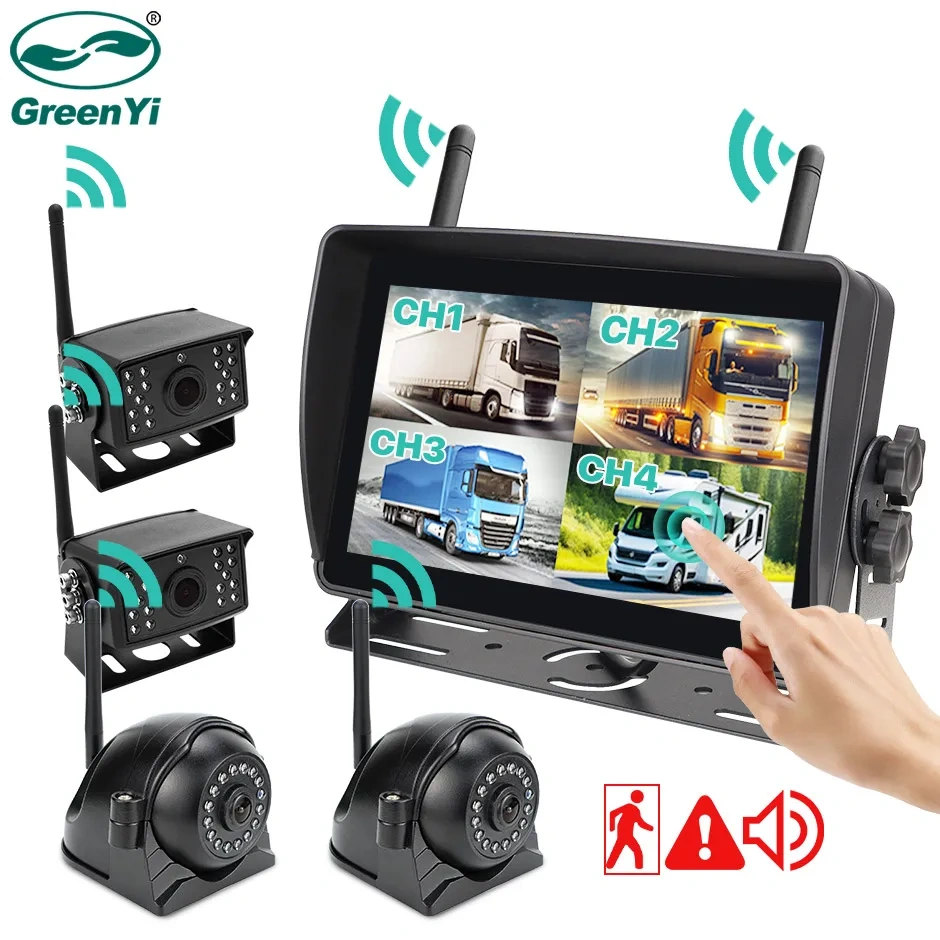

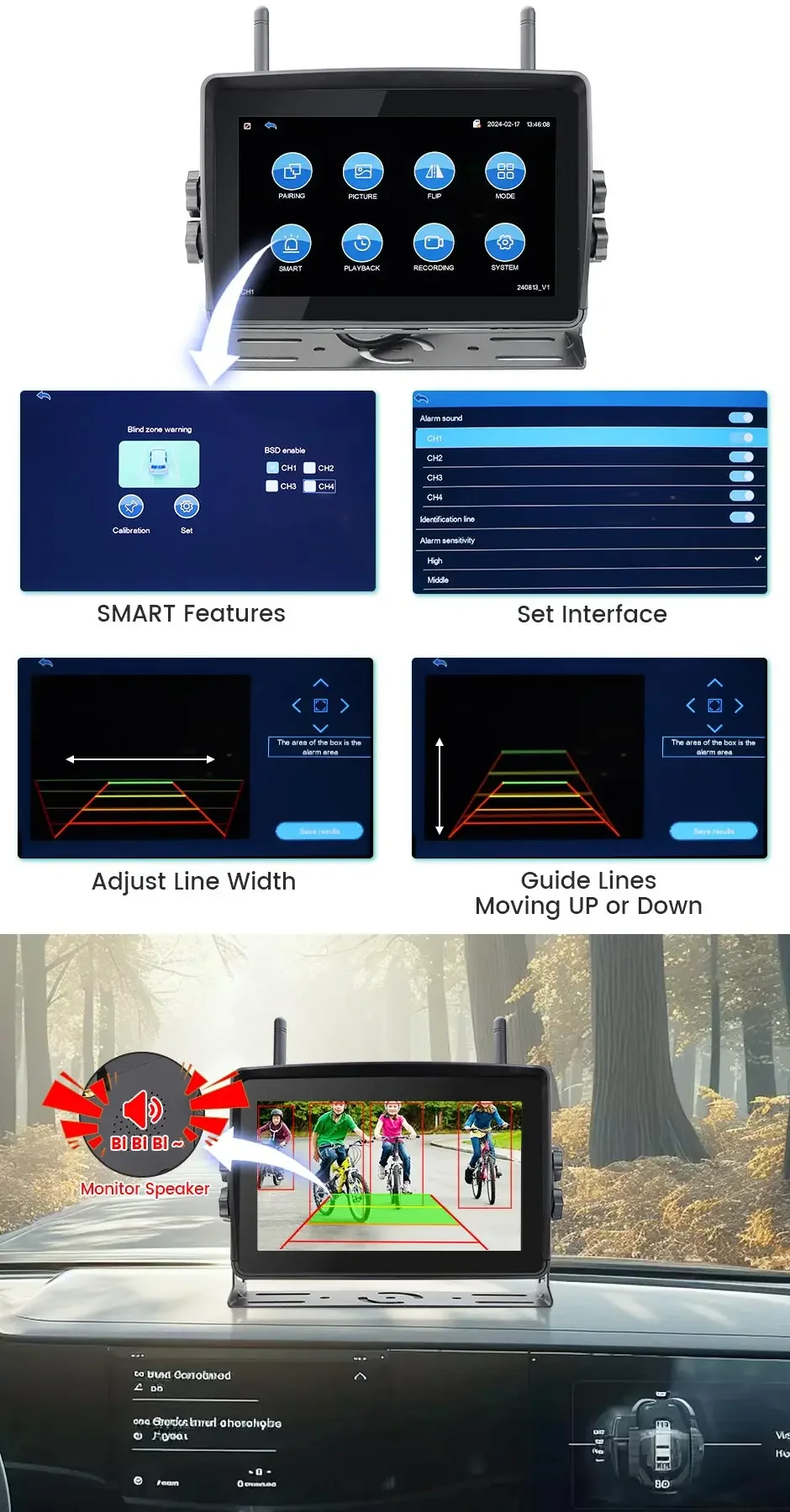

Blind Spot Detection Function
Tips: The monitor defaults to the normal wireless display function, and the BSD detection function is turned off when you receive the product. If you need this function, you can turn on the detection switch of the 4-way camera in the Smart settings.
*BSD detection function: The monitor has a built-in high-computing power Al smart main control chip and a high-definition AHD wide dynamic light-sensitive motherboard, which can monitor and identify pedestrians during driving to ensure driving safety.
* Screen warning: People can be dynamically identified in the output video screen. When the human body enters the screen scale range, the screen scale range will display red, and the speaker will emit a warning sound.

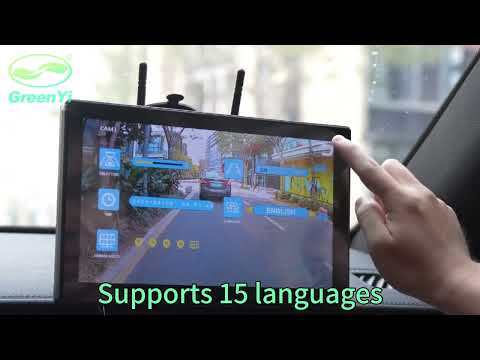

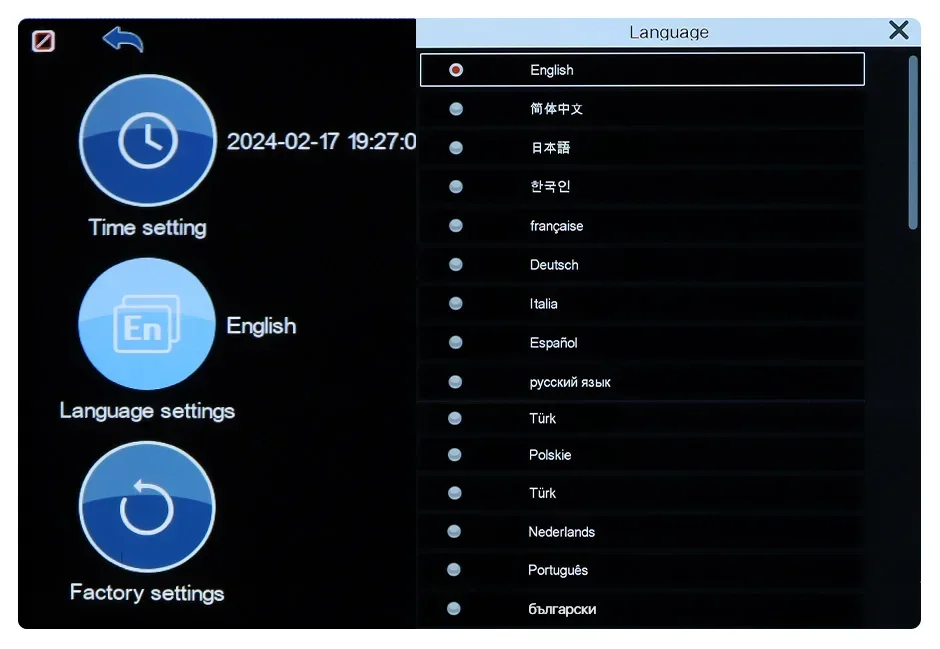

15 Kinds Language Optional
English / Chinese / French / German / Italian / Japanese / Korean / Polish / Portuguese / Russian / Spanish / Turkish / Nederlands / Vietnamese / Bulgarian

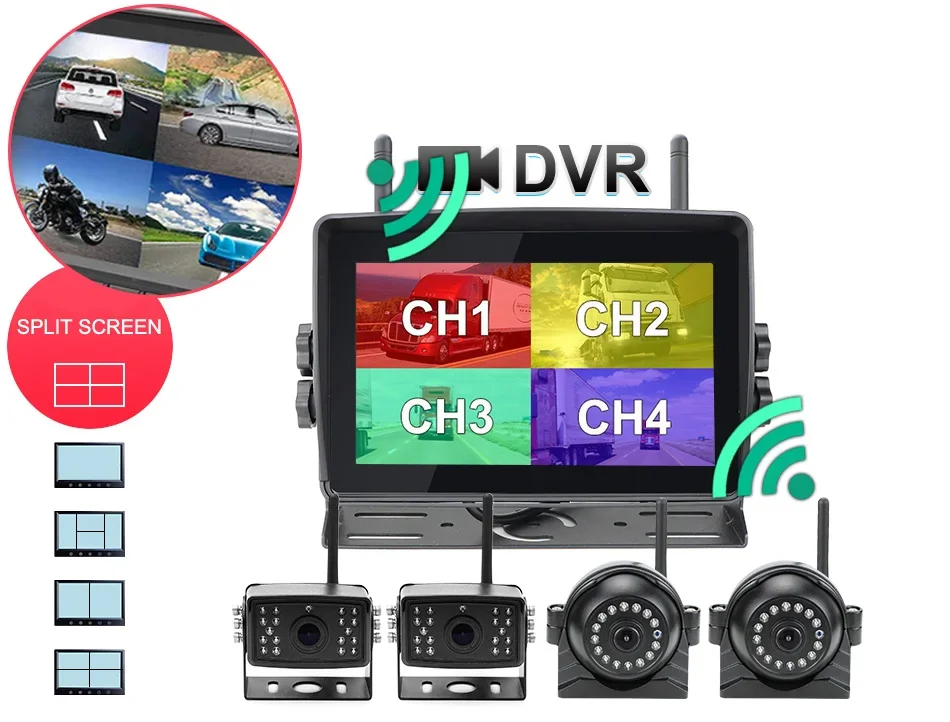

Split Screen: Can display 2 ~ 4 screens at the same time

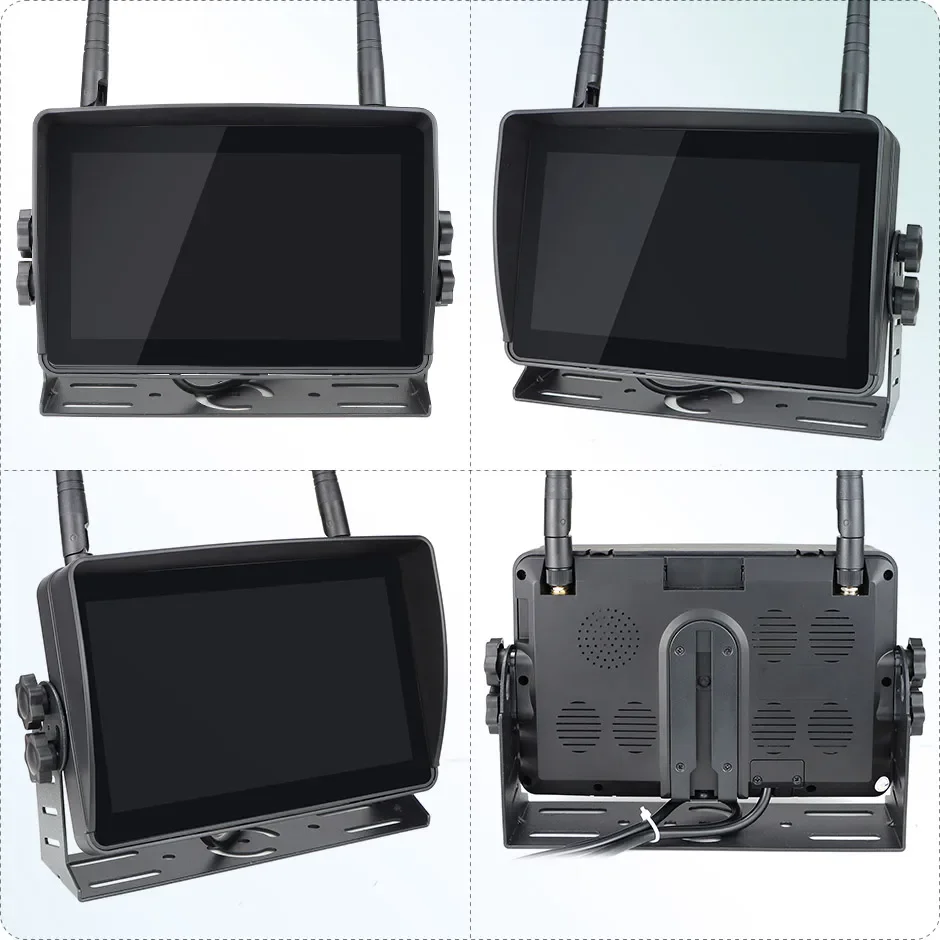

AHD Wireless Car DVR Monitor
Screen size: 7-inch screen
IPS screen: Support
Format: 16:9
Screen brightness: 500CD / M2
Effective pixels of the screen: 1024*600P
Record video pixels: 1280*720P
Loop recording: Support
Split screen: Support
Real-time playback: Support
Night vision image: automatic gain control, automatic white balance.
Power supply voltage: 12V-30V

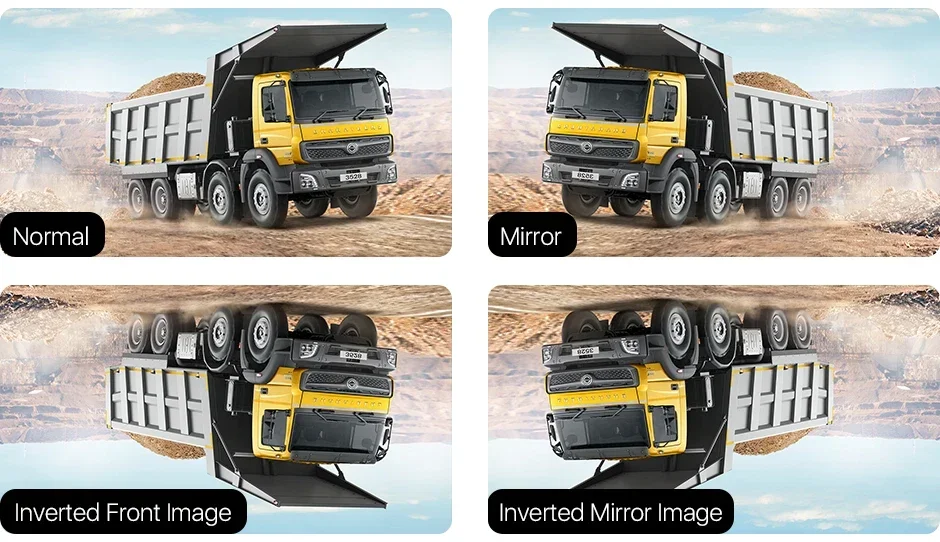

Mirror function: Support for 4 types of rotated image display

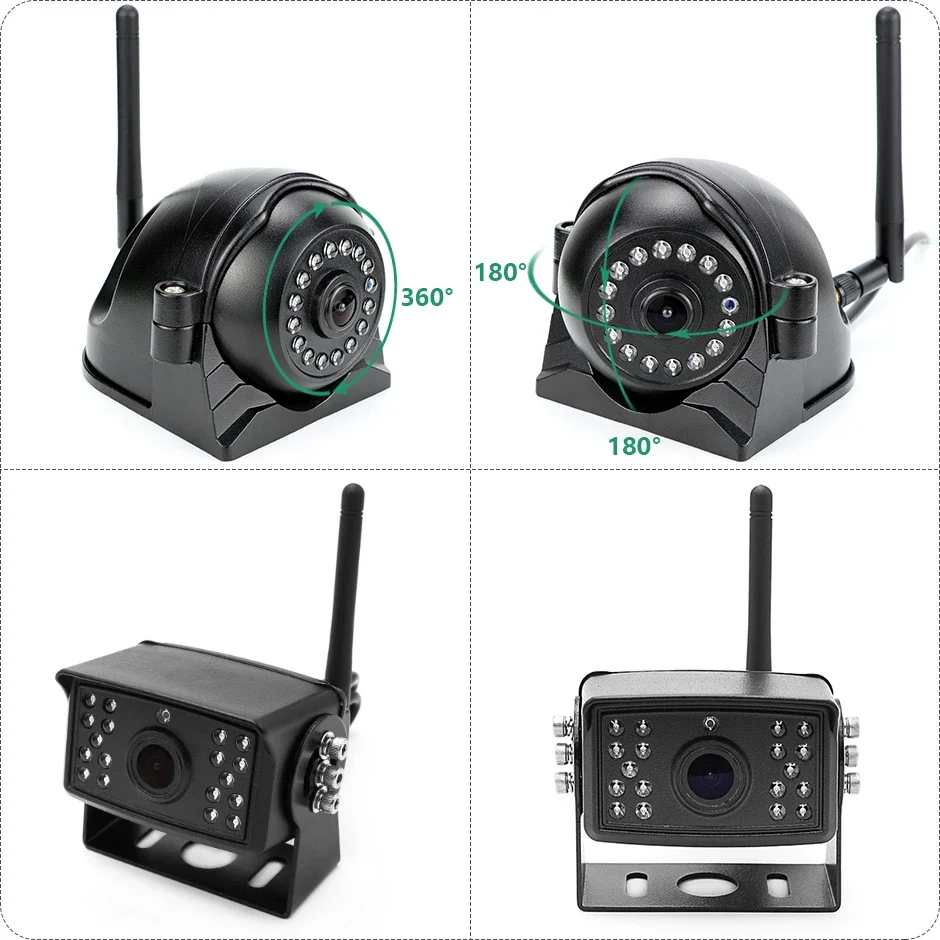

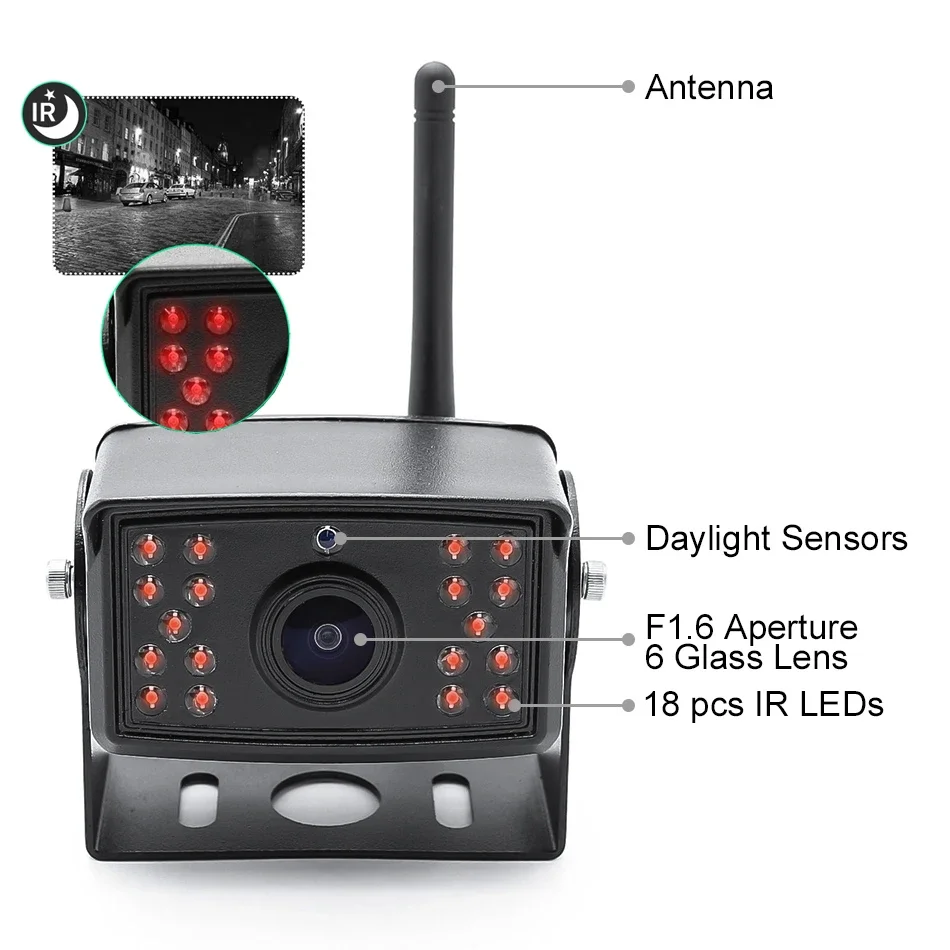

AHD Wireless Car Camera
Effective pixels: 1080P
Night Vision: With 18 individual Infrared (IR) LED. Effective range: 20m
Material: zinc alloy
Lens: 14/16MM
Low illumination: 0.01Lux
Signal to noise ratio: ≥69dB
Working power supply: DC12V-30V
Working temperature: -20 ° C ~ +50 ° C

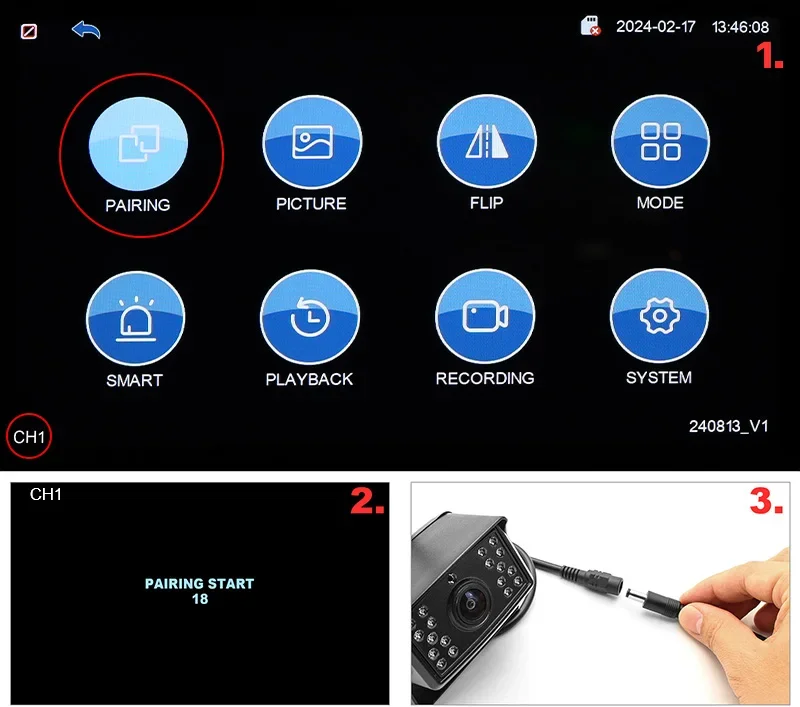

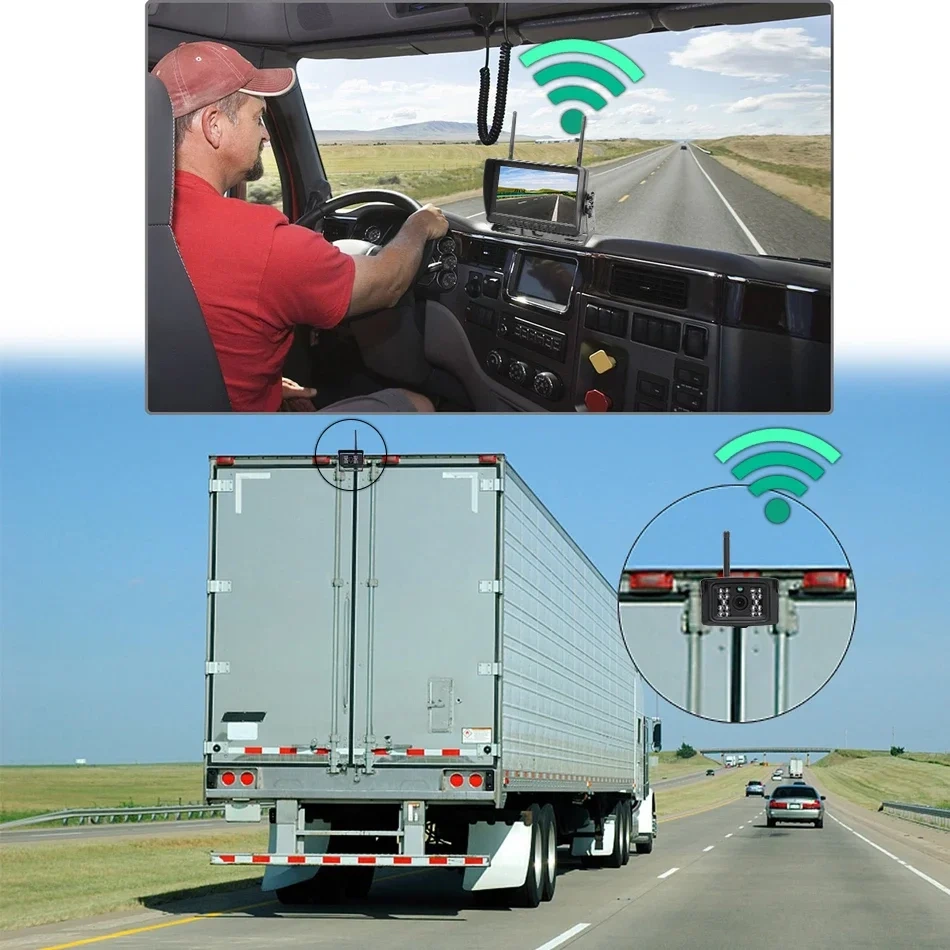

Installation Step
1. Click "Pairing" by setting.
2. Then connect the camera to the power supply.

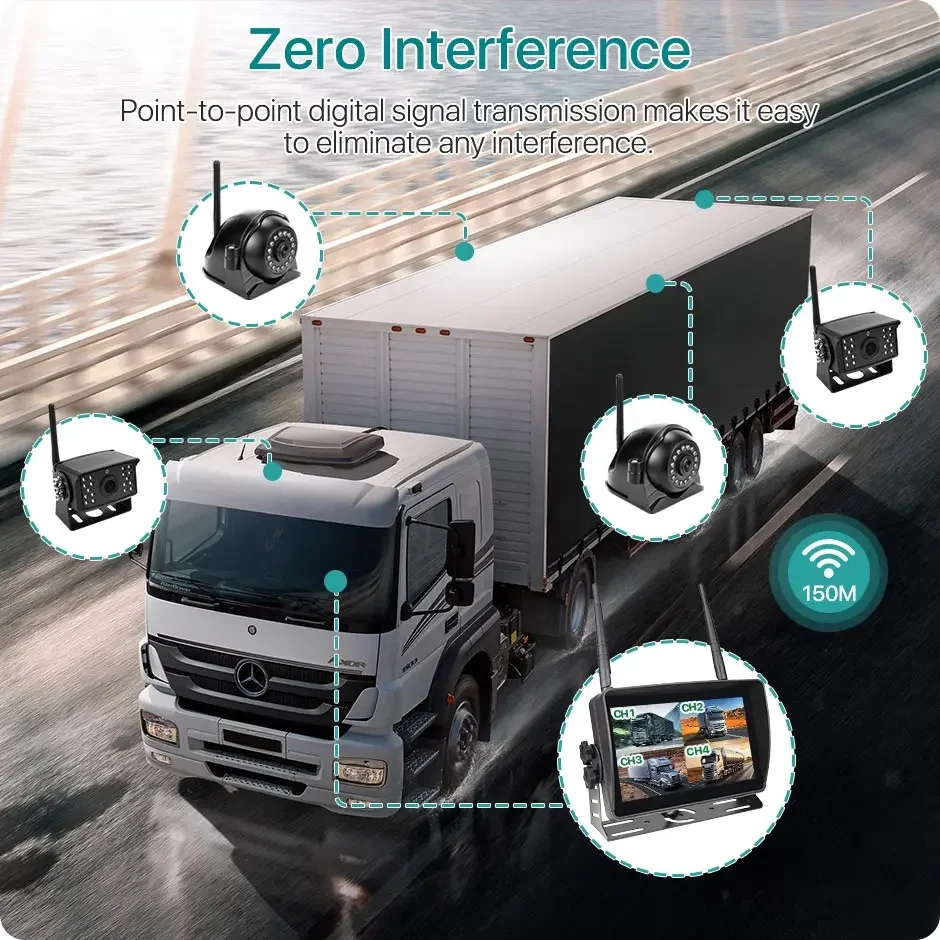

Super easy 1 step installation, up to 150 meters wireless transmission distance, suitable for any vehicle.

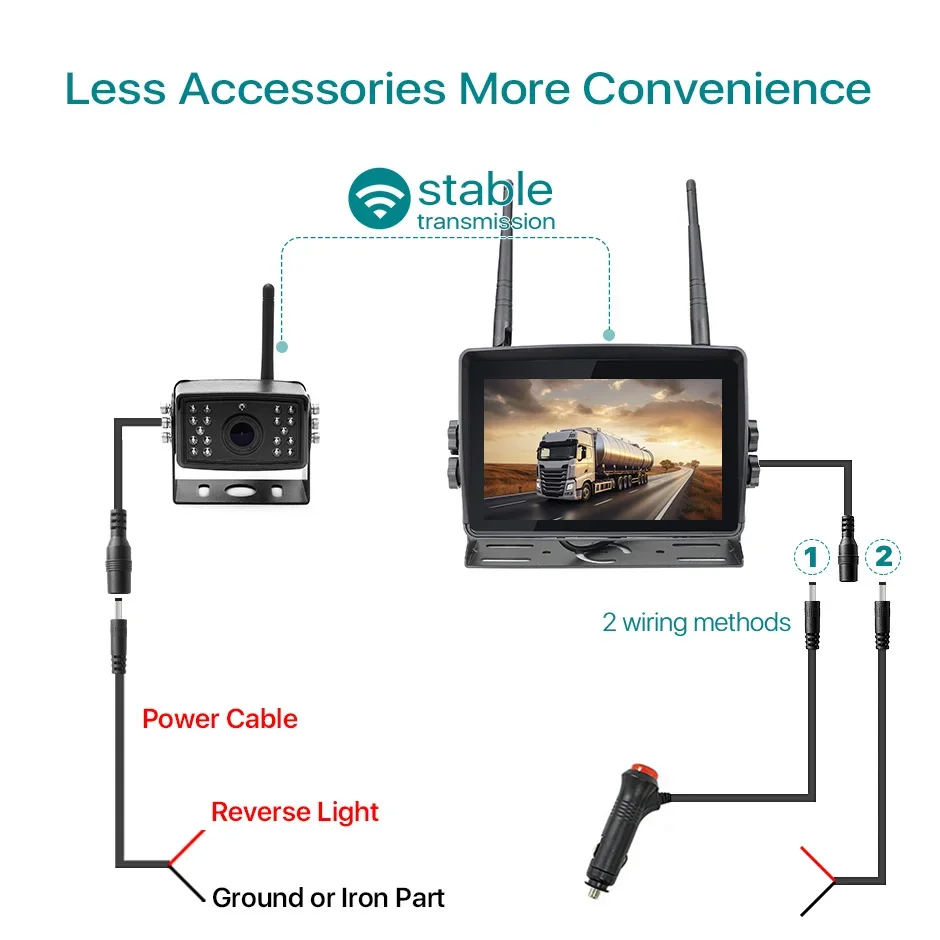

Wiring Diagram

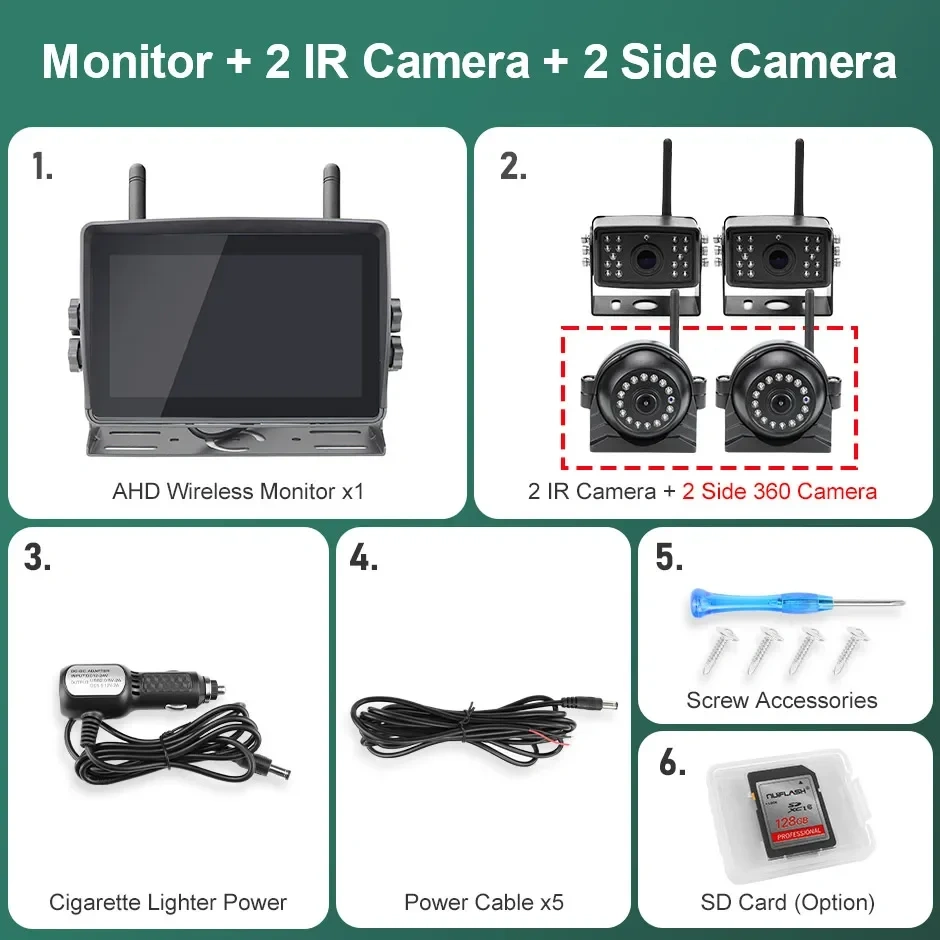

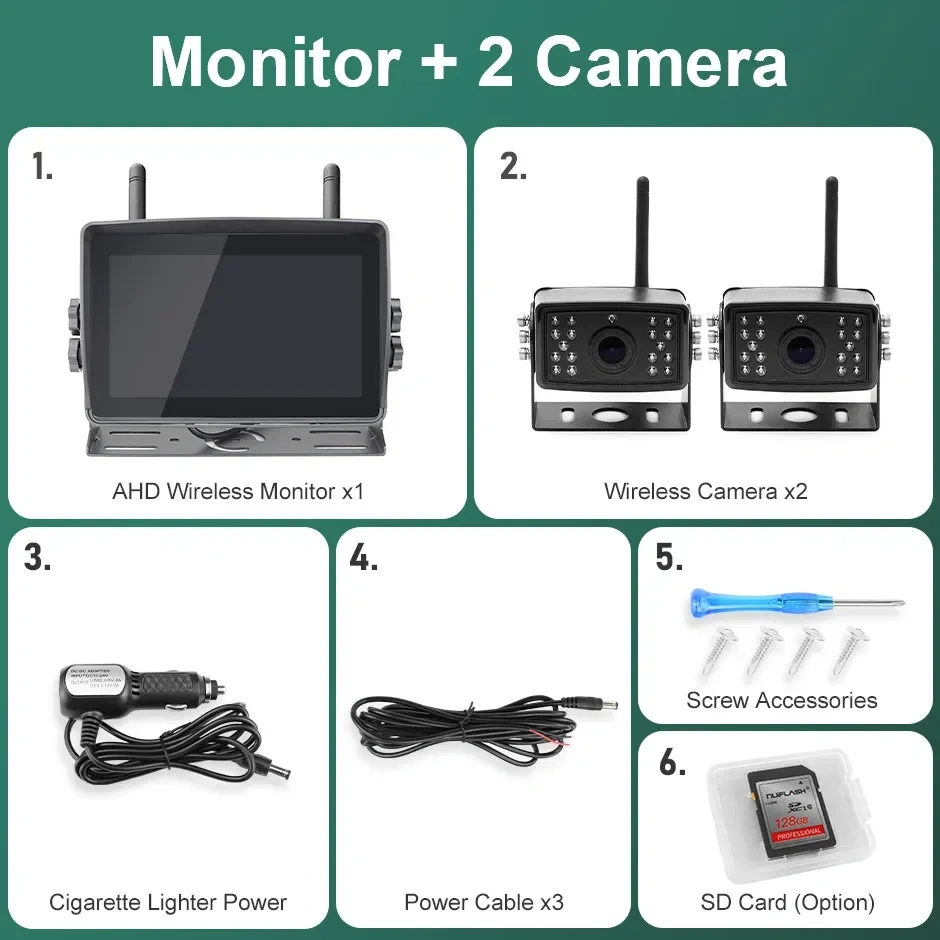

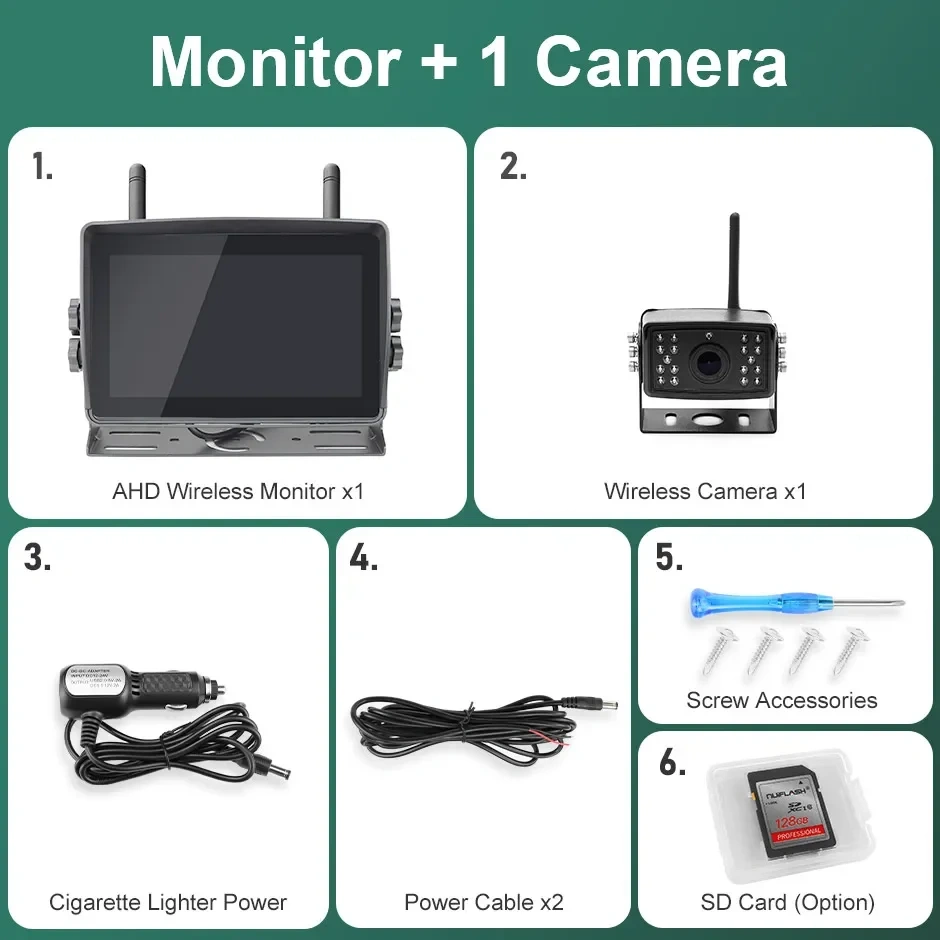

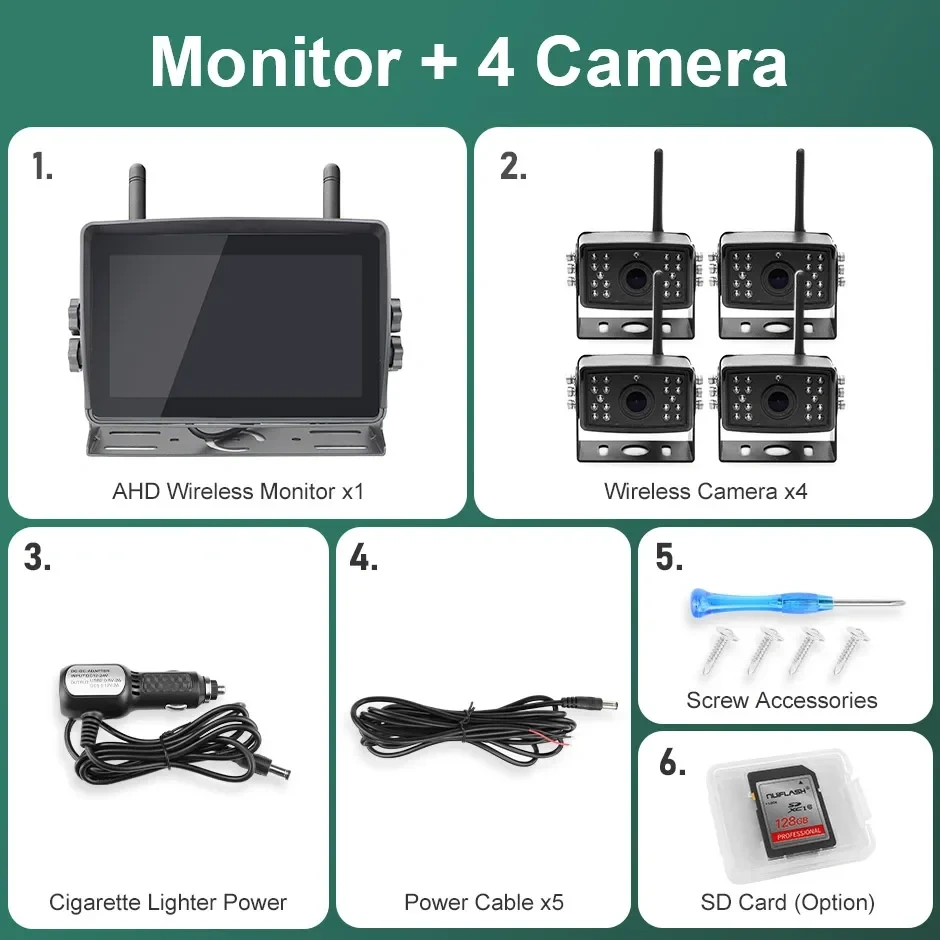

Package Content
