AHD Technology:
* AHD technology adopts advanced Y/C signal separation and analog filtering technology. Full HD 1080P level.
* Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
* Highly integrated AHD Front-end chip, 2022 Year New high-definition quality products.

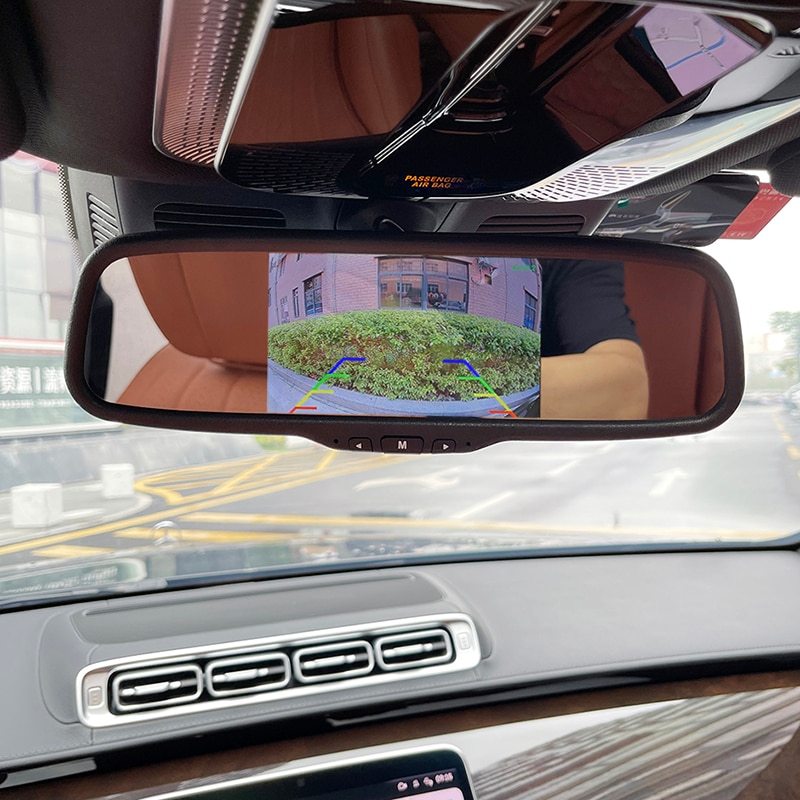

AHD Monitor Feature:
* Monitor Video signal : Supports AHD and CVBS signals.
* Screen size: HD Full View 5-inch IPS Screen ,
* Screen Brightness: 500CD/M2 , The Clearest Video Image .
* Power supply voltage: DC 12V-30V
* Image: Up/Down/Left/Right
* Image Format: 16: 9
* Signal format: PAL/NTSC
* Power consumption: <= 6W
* Power Cable : 1.5M Power cable
AHD Camera Feature :
* Chips components : AHD Sony/2053
* Viewing angle: Real 165 Degrees Visible Range .
* Effective pixels : 1920*1080P / 1280*720P
* Signal format: PAL / NTSC
* Image resolution: 200W pixels
* Video output: AHD Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

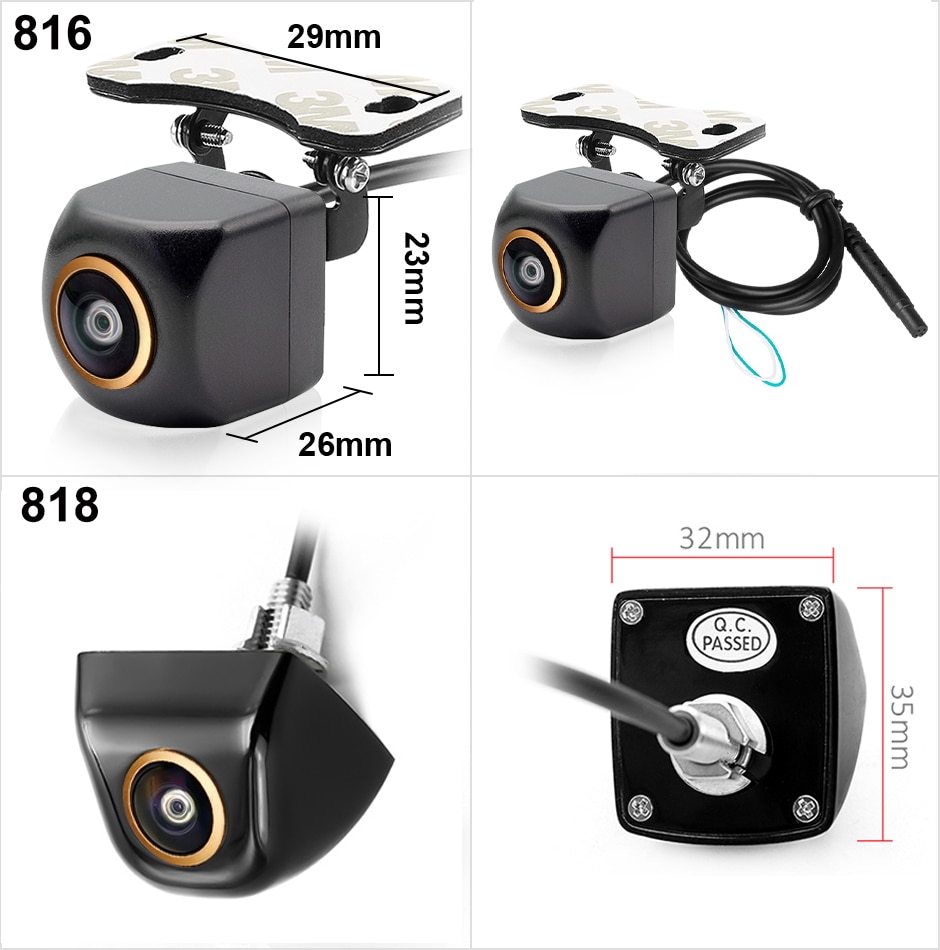

2 kinds of cameras are available. For more product features, please click this link to view:

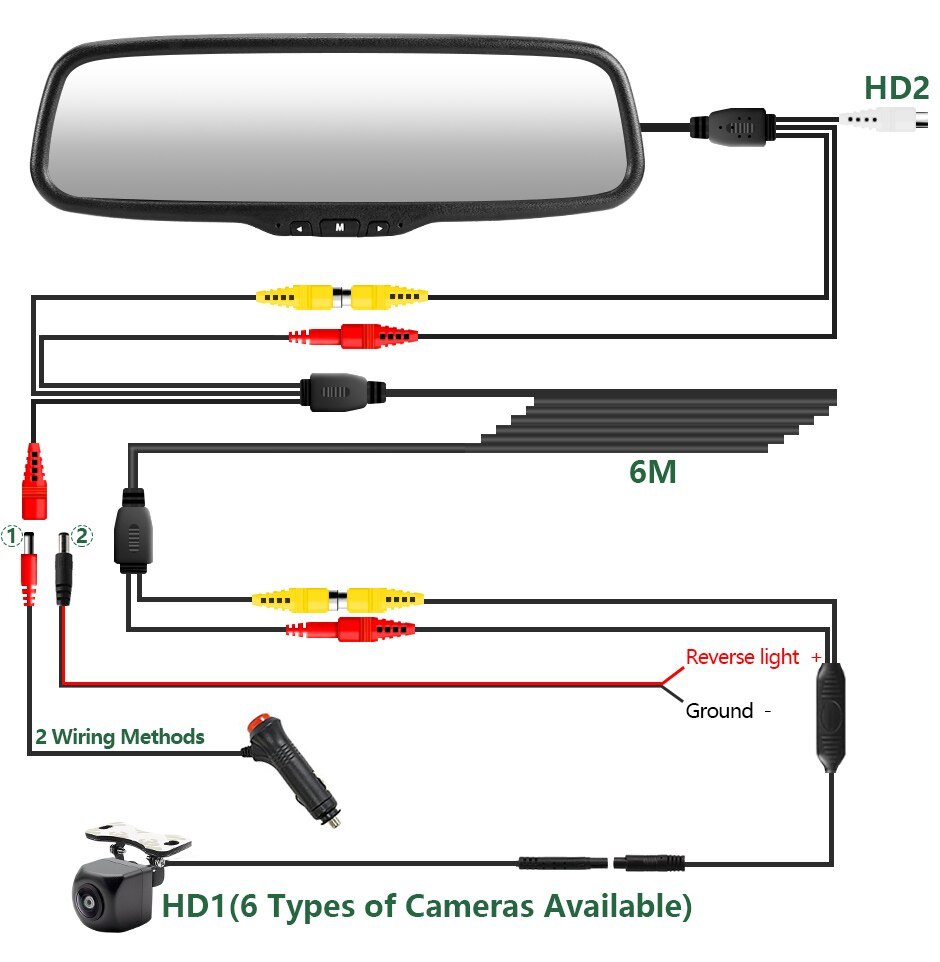

Installation Steps:
1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.
2. Connect the power cable to reversing light power supply.
3. Connect the 6m extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.
Package includes:
1 x AHD 5 inch Mirror Monitor
1 x Rear View AHD Camera
1 x 6m Video Cable
2 x 1.5m Power Cable
1 x Cigarette Power Plug
Warranty
• All our products are tested to ensure they work properly before shipping and come with a 12-month Manufacture Warranty.
• If the product has any problem when arriving, please feel free to contact us to solve your problem.
• This link support "no reason to return goods within 15 days". The goods returned by the buyer shall not affect the secondary sales of the merchants. For the expenses incurred in returning, the principle of responsibility shall be followed.
