AHD (Analog High Definition Technology)：
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• Transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• Zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

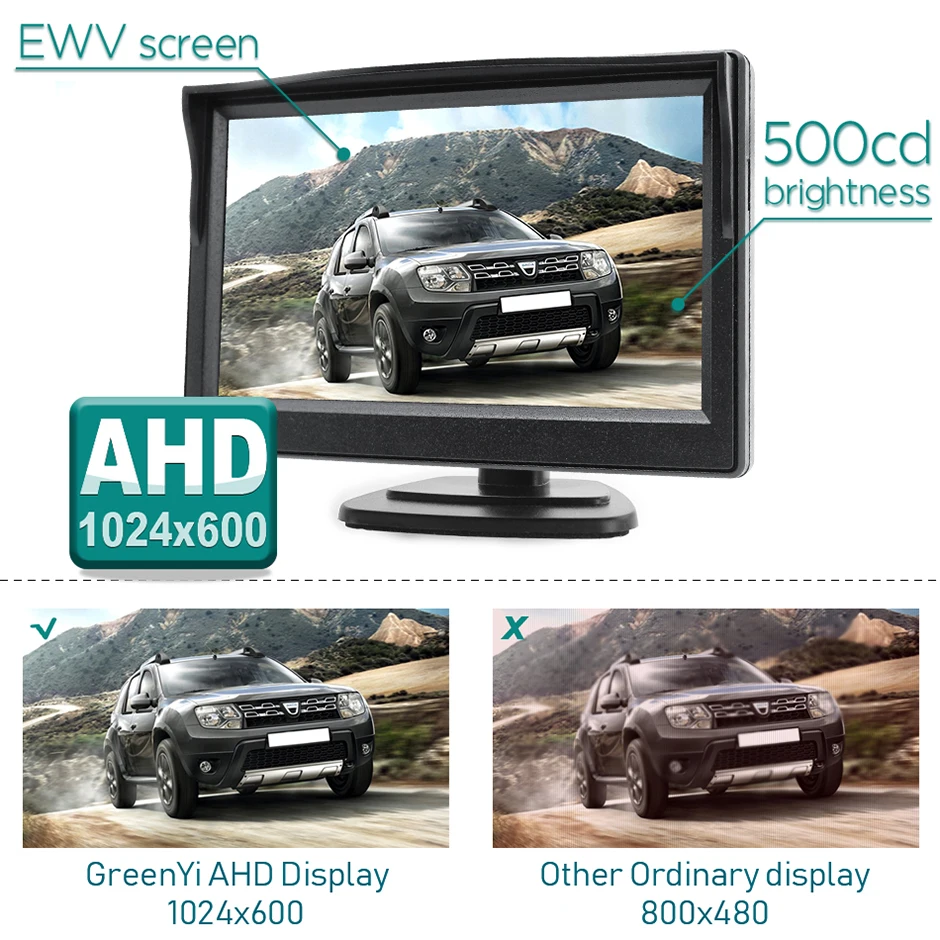

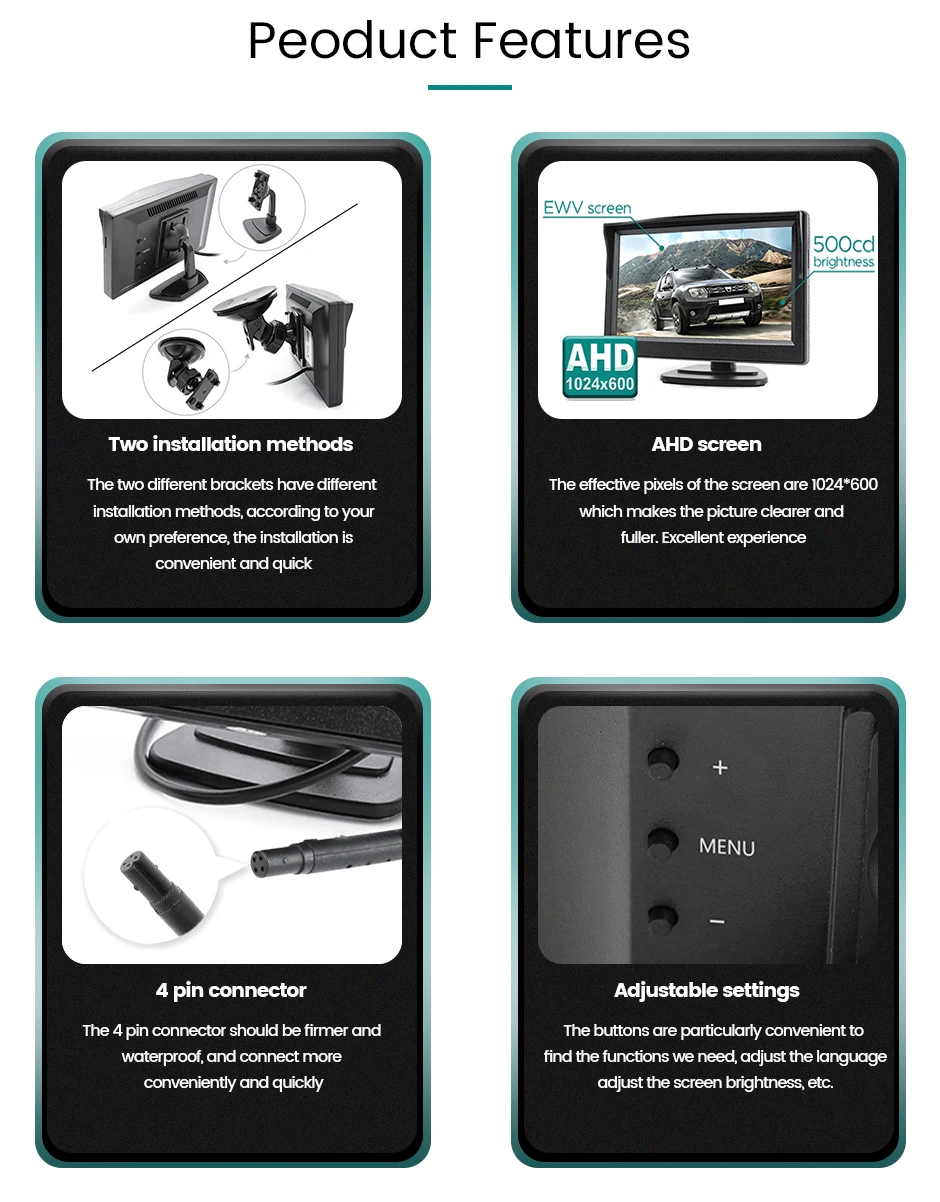

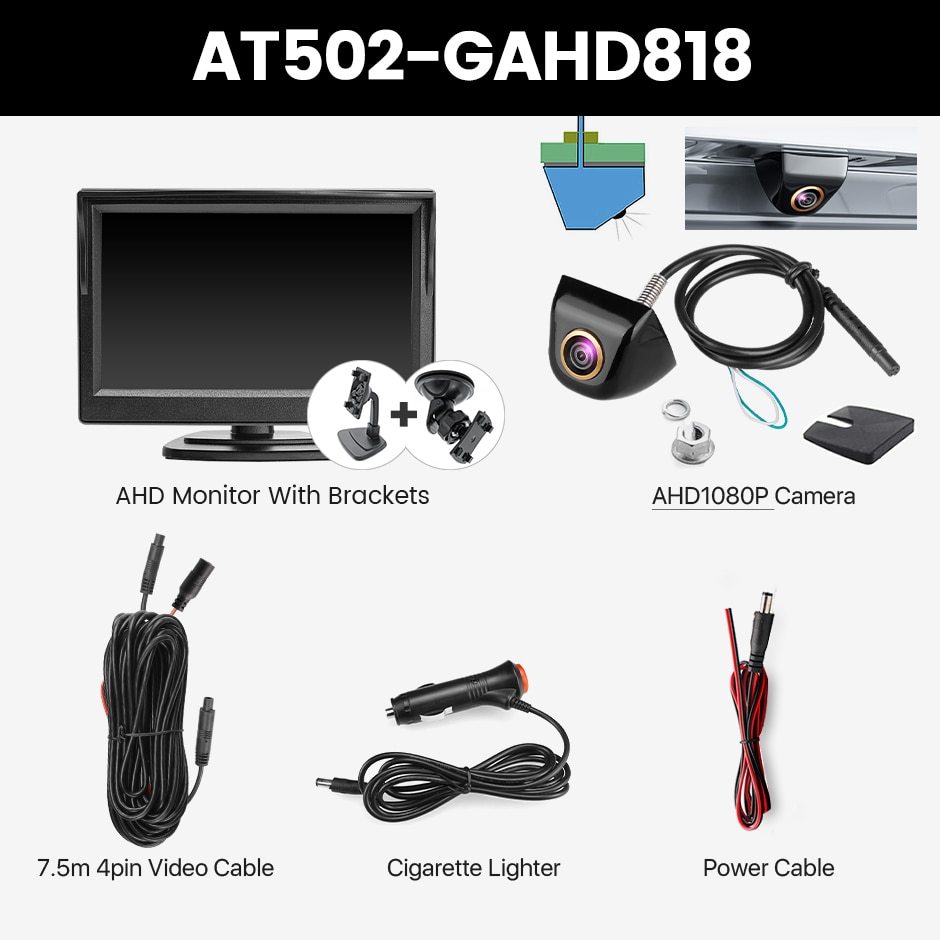

AHD 5 inch Monitor:
• Video signal: Supports AHD and CVBS signals.
• Screen size: 5-inch screen
• Format: 16:9
• Screen brightness: 500CD / M2
• Screen contrast: 300:1
• EWV screen: Support
• Effective pixels of the screen: 1024*600
• Signal format: PAL / NTSC
• Night vision image: automatic gain control, automatic white balance, automatic backlight compensation.
• Power supply voltage: 12V-24V (Not recommended for trucks)
• Power consumption: <= 6W
• Screen saver time setting: Off / 1 minute / 3 minutes / 5 minutes
• Support screen flip and mirror function
• Support adjustment of brightness, contrast and saturation
• Support English, Russian, Korean, Chinese, Japanese

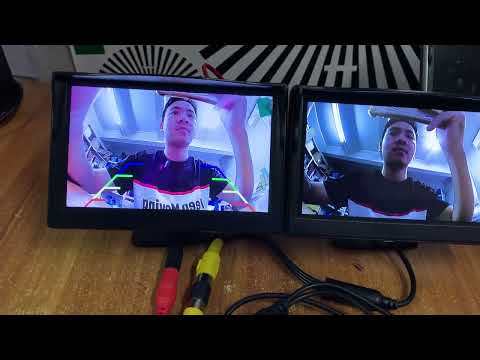

• Recommend using our AHD camera, the display effect is very good, just like the effect of video demonstration.

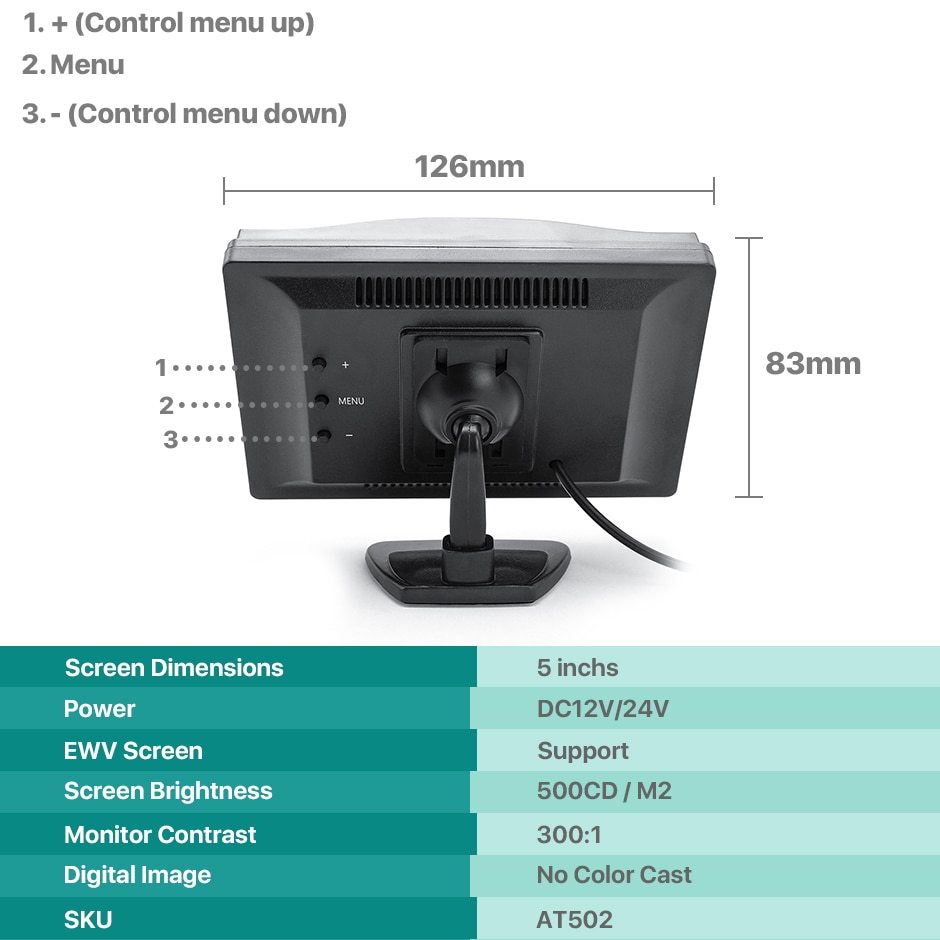

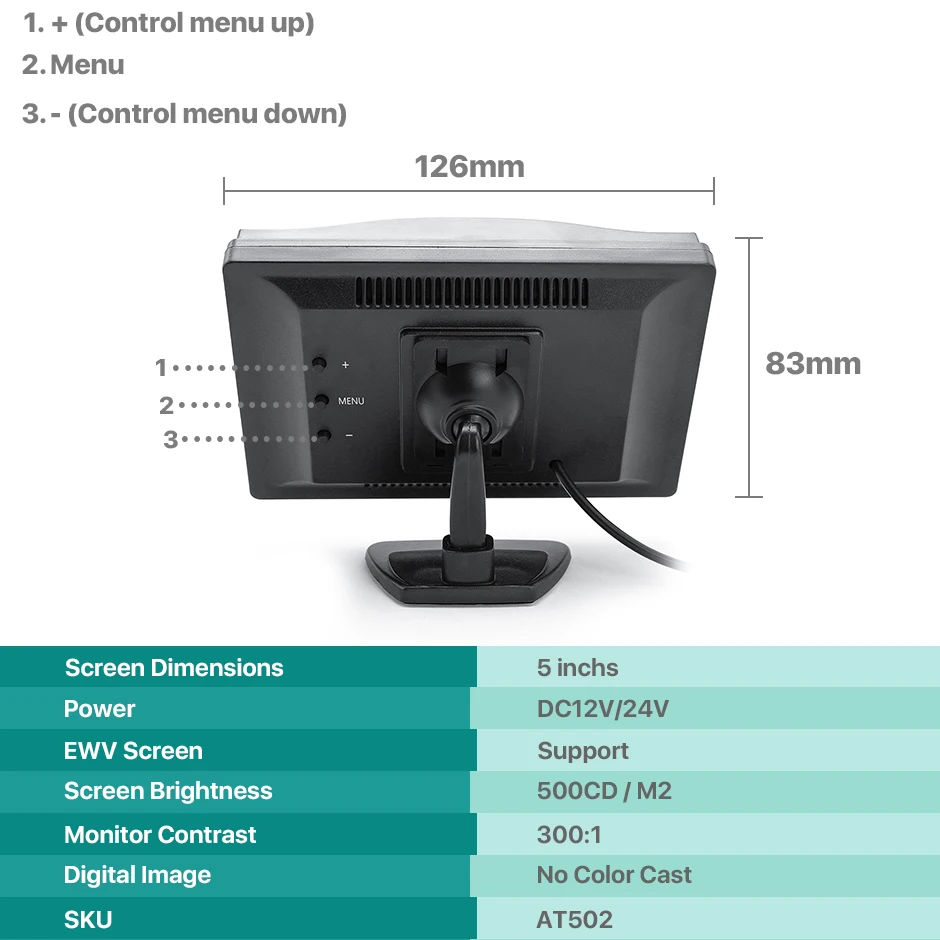

Key Description：
Long press +: Turn screen off or on
Long press-: Switch video signal (AHD1 / AHD2)
Click MENU: Open menu / back key
Long press MENU: OK / Next option
Support screen flip and mirror function：

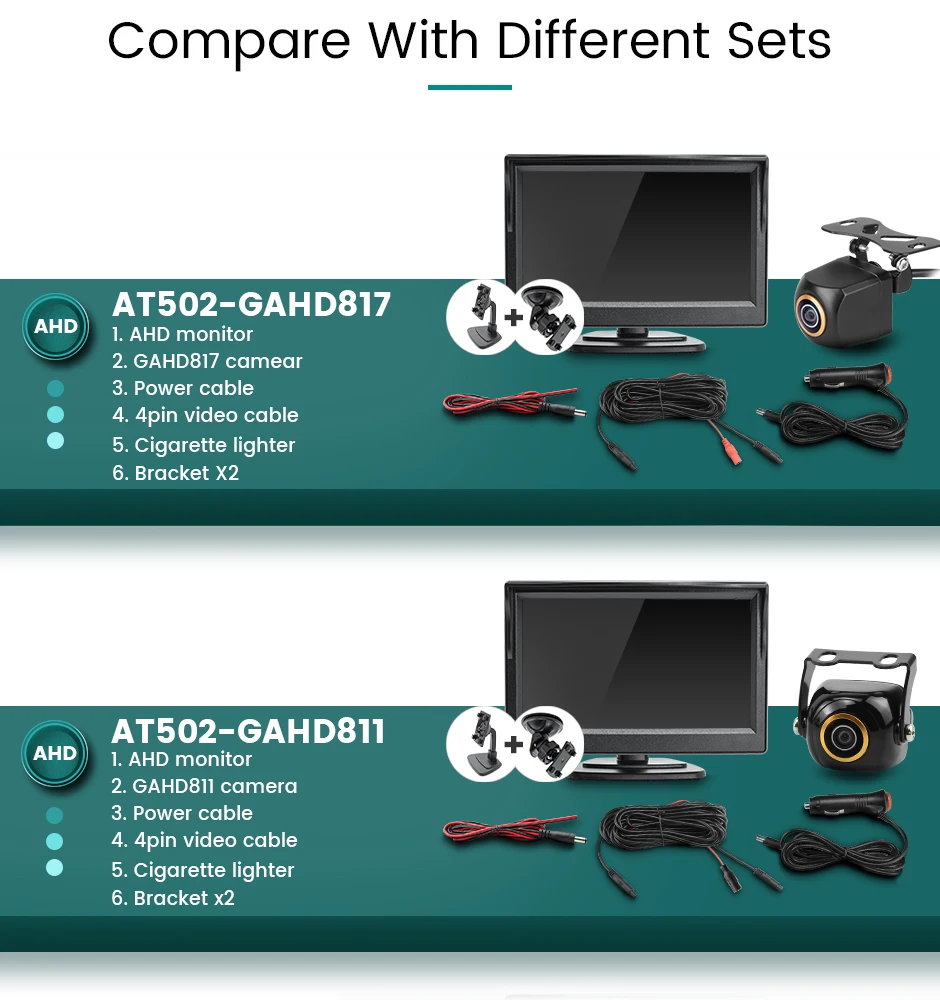

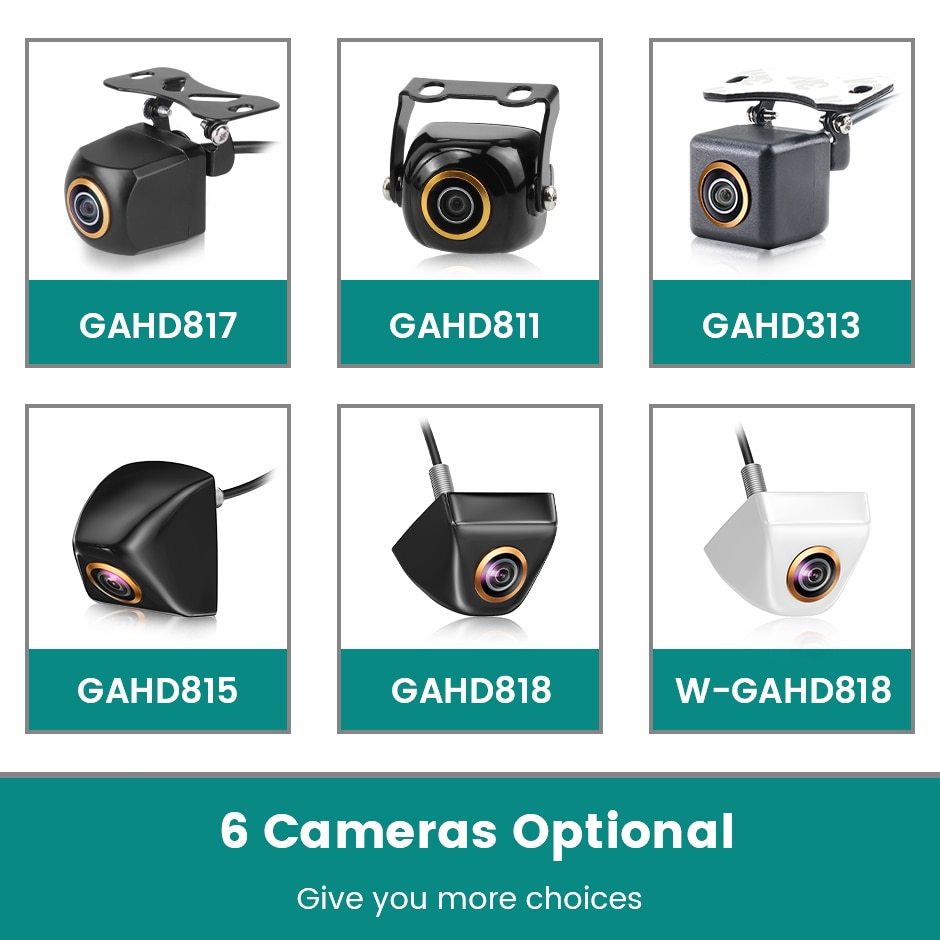

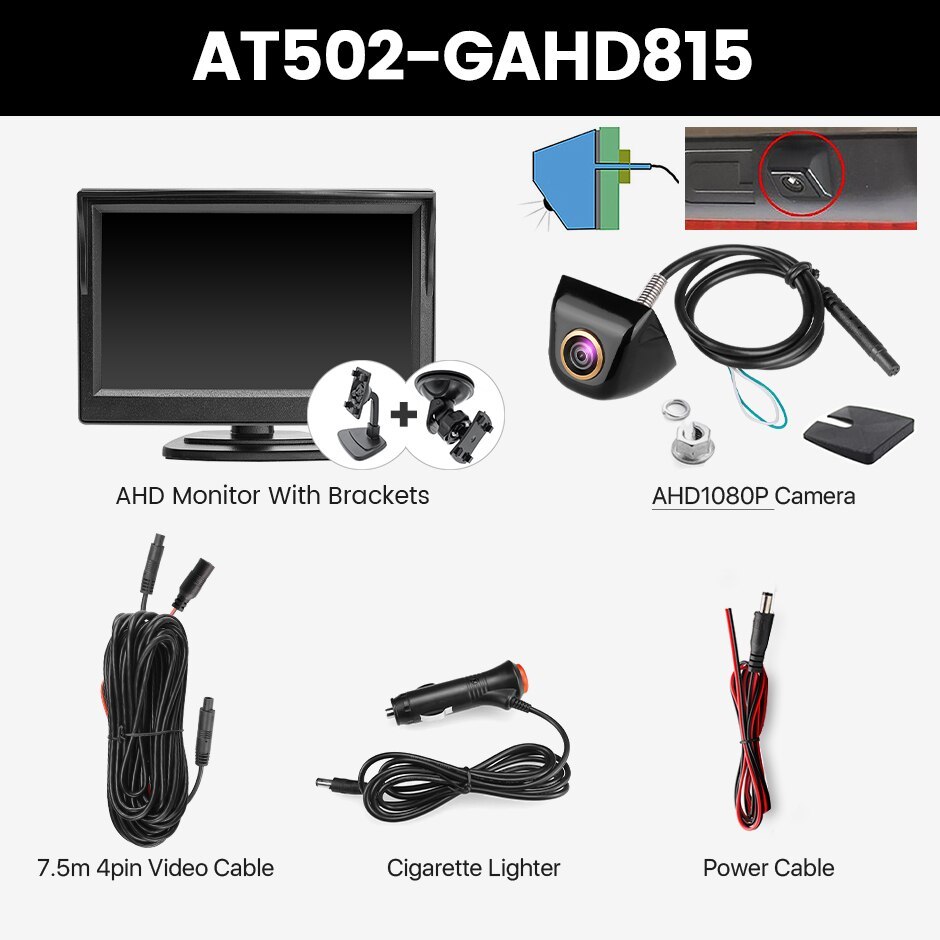

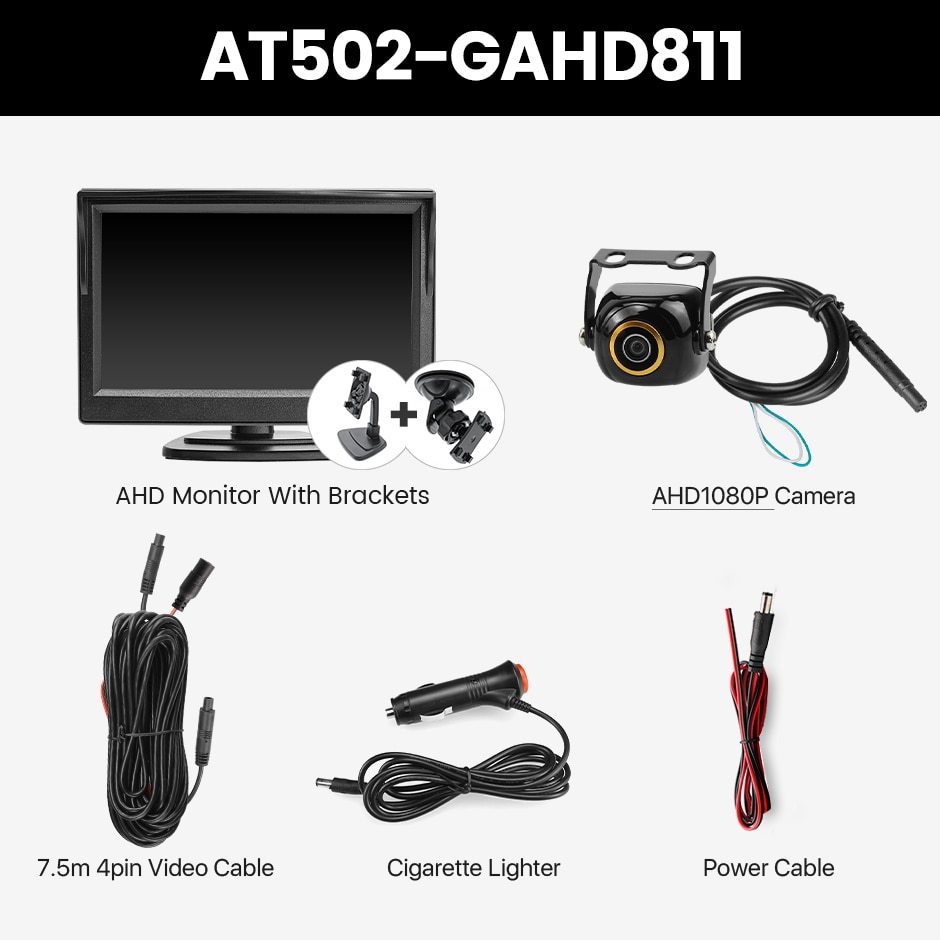

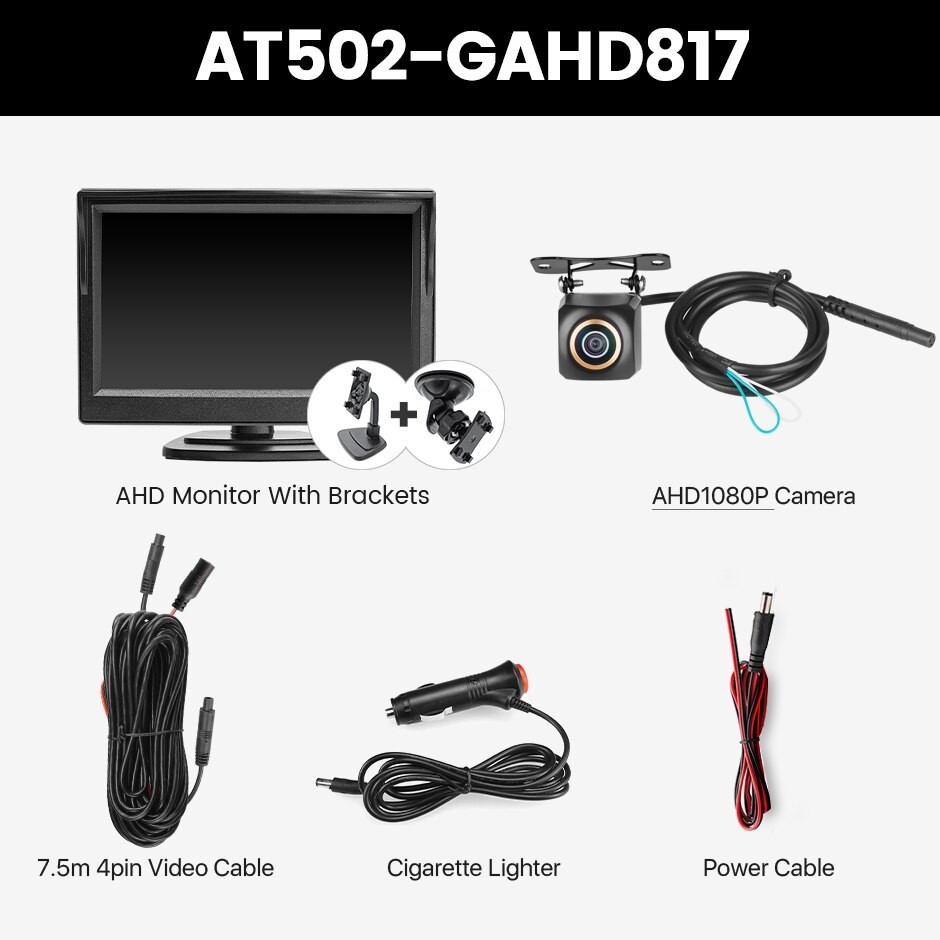

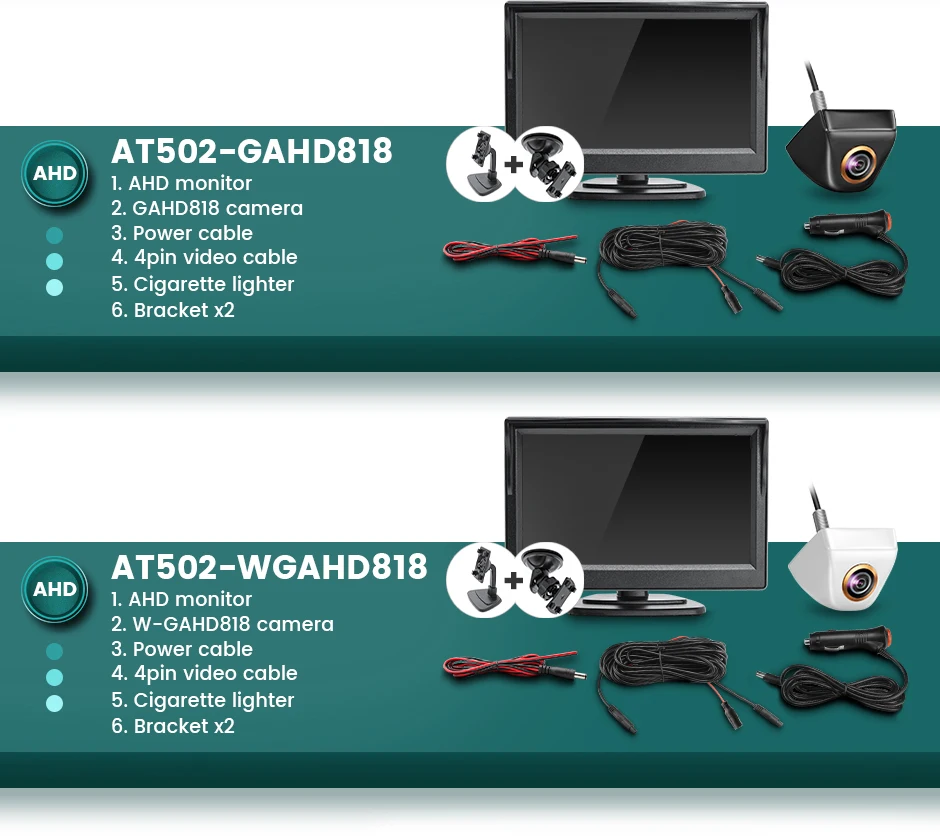

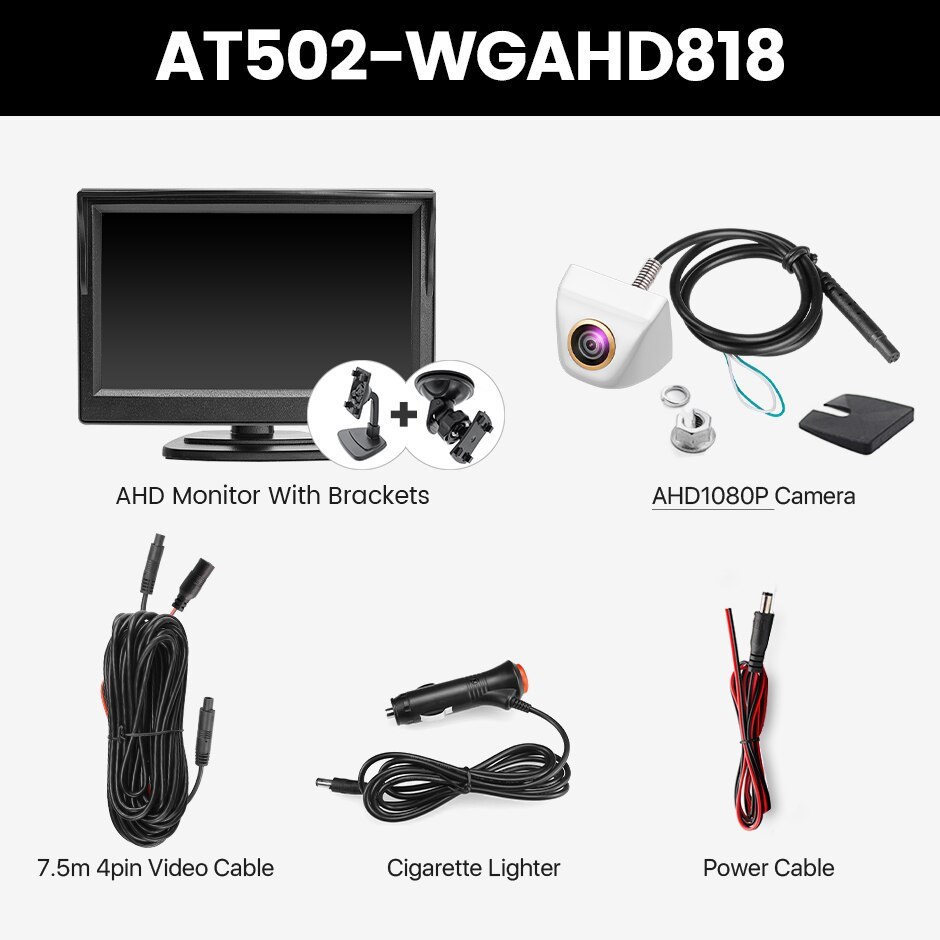

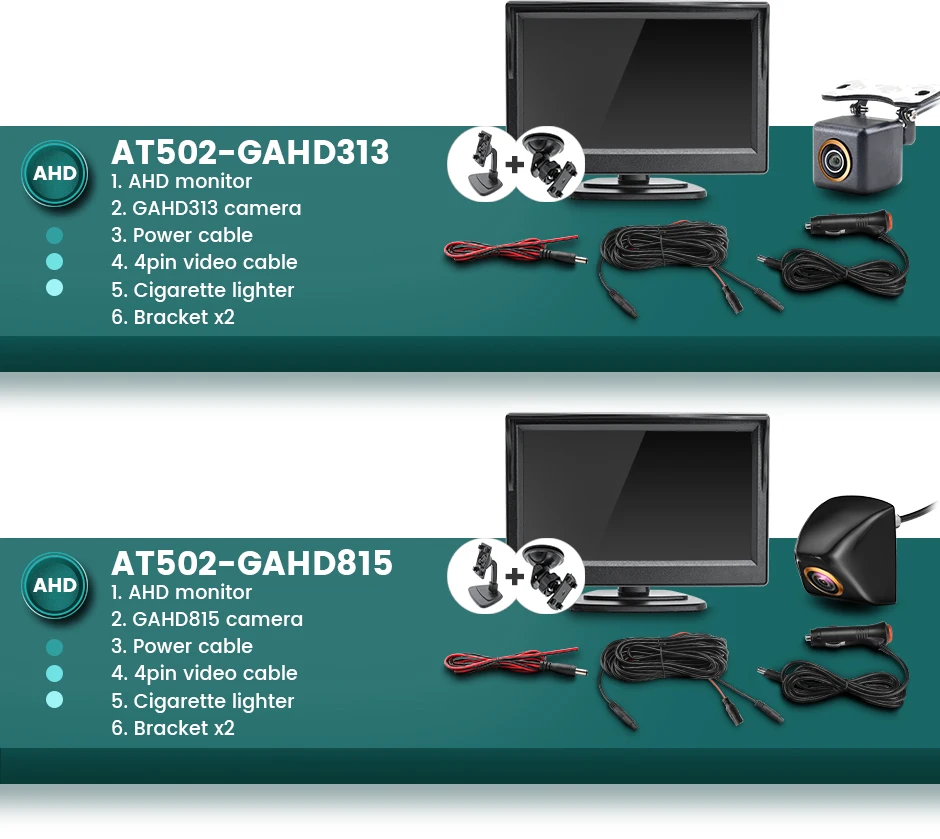

6 Cameras Optional:

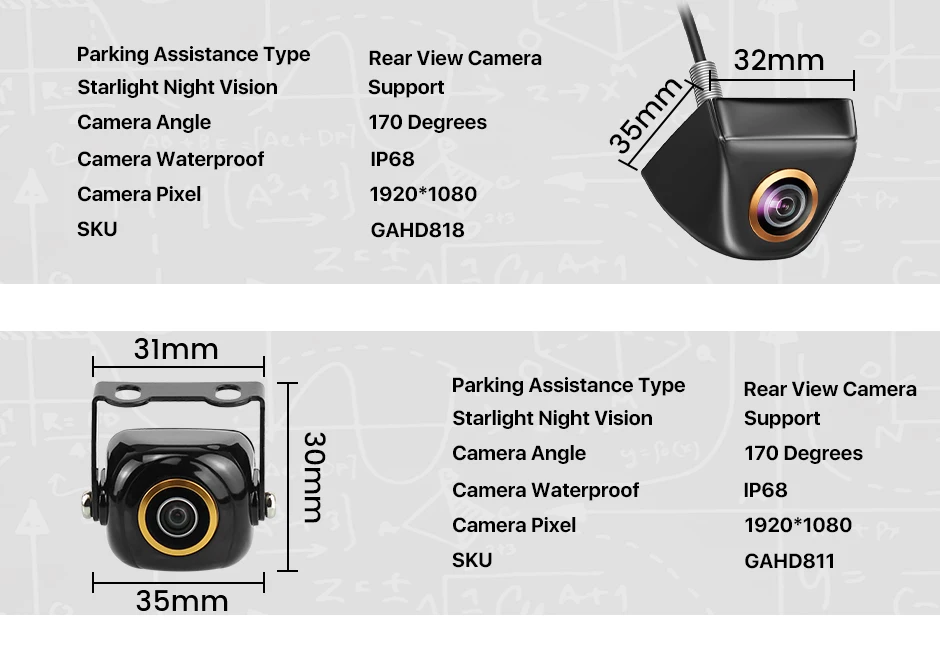

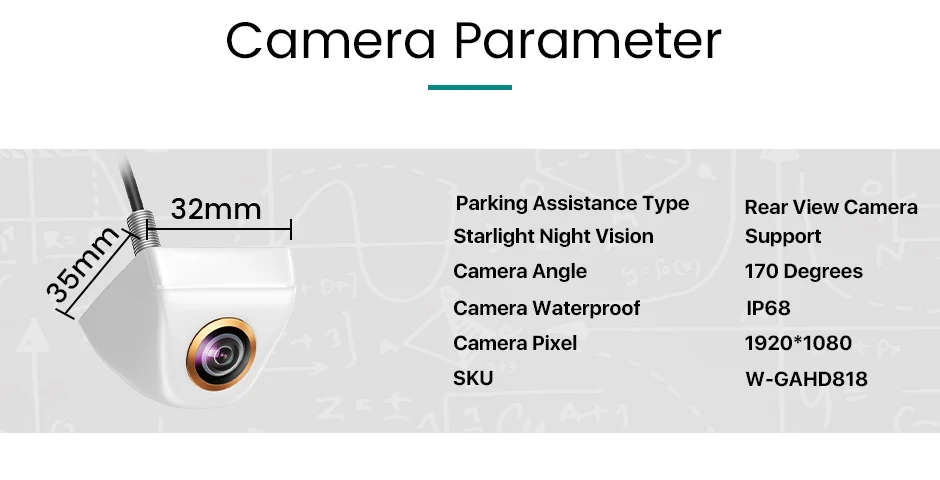

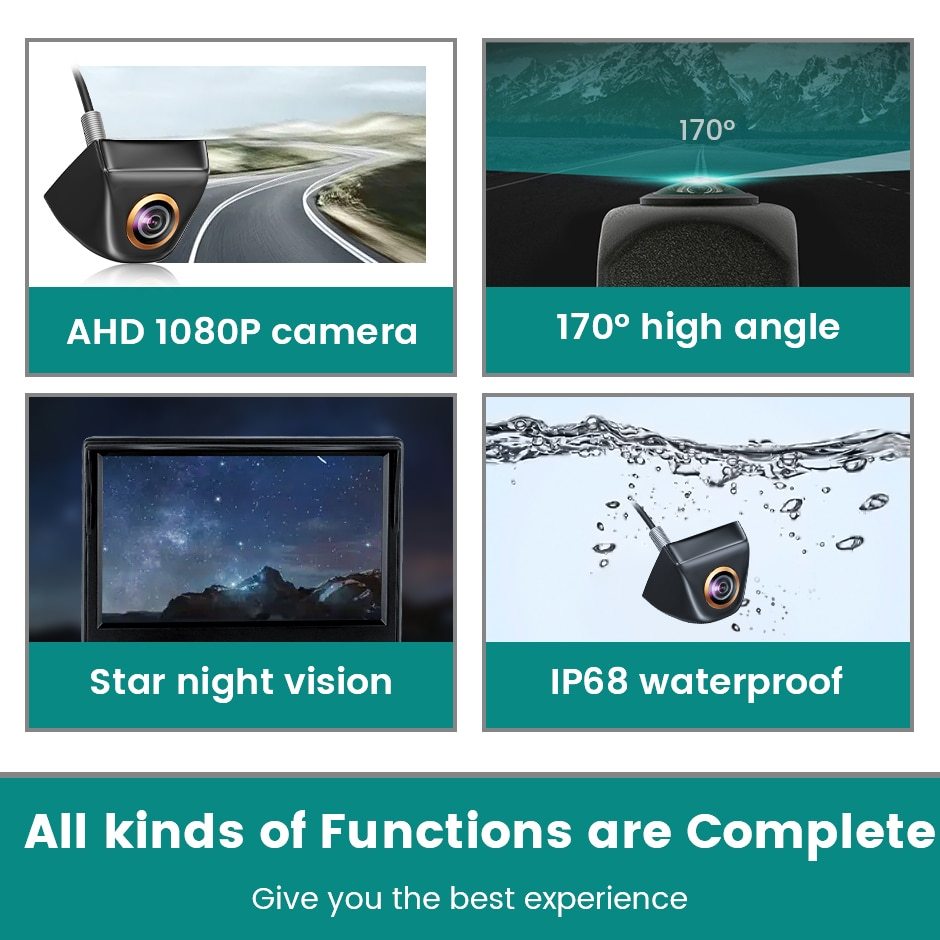

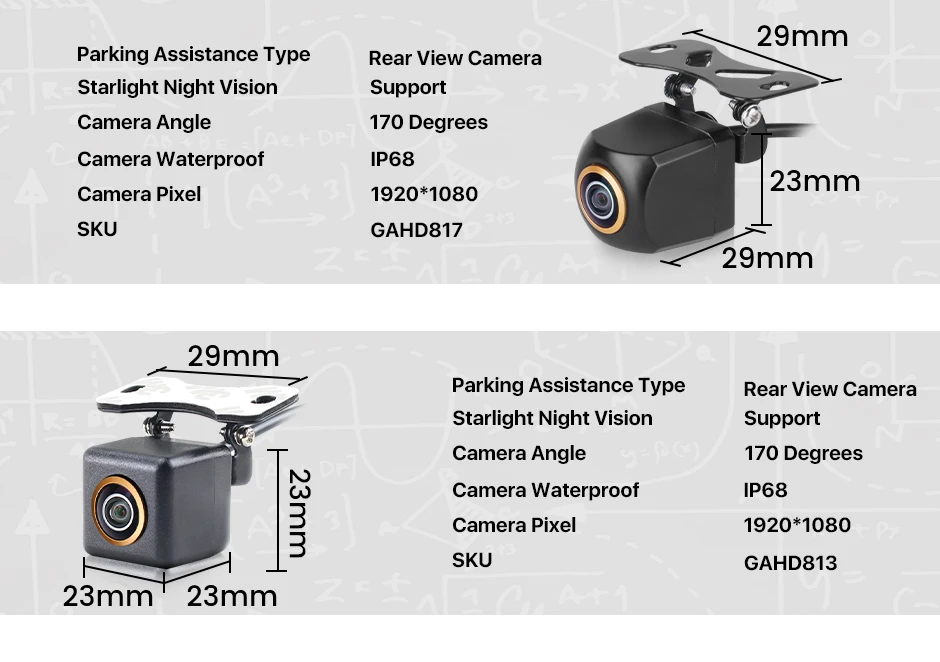

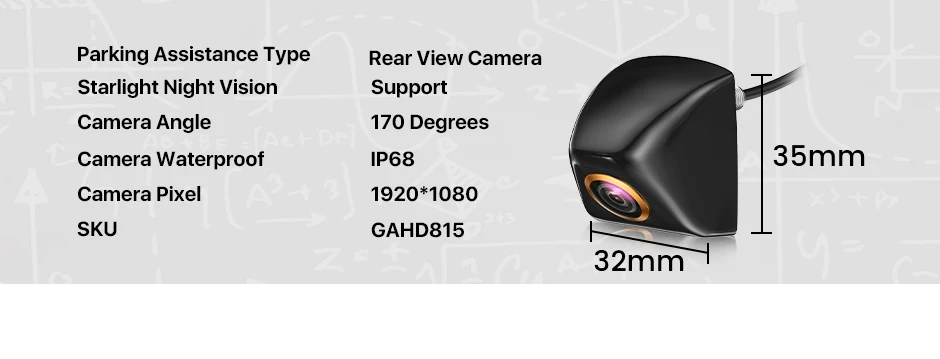

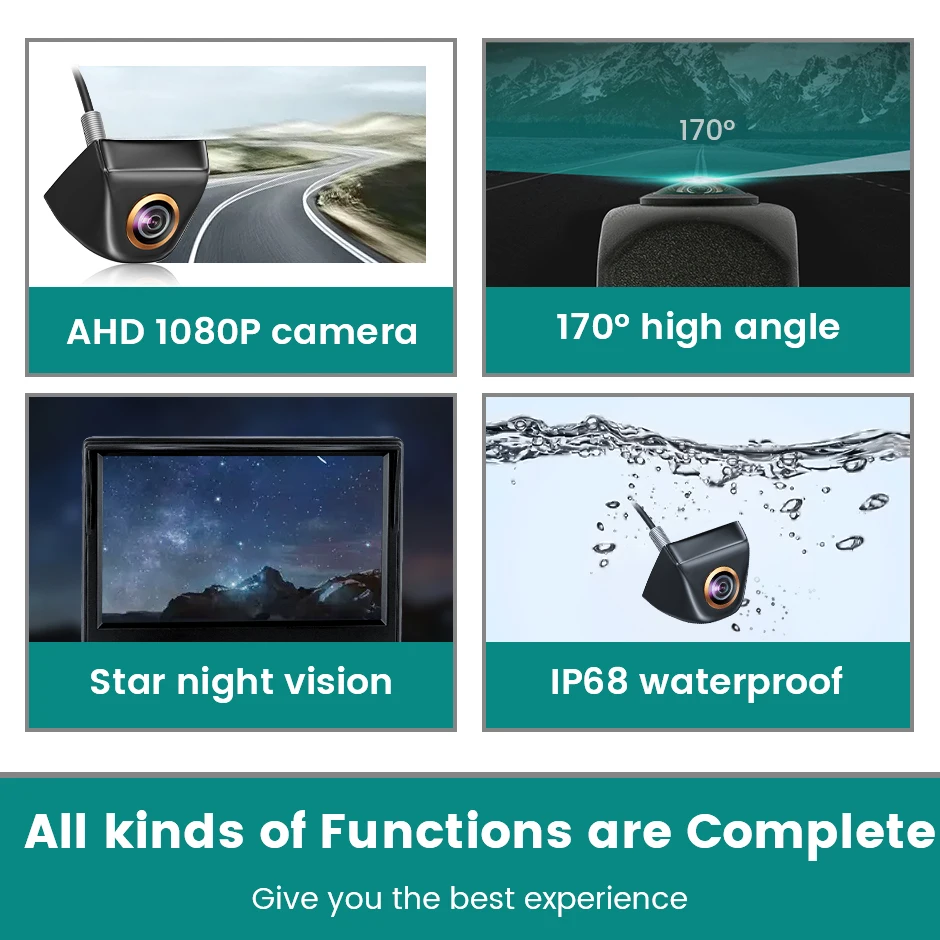

AHD Car Camera:
• AHD 2053 imaging sensor.
• Video output: AHD Video Signal (1920*1080P )

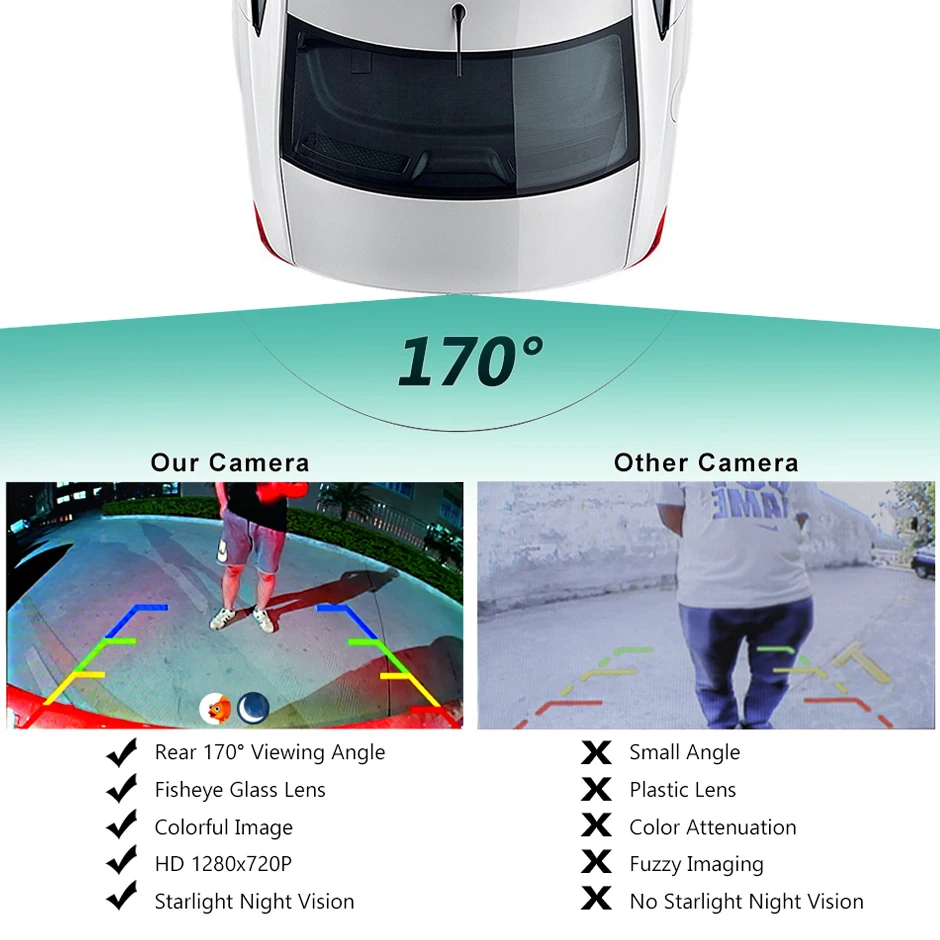

• High-definition and 170 degree wide viewing angle. Fisheye lens
• Support parking reference line switch on/off
• Support NTSC/PAL Video system.
• High grade of waterproofing: IP68.
• Low-light Level Night Vision, 15m visible distance for night.

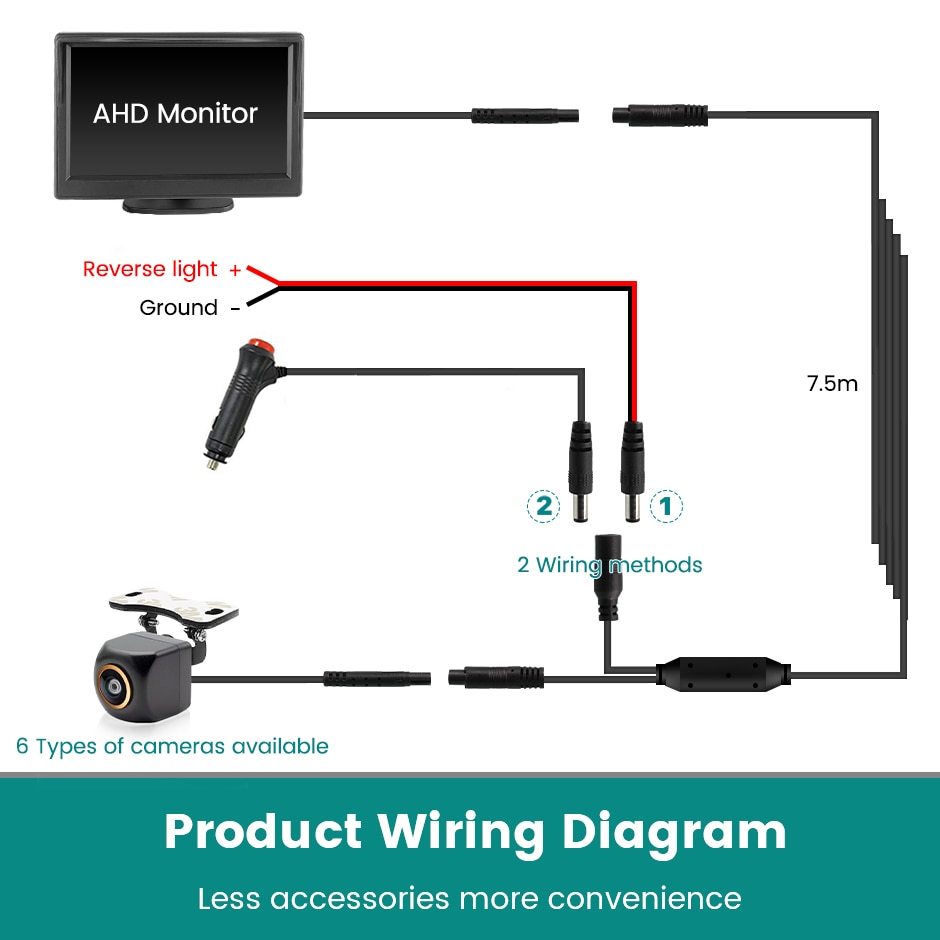

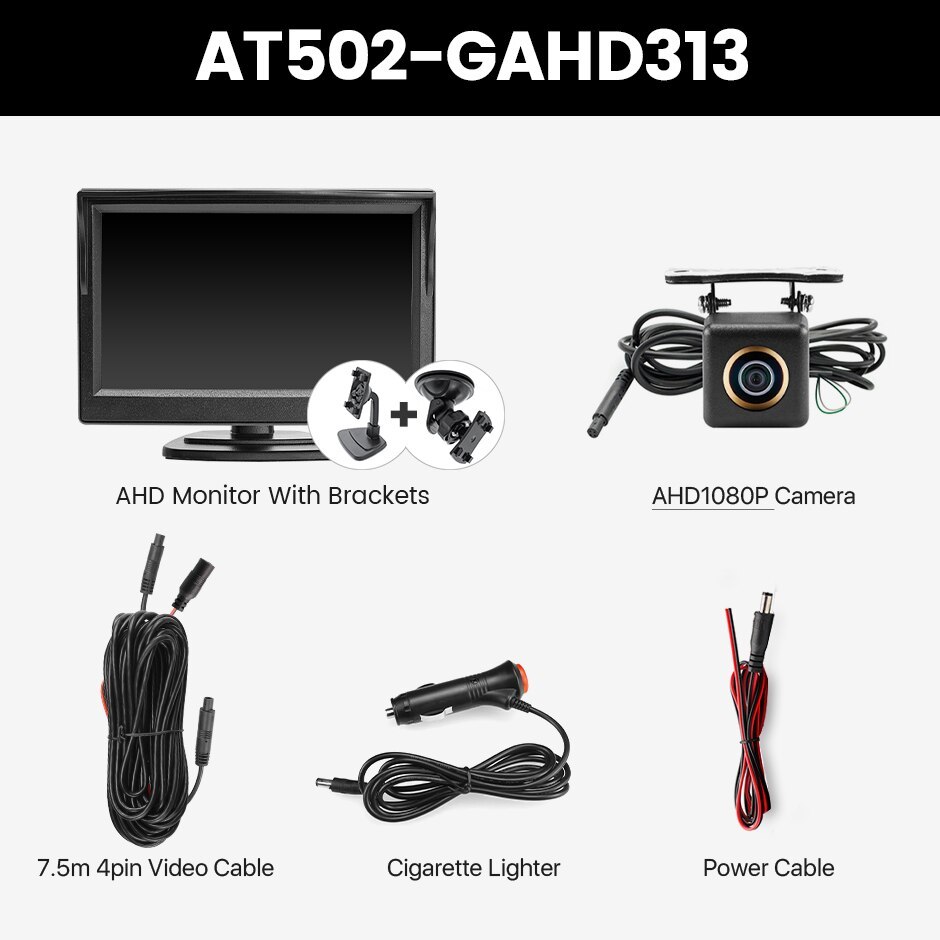

• 7.5M Video connector.
• New body material:
High quality stainless steel, aluminium alloy. ( Except GAHD313 )
Anti Scratch.
Waterproof.

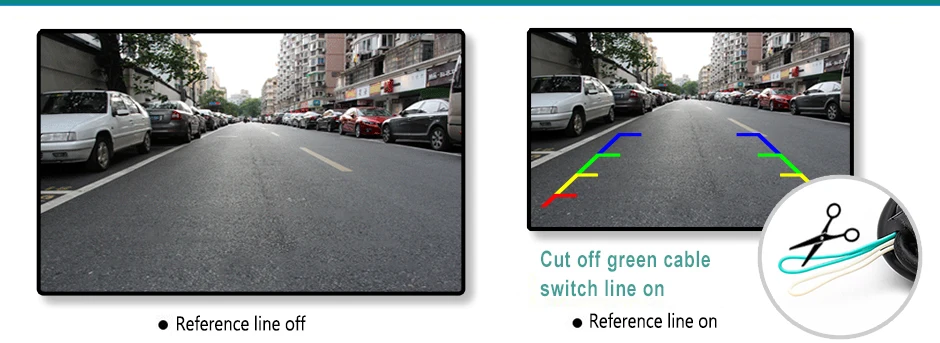

Support parking reference line switch on/off
Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.
