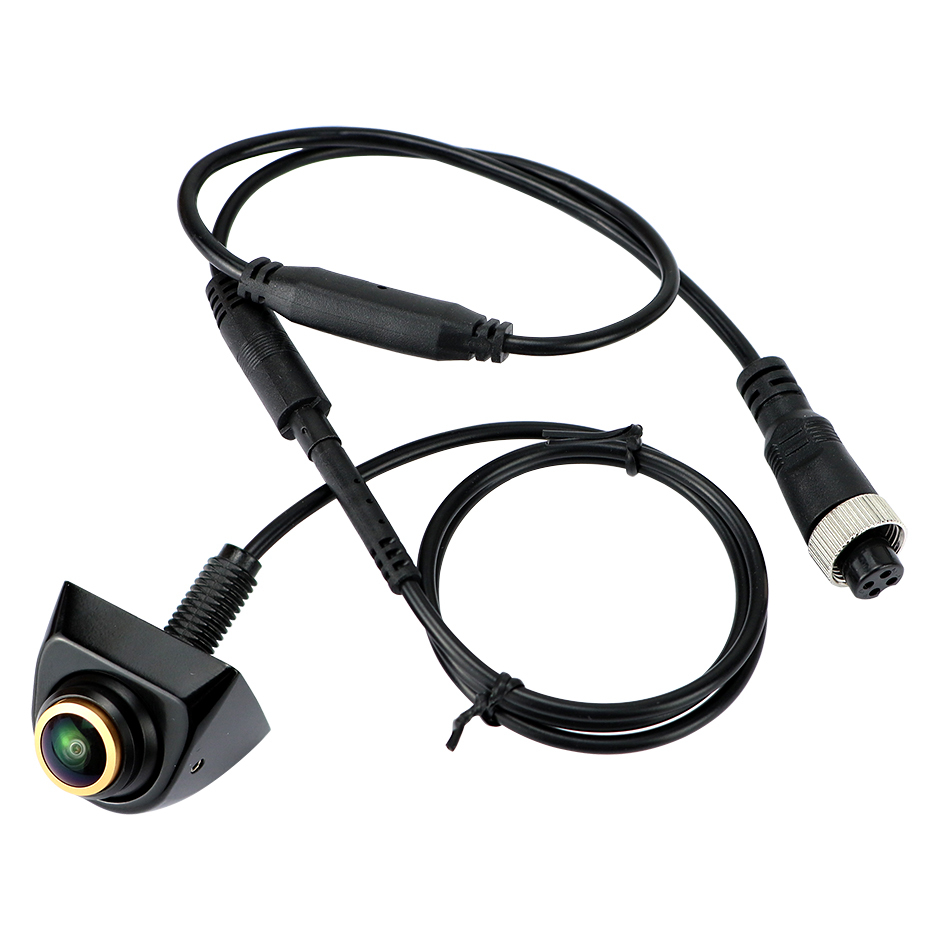

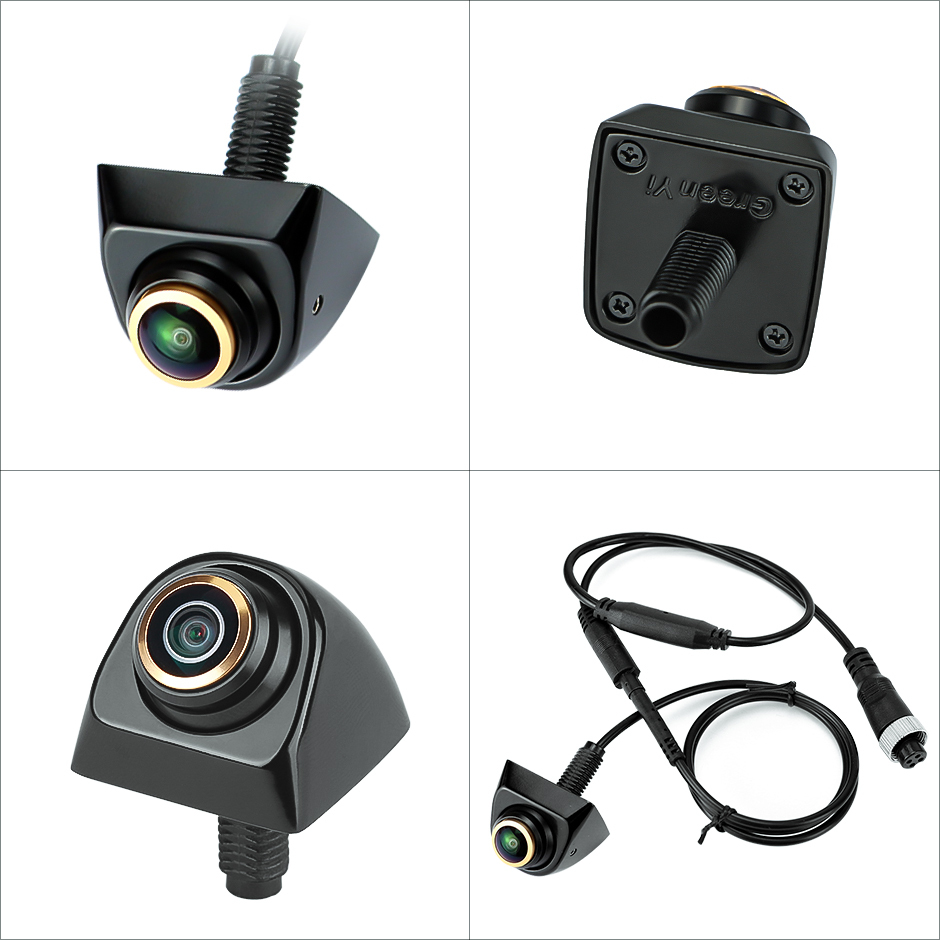

GreenYi 4 Pin Aviation Head Cable HD 1080P Rear Reversing Backup Camera for AHD Monitor
SKU: GP899-B

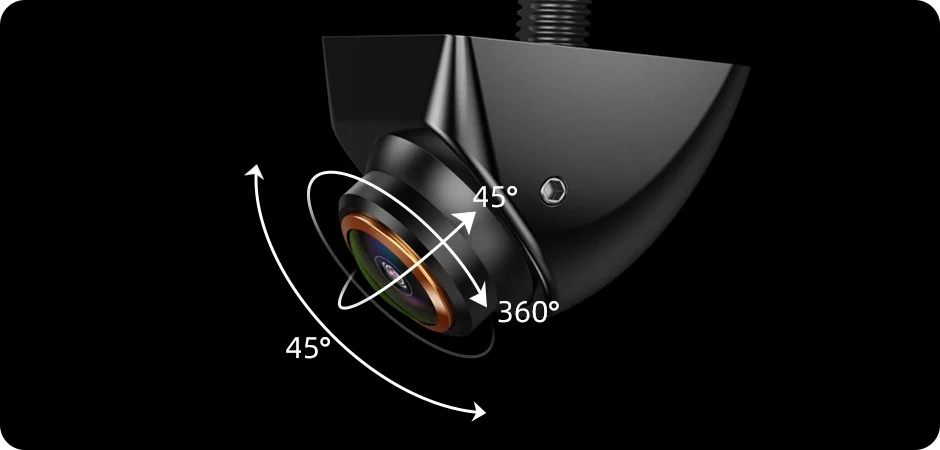

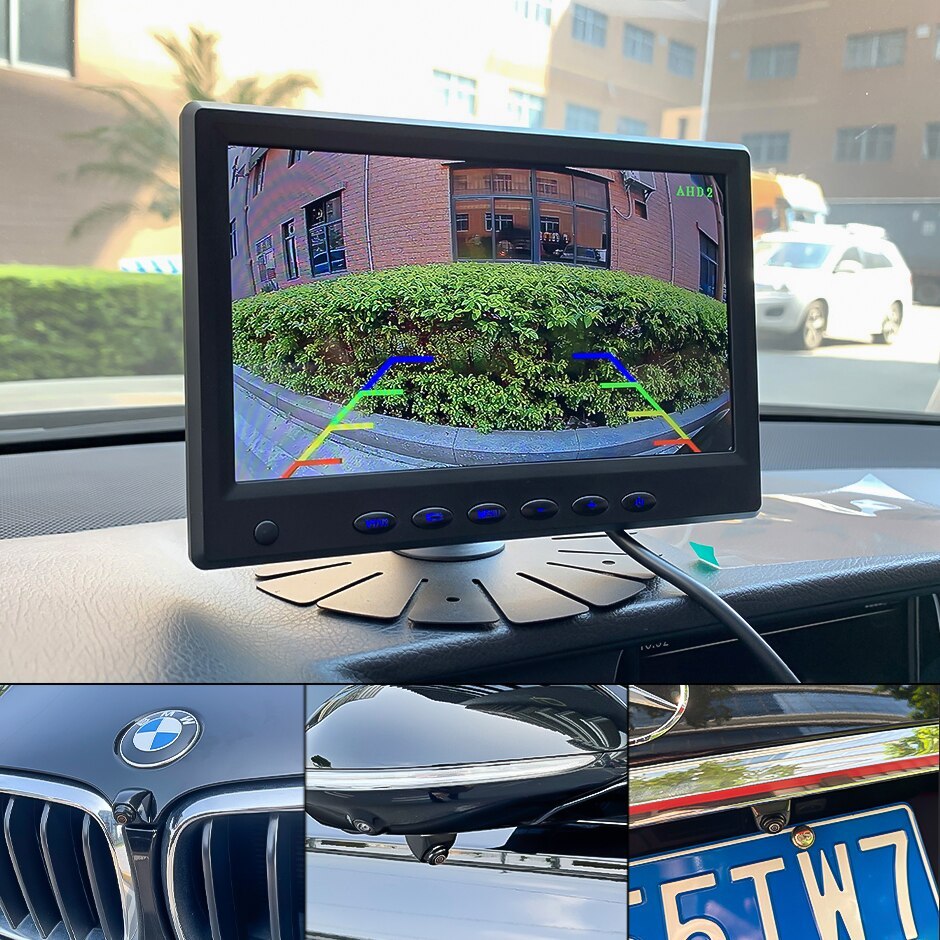

GreenYi AHD camera can be rotated 360 degrees and 45 degrees up/down image angle is adjustable. Universal bvackup camera fits the front/rear/left/right mounting position of the vehicle. Rear camera supports upside-down installation.
4 Pin Aviation Head Cable 170° Fisheye Lens AHD 1080P 360° Adjustable Rear View Camera For Truck 4Pin Parking Monitor

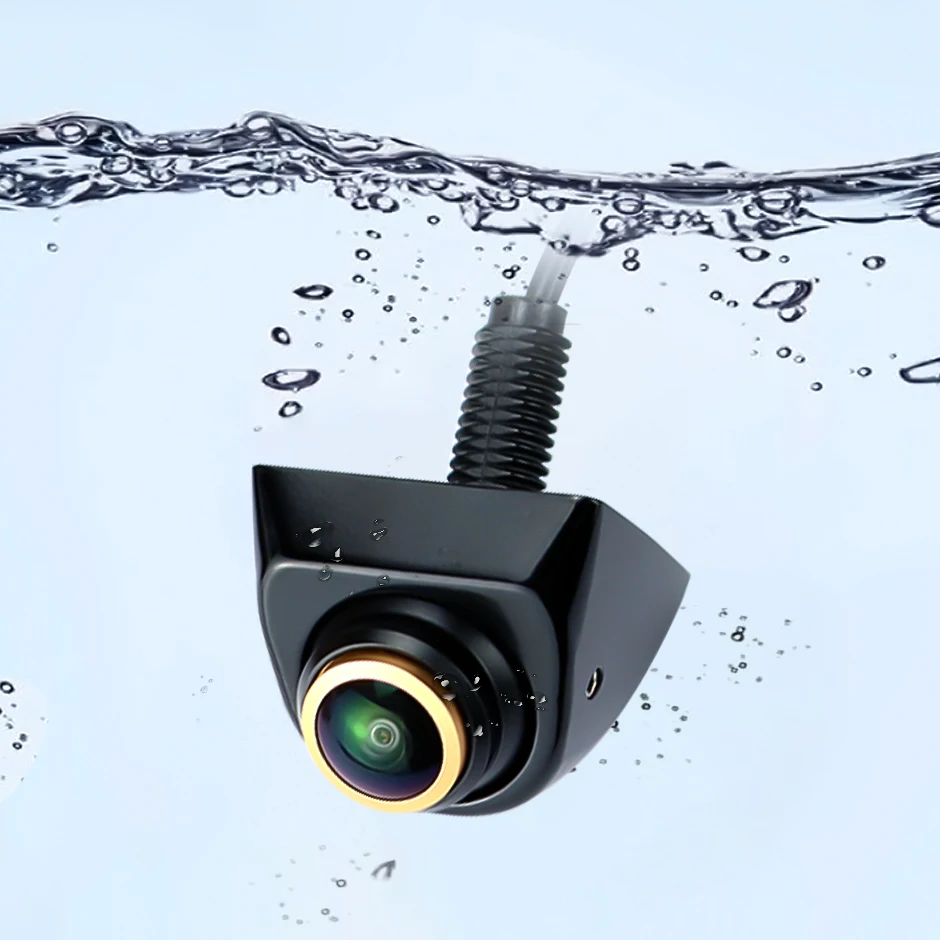

* AHD camera can be rotated 360 degrees and 45 degrees up/down image angle is adjustable. The problem of image offset and image angle deviation of the installation position can be solved. Fits the front/rear/left/right mounting position of the car. It supports upside-down installation. *AHD 1080P Parking Camera---1920*1080P resolution, high definition, IP68 waterproof, work normally in car wash or bad weather. * Fantastic starry night vision effect. * Genuine fisheye 6 glass lenses. 170-degree wide viewing angle, no blind spots, automatic image calibration function, prevent spherical images, and make reversing safer. NOTE: ONLY AHD VIDEO SIGNAL --- This car rearview camera can only be used with AHD monitors.
Installation Steps:

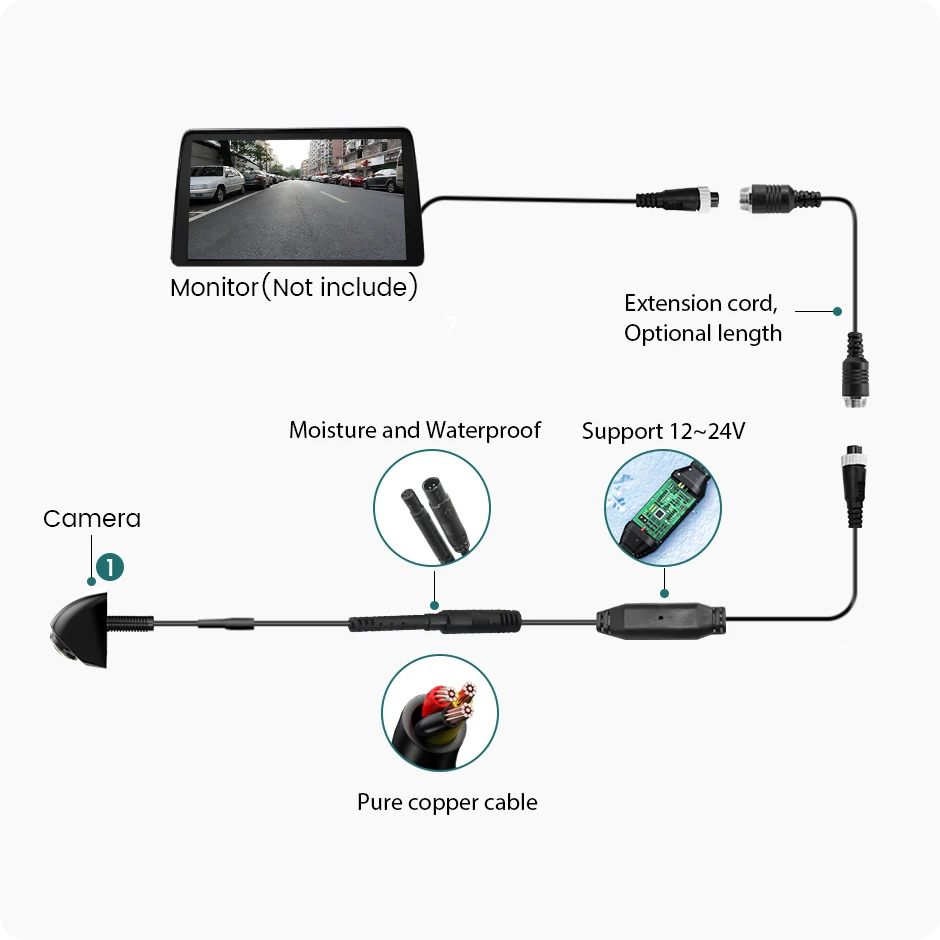

1. Find a suitable angle to mount the parking camera (Fit for Front/Rear/Left/Right), then secure the nuts and bolts in place. 2. Connect the power cord to the backup light or brake Light or Left/Right signal light power supply. 3. Connect the 5/10/15m extension cable of the parking camera to the head unit/other monitor of the car. 4. Start the vehicle and reverse gear to test the camera. 5. Reinstall the console/other monitor.
4-Pin Aviation Cable
* We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in. the cable is 5M / 10M /15M / 20M Optional.
AHD Camera Feature :

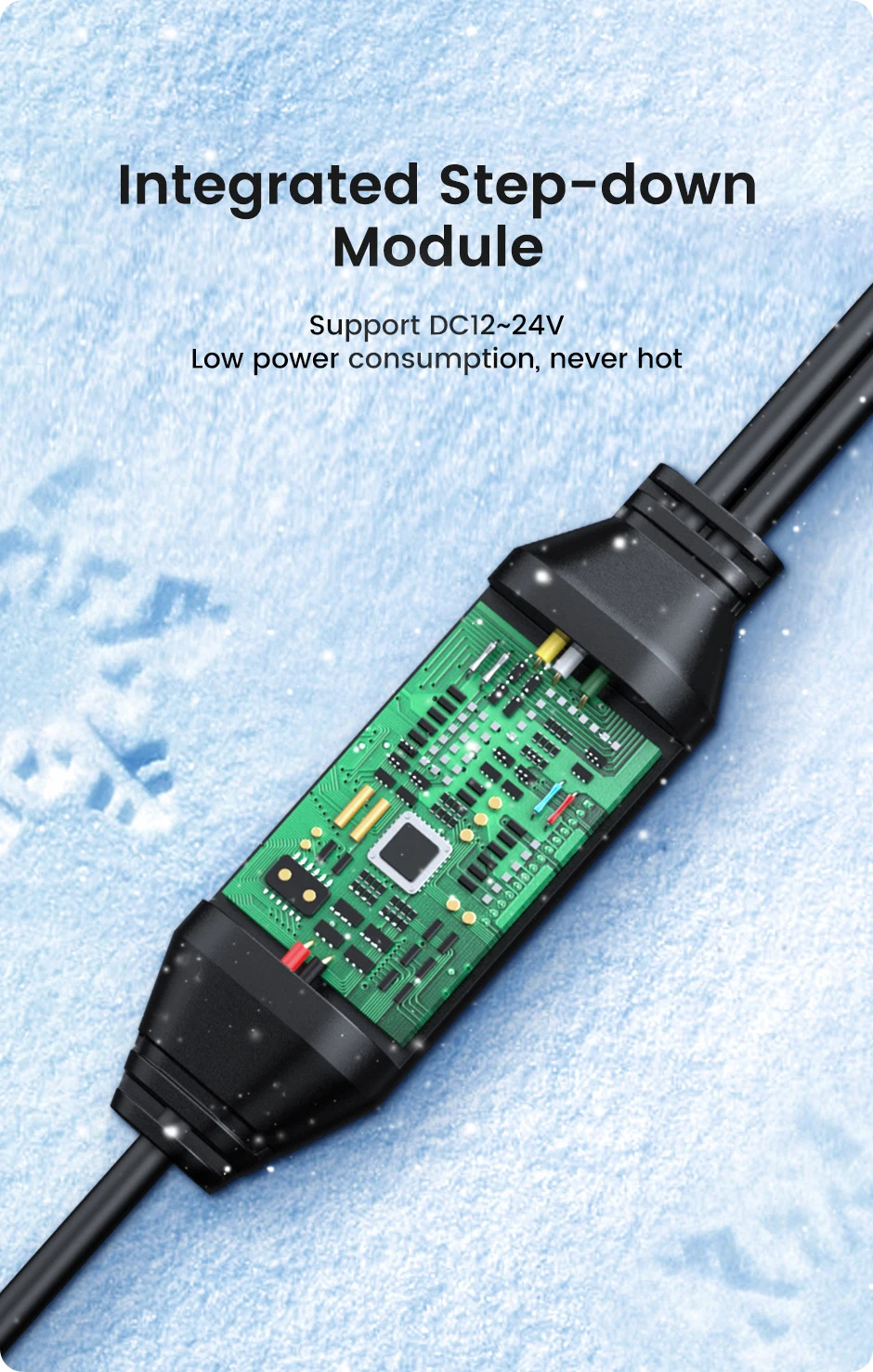

* The Camera is 360 Degree rotation and 45 degree UP/Down image angle adjustable . it can solve the problem of image offset and image angle deviation of the installation location. Fit For Front /Rear/Left/Right Installation Location For Car. it support upside down install . * Chips components : AHD Sony/OV2053HD . Support Front Rear Mirror Image Control . * Viewing angle: Fisheye 6 glass lens . Real 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof. * Effective pixels : AHD 1280*720P/1920*1080P , CVBS 1280*720P . * Signal format: NTSC / PAL * Image resolution: 200W Pixels * Video output: AHD Video Signal or CVBS Signal . * Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters. * Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation * Lens : 14/16MM Fisheye 6 glass Lens . * Low illumination: 0.01Lux * Signal to noise ratio: ≥69dB * Working power supply: DC12V~24V/2A * Working temperature: -45 °C ~ +70°C * Maximum power: 3W

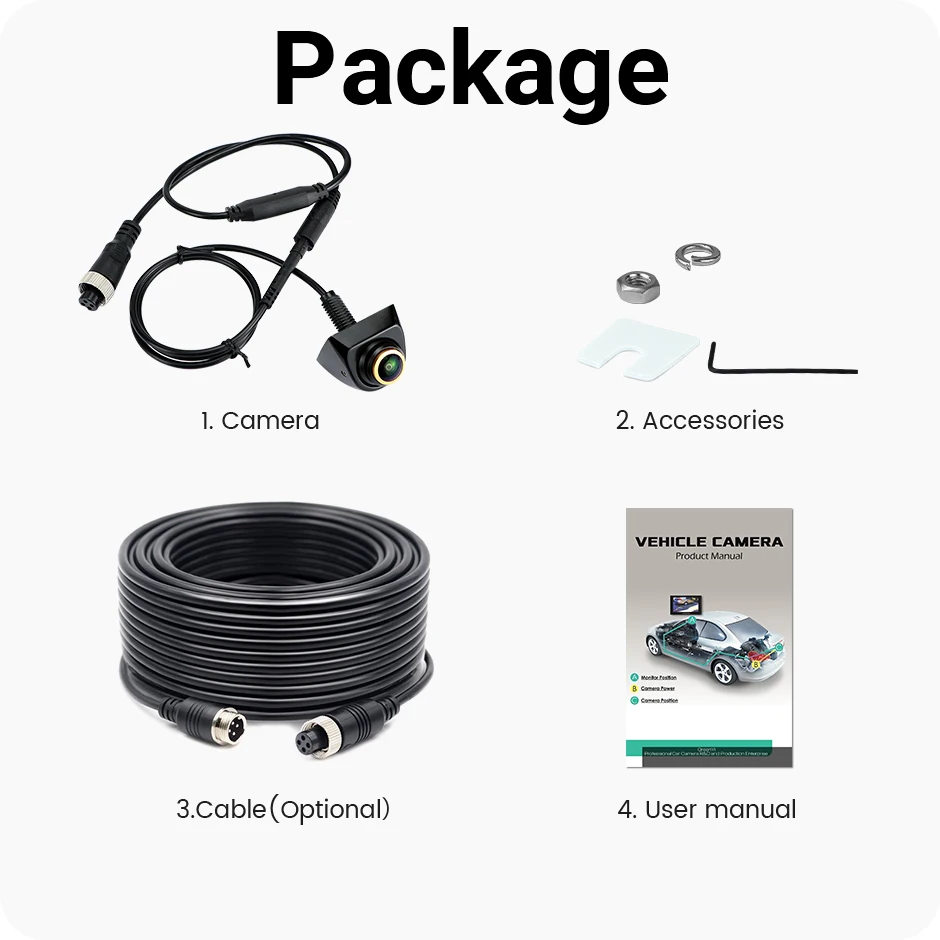

Package includes:
1 x Front Rear AHD Camera 1 x Extension cord(5/10/15m) 1 x Self-tapping screw 1 x Angle adjustment
NOTE:
* Please test the backup camera before routing video cable from back to front. * If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer. * If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Ford VW AUDI BMW Mercedes Benz vehicles. * Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works. If you have more related questions after your purchase, you can contact us, we will reply to your message within one day.
Warranty
• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty. • If this item has any problem when arriving, please feel free to contact us and give us chance to solve your problem. • This link support " no reason to return goods within 15 days". The goods returned by the buyer shall not affect the secondary sales of the merchants.For the expenses incurred in returning and returning goods, the principle of responsibility shall be followed. Below are GreenYi Product List Link: https://drive.google.com/file/d/1Hh5VrOtdEocbn9uUuHB4wQHZuq4ozo4W/view?usp=sharing https://drive.google.com/file/d/1AJp8u7yQ4Ds1xkqOH1qAnBrfblKdBtPc/view?usp=sharing
