9 Inch AHD Wireless DVR Monitor | High Definition Reverse Backup Recorder IR Camera | Ideal for Truck, Trailer, Bus, and Pickups GreenYi

Features:

• Top transmission distance: 130 meters
• Support for loop recording
• Super easy 1 step installation
• Very low wireless signal delay
• Can display 2 ~ 4 screens at the same time
• AHD (Analog High Definition Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• Highly integrated AHD front-end chip, high-definition quality products.

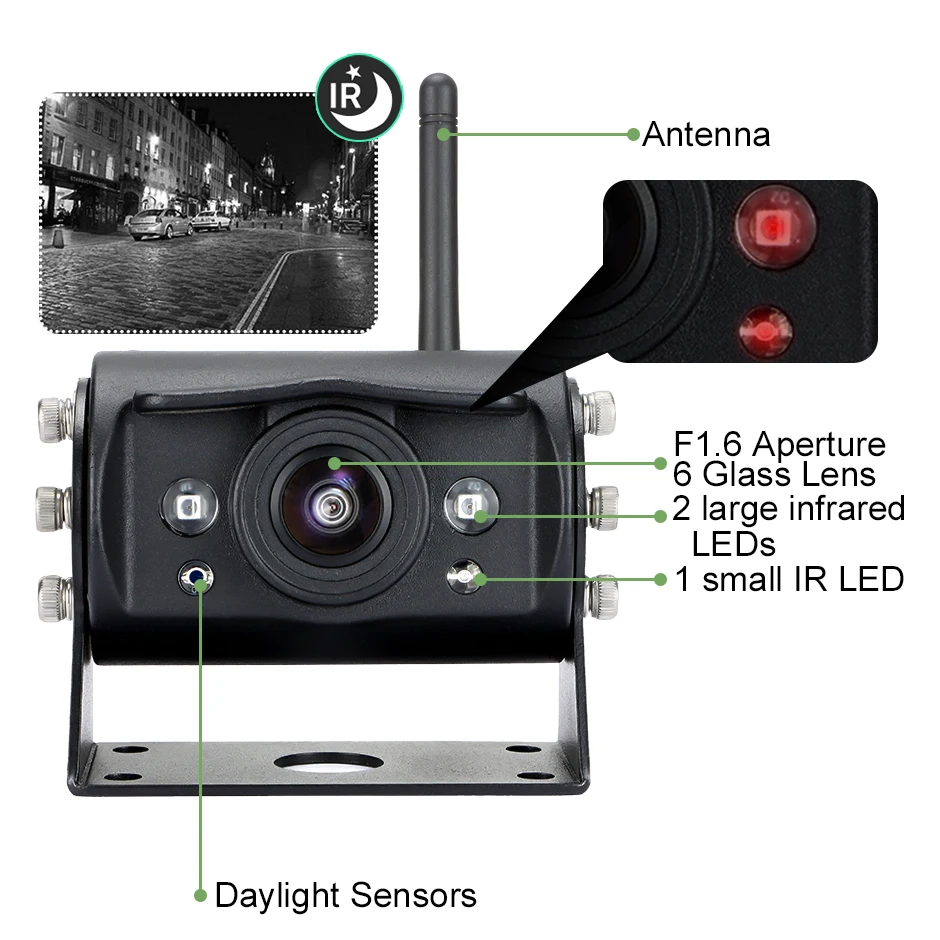

• Rearview Night Vision IR Waterproof Backup Reverse Camera with Built-in Wireless Transmitter --Auto Water-Proof Camera Lens, with 3 individual Infrared (IR) LED. Effective range: 15m. It help your view still clearly at night or in bad weather.

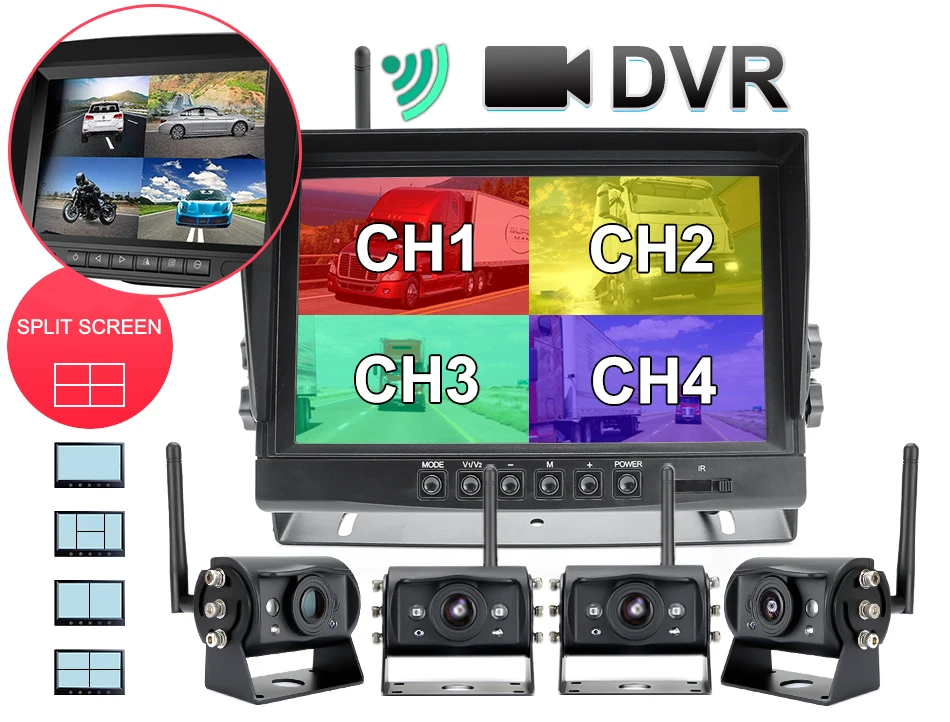

Split screen: Can display 2 ~ 4 screens at the same time

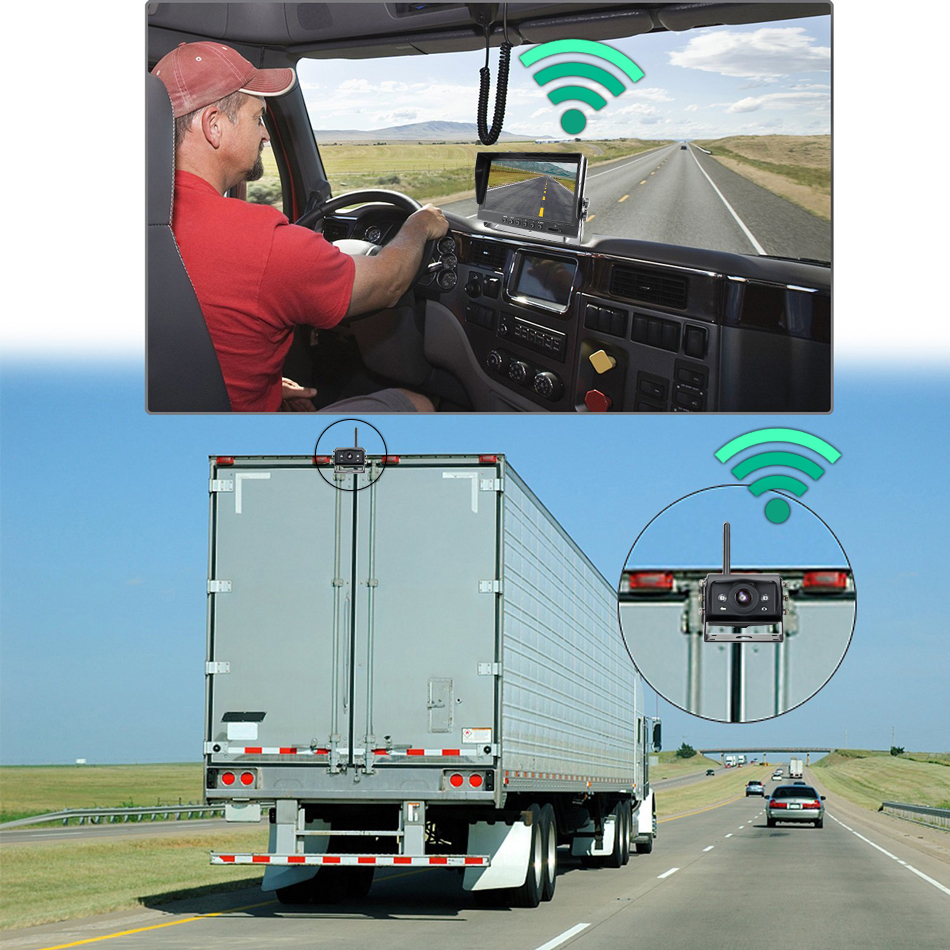

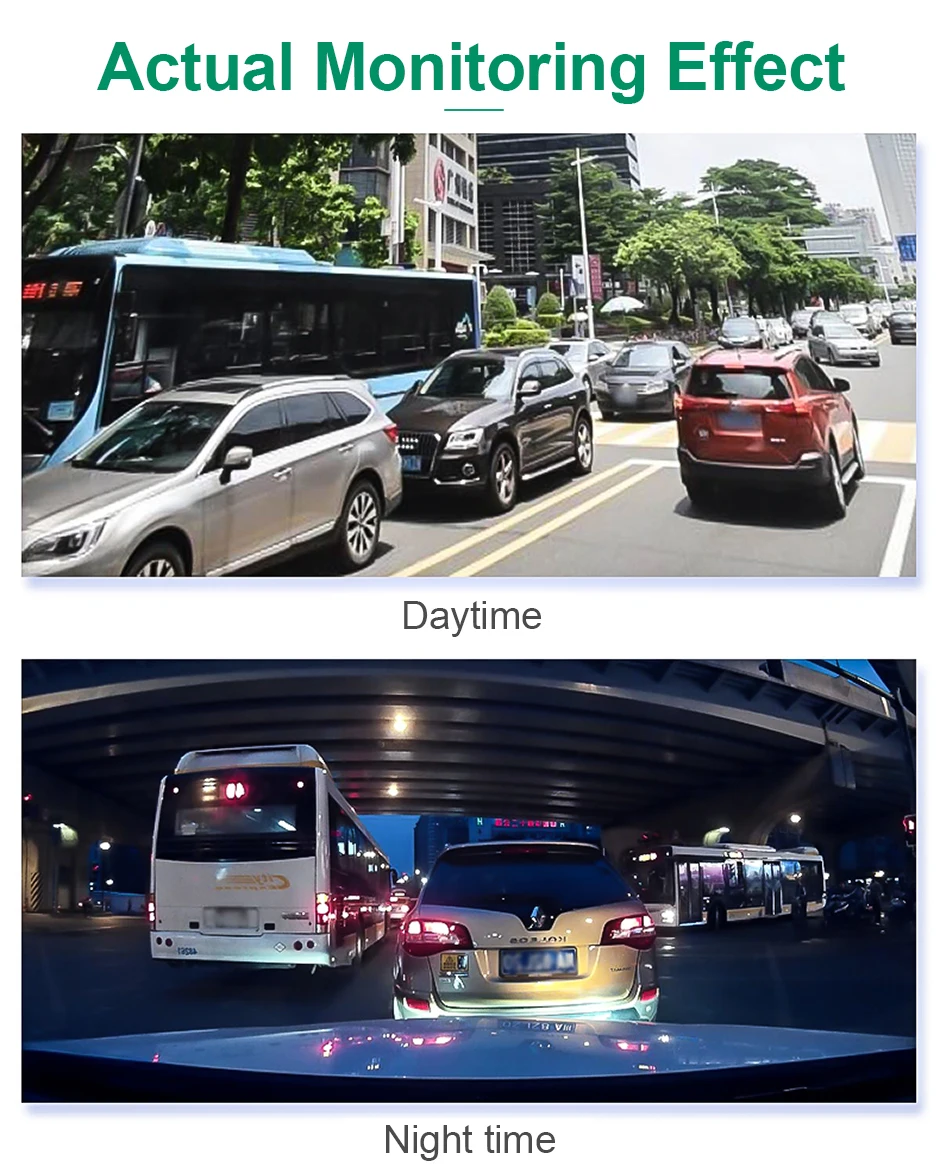

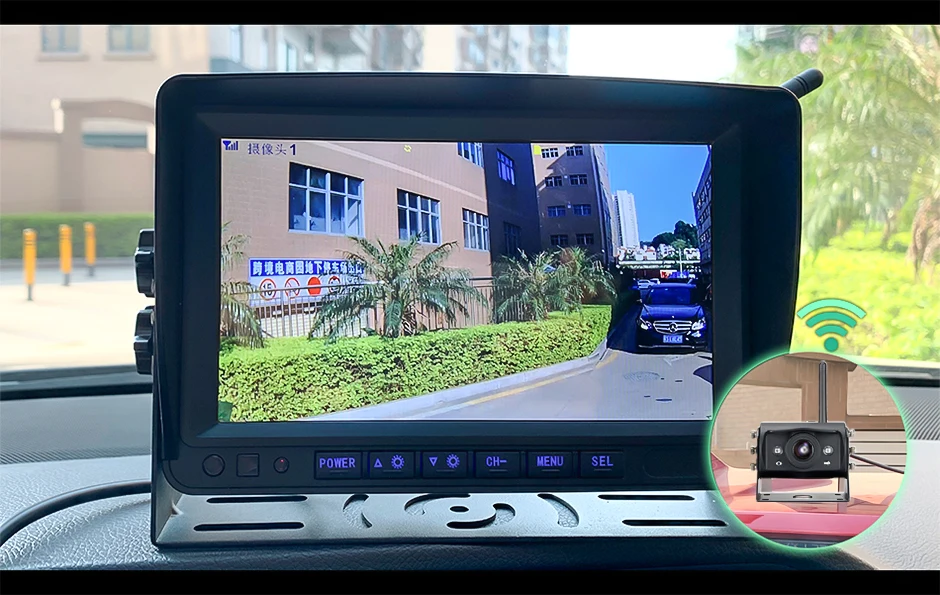

Real shot:

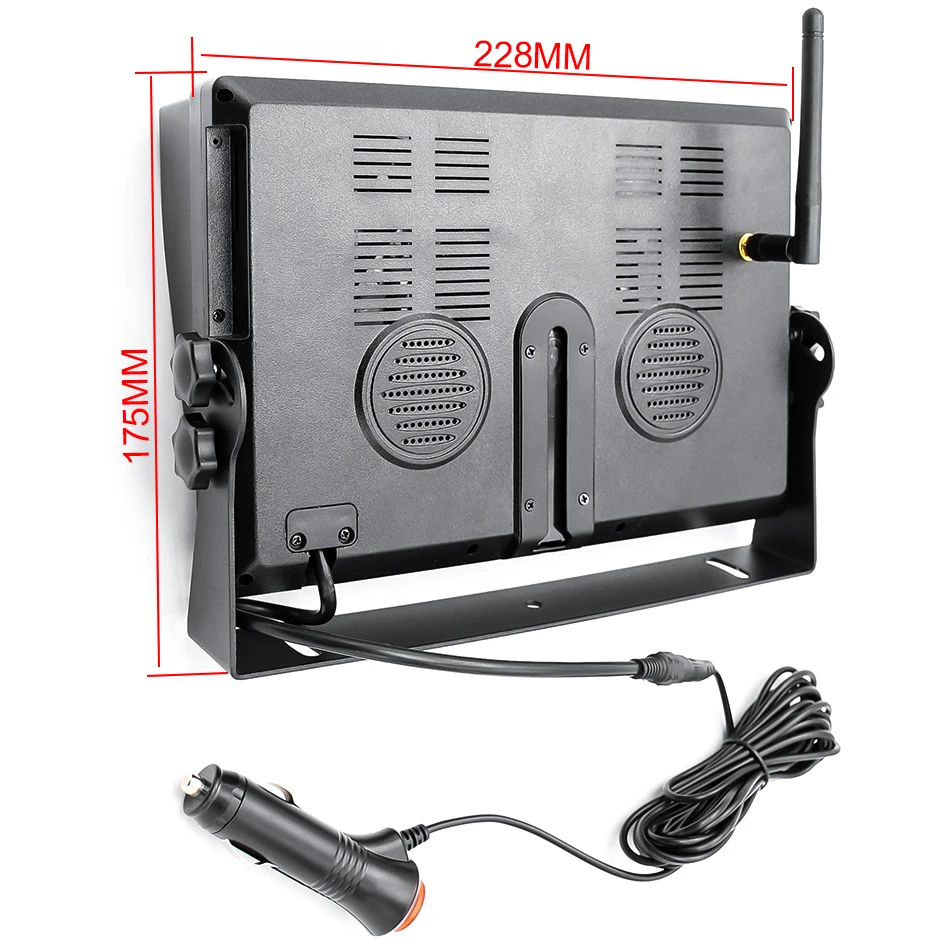

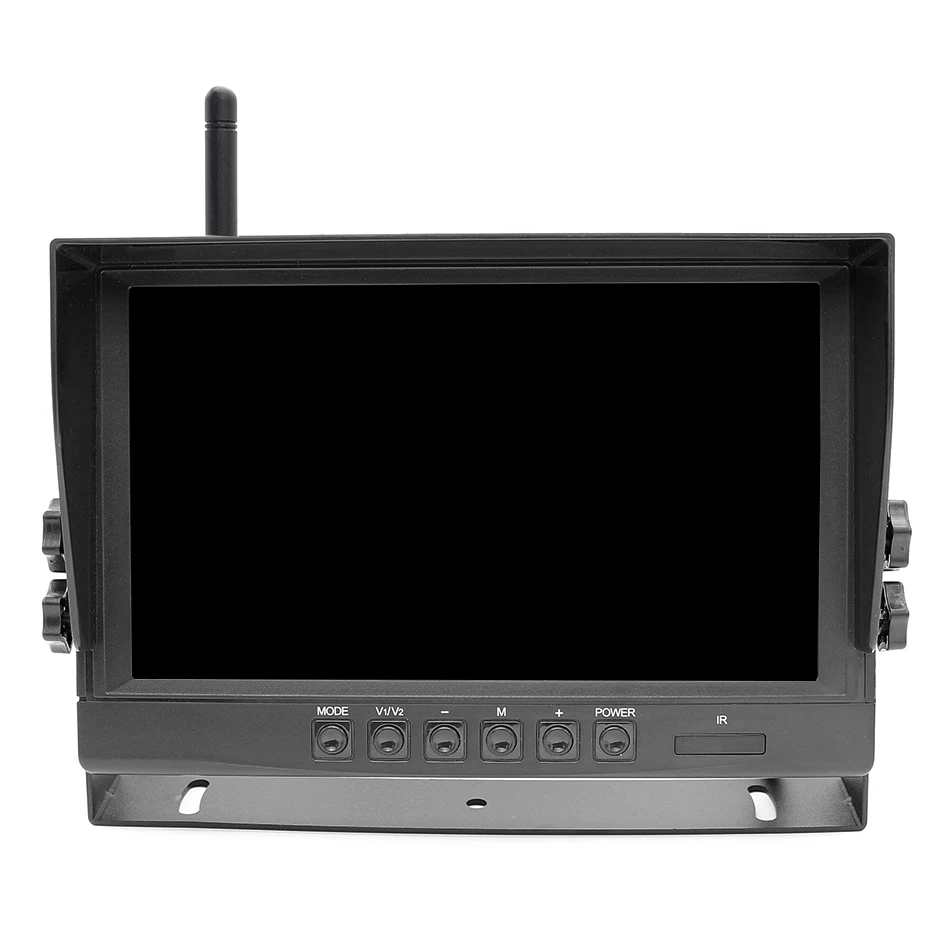

AHD Wireless Car DVR Monitor:

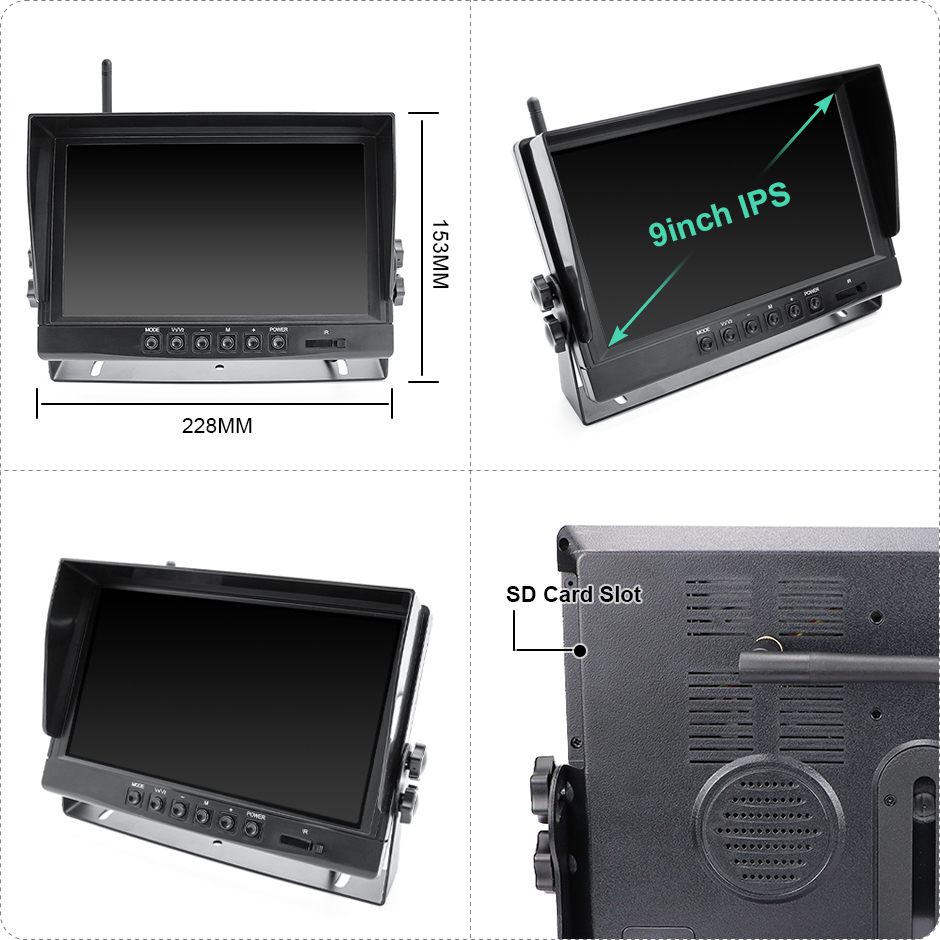

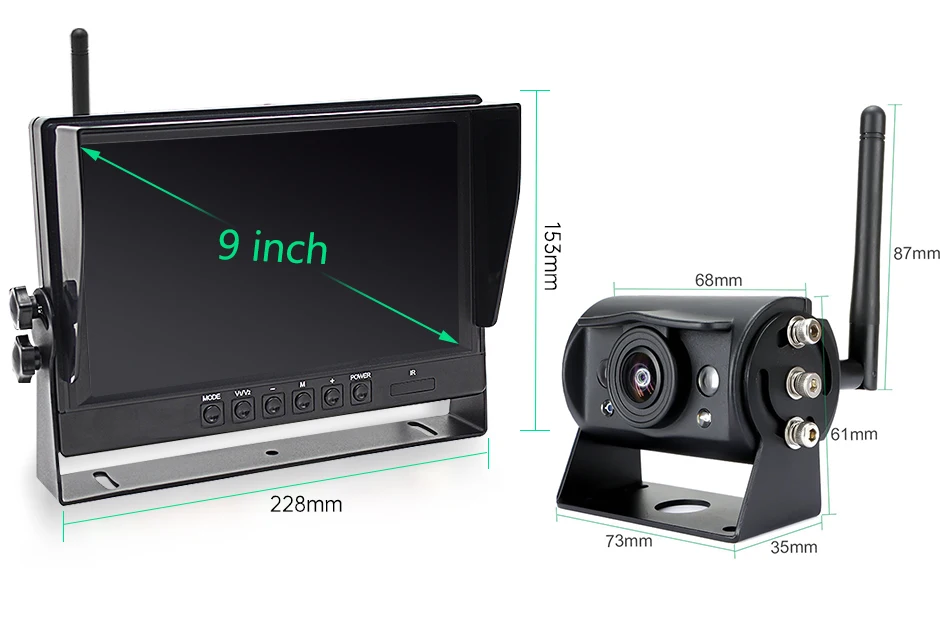

Screen size: 9-inch screen
IPS screen: Support
Format: 16:9
Screen brightness: 500CD / M2

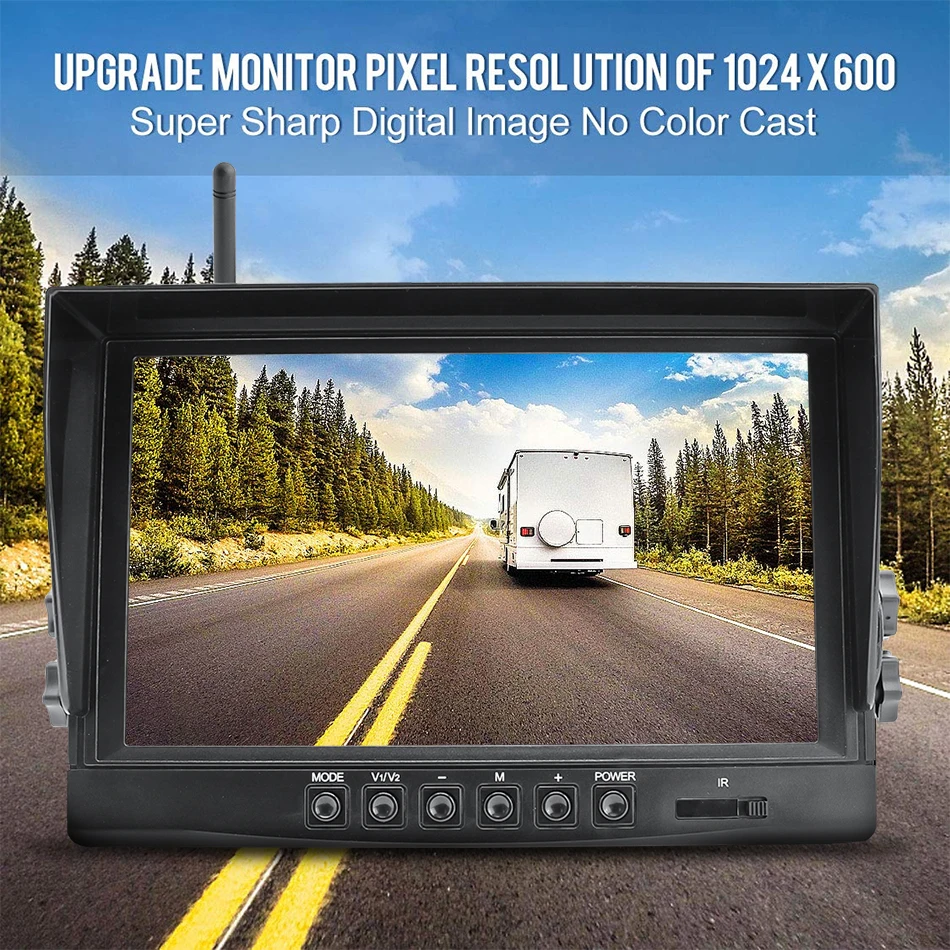

Effective pixels of the screen: 1024*600
Record video pixels: 1280*720

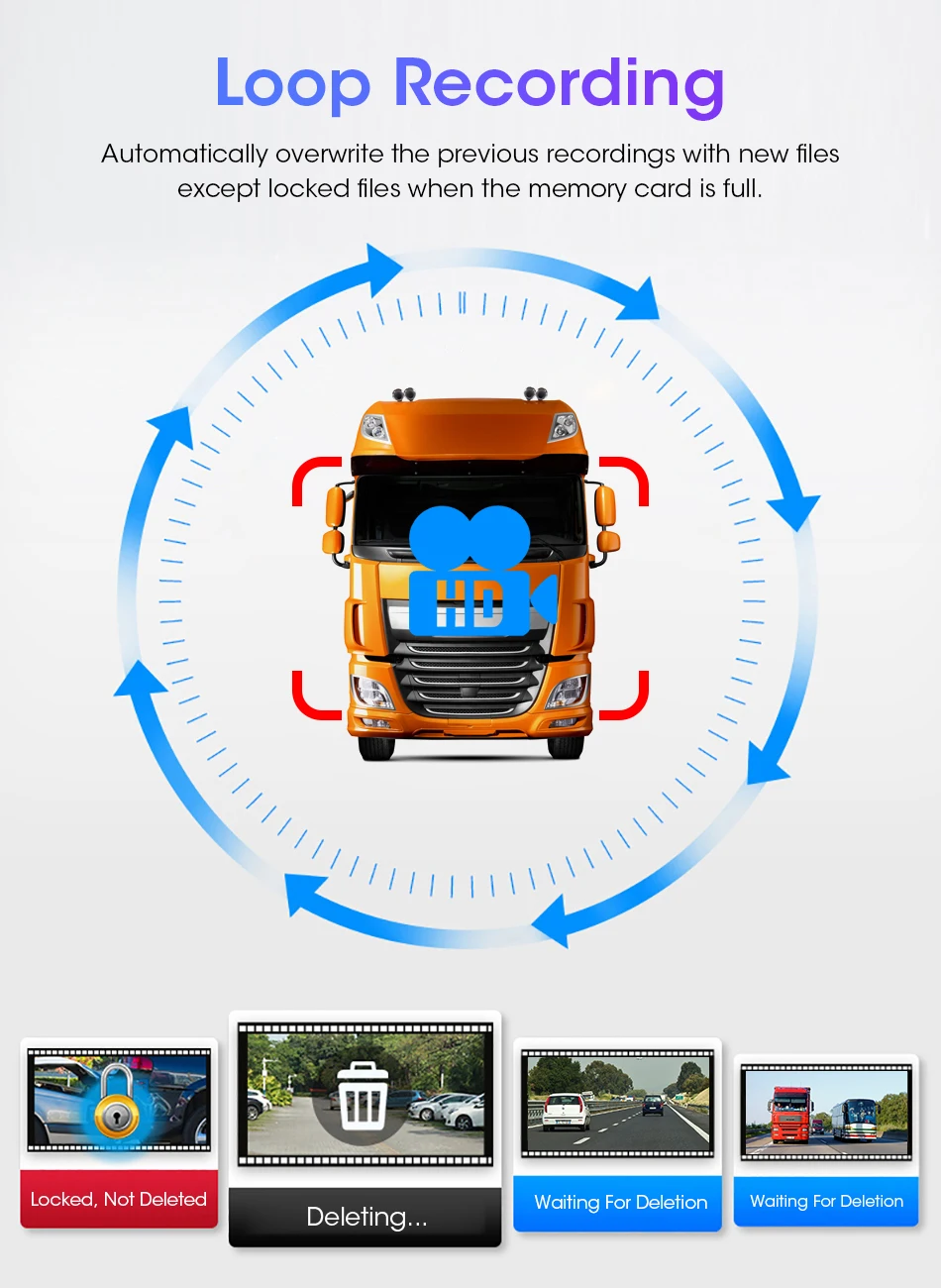

Loop recording: Support
Split screen: Support
Real-time playback: Support
Mirror function: Support for 4 types of rotated image display
Night vision image: automatic gain control, automatic white balance.
Power supply voltage: 12V-30V
Menu language: Support English, Russian, Spanish, Italian, Dutch, French, Chinese.

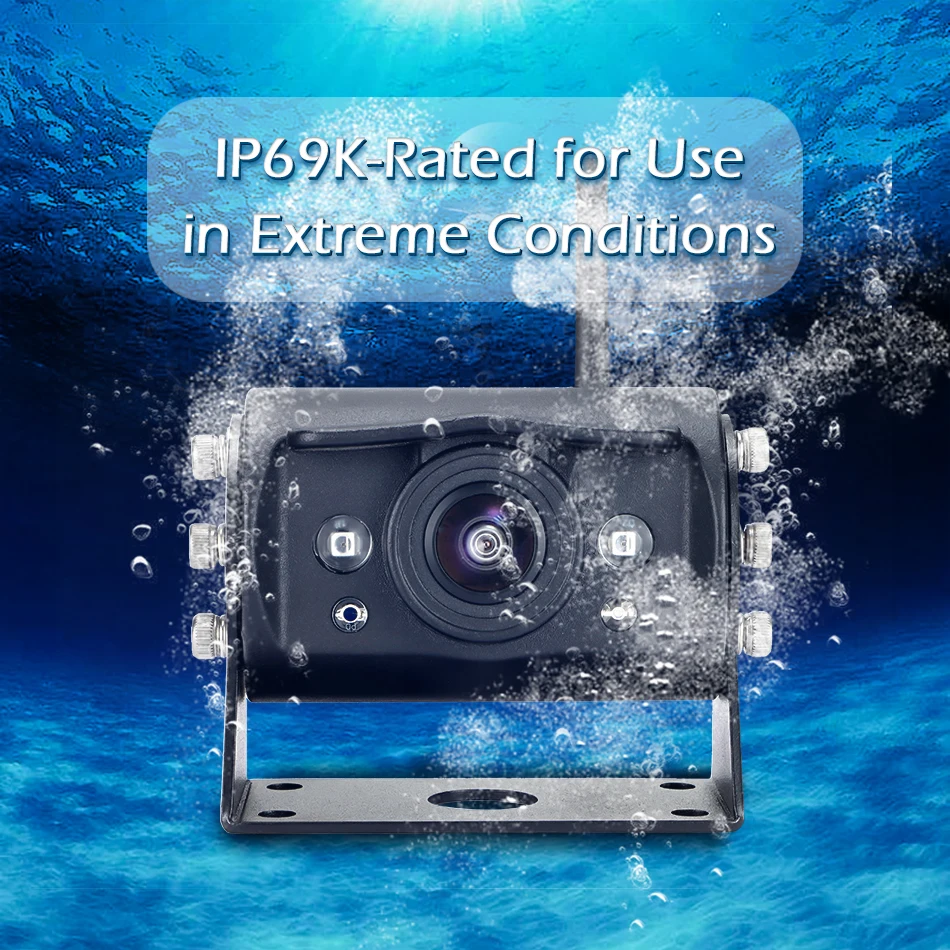

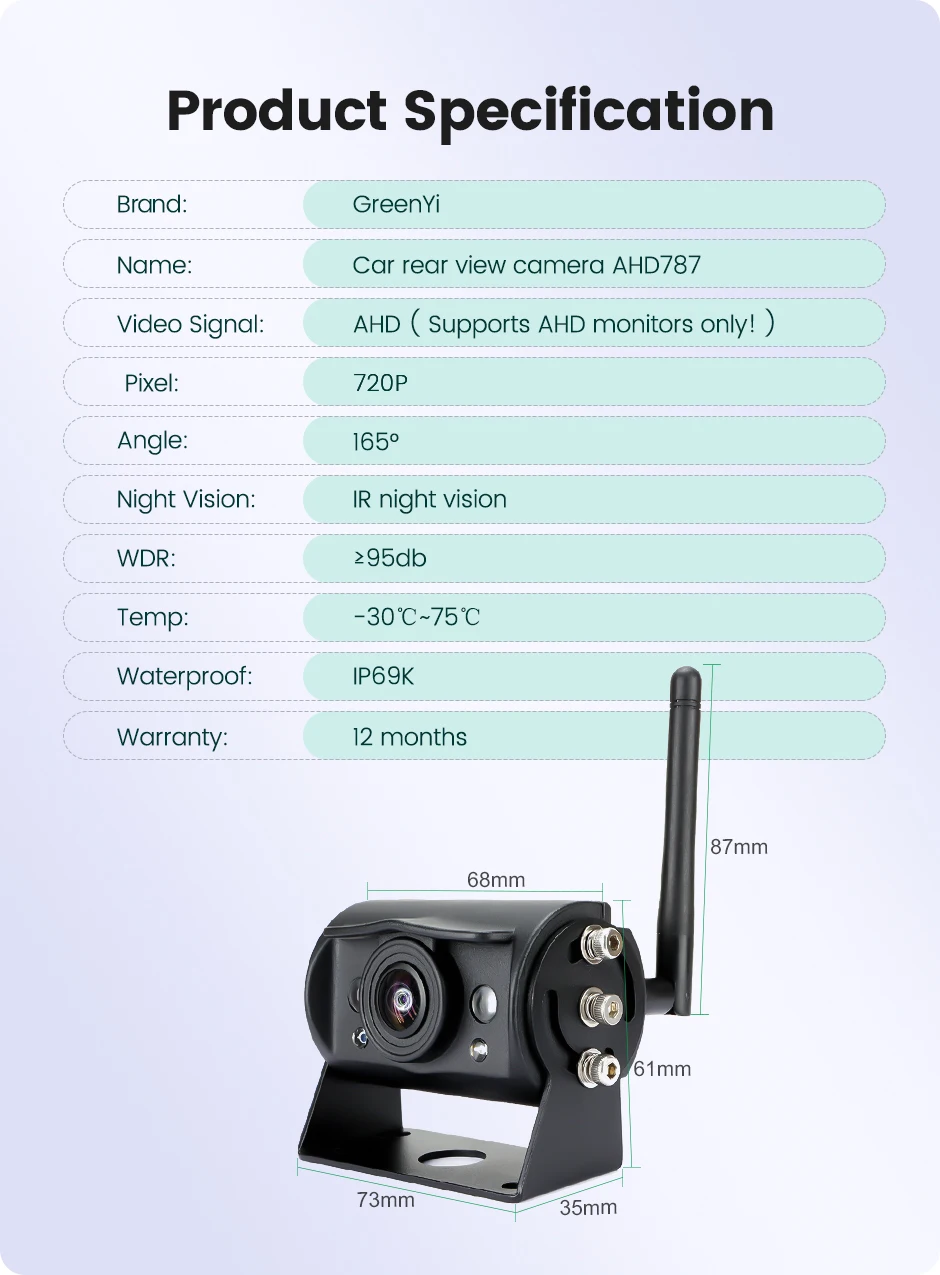

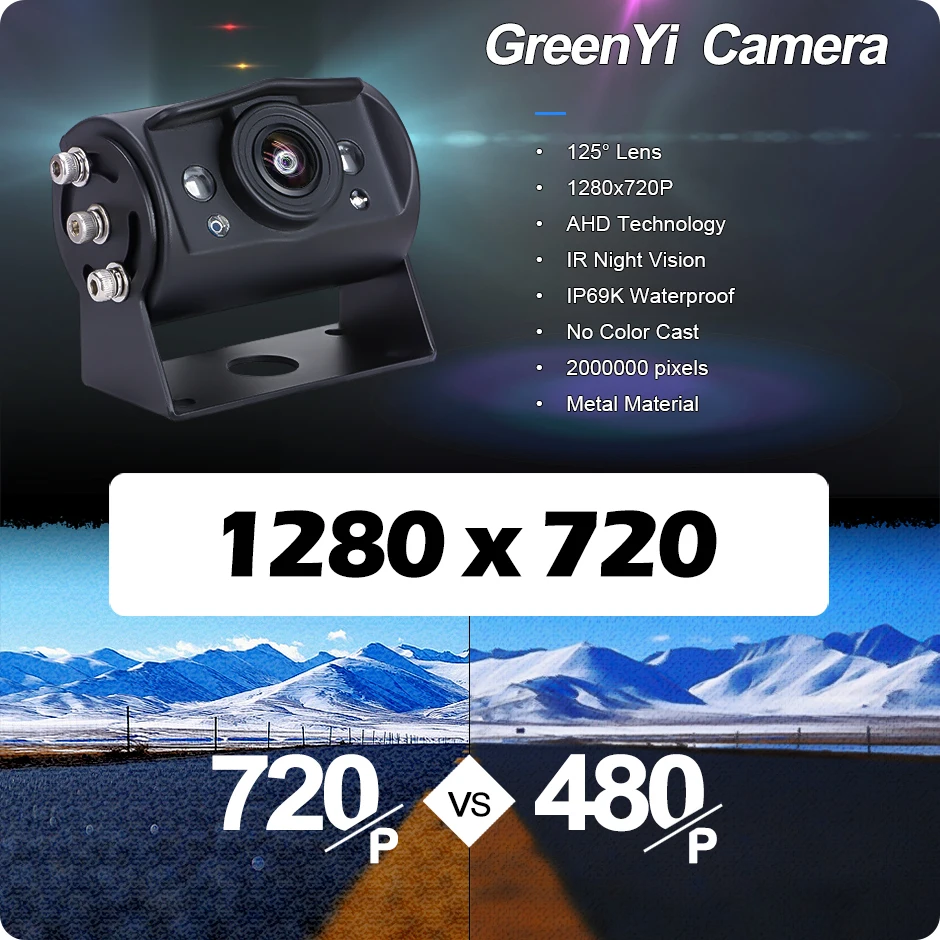

AHD Wireless Car Camera:

Effective pixels: 1280×720P
Image horizontal resolution: 130W pixels
Video output: AHD VIDEO (720P)
Night Vision: With 3 individual Infrared (IR) LED. Effective range: 20m
Material: zinc alloy
Lens: 14/16MM
Low illumination: 0.01Lux
Signal to noise ratio: ≥69dB
Working power supply: DC12V-30V
Working temperature: -20 ° C ~ +50 ° C

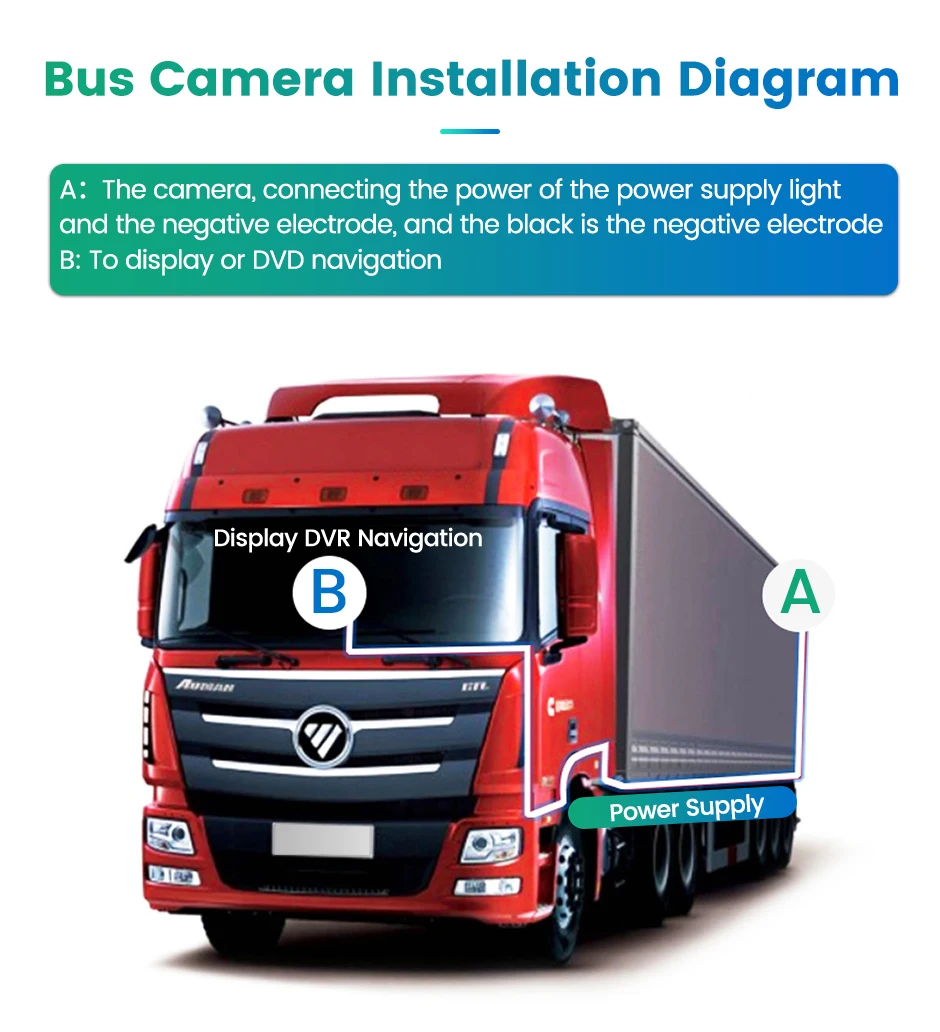

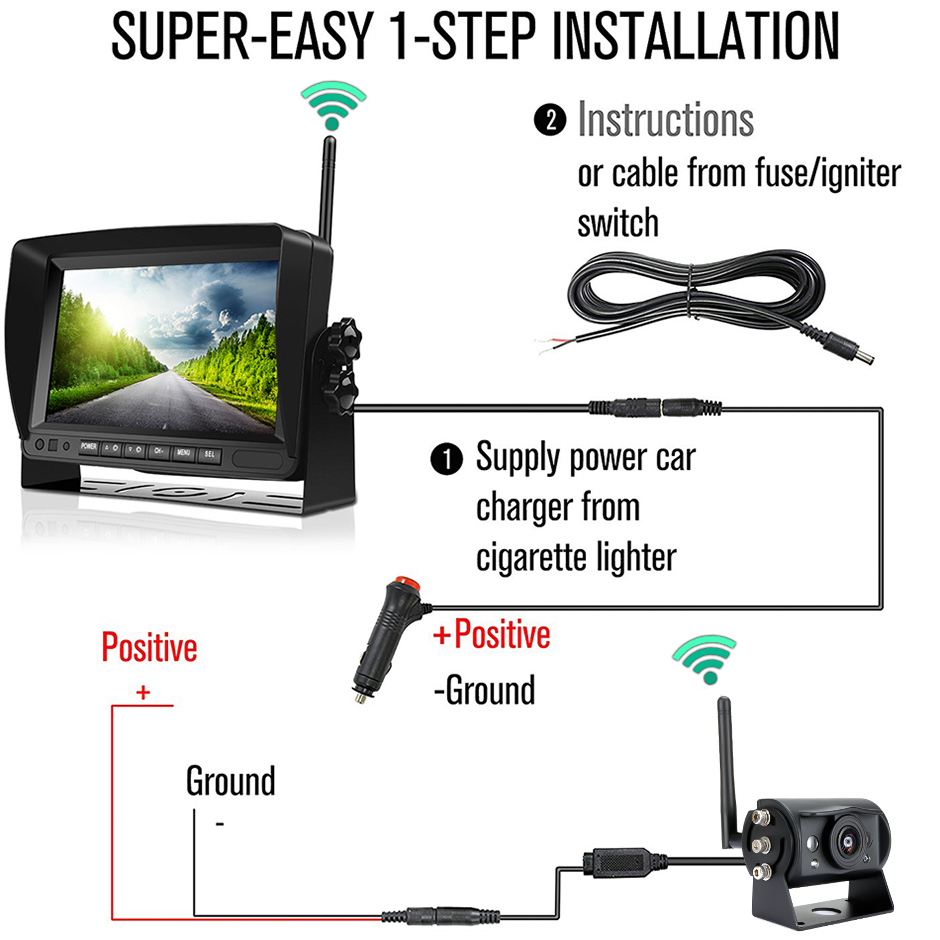

Installation Guide:

1. Click "Pairing" by setting.
2. Then connect the camera to the power supply.
Super easy 1 step installation, up to 100 meters wireless transmission distance, suitable for any vehicle.

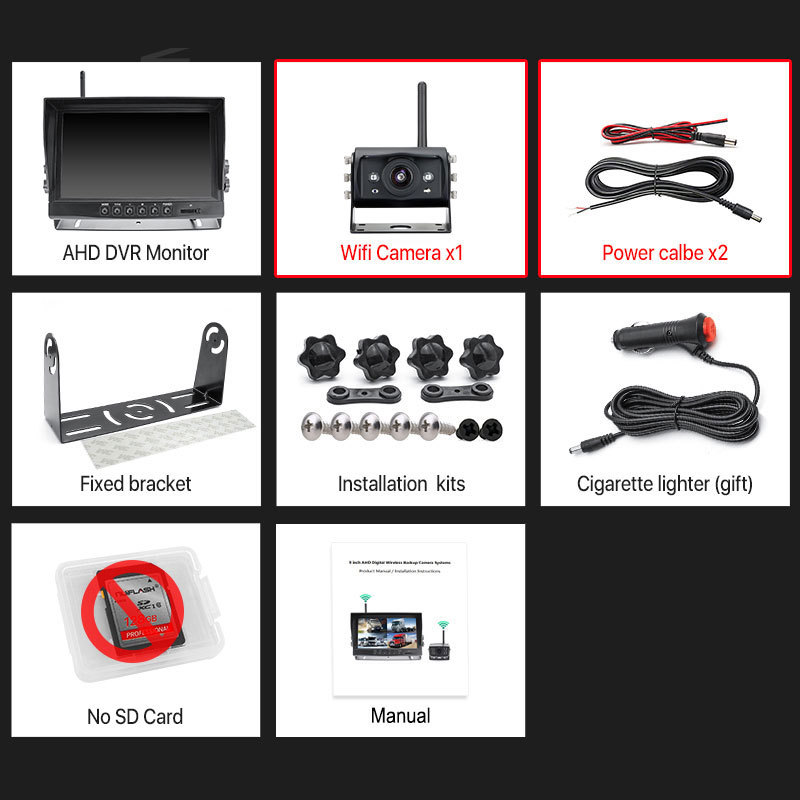

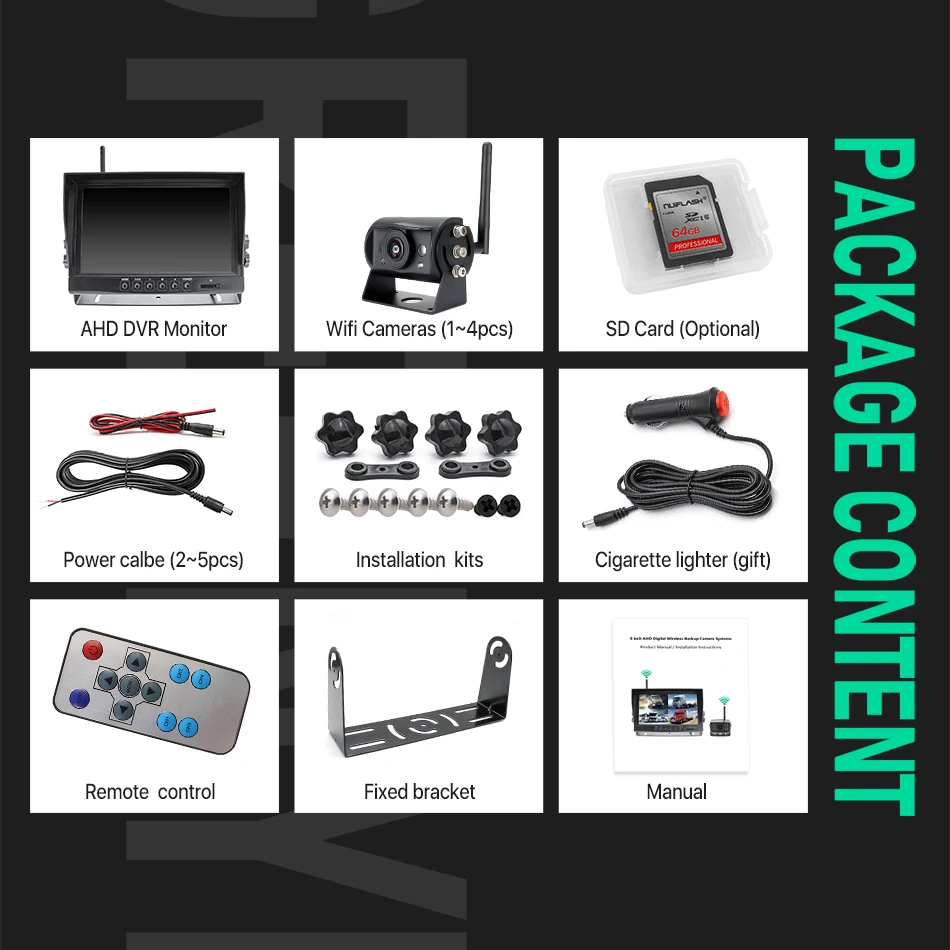

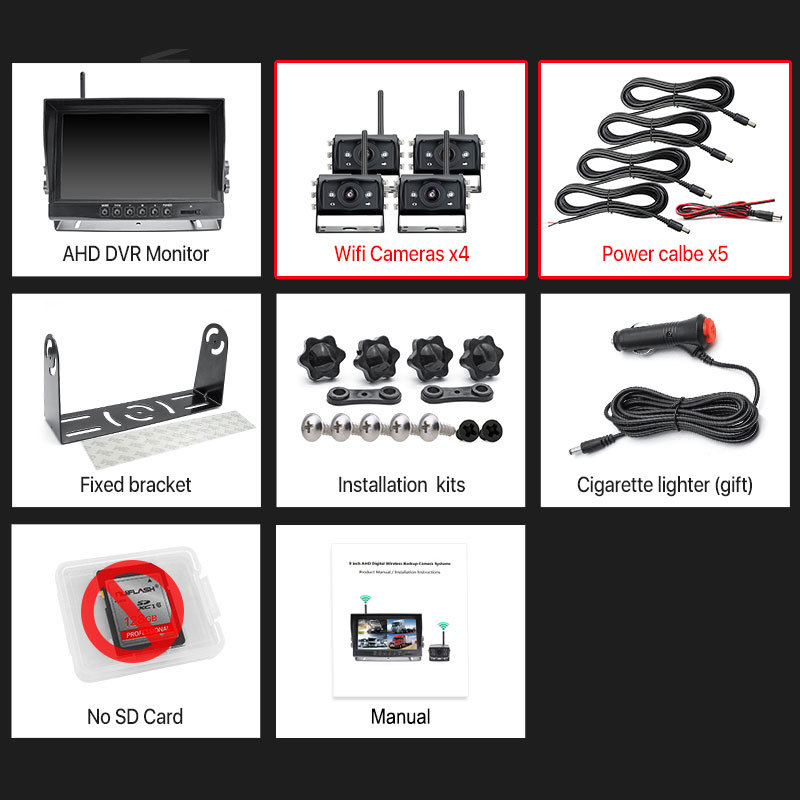

Package content:

Wireless DVR Monitor
Wireless Cameras ( 1~4pcs, Optional )
SD Card ( Optional )
Power cable
Installation kits
Cigarette lighter
Remote control
Fixed bracket
