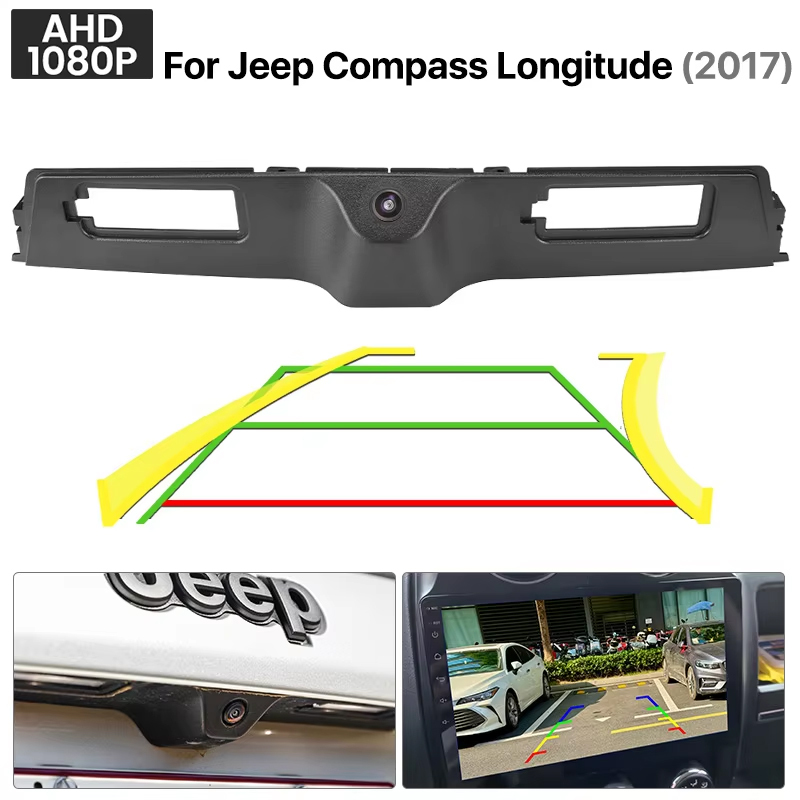

Name: 1080P AHD 170 Degree Rear View Camera for Jeep Compass 2017-2019 with Dynamic Trajectory Trunk Handle Fit with Android Units
Brand: GreenYi Vehicle Backup Cameras
SKU: F-LS8037
Price: 35.9 USD
Availability: InStock

SKU: F-LS8037

170° Wide Viewing Angle for Enhanced Visibility Equipped with a 170° viewing angle, this rear view camera provides an expansive field of view, improving visibility during reversing and parking maneuvers for better safety and control.
1080P AHD Resolution for Clear Imaging Delivering 1080P AHD video quality, this camera ensures sharp, detailed images with excellent clarity, making it ideal for precise navigation and obstacle detection.Dynamic Trajectory Line for Easy

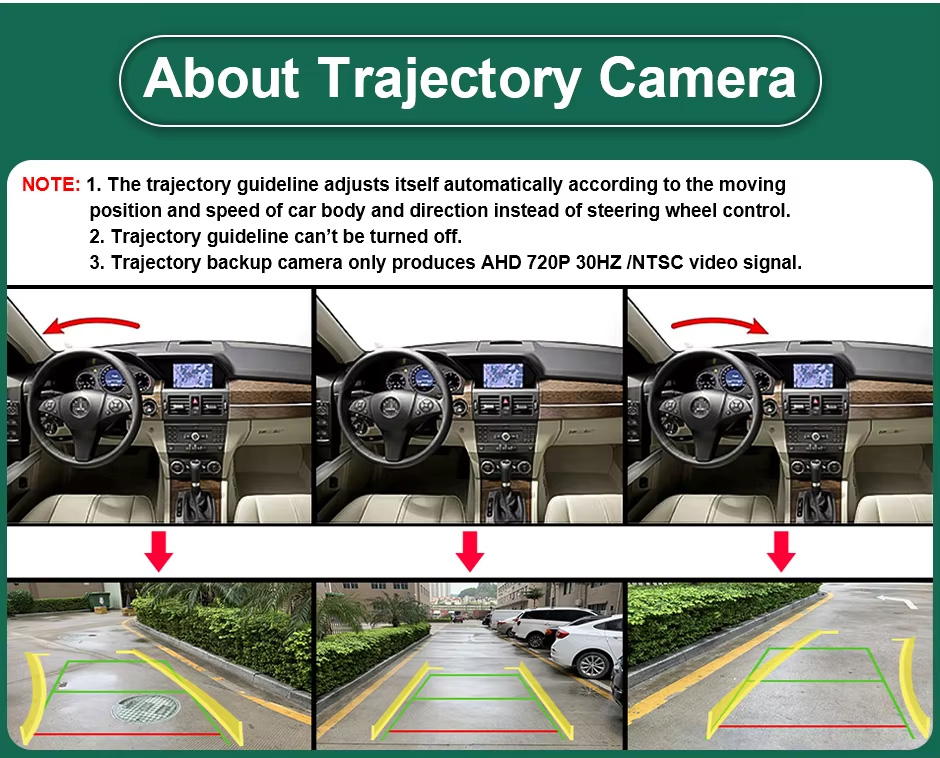

Parking Features a dynamic trajectory line that automatically adjusts with steering input, helping drivers visualize the vehicle’s path and park with greater accuracy and confidence.

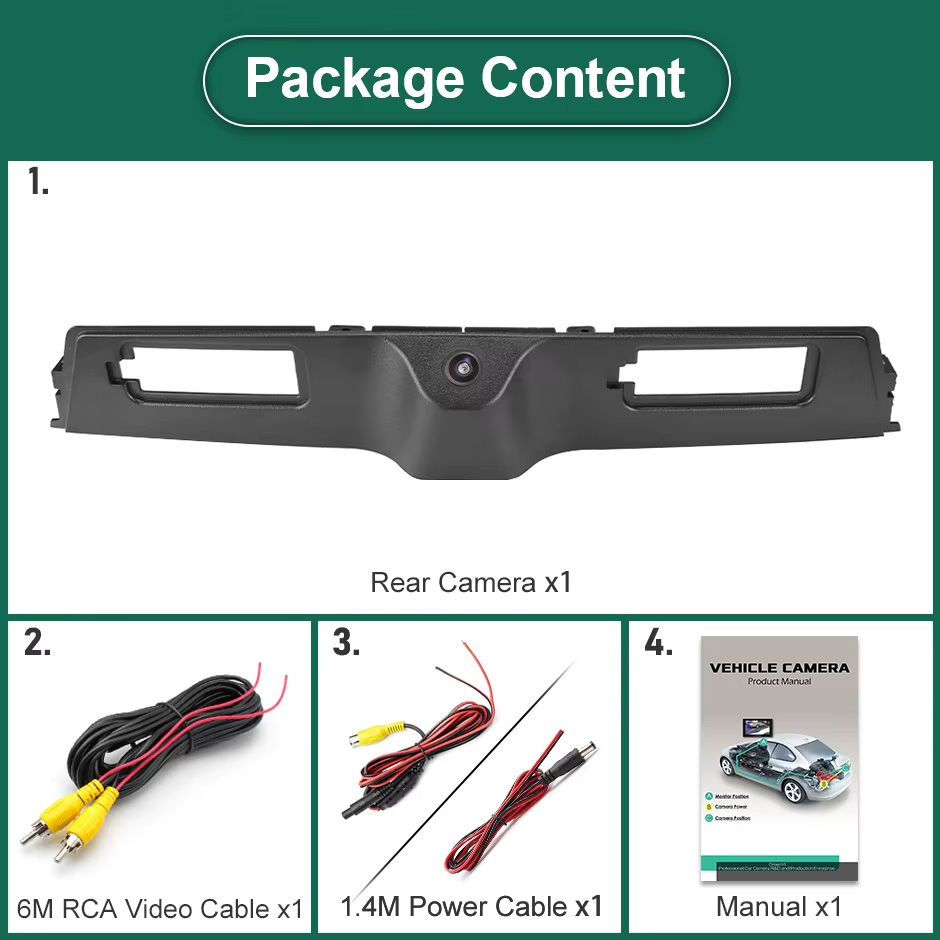

Wireless Connection with 6M Video Cable Designed with a 6M video cable and Wireless functionality, this camera offers flexible installation and reliable signal transmission to compatible Android units.

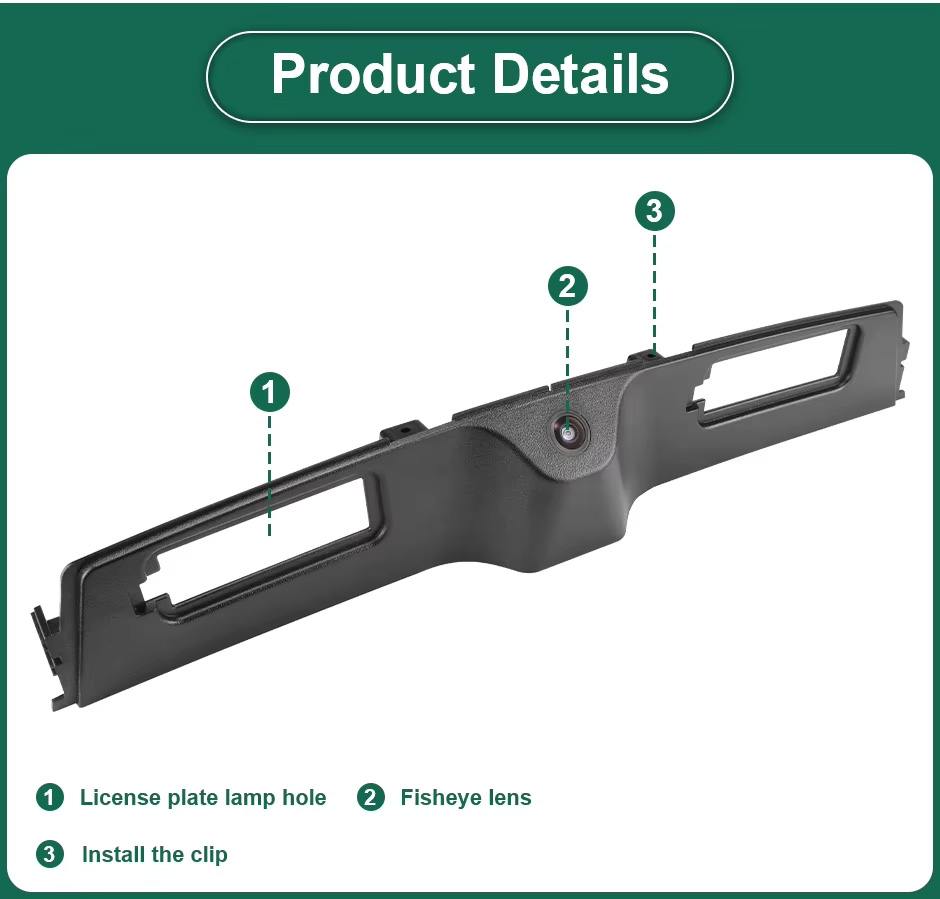

Universal Fit for Jeep Compass 2017–2019 Specifically designed for Jeep Compass 2017–2019, this camera fits the trunk handle and integrates seamlessly with existing vehicle systems and Android-based display units.

0.0 (0 Reviews)

0 Sold

~~$39.90~~ $35.90

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

0 in stock

Add to Favorites (0)

1/1

Description
Warranty & Shipping
About TAX

AHD 1080P Trajectory Vehicle Trunk Handle Rear View Camera For Jeep Compass 2017-2019

* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.

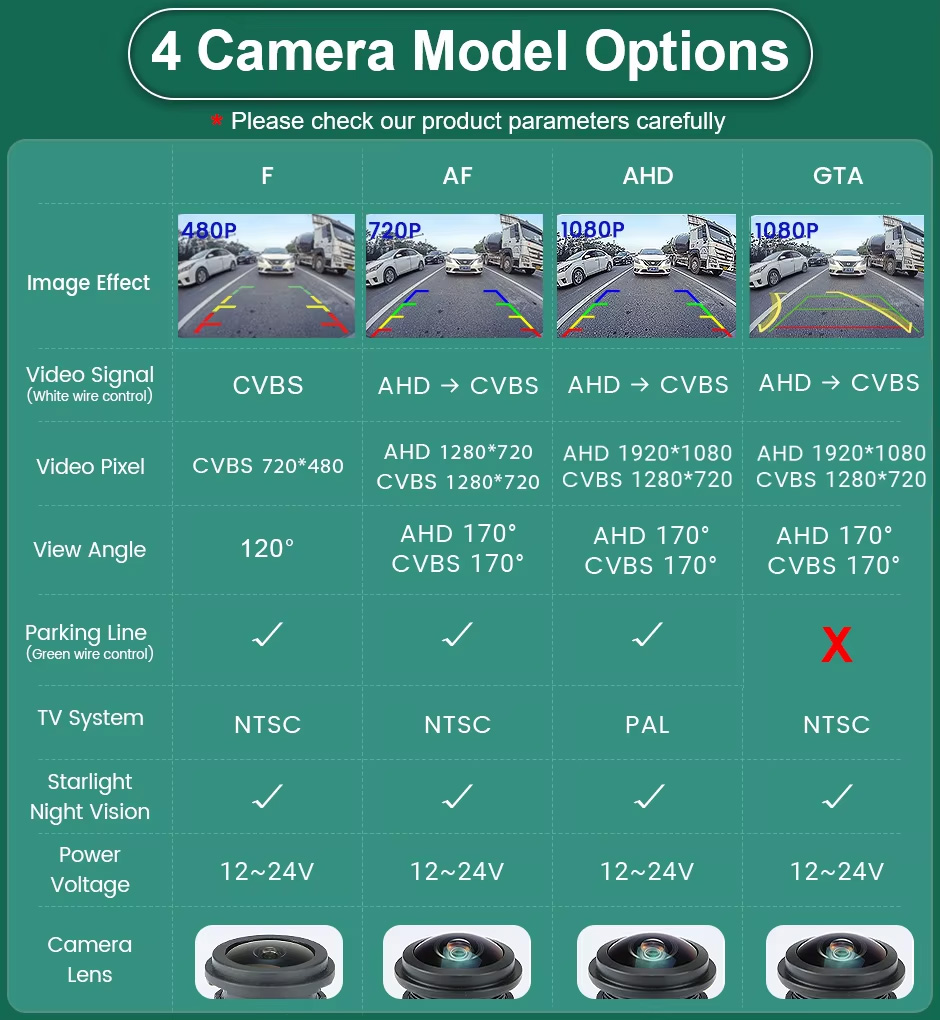

* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Chip: HD Sony/OV2053HD
* Viewing Angle: 170~175 Degrees Visible Range .
* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)
* Signal Format: NTSC or PAL
* Image Resolution: 92W/200W pixels
* Video Output: AHD Video Signal or CVBS Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens: 14/16MM Fisheye 6 glass Lens .
* Waterproof: IP68 /IP69
* Working Power Supply: DC 12V~24V, 2A
* Working Temperature: -30 °C ~ +70°C
* Maximum Power: 3W
Tips:

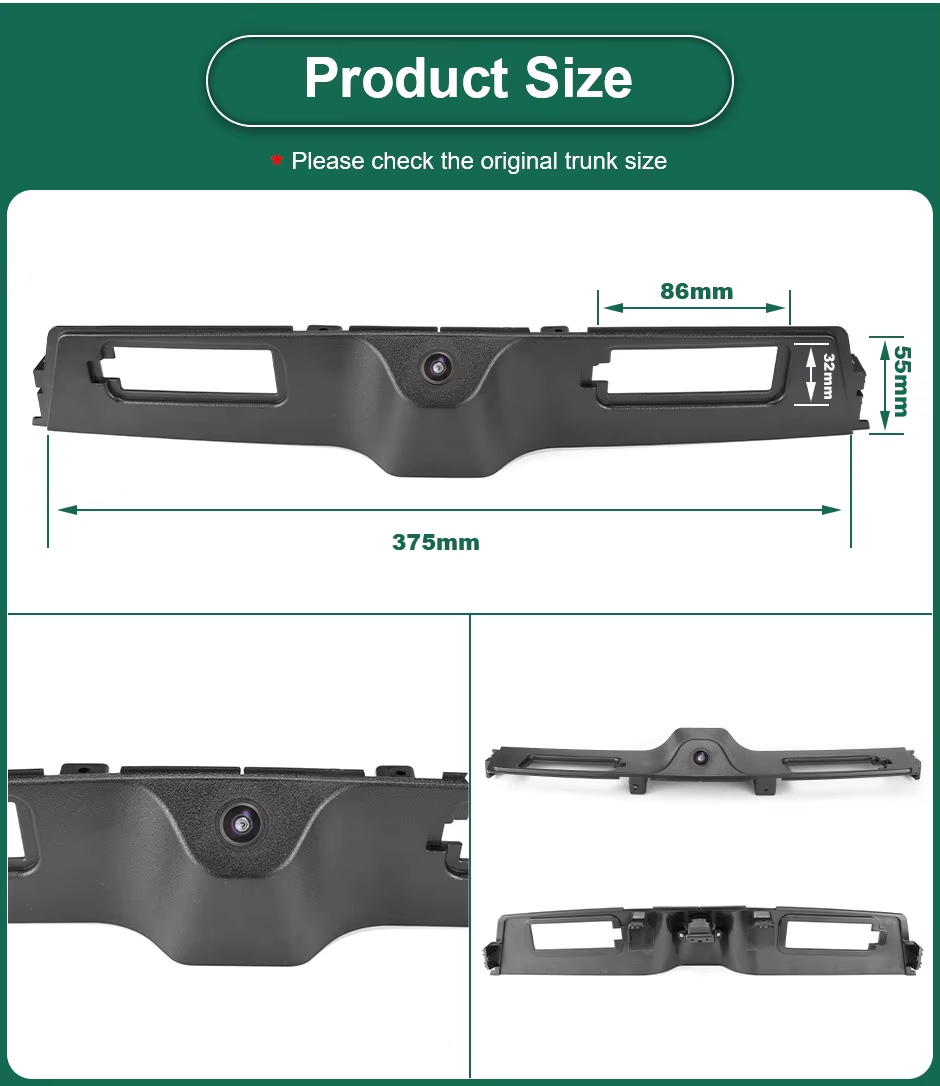

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

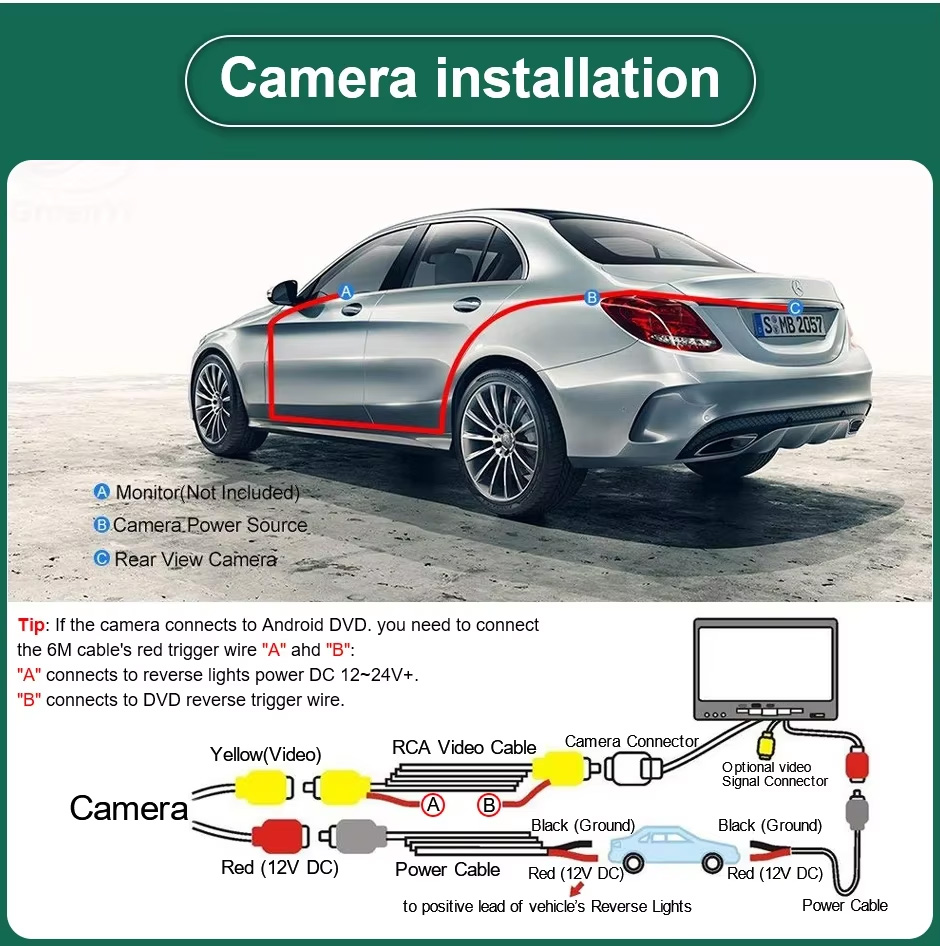

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
