AHD Monitor
Video Signal: AHD
IPS Screen: Support
Screen Brightness: 500CD / M2
Contrast: 300:1
Power Voltage: 12V-30V
Screen Size: 4.3~7Inch Display Optional
Power Consumption: <=6W
Support AHD camera and CVBS camera.
Night vision image: automatic gain control, automatic white balance, automatic back light compensation.
Recommend using our AHD camera, the display effect is very good, just like the effect of video demonstration.

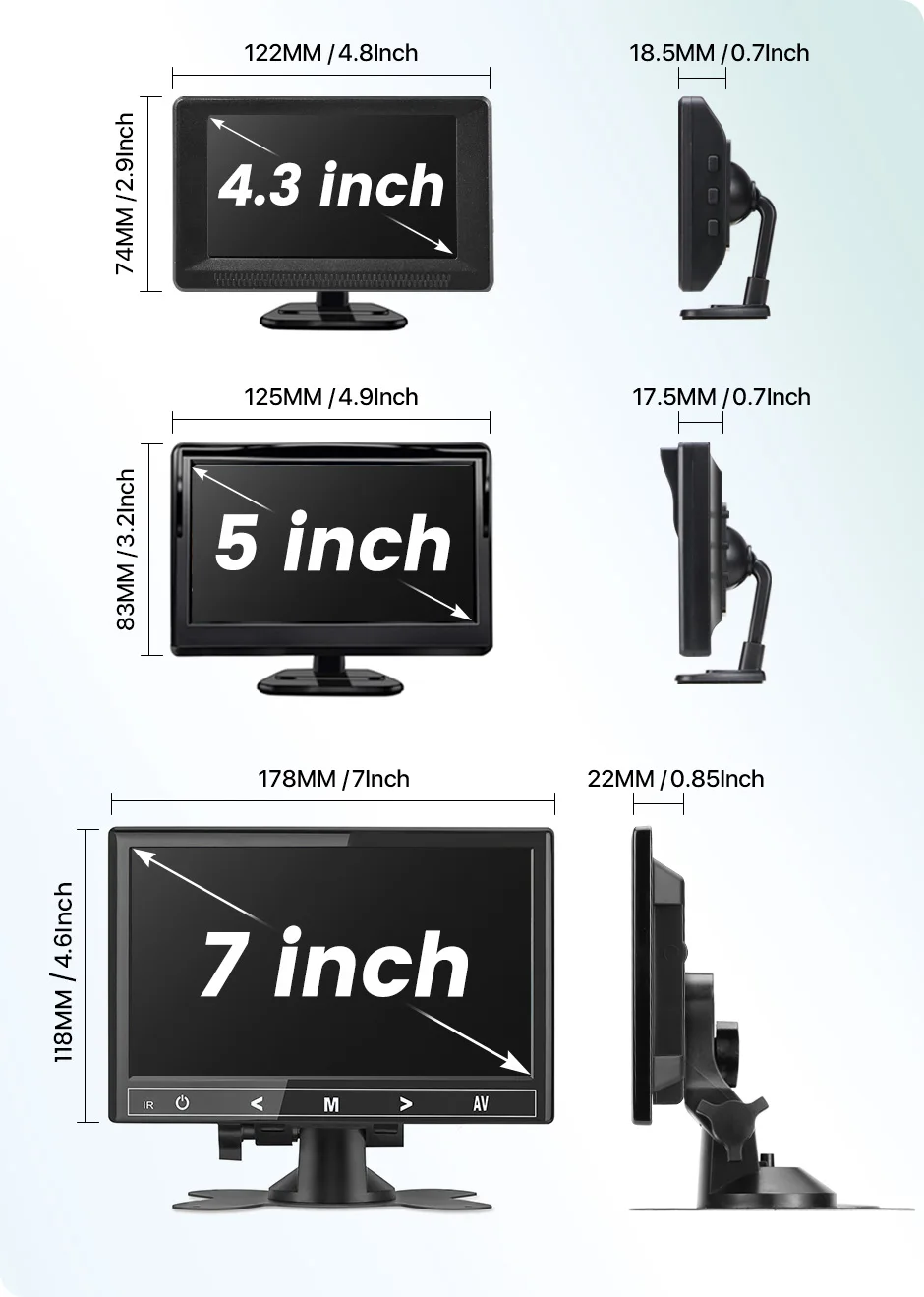

3 Sizes Available
4.3 inch:
5 inch:
7 inch:
AHD (Analog High Definition
Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
Advantages of IPS display panels:
• Wider viewing angles
• Faster response times
• Better color/contrast than many VA and TN panels
• Outstanding color accuracy and screen consistency
Support DIY Guide Line
Support Mirror Function
3 AHD Cameras Optional
AHD Camera Features
* Chips components : AHD Chips
* Viewing angle: Real 170 Degrees Visible Range.
* Effective pixels : 1920*1080P
* Signal format: PAL / NTSC
* Image resolution: 200W pixels
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W
【Plug and Play】Wiring Diagram
Two Kinds of Installation methods:
① Cigarette lighter: First connect the camera and monitor through the 4-pin video power cable made of 3.0MM pure copper that comes with the camera. Then plug the reverse camera system into the cigarette lighter, manual switch, plug and play.
② Reverse trigger: Connect it to the reversing lights only as a reversing use, automatically triggering the reversing image when reversing. The cigarette lighter needs to be cut off as shown in the figure.
Just choose one of the wiring methods to install.
Easy Installation
Plug and play, compared with other conventional systems, our products use an integrated power cord, you don't need to power the monitor and camera separately, making it easier for you to use.
